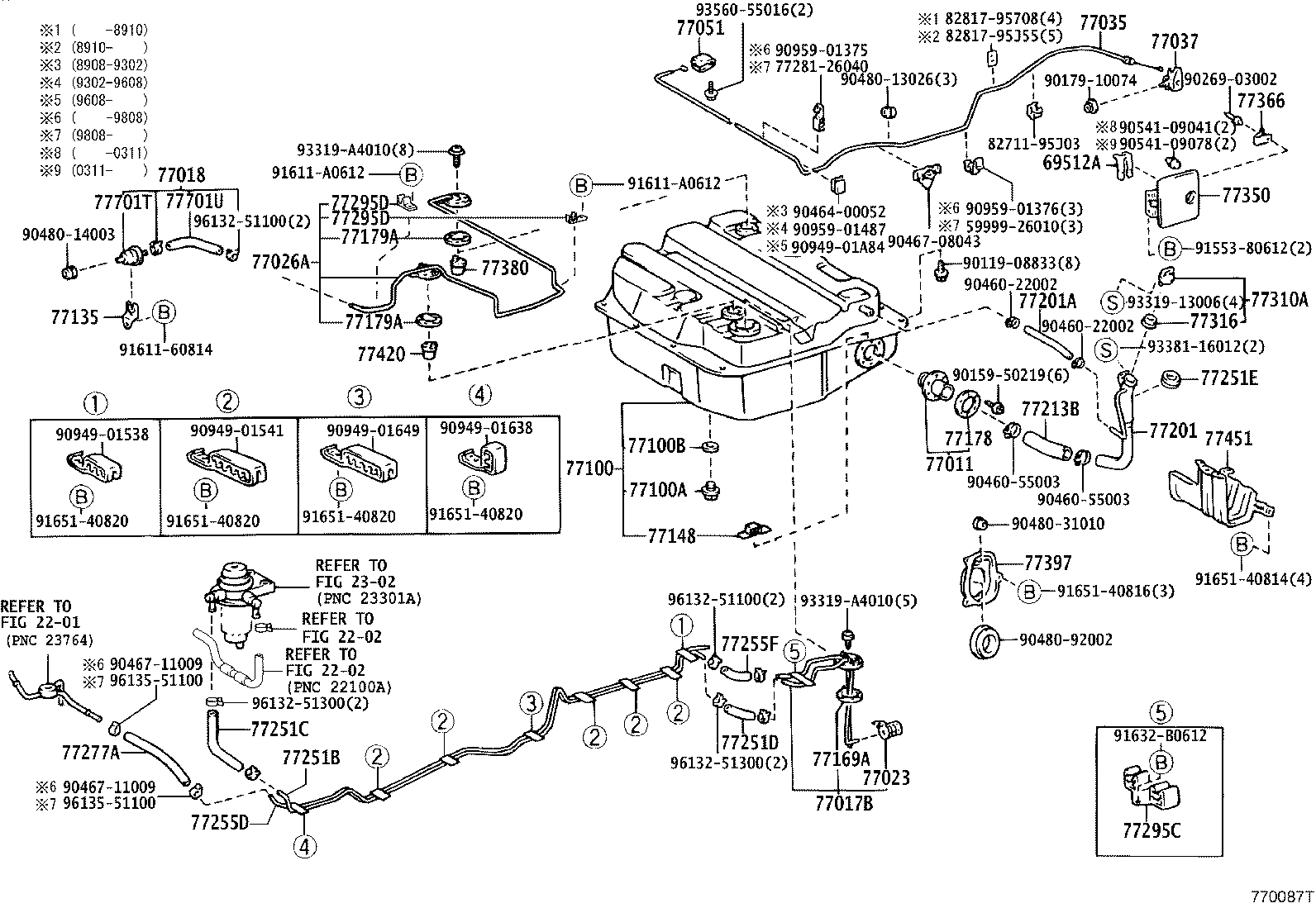

Toyota Hiace/regiusace LH119 FUEL TANK & TUBE

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-26130	KZH10#,11#,12#,LH10#,11#,12#,140..COM,V1,WG	08/1989 - 04/1995	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-26160	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#..COM,V1,WG	08/1989 - 07/1999	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32010	RZH112..V2..CBR;KZH10#,11#,12#,13#,LH10#,11#,12#,140	08/1989 - 08/1998	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26040	KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 04/1995	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-95J08	KZH11#,LH11#,RZH11#	08/1989 - 08/1996	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-32010	LH113,119,RZH112;KZH10#,11#,12#,13#,LH10#,110,115,117,12#,140,RZH10#,110,111,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL,SW	08/1989 - 08/1996	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-95J01C0	KZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(CTM,DX,GL,SGL) BLACK,TRIM1#	08/1993 - 08/1995	1
77051-95J01C0	KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..COM,V1,WG BLACK,TRIM1#	08/1995 - 08/1996	1
77051-95J0103	LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1#	08/1989 - 08/1993	1
77100 - TANK ASSY, FUEL
77001-26470	LH10#,11#,12#,140..COM,V1,WG	08/1989 - 08/1991	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77135 - BRACKET, CHECK VALVE
77135-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZH112..V2..CBR;KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 08/1996	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26141	LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	05/1992 - 09/1992	1
77201-26140	LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 05/1992	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95311-13032	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG 長さ=320	08/1989 - 07/1999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26080	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77251B - TUBE, FUEL MAIN
77251-26560	LH11#,17#..COM,V1,WG	08/1989 - 07/1999	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08030	LH10#,11#,12#,140 *H,L=240,内径=7.6	08/1989 - 08/1993	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# *H,L=190,内径=7.6	08/1989 - 07/1999	1
77251E - SHIELD, FUEL TANK INLET PIPE
77251-10010	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 05/1992	1
77255D - TUBE, FUEL RETURN
77255-26340	LH11#,17#..COM,V1,WG	08/1989 - 07/1999	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020	RZH10#,11#,12#..COM,V1,WG *H,L=190	08/1989 - 08/1993	1
95333-06020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#..COM,V1,WG *H,L=190	08/1989 - 07/1999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12118	LH10#,11#,12#,140 長さ=300	08/1989 - 08/1993	1
95332-06030	KZH10#,11#,12# *H,L=300	08/1993 - 11/1993	1
77310A - CAP ASSY, FUEL TANK
77310-16011	RZH10#,11#,12#	05/1992 - 08/1995	1
77310-35061	LH10#,11#,12#,140	08/1989 - 05/1992	1
77310-32011	KZH10#,11#,12#,LH10#,11#,12#,140	05/1992 - 08/1995	1
77310-12100	RZH10#,11#,12#	08/1989 - 05/1992	1
77316 - GASKET, FUEL TANK CAP
77316-12050	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 05/1992	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-95J01	LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S	08/1989 - 05/1992	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-95J01	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133	08/1989 - 08/1996	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 05/1992	1
77380-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133	05/1992 - 08/1996	1
77397 - PLATE, FUEL INLET PIPE SEAL
77397-95J01	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77451 - PROTECTOR, FUEL INLET HOSE
77451-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069	LH10#,11#,12#,140	08/1989 - 01/1991	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#..COM,V1,WG *H,L=240	08/1989 - 07/1999	1
Common parts
59999-26010
77281-26040
82711-95J03
82817-95708
82817-95J55
90119-08833
90159-50219
90179-10074
90269-03002
90460-22002
90460-55003
90464-00052
90467-08043
90467-11009
90480-13026
90480-14003
90480-31010
90480-92002
90541-09041
90541-09078
90949-01538
90949-01541
90949-01638
90949-01649
90949-01A84
90959-01375
90959-01376
90959-01487
91553-80612
91611-60814
91611-A0612
91632-B0612
91651-40814
91651-40816
91651-40820
93319-13006
93319-A4010
93381-16012
93560-55016
96132-51100
96132-51300
96135-51100
Linked diagrams
2201
2202
2302

LH119V-SRMNS (1989)

(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#..COM,V1,WG
