LH119V-SRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)

Click highlighted areas on diagram

diagram 55539A 55539J 55539K 55547B 55604A 58808 58811B 58811D 58825A 58834A 58836B 58837A 58839A 58849A 58856A 58856C 58878 58901A 58902B 58903B 58905 58907 58910C 58919B 58921A 58923A 58941A 58953B 58959B 58959B 58959B 58959C 58964 58965A 58968C 58969A 58976 58991 58995A 7456 7456 8414 9017604015 9017910073 9017910073 9018304006 9018304027 9018905016 9018905016 9018905126 9026903049 9038610027 9331914008 9356054014 9356055014 9356055014 9356055014 9356754512 9356754512 9356755012 9356755012 9356755012 9356755016 9356815012 9356815012 9616000500
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58811B - BOX, CONSOLE
58811-95J0403

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J04B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

ｼ-ﾄﾊﾞﾂｸ ﾀｲﾌﾟ,BLUISH GRAY,TRIM1#

 1
58825A - POCKET, CONSOLE BOX
58825-95J00

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,05S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,05S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,05S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-32030

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58919-95J01B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-95J0203

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
58904-95J0203

LH109..5D;LH109,RZH122..4D..06S..DX;LH100,102,107,110,113,119,123,129,140,RZH10#,112..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
58904-95J02B0

LH10#,11#,123,129,RZH102,112

BLUISH GRAY,TRIM1#

 1
58959C - CUSHION, CONSOLE COMPARTMENT DOOR
58959-26010

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER
58968-32020

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-95J03

LH10#,11#,12#,140,RZH10#,11#,12#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95J02

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90176-04015
90179-10073
90183-04006
90183-04027
90189-05016
90189-05126
90269-03049
90386-10027
93319-14008
93560-54014
93560-55014
93567-54512
93567-55012
93567-55016
93568-15012
96160-00500
Linked diagrams
7456
8414

(9308- )

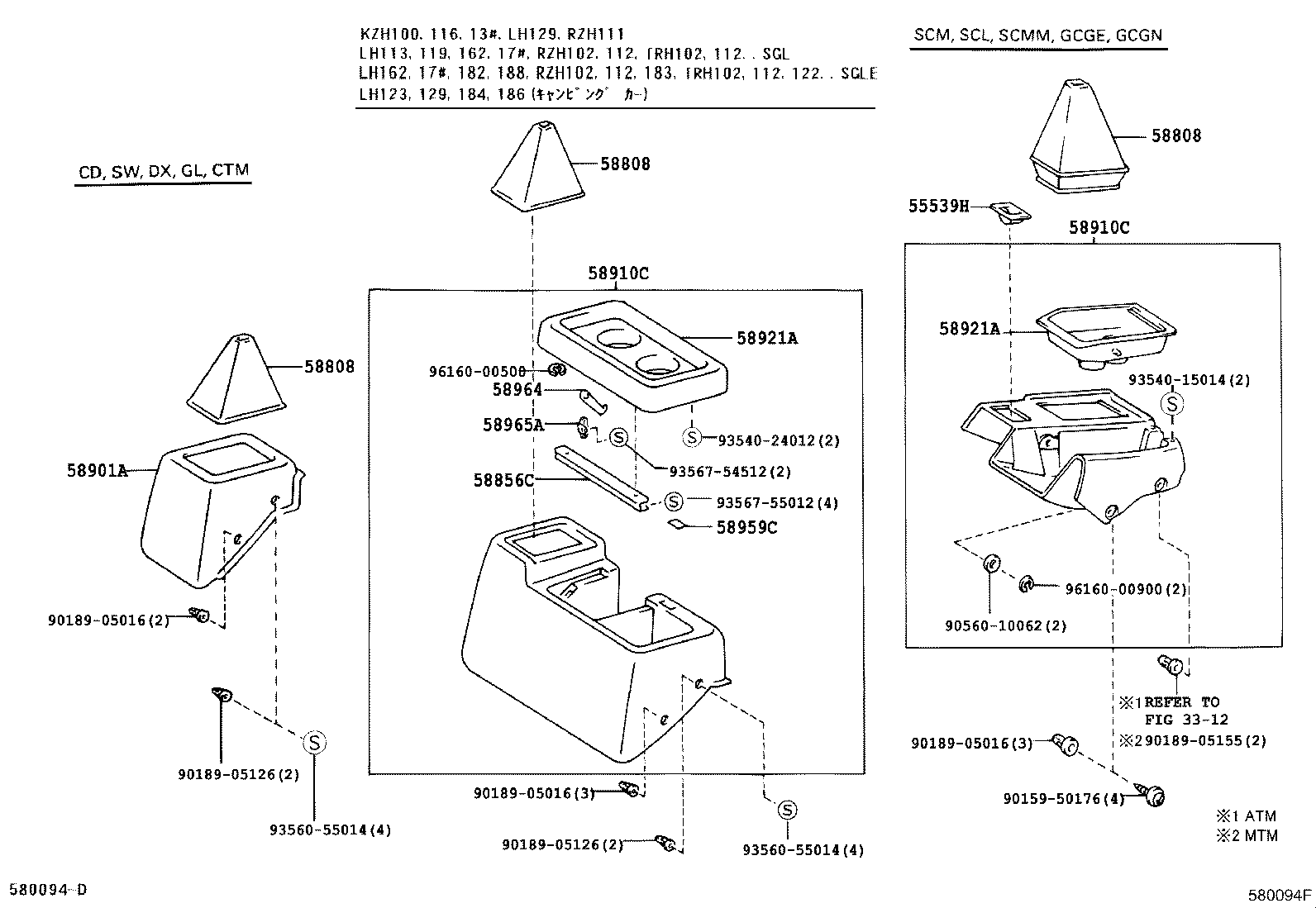

Click highlighted areas on diagram

ｼﾌﾄ ｺﾝｿ-ﾙ

diagram 3312 55539H 58808 58808 58808 58856C 58901A 58910C 58910C 58921A 58921A 58959C 58964 58965A 9015950176 9018905016 9018905016 9018905016 9018905126 9018905126 9018905155 9056010062 9354015014 9354024012 9356055014 9356055014 9356754512 9356755012 9616000500 9616000900
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58840-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J0403

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,05S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..(03S,05S,06S,09S)..5F

GRAY,TRIM1#

 1
58911-95J04B0

KZH10#,LH10#,11#,123,RZH100,102,112..(03S,05S,06S,09S)..5F

BLUISH GRAY,TRIM1#

 1
58959C - CUSHION, CONSOLE COMPARTMENT DOOR
58959-26010

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
Common parts
90159-50176
90189-05016
90189-05126
90189-05155
90560-10062
93540-15014
93540-24012
93560-55014
93567-54512
93567-55012
96160-00500
96160-00900
Linked diagrams
3312

(8908- )

Click highlighted areas on diagram

ｼ-ﾄﾊﾞﾂｸ ﾀｲﾌﾟ

diagram 58811B 58833A 58841A 58908A 58919B 58961A 9017904017 9054103006 9324954012 9354054010 9354054010 9354054020 9354054025 9356054012
Part # Description Qty Price
58811B - BOX, CONSOLE
58811-95J0403

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J04B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

ｼ-ﾄﾊﾞﾂｸ ﾀｲﾌﾟ,BLUISH GRAY,TRIM1#

 1
58833A - COVER, CONSOLE, UPPER
58833-95J0003

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58833-95J00B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58833-95J0003

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58841A - COVER, SHIFTING HOLE
58841-95J0703

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 4
58841-95J0703

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 4
58841-95J07B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 4
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LH119..05S,06S,09S;KZH10#,LH10#,113,123,125,RZH100,102,112,124..CD,CTM,DX,GL

 1
58908-12010

LH100,102,109,110,113,115,119,123,125,140,RZH100,102,112,12#..03S,06S,09S,15S

 1
58908-12010

LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S

 1
58919B - PLATE, CONSOLE BOX
58919-32030

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58919-95J01B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-95J0203

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58961-95J02B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58961-95J0203

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
Common parts
90179-04017
90541-03006
93249-54012
93540-54010
93540-54020
93540-54025
93560-54012

(9508- )

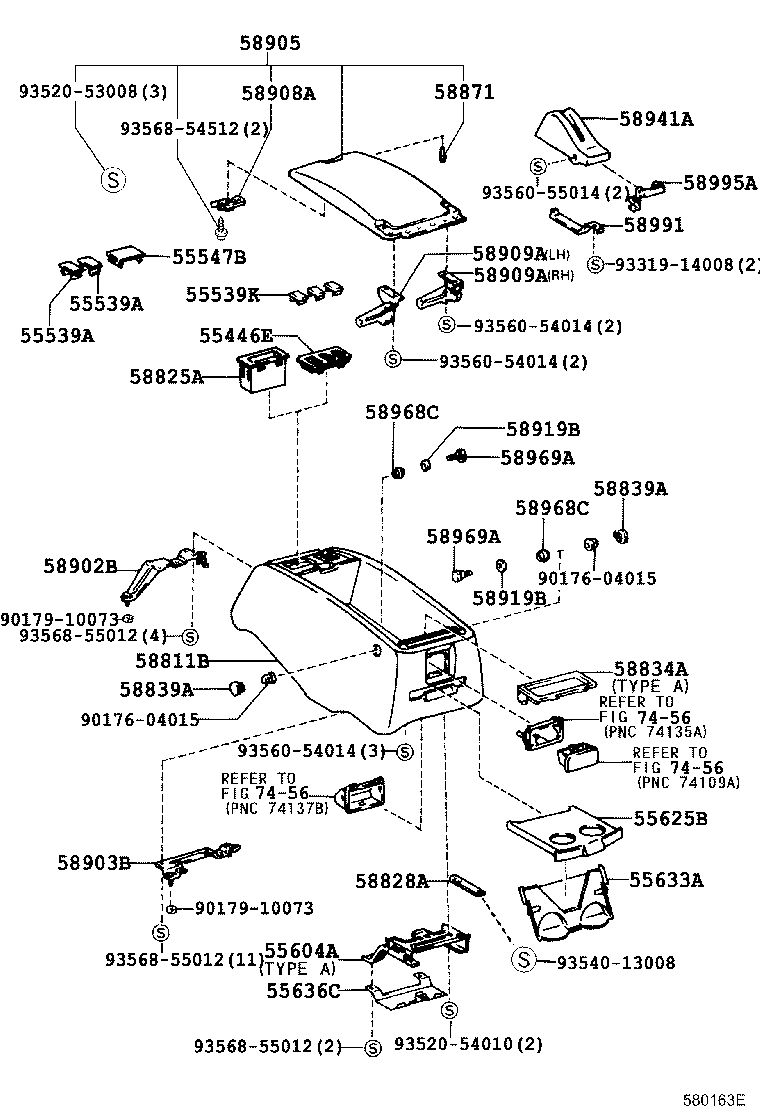

Click highlighted areas on diagram

ｾﾝﾀ-ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ (TYPE A)

diagram 55446E 55539A 55539A 55539K 55547B 55604A 55625B 55633A 55636C 58811B 58825A 58828A 58834A 58839A 58839A 58871 58902B 58903B 58905 58908A 58909A 58909A 58919B 58919B 58941A 58968C 58968C 58969A 58969A 58991 58995A 7456 7456 7456 9017604015 9017604015 9017910073 9017910073 9331914008 9352053008 9352054010 9354013008 9356054014 9356054014 9356054014 9356055014 9356854512 9356855012 9356855012 9356855012
Part # Description Qty Price
58811B - BOX, CONSOLE
58811-95J0403

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J0403

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58811-95J04B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

ｼ-ﾄﾊﾞﾂｸ ﾀｲﾌﾟ,BLUISH GRAY,TRIM1#

 1
58825A - POCKET, CONSOLE BOX
58825-95J00

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LH119..05S,06S,09S;KZH10#,LH10#,113,123,125,RZH100,102,112,124..CD,CTM,DX,GL

 1
58908-12010

LH100,102,109,110,113,115,119,123,125,140,RZH100,102,112,12#..03S,06S,09S,15S

 1
58908-12010

LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S

 1
58919B - PLATE, CONSOLE BOX
58919-32030

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58919-95J01B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-32030

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58919-95J01B0

LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)

BLUISH GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58919-95J0103

LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S

GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-95J0203

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
58904-95J0203

LH109..5D;LH109,RZH122..4D..06S..DX;LH100,102,107,110,113,119,123,129,140,RZH10#,112..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
58904-95J02B0

LH10#,11#,123,129,RZH102,112

BLUISH GRAY,TRIM1#

 1
58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER
58968-32020

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER
58968-32020

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

KZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

 2
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-95J03

LH10#,11#,12#,140,RZH10#,11#,12#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95J02

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90176-04015
90179-10073
93319-14008
93520-53008
93520-54010
93540-13008
93560-54014
93560-55014
93568-54512
93568-55012
Linked diagrams
7456
