LH119V-SRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

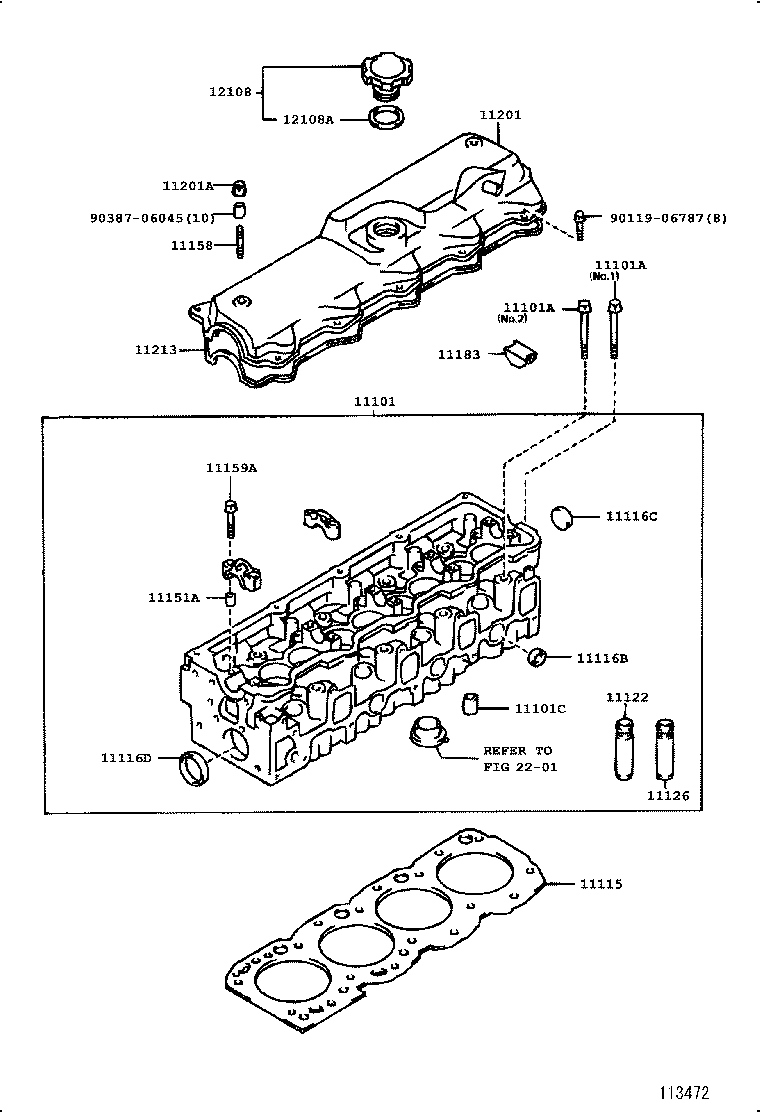

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11213 12108 12108A 2201 9011906787 9038706045
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54130

3L..LH107,109,113,115,117,119,123,125,129

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

NO.1

 14
90910-02081

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

NO.2

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

NO.1

 14
90910-02081

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

NO.2

 4
11101C - TUBE(FOR CYLINDER HEAD)
90440-15003

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
11115 - GASKET, CYLINDER HEAD
11115-54070D0

3L..LH107,109,113,115,117,119,123,125,129

MARK D,修理書参照

 1
11115-54071B0

3L..LH107,109,113,115,117,119,123,125,129

MARK B,修理書参照

 1
11115-54070F0

3L..LH107,109,113,115,117,119,123,125,129

MARK F,修理書参照

 1
11115-54071D0

3L..LH107,109,113,115,117,119,123,125,129

MARK D,修理書参照

 1
11115-54070B0

3L..LH107,109,113,115,117,119,123,125,129

MARK B,修理書参照

 1
11115-54072B0

3L..LH103,107,109,113,115,117,119,123,125,129

MARK B,修理書参照

 1
11115-54071F0

3L..LH107,109,113,115,117,119,123,125,129

MARK F,修理書参照

 1
11115-54072D0

3L..LH103,107,109,113,115,117,119,123,125,129

MARK D,修理書参照

 1
11115-54072F0

3L..LH103,107,109,113,115,117,119,123,125,129

MARK F,修理書参照

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

2L,2LT#,3L..LH10#,11#,12#,140

 7
96411-62500

2L#,3L..LH10#,11#,12#,140

 7
11116C - PLUG, TIGHT, NO.3
96411-43000

2L,2LT#,3L..LH10#,11#,12#,140

 1
96411-63000

2L#,3L..LH10#,11#,12#,140

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

2L,2LT#,3L..LH10#,11#,12#,140

 2
96411-64500

2L#,3L..LH10#,11#,12#,140

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

STD

 4
11123-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

O/S 0.05

 4
11122-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

2L,2LT#,3L..LH10#,11#,12#,140

長さ=8,外径=11

 10
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06089

2L,2LT,3L..LH10#,11#,12#,140

ﾈｼﾞ部長さ=9 & 9,長さ=26

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08166

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 10
11183 - PLUG, SEMICIRCULAR
11183-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-54041

2L,3L..LH10#,11#,123,125,129,140

 1
11210-54040

2L,3L..LH10#,11#,123,125,129,140

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06171

2L,2LT,3L..LH10#,11#,12#,140

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-54050

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
Common parts
90119-06787
90387-06045
Linked diagrams
2201
