LH119V-SRMDS (1989)
Toyota Hiace/Regiusace

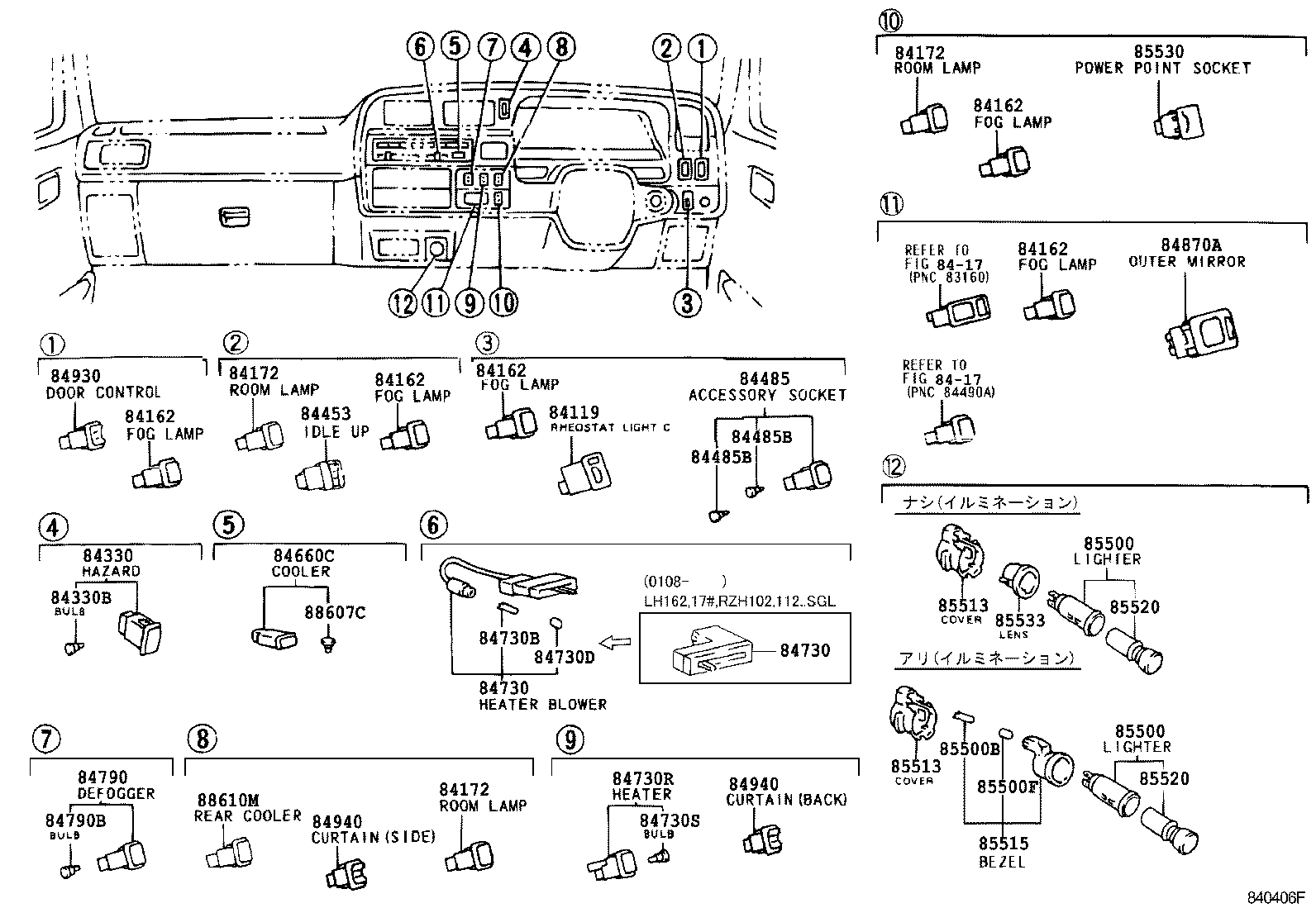

ILLUST NO. 2 OF 9(8908-9508)
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95J02 |
LH100,102,109,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 84332-26060 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 84332-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95J02 |
LH100,102,109,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 84332-26060 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 84332-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-35010 |
KZH10#,11#,12# |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-26030 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95J01 |
LH113,119..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,110,115,117,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84660-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-26010 |
LH107,109,117,119,129 |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 84999-10320 |
LH107,109,117,119,129 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
RZH101;LH10#,11#,12#,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84732-22130 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
RZH101;LH10#,11#,120,123,125,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S 14V 1.4W |
1 | ||
| 90981-11014 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84998-10050 |
RZH101;LH10#,11#,120,123,125,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
RZH112..V2;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S;LH100,107,113,RZH100,101..(V2,WG)..4D..(06S,07S,08S) 14V 0.91W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95J01 |
LH184,186,RZH125..DX;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,182,188,RZH102,112,122,124..03S,05S,06S,08S,09S,15S |
1 | ||
| 84790-95J02 |
KZH10#,11#,13#,LH100,102,103,109,11#,12#,16#,17#,18#,RZH10#,11#,124,125,133..(CD,CTM,DX,GL,SGL)..(DSL,EFI,TD,TDE) ｱﾘ(ﾀｲﾏ) & ﾅｼ(ｲﾙﾐﾈ-ｼﾖﾝ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
LH184,186,RZH125..DX;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,182,188,RZH102,112,122,124..03S,05S,06S,08S,09S,15S 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 85533-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 85533-30040 |
LH100,102,109,11#,123,125,129,RZH100,102,11#,12#..CD,DX |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 0.065A |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8420 | ||||

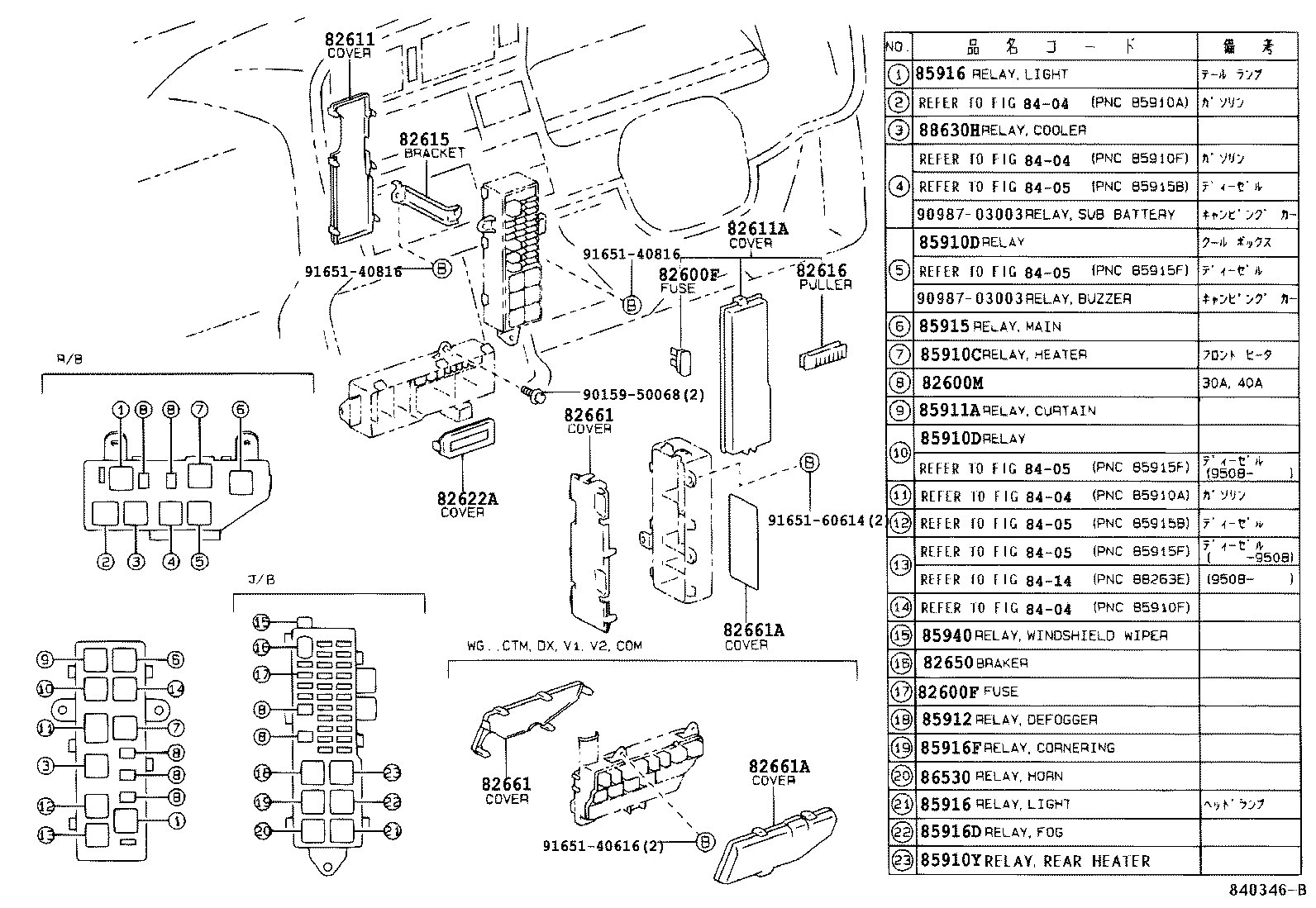

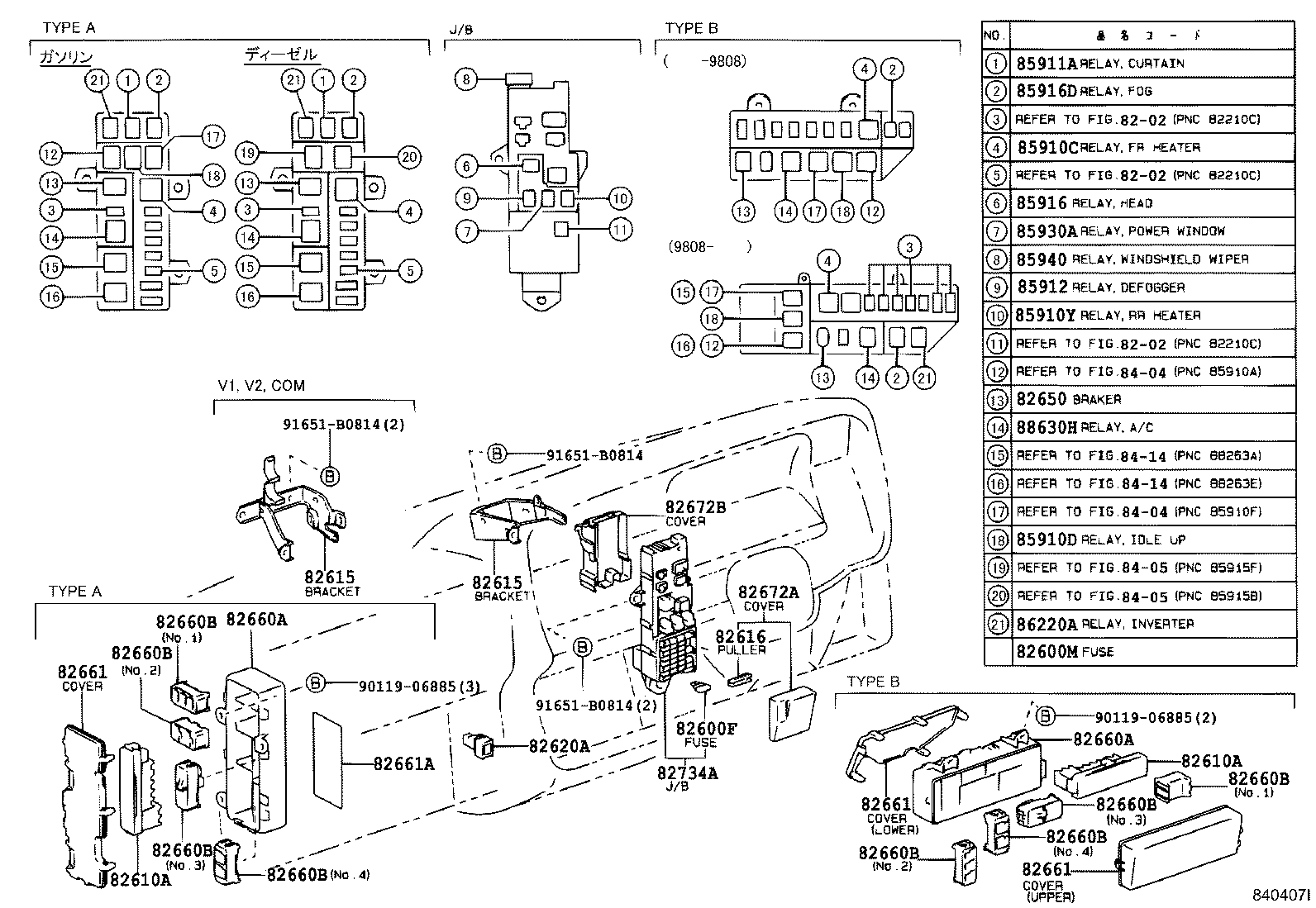

ILLUST NO. 4 OF 9(9308-9608)
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 7.5A |
1 | ||
| 90982-09003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 15A |
1 | ||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCMM,SGL) 7.5A |
1 | ||
| 90982-09007 |
KZH10#,11#,12#,13#,LH10#,11#,12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 7.5A |
1 | ||
| 90982-09003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 15A |
1 | ||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCMM,SGL) 7.5A |
1 | ||
| 90982-09007 |
KZH10#,11#,12#,13#,LH10#,11#,12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 40A,緑 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82611-95J00 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82611-26130 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-95J02 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 82611-26081 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 82611-26050 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 82611-26051 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 下側 |
1 | ||
| 82615-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# 上側 |
1 | ||
| 82615-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 82622A - COVER, FUSIBLE LINK, UPPER, NO.2 | ||||
| 82622-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-95J08 |
LH10#,11#,12# |
1 | ||
| 82661-26010 |
LH10#,11#,12#,140..DSL,TDE |
1 | ||
| 82661-26080 |
KZH10#,11#,13#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-95J09 |
RZH10#,11#,12# |
1 | ||
| 82661-26070 |
RZH10#,11#,124,133..CD,CTM,DX,GL |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-95J08 |
LH10#,11#,12# |
1 | ||
| 82661-26010 |
LH10#,11#,12#,140..DSL,TDE |
1 | ||
| 82661-26080 |
KZH10#,11#,13#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-95J09 |
RZH10#,11#,12# |
1 | ||
| 82661-26070 |
RZH10#,11#,124,133..CD,CTM,DX,GL |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 85915-26010 |
RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 85915-26010 |
RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02004 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
1 | ||
| 85915-26010 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02009 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02012 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GL,SW |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124..CD,DX,GL |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124,133..CD,DX,GL |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-04002 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH12#,RZH100,101,124 |
1 | ||
| 90987-04002 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 6 OF 9(8908- )
ﾌﾛﾝﾄ ﾄﾞｱ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54090 |
2L#,3L,1RZ#,2RZE..LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 28300-54090 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 28341-67010 |
1KZTE,3L,1RZE..KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28300-46010 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54520 |
2L,3L..LH102,109,113,115,119,123,125,129 |
1 | ||
| 28521-54430 |
2L,3L..LH102,103,109,113,115,119,123,125,129 |
1 | ||
| 28521-54360 |
2L,3L..LH102,109,113,115,119,123,125,129 |
1 | ||
| 28521-54600 |
3L..LH10#,11#,12# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54520 |
2L,3L..LH102,109,113,115,119,123,125,129 |
1 | ||
| 28521-54430 |
2L,3L..LH102,103,109,113,115,119,123,125,129 |
1 | ||
| 28521-54360 |
2L,3L..LH102,109,113,115,119,123,125,129 |
1 | ||
| 28521-54600 |
3L..LH10#,11#,12# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54200 |
3L..LH10#,11#,12# |
1 | ||
| 28529-54190 |
2L,3L..LH102,103,109,113,115,119,123,125,129 |
1 | ||
| 28529-54390 |
3L..LH10#,11#,12# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26320 |
KZH10#,11#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82620-26260 |
KZH10#,11#,LH10#,11#,12#..CD,CTM,DX,GL,SGL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-26020 |
KZH10#,11#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-26020 |
KZH10#,11#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82860 - BRACKET ASSY, COMPUTER INTEGRATION | ||||
| 82860-26010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 84231-26020 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
2 | ||
| 84231-95J01 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 84231-26080 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 84231-26020 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
2 | ||
| 84231-95J01 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 84231-26080 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-26010B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 84739B - RETAINER, SWITCH | ||||
| 84739-26020B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B3 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUEISH GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B3 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUEISH GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B3 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUEISH GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26040B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84820-26041B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26040B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84820-26041B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26040B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84820-26041B0 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-26010 |
KZH11#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側 |
1 | ||
| 84931-26010 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側 |
1 | ||
| 84931-26010 |
LH10#,11#,RZH102,112..CD,DX,GL;KZH10#,LH12#,RZH100,124..(HRF,SMRF)..(CTM,DX,GL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側 |
1 | ||
| Common parts | ||||
| 84819-26010 | ||||
| 84819-26020 | ||||
| 84819-26030 | ||||
| 90109-06296 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90153-60012 | ||||
| 90164-26001 | ||||
| 90164-30003 | ||||
| 90164-40100 | ||||
| 91651-60614 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93510-16012 | ||||
| 93540-16012 | ||||
| 93540-54014 | ||||
ILLUST NO. 1 OF 9(8908- )LH10#,11#,12#,140,16#,17#,18#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54340 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54340 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54080 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
RZH10#,11#,124,133 YAZAKI |
1 | ||
| 83530-14040 |
RZH10#,11#,12# |
1 | ||
| 83530-30100 |
KZH10#,11#,12#,13# |
1 | ||
| 83530-60010 |
KZH10#,11#,12#,13# YAZAKI |
1 | ||
| 83530-30060 |
LH10#,11#,12#,140 YAZAKI |
1 | ||
| 83530-28020 |
RZH10#,11#,124,133 DENSO |
1 | ||
| 83530-14060 |
RZH10#,11#,12# |
1 | ||
| 83530-60030 |
LH10#,11#,12# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-26010 |
LH107,109,117,119,129 |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-26010 |
LH107,109,117,119,129 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26050 |
LH109,119,129 |
1 | ||
| 89491-26081 |
LH107,109,117,119,129 |
1 | ||
| 89491-26061 |
RZH10#,11#,12#,133 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 90430-27001 |
LH109..5D;LH109..4D..DX;LH102,113,115,119,123,125,129 |
1 | ||
| 90430-27001 |
LH107,109,117,119,129 外径=34,内径=22.5 |
1 | ||
| 90430-27001 |
RZH10#,11#,12# |
1 | ||
| 90430-27001 |
KZH10#,11#,12# |
1 | ||
| 89493-60010 |
KZH10#,11#,12#,13# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| 89493-60010 |
LH103,11#,12# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-24120 | ||||
| 82711-26040 | ||||
| 82715-95J00 | ||||
| 90116-06095 | ||||
| 90119-06198 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 93319-13010 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

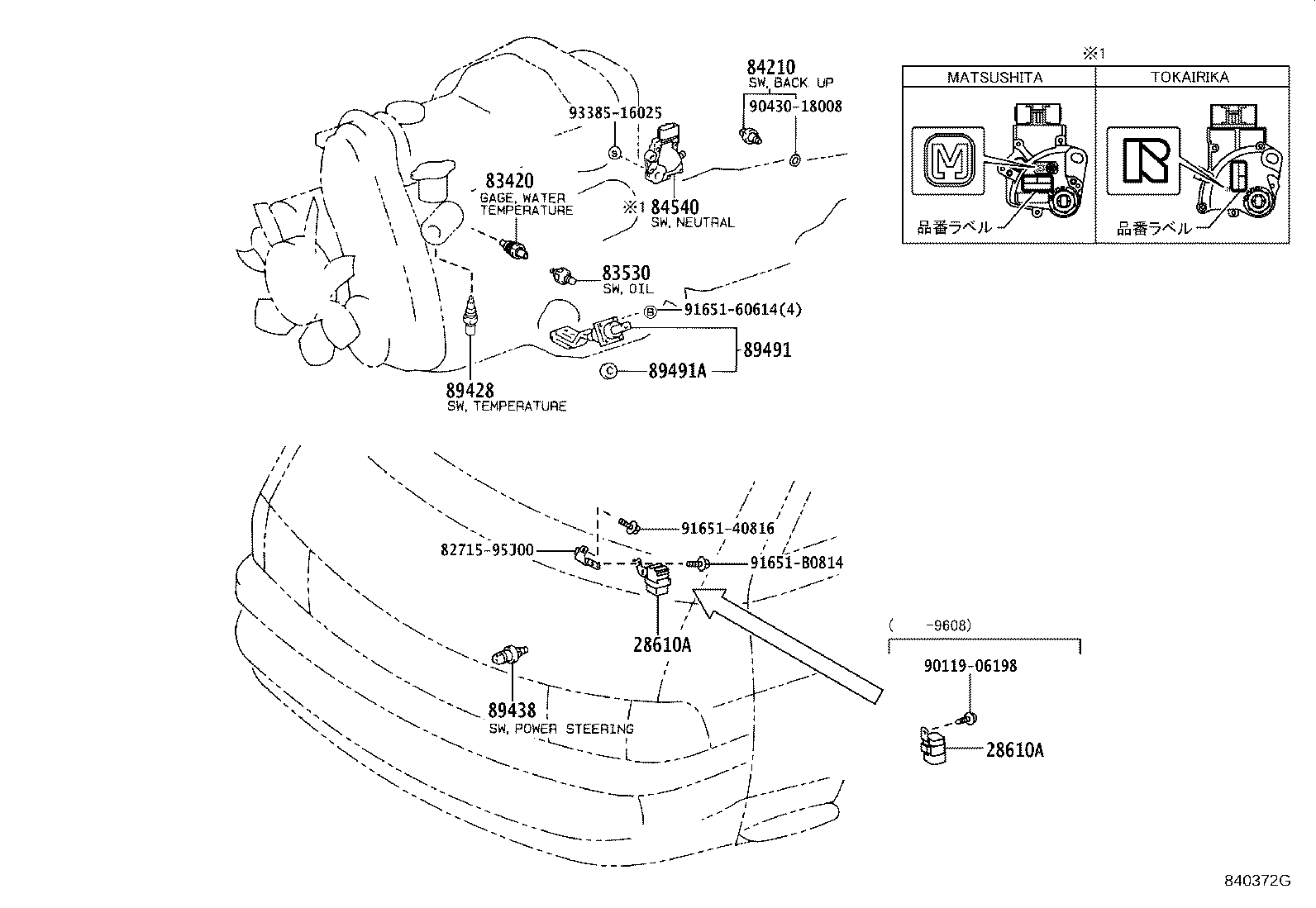

ILLUST NO. 1 OF 9(9308- )KZH10#,11#,12#,13#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54340 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54340 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
RZH10#,11#,124,133 YAZAKI |
1 | ||
| 83530-14040 |
RZH10#,11#,12# |
1 | ||
| 83530-30100 |
KZH10#,11#,12#,13# |
1 | ||
| 83530-60010 |
KZH10#,11#,12#,13# YAZAKI |
1 | ||
| 83530-30060 |
LH10#,11#,12#,140 YAZAKI |
1 | ||
| 83530-28020 |
RZH10#,11#,124,133 DENSO |
1 | ||
| 83530-14060 |
RZH10#,11#,12# |
1 | ||
| 83530-60030 |
LH10#,11#,12# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26050 |
LH109,119,129 |
1 | ||
| 89491-26081 |
LH107,109,117,119,129 |
1 | ||
| 89491-26061 |
RZH10#,11#,12#,133 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 90430-27001 |
LH109..5D;LH109..4D..DX;LH102,113,115,119,123,125,129 |
1 | ||
| 90430-27001 |
LH107,109,117,119,129 外径=34,内径=22.5 |
1 | ||
| 90430-27001 |
RZH10#,11#,12# |
1 | ||
| 90430-27001 |
KZH10#,11#,12# |
1 | ||
| 89493-60010 |
KZH10#,11#,12#,13# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| 89493-60010 |
LH103,11#,12# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| Common parts | ||||
| 82715-95J00 | ||||
| 90119-06198 | ||||
| 90430-18008 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 93385-16025 | ||||
ILLUST NO. 1 OF 9(8908- )RZH10#,11#,12#,133,18#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 83420-20020 |
LH10#,11#,12#,140 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
RZH10#,11#,124,133 YAZAKI |
1 | ||
| 83530-14040 |
RZH10#,11#,12# |
1 | ||
| 83530-30100 |
KZH10#,11#,12#,13# |
1 | ||
| 83530-60010 |
KZH10#,11#,12#,13# YAZAKI |
1 | ||
| 83530-30060 |
LH10#,11#,12#,140 YAZAKI |
1 | ||
| 83530-28020 |
RZH10#,11#,124,133 DENSO |
1 | ||
| 83530-14060 |
RZH10#,11#,12# |
1 | ||
| 83530-60030 |
LH10#,11#,12# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29535 |
RZH10#,11#,12# |
1 | ||
| 89425-29535 |
RZH101..07S,08S;RZH100,102,11#,12# |
1 | ||
| 89425-29665 |
RZH10#,11#,124,133 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29385 |
RZH100,102,11#,12# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29385 |
RZH100,102,11#,12# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZH100,102,11#,12# |
1 | ||
| 89466-20020 |
RZH100,102,11#,12# |
1 | ||
| 89466-20020 |
RZH10#,11#,12# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZH100,102,11#,12# |
1 | ||
| 89466-20020 |
RZH100,102,11#,12# |
1 | ||
| 89466-20020 |
RZH10#,11#,12# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26050 |
LH109,119,129 |
1 | ||
| 89491-26081 |
LH107,109,117,119,129 |
1 | ||
| 89491-26061 |
RZH10#,11#,12#,133 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 90430-27001 |
LH109..5D;LH109..4D..DX;LH102,113,115,119,123,125,129 |
1 | ||
| 90430-27001 |
LH107,109,117,119,129 外径=34,内径=22.5 |
1 | ||
| 90430-27001 |
RZH10#,11#,12# |
1 | ||
| 90430-27001 |
KZH10#,11#,12# |
1 | ||
| 89493-60010 |
KZH10#,11#,12#,13# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| 89493-60010 |
LH103,11#,12# 外径=32,内径=25 |
1 | ||
| 90430-27001 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 外径=34,内径=22.5 |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 82711-26171 | ||||
| 90119-08063 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-B0814 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 9(8908- )
ｶｳﾙ ﾘﾚ- & ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54090 |
2L#,3L,1RZ#,2RZE..LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 28300-54090 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 28341-67010 |
1KZTE,3L,1RZE..KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28300-46010 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54090 |
2L#,3L,1RZ#,2RZE..LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 28300-54090 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 28341-67010 |
1KZTE,3L,1RZE..KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 28300-46010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28300-46010 |
1 | ||
| 28317 - BRACKET, STARTER RELAY | ||||
| 28317-67010 |
1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH10#,11#,12#,140 |
1 | ||
| 83390-12340 |
KZH10#,11#,12#,13#,LH10#,11#,12# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-26010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 84340-22072 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-26010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 84340-22072 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING | ||||
| 84461-26040 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-26010 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-26020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85940-95J03 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 85969-26020 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 85969-26010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95J04 |
KZH11#,LH10#,11#,RZH102,11#;KZH10#,12#,13#,LH12#,RZH100,101,124,133..(HRF,MRF,SMRF)..(03S,06S,08S,09S,10S,15S) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95J04 |
KZH11#,LH10#,11#,RZH102,11#;KZH10#,12#,13#,LH12#,RZH100,101,124,133..(HRF,MRF,SMRF)..(03S,06S,08S,09S,10S,15S) |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-95J13 |
RZH100,101..SCL;LH10#,11#,123,125,129..DSL |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 91656-40814 | ||||
| 93385-16012 | ||||
| 93567-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 7 OF 9(8908- )
ﾌﾛﾝﾄ ﾌﾛｱ ﾘﾚ- & ｽｲﾂﾁ,ﾄﾞｱ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58090 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26030 |
LH10#,11#,RZH102,112..5D |
2 | ||
| 84231-95J02 |
LH102,103,109,113,119,RZH102,112..5D |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-95J03 |
LH10#,11#,RZH102,112..5D |
2 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J06 |
LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J06 |
LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J06 |
LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-54190 |
LH102,109,113,115,119,123,125,129 |
1 | ||
| 85335-75010 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 85335-54191 |
LH102,109,113,115,119,123,125,129 |
1 | ||
| 85335-54213 |
LH113..CD,DX,GL;LH10#,110,115,117,119,12#,140 |
1 | ||
| 85335-54213 |
LH10#,11#,12#,140 |
1 | ||
| 85918A - RELAY, DOOR CONTROL | ||||
| 85918-26020 |
LH100,107,11#,120,125,RZH100,101,110,124..COM,V1,WG ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-26010 |
LH10#,11#,12#,140 |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 82711-26120 | ||||
| 90109-06296 | ||||
| 90119-06005 | ||||
| 90119-06171 | ||||
| 90119-06390 | ||||
| 90119-06885 | ||||
| 90119-06911 | ||||
| 90153-60012 | ||||
| 90159-20001 | ||||
| 90159-60025 | ||||
| 90159-60121 | ||||
| 90179-06274 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 90463-04340 | ||||
| 90463-06097 | ||||
| 93229-13014 | ||||
| 93319-13010 | ||||
| 93530-55020 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 9 OF 9(8908- )
ﾘﾔ ﾌﾛｱ,ﾊﾞﾂｸﾄﾞｱ ﾘﾚ- & ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80148 |
RZH10#,11#,12#,133..(COM,V1,WG)..(CD,CTM,DX,GL,SCM,SCMM) |
1 | ||
| 83320-80151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140..(COM,V1,WG)..(03S,05S,06S,08S,09S,10S,15S) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-26020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85940-95J03 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60025 | ||||
| 90161-50004 | ||||
| 90189-05019 | ||||
| 90189-05063 | ||||
| 91651-60614 | ||||
| 93319-A4010 | ||||
ILLUST NO. 2 OF 9(9508- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95J02 |
LH100,102,109,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 84332-26060 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 84332-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-35010 |
KZH10#,11#,12# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95J01 |
LH113,119..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,110,115,117,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84660-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
RZH101;LH10#,11#,12#,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84732-22130 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
RZH101;LH10#,11#,12#,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84732-22130 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
RZH101;LH10#,11#,120,123,125,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S 14V 1.4W |
1 | ||
| 90981-11014 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84998-10050 |
RZH101;LH10#,11#,120,123,125,140,RZH100,102,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J05 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SGL |
1 | ||
| 84730-95J05 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW |
1 | ||
| 84730-95J05 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S ﾘﾔ |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 84730-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
RZH112..V2;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S;LH100,107,113,RZH100,101..(V2,WG)..4D..(06S,07S,08S) 14V 0.91W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95J01 |
LH184,186,RZH125..DX;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,182,188,RZH102,112,122,124..03S,05S,06S,08S,09S,15S |
1 | ||
| 84790-95J02 |
KZH10#,11#,13#,LH100,102,103,109,11#,12#,16#,17#,18#,RZH10#,11#,124,125,133..(CD,CTM,DX,GL,SGL)..(DSL,EFI,TD,TDE) ｱﾘ(ﾀｲﾏ) & ﾅｼ(ｲﾙﾐﾈ-ｼﾖﾝ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
LH184,186,RZH125..DX;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,182,188,RZH102,112,122,124..03S,05S,06S,08S,09S,15S 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 85533-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 85533-30040 |
LH100,102,109,11#,123,125,129,RZH100,102,11#,12#..CD,DX |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 0.065A |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 4 OF 9(9608- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 7.5A |
1 | ||
| 90982-09003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 15A |
1 | ||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCMM,SGL) 7.5A |
1 | ||
| 90982-09007 |
KZH10#,11#,12#,13#,LH10#,11#,12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 40A,緑 |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 下側 |
1 | ||
| 82615-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# 上側 |
1 | ||
| 82615-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 下側 |
1 | ||
| 82615-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# 上側 |
1 | ||
| 82615-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-95J08 |
LH10#,11#,12# |
1 | ||
| 82661-26010 |
LH10#,11#,12#,140..DSL,TDE |
1 | ||
| 82661-26080 |
KZH10#,11#,13#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-95J09 |
RZH10#,11#,12# |
1 | ||
| 82661-26070 |
RZH10#,11#,124,133..CD,CTM,DX,GL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-26020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 85915-26010 |
RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02004 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
1 | ||
| 85915-26010 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02009 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02012 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GL,SW |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124..CD,DX,GL |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124,133..CD,DX,GL |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-04002 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH12#,RZH100,101,124 |
1 | ||
| 90987-04002 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| Common parts | ||||
| 90119-06885 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 8 OF 9(8908- )
ﾙ-ﾌ ﾘﾚ- & ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-26010 | ||||
| 82715-26700 | ||||
| 90151-30004 | ||||
| 90159-30121 | ||||
| 90159-60086 | ||||
| 90189-05019 | ||||
| 91641-H0625 | ||||
| 93219-15008 | ||||
| 93540-15016 | ||||
| 94130-60300 | ||||
ILLUST NO. 5 OF 9(8908-9308)
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80063 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80028 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84112-80028 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84112-80063 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80214 |
KZH10#,11#,12#,RZH101,111..HRF,SMRF,SRF |
1 | ||
| 84112-80029 |
LH125..GL;LH123..06S;LH10#,11#,129,RZH102,112,133..V1..(DX,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26050 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84140-26060 |
LH11#..5D..GL;LH113..09S..GL;LH10#,125,RZH102,112..GL,SGL;LH119,123..4D..(05S,06S,08S);LH113..V1..SRF..4D..(05S,06S);KZH10#,11#,12#,13#,LH129,RZH100,101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26060 |
LH125..GL;LH123..06S;KZH10#,11#,12#,13#,LH10#,11#,129,RZH10#,11#,133..(V1,WG)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26050 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84140-26060 |
LH123..06S;LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,125,RZH102,112..GL,SGL;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26270 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26540 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ﾅｼ(TEMS & *80) & ｱﾘ(ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84310-26540 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-26270 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26330 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
KZH13#,LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 84312-12040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26190 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26190 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26250 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93383-15012 | ||||

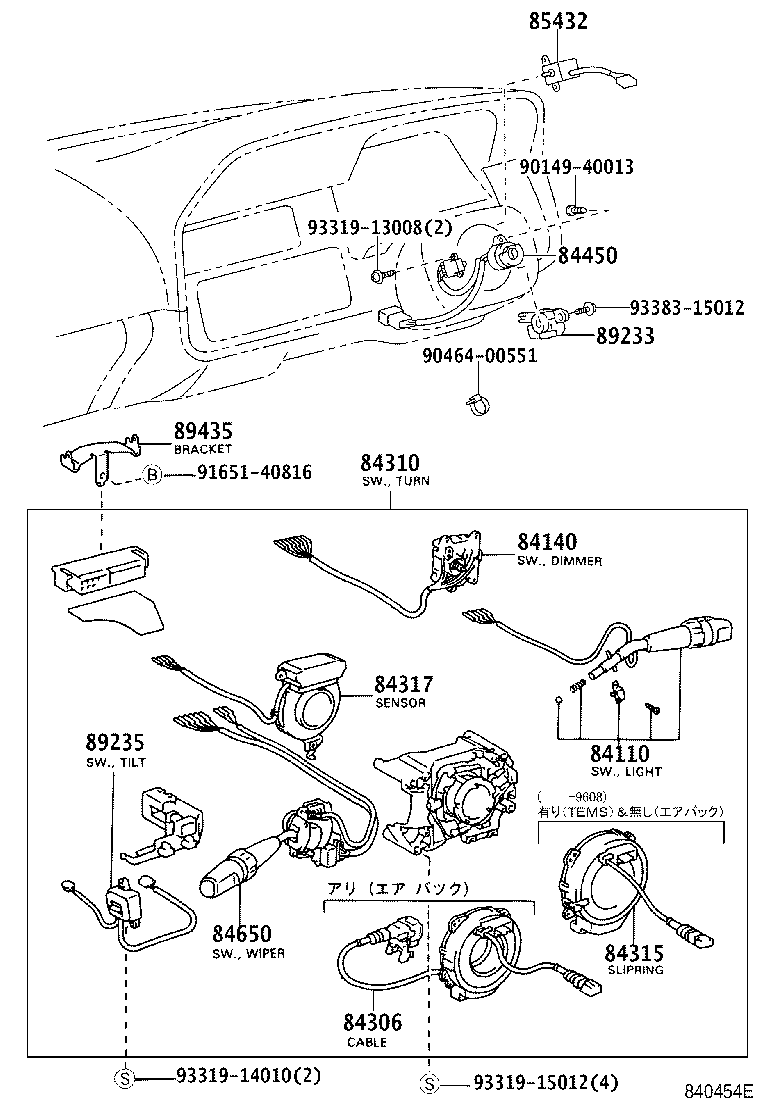

ILLUST NO. 5 OF 9(9308-9808) ; (9808- )SCL
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80063 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80028 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84112-80028 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84112-80063 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80214 |
KZH10#,11#,12#,RZH101,111..HRF,SMRF,SRF |
1 | ||
| 84112-80029 |
LH125..GL;LH123..06S;LH10#,11#,129,RZH102,112,133..V1..(DX,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26050 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84140-26060 |
LH11#..5D..GL;LH113..09S..GL;LH10#,125,RZH102,112..GL,SGL;LH119,123..4D..(05S,06S,08S);LH113..V1..SRF..4D..(05S,06S);KZH10#,11#,12#,13#,LH129,RZH100,101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26060 |
LH125..GL;LH123..06S;KZH10#,11#,12#,13#,LH10#,11#,129,RZH10#,11#,133..(V1,WG)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26050 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84140-26060 |
LH123..06S;LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,125,RZH102,112..GL,SGL;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26270 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26540 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ﾅｼ(TEMS & *80) & ｱﾘ(ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84310-26540 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-26270 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26330 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26190 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26190 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26250 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-14010 | ||||
| 93319-15012 | ||||
| 93383-15012 | ||||
ILLUST NO. 4 OF 9(8908-9308)
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 7.5A |
1 | ||
| 90982-09003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 15A |
1 | ||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCMM,SGL) 7.5A |
1 | ||
| 90982-09007 |
KZH10#,11#,12#,13#,LH10#,11#,12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 7.5A |
1 | ||
| 90982-09003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 15A |
1 | ||
| 90982-09005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCMM,SGL) 7.5A |
1 | ||
| 90982-09007 |
KZH10#,11#,12#,13#,LH10#,11#,12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82611-95J00 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82611-26130 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-95J02 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 82611-26081 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 82611-26050 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 82611-26051 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 下側 |
1 | ||
| 82615-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# 上側 |
1 | ||
| 82615-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 下側 |
1 | ||
| 82615-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12# 上側 |
1 | ||
| 82615-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH10#,11#,123,125,129,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH10#,11#,12#,RZH10#,11#,12# 30A |
1 | ||
| 82650-20011 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# 30A |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-95J08 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82660-95J08 |
RZH101..07S,08S;LH100..(SMRF,SRF)..5F;LH102,107,109,11#,123,125,129,RZH100,102,11#,12# |
1 | ||
| 82660-95J08 |
RZH100,101;LH100..CTM..TDE;LH100..DX,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH102,11#,12#..HRF,MRF,SRF |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-95J07 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82661-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 82661-26050 |
LH10#,11#,12#,RZH102,112,124,133 下側 |
1 | ||
| 82661-95J07 |
LH100..(SMRF,SRF)..5F;LH100..(CTM,SCL,SCMM)..TDE;LH120,RZH101..GCGE,GCGN,SCL,SCM,SCMM;LH102,107,109,11#,123,125,129,140,RZH100,102,11#,12# |
1 | ||
| 82661-26050 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-26071 |
LH10#,11#,12#,RZH102,112,124,133 上側 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-95J08 |
LH10#,11#,12# |
1 | ||
| 82661-26010 |
LH10#,11#,12#,140..DSL,TDE |
1 | ||
| 82661-26080 |
KZH10#,11#,13#,LH10#,11#,12#..CD,CTM,DX,GL,SGL |
1 | ||
| 82661-95J09 |
RZH10#,11#,12# |
1 | ||
| 82661-26070 |
RZH10#,11#,124,133..CD,CTM,DX,GL |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 85915-26010 |
RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 85910W - RELAY, OIL LEVEL | ||||
| 90987-03001 |
LH102,109,113,115,119,123,125,129,RZH102,112,12# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02004 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 90987-02004 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
1 | ||
| 85915-26010 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02009 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
1 | ||
| 90987-02012 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02004 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GL,SW |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124..CD,DX,GL |
1 | ||
| 85940-95J00 |
LH10#,11#,12#,RZH102,112,124,133..CD,DX,GL |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-26020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 85940-95J03 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 85915-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 90987-01003 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-02009 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90987-04002 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH12#,RZH100,101,124 |
1 | ||
| 90987-04002 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
ILLUST NO. 5 OF 9(8908-9808)
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80063 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80028 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84112-80028 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84112-80063 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80214 |
KZH10#,11#,12#,RZH101,111..HRF,SMRF,SRF |
1 | ||
| 84112-80029 |
LH125..GL;LH123..06S;LH10#,11#,129,RZH102,112,133..V1..(DX,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26050 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 84140-26060 |
LH11#..5D..GL;LH113..09S..GL;LH10#,125,RZH102,112..GL,SGL;LH119,123..4D..(05S,06S,08S);LH113..V1..SRF..4D..(05S,06S);KZH10#,11#,12#,13#,LH129,RZH100,101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26060 |
LH125..GL;LH123..06S;KZH10#,11#,12#,13#,LH10#,11#,129,RZH10#,11#,133..(V1,WG)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84140-26050 |
LH10#,11#,12#,RZH102,112,124..CD,DX |
1 | ||
| 84140-26060 |
LH123..06S;LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,125,RZH102,112..GL,SGL;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26270 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26540 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101..06S,08S,09S,10S ﾅｼ(TEMS & *80) & ｱﾘ(ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84310-26540 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133..03S,06S,08S,09S,10S ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-26270 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84310-26330 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
KZH13#,LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 84312-12040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26190 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..DX,SW ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26190 |
LH10#,11#,12#,RZH102,112,124..CD,DX ｱﾘ(ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 84652-26250 |
LH10#,11#,RZH102,112,133..V1..DX ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ & ﾌﾛﾝﾄﾜｲﾊﾟ---INTﾂｷ & ﾘﾔﾜｲﾊﾟ---INTﾅｼ) |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93383-15012 | ||||

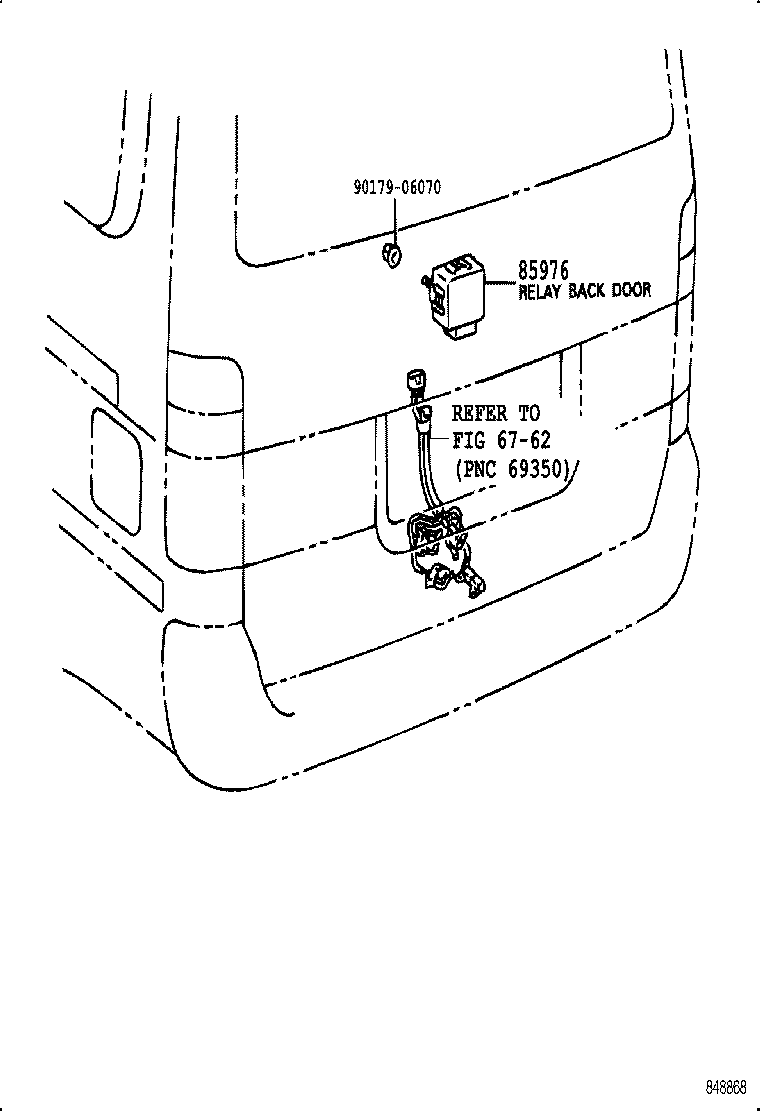

ILLUST NO. 7 OF 9(9508- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾊﾞﾂｸ ﾄﾞｱ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
| Linked diagrams | ||||
| 6762 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
