Toyota Hiace/regiusace LH119 BATTERY CARRIER

LH119V-RRPES (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8911- )KZH11#,13#,LH119,120,123,129,RZH12#

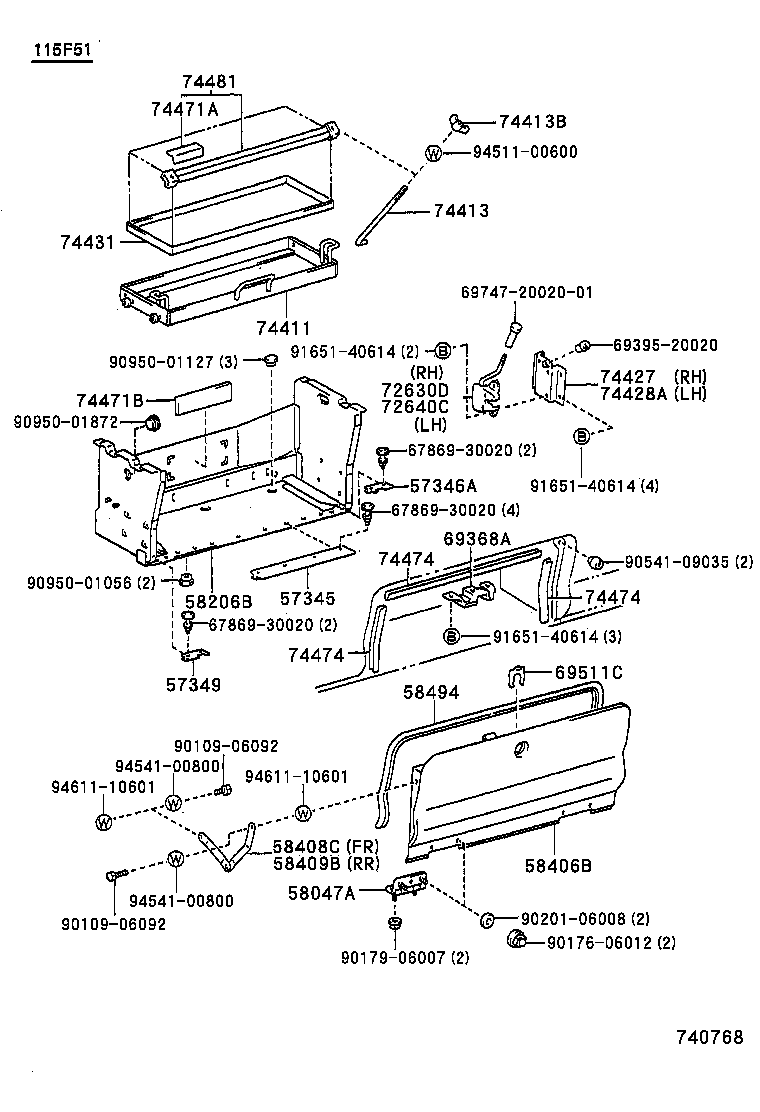

Click highlighted areas on diagram

ﾊﾞﾂﾃﾘ=115F51

Part #	Description	Period	Qty
57345 - PACKING, BATTERY BOX, A
57345-95J01	LH119..05S;LH113..V1..SRF..4D..06S..DX	03/1991 - 08/1995	1
57346A - PACKING, BATTERY BOX, B
57346-95J01	LH119..05S;LH113..V1..SRF..4D..06S..DX	03/1991 - 08/1995	2
58047A - HINGE SUB-ASSY, BATTERY BOX LID
58047-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	2
58047-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	2
58047-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	2
58206B - BOX SUB-ASSY, BATTERY
58206-26010	LH119..05S;LH113..V1..SRF..4D..06S..DX	03/1991 - 08/1995	1
58406B - LID SUB-ASSY, BATTERY BOX
58406-26010	LH119..05S;LH113..V1..SRF..4D..06S..DX	03/1991 - 08/1993	1
58406-95J02	LH119..05S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	1
58408C - STAY SUB-ASSY, BATTERY SERVICE OPENING LID, FRONT
58408-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	1
58408-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	1
58408-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	1
58409B - STAY SUB-ASSY, BATTERY SERVICE OPENING LID, REAR
58409-95J02	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	1
58409-95J02	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	1
58409-95J02	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	1
58494 - PACKING, BATTERY BOX LID
58494-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	1
58494-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	1
58494-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	1
69368A - STRIKER, BATTERY SERVICE OPENING LID LOCK, REAR
69368-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	1
69368-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 08/1995	1
69368-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	1
69511C - RETAINER, BATTERY BOX LID
69511-32010	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX	03/1991 - 05/1992	1
69511-32010	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	08/1993 - 12/1993	1
69511-32010	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S	05/1992 - 08/1993	1
69512-87001	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX	12/1993 - 08/1995	1
74411 - CARRIER, BATTERY
74411-95J02	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74411-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74411-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74413 - BOLT, BATTERY CLAMP
74451-95J03	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74451-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74451-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74474 - PAD, BATTERY
74475-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	03/1991 - 05/1992	2
74475-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S ｻｲﾄﾞ	05/1992 - 08/1993	2
74475-95J00	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S 上側	05/1992 - 08/1993	1
74475-95J00	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX 上側	03/1991 - 05/1992	1
74475-95J00	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX 上側	08/1993 - 08/1995	1
74475-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	08/1993 - 08/1995	2
74474 - PAD, BATTERY
74475-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	03/1991 - 05/1992	2
74475-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S ｻｲﾄﾞ	05/1992 - 08/1993	2
74475-95J00	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S 上側	05/1992 - 08/1993	1
74475-95J00	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX 上側	03/1991 - 05/1992	1
74475-95J00	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX 上側	08/1993 - 08/1995	1
74475-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	08/1993 - 08/1995	2
74474 - PAD, BATTERY
74475-95J01	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	03/1991 - 05/1992	2
74475-95J01	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S ｻｲﾄﾞ	05/1992 - 08/1993	2
74475-95J00	RZH122;LH113..V1..SRF..4D..06S..DX;LH119,120,RZH124..05S,10S,15S 上側	05/1992 - 08/1993	1
74475-95J00	RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX 上側	03/1991 - 05/1992	1
74475-95J00	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX 上側	08/1993 - 08/1995	1
74475-95J01	LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｻｲﾄﾞ	08/1993 - 08/1995	2
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J07	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74404-95J09	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 06/1999	1
74404-95J07	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
Common parts
67869-30020
69395-20020
69747-2002001
90109-06092
90176-06012
90179-06007
90201-06008
90541-09035
90950-01056
90950-01127
90950-01872
91651-40614
94511-00600
94541-00800
94611-10601

(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
58206B - BOX SUB-ASSY, BATTERY
58206-26010	LH119..05S;LH113..V1..SRF..4D..06S..DX	03/1991 - 08/1995	1
74411 - CARRIER, BATTERY
74411-95J02	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74411-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74411-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74411 - CARRIER, BATTERY
74411-95J02	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74411-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74411-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74413 - BOLT, BATTERY CLAMP
74451-95J03	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74451-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74451-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74413 - BOLT, BATTERY CLAMP
74451-95J03	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74451-95J03	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74451-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74446 - BAND, BATTERY
74446-95702	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74446-95702	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	2
74446-95702	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	2
74446 - BAND, BATTERY
74446-95702	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 07/1999	1
74446-95702	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	2
74446-95702	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	2
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J07	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74404-95J09	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 06/1999	1
74404-95J07	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J07	LH10#,11#,123,125,129,RZH124 ｱﾘ(2ﾊﾞﾂﾃﾘ)	08/1989 - 11/1989	1
74404-95J09	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#	08/1989 - 06/1999	1
74404-95J07	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH122,133 ｱﾘ(2ﾊﾞﾂﾃﾘ)	11/1989 - 08/1996	1
Common parts
90179-06097
90950-01056
90950-01127
91661-60825
