LH119V-RRMES (1989)
Toyota Hiace/Regiusace

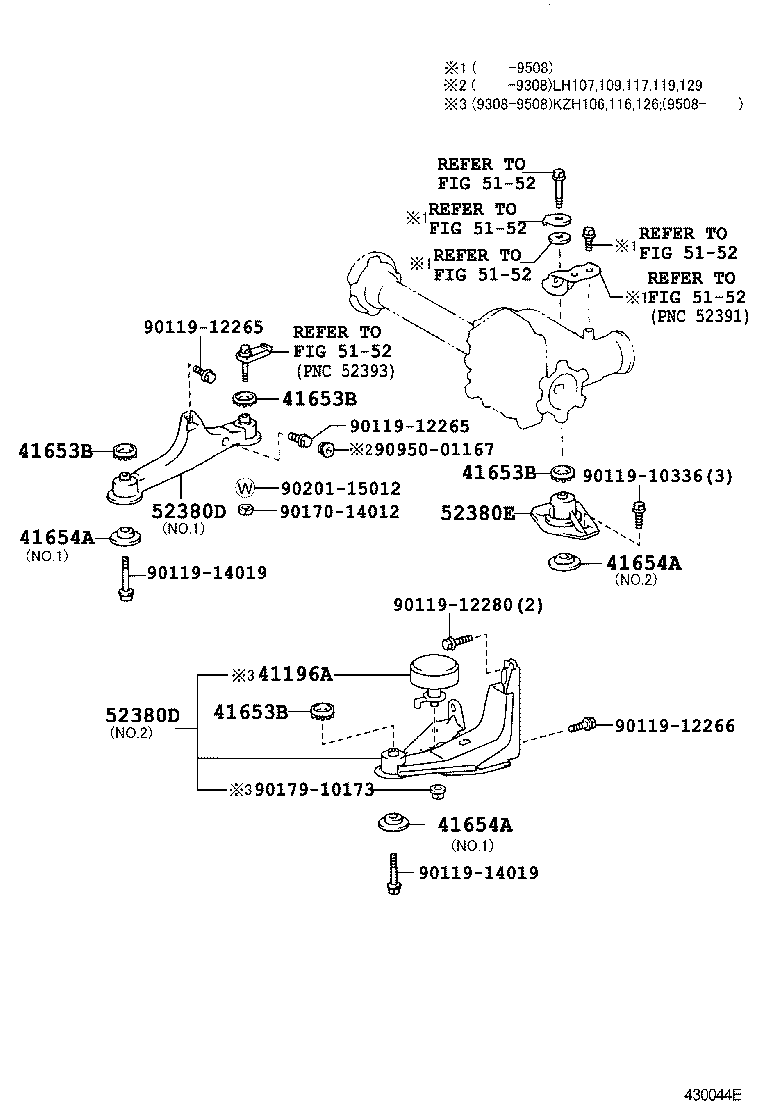

ILLUST NO. 2 OF 2(8908- )4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 NO.1 |
2 | ||
| 41654-26020 |
LH107,109,117,119,129 NO.2 |
1 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 NO.1 |
2 | ||
| 41654-26020 |
LH107,109,117,119,129 NO.2 |
1 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 NO.1 |
2 | ||
| 41654-26020 |
LH107,109,117,119,129 NO.2 |
1 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-26020 |
LH107,109,117,119,129 NO.2 |
1 | ||
| 52380-26030 |
LH107,109,117,119,129 NO.1 |
1 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-26020 |
LH107,109,117,119,129 NO.2 |
1 | ||
| 52380-26030 |
LH107,109,117,119,129 NO.1 |
1 | ||
| 52380E - SUPPORT ASSY, DIFFERENTIAL | ||||
| 52380-26040 |
LH107,109,117,119,129 |
1 | ||
| Common parts | ||||
| 90119-10336 | ||||
| 90119-12265 | ||||
| 90119-12266 | ||||
| 90119-12280 | ||||
| 90119-14019 | ||||
| 90170-14012 | ||||
| 90179-10173 | ||||
| 90201-15012 | ||||
| 90950-01167 | ||||
| Linked diagrams | ||||
| 5152 | ||||

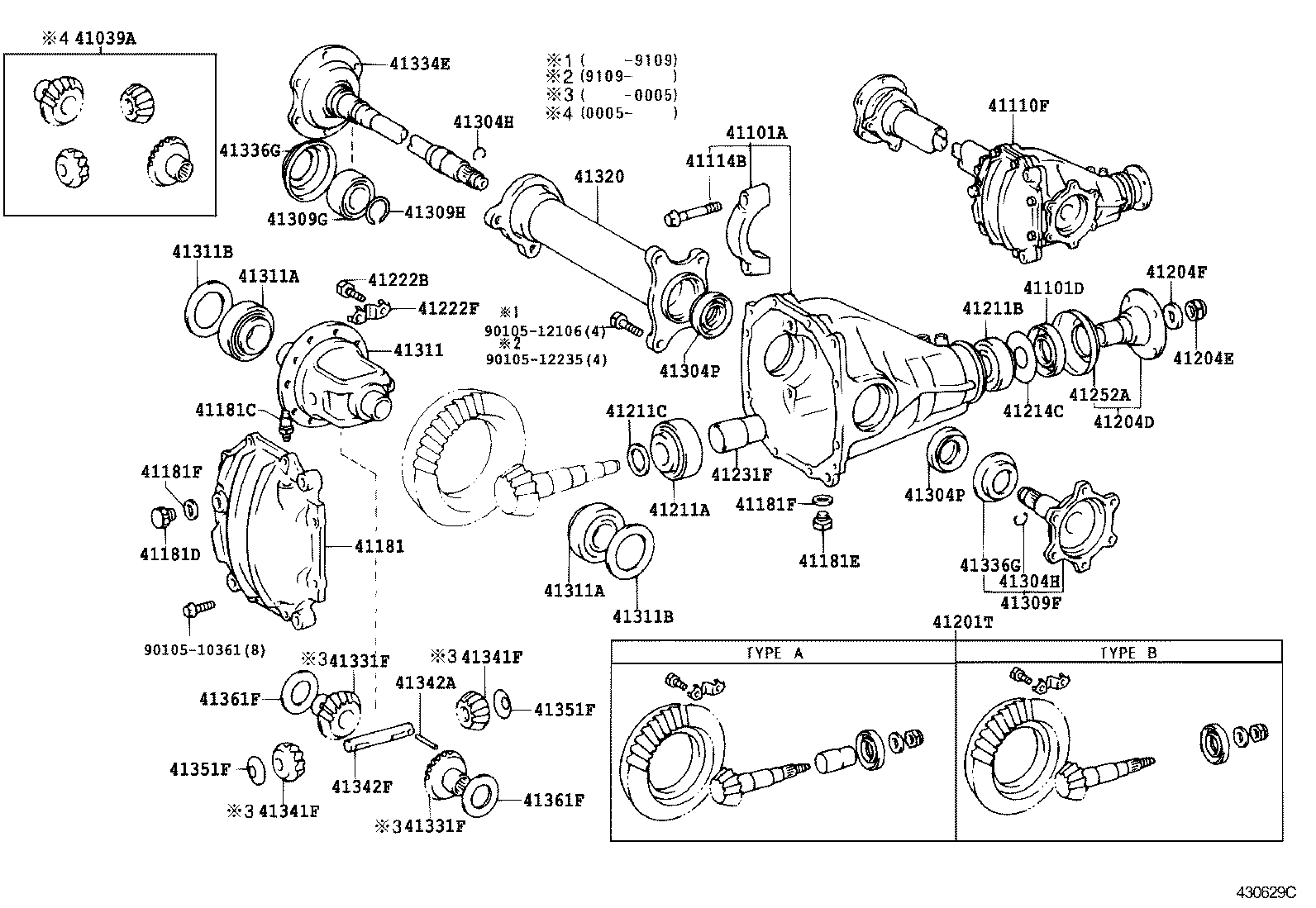

ILLUST NO. 1 OF 2(8908- )4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-26010 |
LH107,109,117,119,129 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
LH107,109,117,119,129 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-26060 |
LH107,109,117,119,129 *FGR=39:8=4.875 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-26010 |
KZH106,116,126,LH107,109,117,119,129 |
1 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18006 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
LH107,109,117,119,129 |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-39745 |
LH107,109,117,119,129 *FGR=39:8=4.875 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35050 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-18001 |
LH107,109,117,119,129 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-18485 |
LH107,109,117,119,129 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35023 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30022 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35396 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35437 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35436 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35434 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35402 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35441 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35397 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35439 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35438 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35401 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35398 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35435 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35400 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35403 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35404 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35399 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35440 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-35020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-30010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90521-29002 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90521-29002 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
LH107,109,117,119,129 |
2 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
LH107,109,117,119,129 |
2 | ||
| 41309F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41309G - BEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90369-36009 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-33008 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-22060 |
LH109,119,129;KZH106,116,138..4FC |
1 | ||
| 41311-22060 |
LH107,109,117,119,129 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50006 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50006 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.61 |
2 | ||
| 90201-50005 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.64 |
2 | ||
| 90201-50010 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.79 |
2 | ||
| 90201-50011 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.82 |
2 | ||
| 90201-50013 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.88 |
2 | ||
| 90201-50006 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.67 |
2 | ||
| 90201-50014 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.91 |
2 | ||
| 90201-50015 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.94 |
2 | ||
| 90201-50003 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.58 |
2 | ||
| 90201-50017 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.00 |
2 | ||
| 90201-50009 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.76 |
2 | ||
| 90201-50019 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.06 |
2 | ||
| 90201-50016 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.97 |
2 | ||
| 90201-50012 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.85 |
2 | ||
| 90201-50007 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.70 |
2 | ||
| 90201-50021 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.12 |
2 | ||
| 90201-50018 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.03 |
2 | ||
| 90201-50008 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.73 |
2 | ||
| 90201-50022 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.15 |
2 | ||
| 90201-50020 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.09 |
2 | ||
| 90201-50005 |
LH109,119,129 厚さ=2.64 |
2 | ||
| 90201-50024 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.21 |
2 | ||
| 90201-50023 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.18 |
2 | ||
| 90201-50010 |
LH109,119,129 厚さ=2.79 |
2 | ||
| 90201-50006 |
LH109,119,129 厚さ=2.67 |
2 | ||
| 90201-50004 |
LH109,119,129 厚さ=2.61 |
2 | ||
| 90201-50003 |
LH109,119,129 厚さ=2.58 |
2 | ||
| 90201-50011 |
LH109,119,129 厚さ=2.82 |
2 | ||
| 90201-50007 |
LH109,119,129 厚さ=2.70 |
2 | ||
| 90201-50013 |
LH109,119,129 厚さ=2.88 |
2 | ||
| 90201-50016 |
LH109,119,129 厚さ=2.97 |
2 | ||
| 90201-50008 |
LH109,119,129 厚さ=2.73 |
2 | ||
| 90201-50017 |
LH109,119,129 厚さ=3.00 |
2 | ||
| 90201-50025 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.24 |
2 | ||
| 90201-50012 |
LH109,119,129 厚さ=2.85 |
2 | ||
| 90201-50009 |
LH109,119,129 厚さ=2.76 |
2 | ||
| 90201-50015 |
LH109,119,129 厚さ=2.94 |
2 | ||
| 90201-50018 |
LH109,119,129 厚さ=3.03 |
2 | ||
| 90201-50022 |
LH109,119,129 厚さ=3.15 |
2 | ||
| 90201-50024 |
LH109,119,129 厚さ=3.21 |
2 | ||
| 90201-50020 |
LH109,119,129 厚さ=3.09 |
2 | ||
| 90201-50023 |
LH109,119,129 厚さ=3.18 |
2 | ||
| 90201-50021 |
LH109,119,129 厚さ=3.12 |
2 | ||
| 90201-50019 |
LH109,119,129 厚さ=3.06 |
2 | ||
| 90201-50014 |
LH109,119,129 厚さ=2.91 |
2 | ||
| 90201-50025 |
LH109,119,129 厚さ=3.24 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-50004 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.61 |
2 | ||
| 90201-50005 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.64 |
2 | ||
| 90201-50010 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.79 |
2 | ||
| 90201-50011 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.82 |
2 | ||
| 90201-50013 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.88 |
2 | ||
| 90201-50006 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.67 |
2 | ||
| 90201-50014 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.91 |
2 | ||
| 90201-50015 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.94 |
2 | ||
| 90201-50003 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.58 |
2 | ||
| 90201-50017 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.00 |
2 | ||
| 90201-50009 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.76 |
2 | ||
| 90201-50019 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.06 |
2 | ||
| 90201-50016 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.97 |
2 | ||
| 90201-50012 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.85 |
2 | ||
| 90201-50007 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.70 |
2 | ||
| 90201-50021 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.12 |
2 | ||
| 90201-50018 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.03 |
2 | ||
| 90201-50008 |
KZH106,116,126,LH107,109,117,119,129 厚さ=2.73 |
2 | ||
| 90201-50022 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.15 |
2 | ||
| 90201-50020 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.09 |
2 | ||
| 90201-50005 |
LH109,119,129 厚さ=2.64 |
2 | ||
| 90201-50024 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.21 |
2 | ||
| 90201-50023 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.18 |
2 | ||
| 90201-50010 |
LH109,119,129 厚さ=2.79 |
2 | ||
| 90201-50006 |
LH109,119,129 厚さ=2.67 |
2 | ||
| 90201-50004 |
LH109,119,129 厚さ=2.61 |
2 | ||
| 90201-50003 |
LH109,119,129 厚さ=2.58 |
2 | ||
| 90201-50011 |
LH109,119,129 厚さ=2.82 |
2 | ||
| 90201-50007 |
LH109,119,129 厚さ=2.70 |
2 | ||
| 90201-50013 |
LH109,119,129 厚さ=2.88 |
2 | ||
| 90201-50016 |
LH109,119,129 厚さ=2.97 |
2 | ||
| 90201-50008 |
LH109,119,129 厚さ=2.73 |
2 | ||
| 90201-50017 |
LH109,119,129 厚さ=3.00 |
2 | ||
| 90201-50025 |
KZH106,116,126,LH107,109,117,119,129 厚さ=3.24 |
2 | ||
| 90201-50012 |
LH109,119,129 厚さ=2.85 |
2 | ||
| 90201-50009 |
LH109,119,129 厚さ=2.76 |
2 | ||
| 90201-50015 |
LH109,119,129 厚さ=2.94 |
2 | ||
| 90201-50018 |
LH109,119,129 厚さ=3.03 |
2 | ||
| 90201-50022 |
LH109,119,129 厚さ=3.15 |
2 | ||
| 90201-50024 |
LH109,119,129 厚さ=3.21 |
2 | ||
| 90201-50020 |
LH109,119,129 厚さ=3.09 |
2 | ||
| 90201-50023 |
LH109,119,129 厚さ=3.18 |
2 | ||
| 90201-50021 |
LH109,119,129 厚さ=3.12 |
2 | ||
| 90201-50019 |
LH109,119,129 厚さ=3.06 |
2 | ||
| 90201-50014 |
LH109,119,129 厚さ=2.91 |
2 | ||
| 90201-50025 |
LH109,119,129 厚さ=3.24 |
2 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-26020 |
LH107,109,117,119,129 |
1 | ||
| 41320-26021 |
LH107,109,117,119,129 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-22041 |
LH107,109,117,119,129 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-22041 |
LH107,109,117,119,129 |
2 | ||
| 41334E - SHAFT, FRONT DIFFERENTIAL SIDE GEAR | ||||
| 41334-26010 |
LH107,109,117,119,129 |
1 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 左側 |
1 | ||
| 41336-28010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 右側 |
1 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 左側 |
1 | ||
| 41336-28010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 右側 |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-22020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.3 |
2 | ||
| 41361-30100 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.6 |
2 | ||
| 41361-30060 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.2 |
2 | ||
| 41361-30050 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.1 |
2 | ||
| 41361-30040 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.0 |
2 | ||
| 41361-30080 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.4 |
2 | ||
| 41361-30090 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.5 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.3 |
2 | ||
| 41361-30100 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.6 |
2 | ||
| 41361-30060 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.2 |
2 | ||
| 41361-30050 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.1 |
2 | ||
| 41361-30040 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.0 |
2 | ||
| 41361-30080 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.4 |
2 | ||
| 41361-30090 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 厚さ=1.5 |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90105-12106 | ||||
| 90105-12235 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
