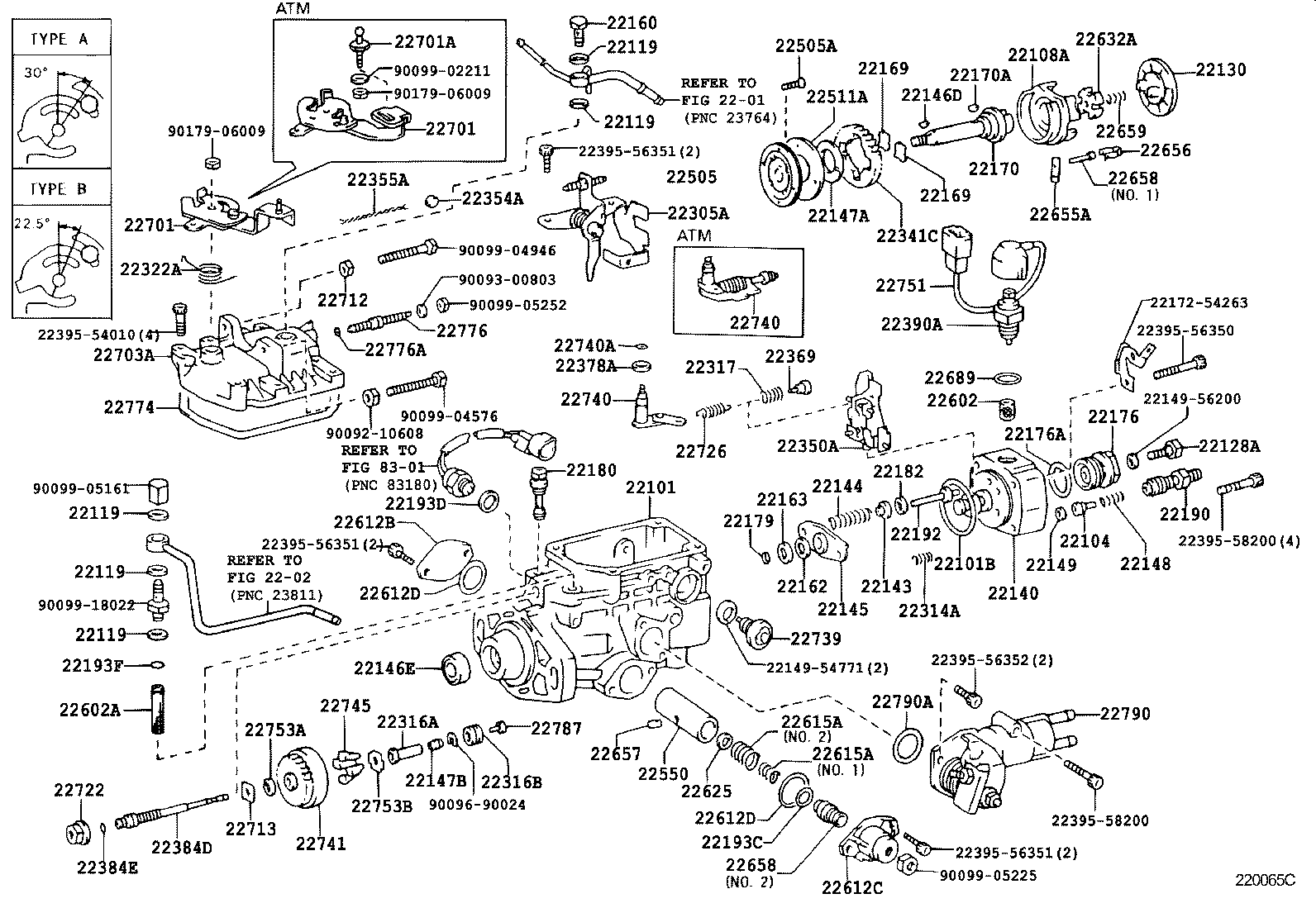

LH119V-RRMES (1989)
Toyota Hiace/Regiusace
(8908-9508)2L,3L..LH102,103,109,113,115,119,123,125,129
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22019 - SOLENOID ASSY, FUEL CUT | ||||
| 22019-6A510 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64270 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22101-64260 |
3L..LH119..5F..SGL |
1 | ||
| 22101-64270 |
3L..LH10#,11#,12#..5F..(CD,DX,GL) |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-56300 |
3L..LH10#,11#,12# |
4 | ||
| 22104-64010 |
3L..LH107,113,119,123;2L,3L..LH100,102,109,110,115,125,129..5F |
4 | ||
| 22104-6A290 |
3L..LH103,107,113,119,123,129;2L,3L..LH100,102,109,110,115,117,125,140..5F |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,109,110,115,120,125,140 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22130-54010 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54730 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22140-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,109,110,115,120,125,140 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2L#,3L..LH10#,11#,12# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-55130 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.9 |
1 | ||
| 22179-54011 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.0 |
1 | ||
| 22179-54014 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.3 |
1 | ||
| 22179-54018 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.7 |
1 | ||
| 22179-54013 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.2 |
1 | ||
| 22179-54015 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.4 |
1 | ||
| 22179-54012 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.1 |
1 | ||
| 22179-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.9 |
1 | ||
| 22179-54016 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.5 |
1 | ||
| 22179-54019 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.8 |
1 | ||
| 22179-54017 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.6 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-55050 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,107,109,110,115,117,120,125,140 NO.1 |
1 | ||
| 22180-55050 |
3L..LH10#,11#,12# NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=0.8 |
2 | ||
| 22182-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=0.5 |
2 | ||
| 22185-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.2 |
2 | ||
| 22184-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.0 |
2 | ||
| 22188-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.0 |
2 | ||
| 22187-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.8 |
2 | ||
| 22186-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.5 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-6A290 |
2L,2LT,3L..LH10#,11#,12#,140 |
4 | ||
| 22190-6A680 |
3L..LH10#,11#,12# |
4 | ||
| 22190-64740 |
2L#,3L..LH10#,11#,12# |
4 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22193B - RING, O(FOR FUEL CUT SOLENOID) | ||||
| 22193-64010 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-64750 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-54730 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 22305-54730 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54730 |
2L,3L..LH102,103,107,109,113,115,117,119,123,125,129 内径=0.95 |
1 | ||
| 22316-5B060 |
3L..LH10#,11#,12# 内径=0.65 |
1 | ||
| 22316-54261 |
2L..LH102;2LT,3L..LH100,103,107,109,113,115,117,119,12# 内径=1.00 |
1 | ||
| 22316-54351 |
2L,2LT,3L..LH10#,11#,12#,140 ﾏｰｸ 28 |
1 | ||
| 22316-6A680 |
3L..LH10#,11#,12# 内径=0.75 |
1 | ||
| 22316-54360 |
2L,2LT,3L..LH10#,11#,12#,140 内径=0.75 |
1 | ||
| 22316-54630 |
3L..LH10#,11#,12# 内径=0.70 |
1 | ||
| 22316-54750 |
3L..LH10#,11#,12# 内径=0.60 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54470 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F ｺｲﾙ巻数=0.15,長さ=7.0 |
1 | ||
| 22317-54730 |
3L..LH10#,11#,12# |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54730 |
2L,3L,5L..LH102,103,109,113,115,119,123,125,129,16#,17#,18# |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54060 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2L,2LT,3L..LH100,103,107,109,11#,12#,140 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2L,2LT,3L..LH100,103,107,109,11#,12#,140 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
2L,3L,5L..LH102,103,109,113,115,119,123,125,129,16#,17#,18#..5F |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,2LT,3L..LH10#,11#,12#,140 |
2 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
2 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,2LT,3L..LH10#,11#,12#,140 |
2 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
2 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54180 |
2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22615-5B370 |
3L..LH10#,11#,12# ﾊﾞﾈ定数=0.10,長さ=37.2,NO.1 |
1 | ||
| 22615-54730 |
2L,3L..LH102,109,115,125;3L..LH103,113,119,123,129..5F ﾊﾞﾈ定数=2.70,長さ=39.2 |
1 | ||
| 22615-54490 |
2L..LH102;2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=2.50,長さ=38.2 |
1 | ||
| 22625 - WASHER, TIMER SENSOR ADJUSTING | ||||
| 22625-54277 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54630 |
3L..LH103,107,109,113,115,117,119,123,125,129 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22656-54010 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
3L..LH113..4FC..GL;3L..LH113,119,123..5F;2L,2LT,3L..LH10#,110,115,117,120,125,129,140 NO.2 |
1 | ||
| 22658-54450 |
3L..LH10#,11#,12# NO.2 |
1 | ||
| 22658-17840 |
3L..LH10#,11#,12#..5F NO.1 |
1 | ||
| 22658-54010 |
2L,2LT,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
3L..LH113..4FC..GL;3L..LH113,119,123..5F;2L,2LT,3L..LH10#,110,115,117,120,125,129,140 NO.2 |
1 | ||
| 22658-54450 |
3L..LH10#,11#,12# NO.2 |
1 | ||
| 22658-17840 |
3L..LH10#,11#,12#..5F NO.1 |
1 | ||
| 22658-54010 |
2L,2LT,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54452 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22701-54451 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17080 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22703-54132 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22715-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.45 |
1 | ||
| 22713-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.05 |
1 | ||
| 22714-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.25 |
1 | ||
| 22716-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.65 |
1 | ||
| 22717-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.85 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54010 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22726-5B370 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-55050 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22740-64820 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-55050 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22740-64820 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-6A220 |
3L..LH103,11#..SGL |
1 | ||
| 22751-54311 |
3L..LH10#,11#,12#..CD,DX,GL |
1 | ||
| 22751-54311 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.4 |
1 | ||
| 22787-64680 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.2 |
1 | ||
| 22787-54031 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.8 |
1 | ||
| 22787-54033 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.0 |
1 | ||
| 22787-54029 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.6 |
1 | ||
| 22787-64643 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.2 |
1 | ||
| 22787-64641 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.0 |
1 | ||
| 22787-64640 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.1 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-54730 |
2L,3L..LH102,103,107,109,113,115,117,119,123,125,129 |
1 | ||
| 22790-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
1 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22395-54010 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-02211 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05166 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
(9508-9808)3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64270 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22101-64260 |
3L..LH119..5F..SGL |
1 | ||
| 22101-64270 |
3L..LH10#,11#,12#..5F..(CD,DX,GL) |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-56300 |
3L..LH10#,11#,12# |
4 | ||
| 22104-64010 |
3L..LH107,113,119,123;2L,3L..LH100,102,109,110,115,125,129..5F |
4 | ||
| 22104-6A290 |
3L..LH103,107,113,119,123,129;2L,3L..LH100,102,109,110,115,117,125,140..5F |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,109,110,115,120,125,140 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH178..5F..SGL;2L,2LT,3L..LH100,102,103,109,110,113,115,119,12#,140 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22130-54010 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54730 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22140-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,109,110,115,120,125,140 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2L#,3L..LH10#,11#,12# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-55130 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.9 |
1 | ||
| 22179-54011 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.0 |
1 | ||
| 22179-54014 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.3 |
1 | ||
| 22179-54018 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.7 |
1 | ||
| 22179-54013 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.2 |
1 | ||
| 22179-54015 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.4 |
1 | ||
| 22179-54012 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.1 |
1 | ||
| 22179-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.9 |
1 | ||
| 22179-54016 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.5 |
1 | ||
| 22179-54019 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.8 |
1 | ||
| 22179-54017 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.6 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-55050 |
3L..LH103,113,119,123,129..5F;2L,2LT,3L..LH100,102,107,109,110,115,117,120,125,140 NO.1 |
1 | ||
| 22180-55050 |
3L..LH10#,11#,12# NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=0.8 |
2 | ||
| 22182-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=0.5 |
2 | ||
| 22185-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.2 |
2 | ||
| 22184-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.0 |
2 | ||
| 22188-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=2.0 |
2 | ||
| 22187-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.8 |
2 | ||
| 22186-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.5 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-6A290 |
2L,2LT,3L..LH10#,11#,12#,140 |
4 | ||
| 22190-6A680 |
3L..LH10#,11#,12# |
4 | ||
| 22190-64740 |
2L#,3L..LH10#,11#,12# |
4 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-64750 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
3L..LH10#,11#,12# |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-54730 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 22305-54730 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54730 |
2L,3L..LH102,103,107,109,113,115,117,119,123,125,129 内径=0.95 |
1 | ||
| 22316-5B060 |
3L..LH10#,11#,12# 内径=0.65 |
1 | ||
| 22316-54261 |
2L..LH102;2LT,3L..LH100,103,107,109,113,115,117,119,12# 内径=1.00 |
1 | ||
| 22316-54351 |
2L,2LT,3L..LH10#,11#,12#,140 ﾏｰｸ 28 |
1 | ||
| 22316-6A680 |
3L..LH10#,11#,12# 内径=0.75 |
1 | ||
| 22316-54360 |
2L,2LT,3L..LH10#,11#,12#,140 内径=0.75 |
1 | ||
| 22316-54630 |
3L..LH10#,11#,12# 内径=0.70 |
1 | ||
| 22316-54750 |
3L..LH10#,11#,12# 内径=0.60 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54470 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F ｺｲﾙ巻数=0.15,長さ=7.0 |
1 | ||
| 22317-54730 |
3L..LH10#,11#,12# |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54730 |
2L,3L,5L..LH102,103,109,113,115,119,123,125,129,16#,17#,18# |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54060 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2L,2LT,3L..LH100,103,107,109,11#,12#,140 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2L,2LT,3L..LH100,103,107,109,11#,12#,140 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
2L,3L,5L..LH102,103,109,113,115,119,123,125,129,16#,17#,18#..5F |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
3L..LH10#,11#,12# |
1 | ||
| 22390-6A511 |
3L..LH10#,11#,12# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-17020 |
3L..LH10#,11#,12# |
1 | ||
| 22582-5C400 |
3L..LH10#,11#,12# |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,2LT,3L..LH10#,11#,12#,140 |
2 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
2 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,2LT,3L..LH10#,11#,12#,140 |
2 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
2 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54180 |
2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22615-5B370 |
3L..LH10#,11#,12# ﾊﾞﾈ定数=0.10,長さ=37.2,NO.1 |
1 | ||
| 22615-54730 |
2L,3L..LH102,109,115,125;3L..LH103,113,119,123,129..5F ﾊﾞﾈ定数=2.70,長さ=39.2 |
1 | ||
| 22615-54490 |
2L..LH102;2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=2.50,長さ=38.2 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54180 |
2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22615-5B370 |
3L..LH10#,11#,12# ﾊﾞﾈ定数=0.10,長さ=37.2,NO.1 |
1 | ||
| 22615-54730 |
2L,3L..LH102,109,115,125;3L..LH103,113,119,123,129..5F ﾊﾞﾈ定数=2.70,長さ=39.2 |
1 | ||
| 22615-54490 |
2L..LH102;2LT,3L..LH100,103,107,109,113,115,117,119,12# ﾊﾞﾈ定数=2.50,長さ=38.2 |
1 | ||
| 22625 - WASHER, TIMER SENSOR ADJUSTING | ||||
| 22625-54277 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22656-54010 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
3L..LH113..4FC..GL;3L..LH113,119,123..5F;2L,2LT,3L..LH10#,110,115,117,120,125,129,140 NO.2 |
1 | ||
| 22658-54450 |
3L..LH10#,11#,12# NO.2 |
1 | ||
| 22658-17840 |
3L..LH10#,11#,12#..5F NO.1 |
1 | ||
| 22658-54010 |
2L,2LT,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
3L..LH113..4FC..GL;3L..LH113,119,123..5F;2L,2LT,3L..LH10#,110,115,117,120,125,129,140 NO.2 |
1 | ||
| 22658-54450 |
3L..LH10#,11#,12# NO.2 |
1 | ||
| 22658-17840 |
3L..LH10#,11#,12#..5F NO.1 |
1 | ||
| 22658-54010 |
2L,2LT,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54452 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22701-54451 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54452 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22701-54451 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17080 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22703-54132 |
2L,3L..LH102,103,109,113,115,119,123,125,129..5F |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22715-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.45 |
1 | ||
| 22713-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.05 |
1 | ||
| 22714-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.25 |
1 | ||
| 22716-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.65 |
1 | ||
| 22717-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 厚さ=1.85 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54010 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22726-5B370 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-55050 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22740-64820 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-55050 |
3L..LH10#,11#,12#..5F |
1 | ||
| 22740-64820 |
3L..LH103,109,113,115,119,123,125,129..5F |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-6A220 |
3L..LH103,11#..SGL |
1 | ||
| 22751-54311 |
3L..LH10#,11#,12#..CD,DX,GL |
1 | ||
| 22751-54311 |
2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2L,3L..LH10#,11#,123,125,129,140 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.4 |
1 | ||
| 22787-64680 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.2 |
1 | ||
| 22787-54031 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.8 |
1 | ||
| 22787-54033 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.0 |
1 | ||
| 22787-54029 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.6 |
1 | ||
| 22787-64643 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.2 |
1 | ||
| 22787-64641 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=3.0 |
1 | ||
| 22787-64640 |
2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=4.1 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-54730 |
2L,3L..LH102,103,107,109,113,115,117,119,123,125,129 |
1 | ||
| 22790-5B370 |
3L..LH10#,11#,12# |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 90099-14105 |
3L..LH10#,11#,12# |
1 | ||
| 22193-17840 |
3L..LH10#,11#,12#..5F |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22395-54010 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-02211 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
