LH119V-RHMES (1989)
Toyota Hiace/Regiusace
(8908- )SGL ; (9808- )KZH11#..4FC

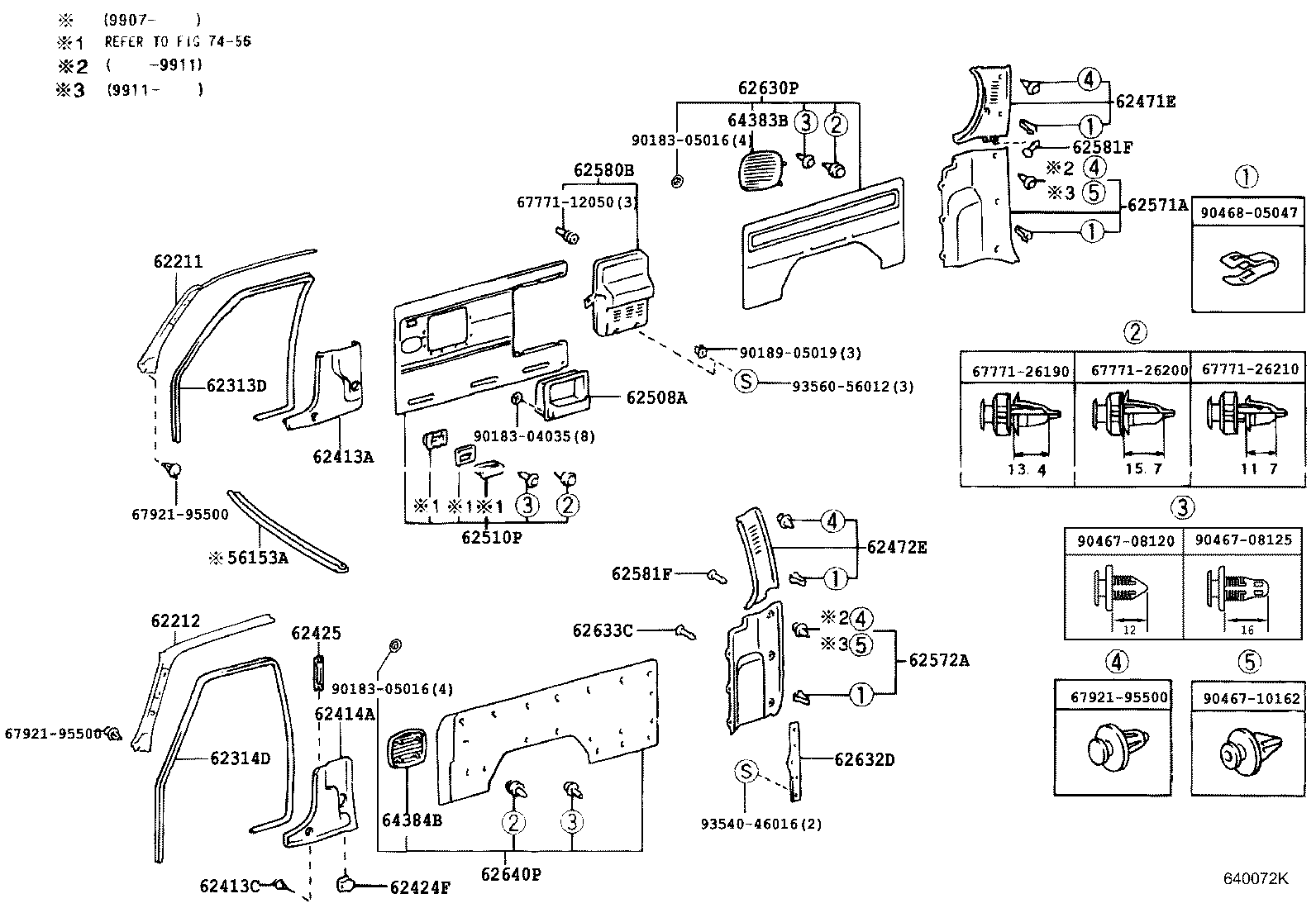

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-95J0303 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62413-95J0303 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0503 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414-95J0503 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-95J0903 |
LH102,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62471-26080B0 |
LH102,103,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-95J0803 |
LH102,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62472-26080B0 |
LH102,103,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62508A - BOX SUB-ASSY, SIDE TRIM | ||||
| 62508-9570013 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J4703 |
LH119..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1# |
1 | ||
| 62510-95J5203 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62510-26200B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J35B0 |
KZH100,LH10#,11#,RZH100,102,112..(V1,WG)..4D..(DX,GL) ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J36B0 |
KZH100,LH10#,11#,RZH100,102,112..4D..(DX,GL) BLUISH GRAY,TRIM1# |
1 | ||
| 62571A - GARNISH, ROOF SIDE, INNER LOWER RH | ||||
| 62571-95J0203 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62571-95J0203 |
LH102,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62571-95J0203 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62571-95J02B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62572A - GARNISH, ROOF SIDE INNER LOWER LH | ||||
| 62572-95J0203 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62572-95J0203 |
LH102,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62572-95J0203 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62572-95J02B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0503 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(V1,WG)..4D..(05S,06S,08S,09S)..(CTM,DX,GL,SGL,SW) GRAY,TRIM1# |
1 | ||
| 62580-95J0503 |
RZH102,112..850K;LH100,102,109,113,119,123,129,RZH10#,112,122..(V1,WG)..4D..(CTM,DX,GL,SGL) GRAY,TRIM1# |
1 | ||
| 62580-95J05B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..(V1,WG)..4D..(CTM,DX,GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046C0 |
LH125..GL;KZH10#,LH103,11#,RZH101..CTM,SGL BLACK,TRIM1# |
2 | ||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046C0 |
LH125..GL;KZH10#,LH103,11#,RZH101..CTM,SGL BLACK,TRIM1# |
2 | ||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-95J30 |
KZH11#,LH113..(V1,WG)..SRF..4D..(05S,06S,10S)..(DX,SGL);KZH10#,12#,LH100,102,103,119,120,125,RZH100,101..(05S,08S,09S,10S,15S)..(CTM,GCGE,GCGN,GL,SGL) |
1 | ||
| 62632-95J30 |
LH125..GL;LH100,102,113,119,RZH100,101..CTM,SGL |
1 | ||
| 62633C - CLIP (FOR QUARTER TRIM GARNISH) | ||||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 64383B - GRILLE, REAR SPEAKER, RH | ||||
| 67653-26010B0 |
LH103,11#..SGL BLUISH GRAY,TRIM1# |
1 | ||
| 64384B - GRILLE, REAR SPEAKER, LH | ||||
| 67653-26010B0 |
LH103,11#..SGL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-26190 | ||||
| 67771-26200 | ||||
| 67771-26210 | ||||
| 67921-95500 | ||||
| 90183-04035 | ||||
| 90183-05016 | ||||
| 90189-05019 | ||||
| 90467-08120 | ||||
| 90467-08125 | ||||
| 90467-10162 | ||||
| 90468-05047 | ||||
| 93540-46016 | ||||
| 93560-56012 | ||||
(8908- ) ; (9010-9308)LH140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-95J0303 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62413-95J0303 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0503 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414-95J0503 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J4703 |
LH119..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1# |
1 | ||
| 62510-95J5203 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62510-26200B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J35B0 |
KZH100,LH10#,11#,RZH100,102,112..(V1,WG)..4D..(DX,GL) ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J36B0 |
KZH100,LH10#,11#,RZH100,102,112..4D..(DX,GL) BLUISH GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J4703 |
LH119..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1# |
1 | ||
| 62510-95J5203 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62510-26200B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J35B0 |
KZH100,LH10#,11#,RZH100,102,112..(V1,WG)..4D..(DX,GL) ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J36B0 |
KZH100,LH10#,11#,RZH100,102,112..4D..(DX,GL) BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0503 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(V1,WG)..4D..(05S,06S,08S,09S)..(CTM,DX,GL,SGL,SW) GRAY,TRIM1# |
1 | ||
| 62580-95J0503 |
RZH102,112..850K;LH100,102,109,113,119,123,129,RZH10#,112,122..(V1,WG)..4D..(CTM,DX,GL,SGL) GRAY,TRIM1# |
1 | ||
| 62580-95J05B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..(V1,WG)..4D..(CTM,DX,GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0503 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(V1,WG)..4D..(05S,06S,08S,09S)..(CTM,DX,GL,SGL,SW) GRAY,TRIM1# |
1 | ||
| 62580-95J0503 |
RZH102,112..850K;LH100,102,109,113,119,123,129,RZH10#,112,122..(V1,WG)..4D..(CTM,DX,GL,SGL) GRAY,TRIM1# |
1 | ||
| 62580-95J05B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..(V1,WG)..4D..(CTM,DX,GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-1301043 |
LH10#,113,119,123,129,RZH10#,112,122..4D..(03S,06S,08S)..(CD,DX,GL,SCM,SCMM) GRAY,TRIM1# |
1 | ||
| 64769-13010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..4D..(03S,06S,08S)..(CD,DX,GL,SCM,SCMM) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 61991-26010 | ||||
| 61992-26010 | ||||
| 67771-12050 | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67771-30070 | ||||
| 67771-89109 | ||||
| 67771-95705 | ||||
| 67772-95J02 | ||||
| 67921-95500 | ||||
| 90189-05015 | ||||
| 90189-05019 | ||||
| 90467-09182 | ||||
| 90468-05047 | ||||
| 90468-05096 | ||||
| 91631-40612 | ||||
| 91631-40620 | ||||
| 93540-56014 | ||||
| 93560-56012 | ||||
| 93560-56016 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 2(8908- )CTM ; (9005- )LH113..V1..DX ; (9308- )KZH11# ; (9808- )KZH10#,L
LH113:ｷｬﾝﾋﾟﾝｸﾞｶ- KZH11#:ｸﾞﾗﾝﾄﾞｷｬﾋﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-95J0303 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62413-95J0303 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0503 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414-95J0503 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-95J0903 |
LH102,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62471-26080B0 |
LH102,103,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-95J0803 |
LH102,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62472-26080B0 |
LH102,103,113,119..SGL LIGHT GRAY,TRIM1# |
1 | ||
| 62508A - BOX SUB-ASSY, SIDE TRIM | ||||
| 62508-9570013 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J4703 |
LH119..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1# |
1 | ||
| 62510-95J5203 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62510-26200B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J35B0 |
KZH100,LH10#,11#,RZH100,102,112..(V1,WG)..4D..(DX,GL) ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J36B0 |
KZH100,LH10#,11#,RZH100,102,112..4D..(DX,GL) BLUISH GRAY,TRIM1# |
1 | ||
| 62571A - GARNISH, ROOF SIDE, INNER LOWER RH | ||||
| 62571-95J0203 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62571-95J0203 |
LH102,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62571-95J0203 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62571-95J02B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62572A - GARNISH, ROOF SIDE INNER LOWER LH | ||||
| 62572-95J0203 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62572-95J0203 |
LH102,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62572-95J0203 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62572-95J02B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0503 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(V1,WG)..4D..(05S,06S,08S,09S)..(CTM,DX,GL,SGL,SW) GRAY,TRIM1# |
1 | ||
| 62580-95J0503 |
RZH102,112..850K;LH100,102,109,113,119,123,129,RZH10#,112,122..(V1,WG)..4D..(CTM,DX,GL,SGL) GRAY,TRIM1# |
1 | ||
| 62580-95J05B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..(V1,WG)..4D..(CTM,DX,GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046C0 |
LH125..GL;KZH10#,LH103,11#,RZH101..CTM,SGL BLACK,TRIM1# |
2 | ||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046C0 |
LH125..GL;KZH10#,LH103,11#,RZH101..CTM,SGL BLACK,TRIM1# |
2 | ||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-95J30 |
KZH11#,LH113..(V1,WG)..SRF..4D..(05S,06S,10S)..(DX,SGL);KZH10#,12#,LH100,102,103,119,120,125,RZH100,101..(05S,08S,09S,10S,15S)..(CTM,GCGE,GCGN,GL,SGL) |
1 | ||
| 62632-95J30 |
LH125..GL;LH100,102,113,119,RZH100,101..CTM,SGL |
1 | ||
| 62633C - CLIP (FOR QUARTER TRIM GARNISH) | ||||
| 90467-08046C0 |
KZH10#,LH103,119,RZH100..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLACK,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,113,119,RZH100,101..CTM,SGL MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-08046B0 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) MEDIUM GRAY,TRIM1# |
2 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26200 | ||||
| 67771-26210 | ||||
| 67771-95J04 | ||||
| 67921-95500 | ||||
| 90183-04035 | ||||
| 90189-05019 | ||||
| 90467-08120 | ||||
| 90467-08125 | ||||
| 90467-09130 | ||||
| 90467-10162 | ||||
| 90468-05047 | ||||
| 90468-05096 | ||||
| 93540-46016 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7456 | ||||
(8908- )KZH100,11#,13#,LH100,110,117,120,16#,17#,18#,RZH100,102,11#,12#,133,18#.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-95J0303 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62413-95J0303 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62413-95J03B1 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0503 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414-95J0503 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0503 |
LH100,102,113,119,RZH100,101..CTM,SGL GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
LH103,119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62414-95J0503 |
LH100,102,119,RZH100,101..CTM,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) GRAY,TRIM1# |
1 | ||
| 62414-95J05B0 |
KZH11#,LH103,113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J4703 |
LH119..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1# |
1 | ||
| 62510-95J5203 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62510-26200B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J35B0 |
KZH100,LH10#,11#,RZH100,102,112..(V1,WG)..4D..(DX,GL) ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-95J36B0 |
KZH100,LH10#,11#,RZH100,102,112..4D..(DX,GL) BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0503 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(V1,WG)..4D..(05S,06S,08S,09S)..(CTM,DX,GL,SGL,SW) GRAY,TRIM1# |
1 | ||
| 62580-95J0503 |
RZH102,112..850K;LH100,102,109,113,119,123,129,RZH10#,112,122..(V1,WG)..4D..(CTM,DX,GL,SGL) GRAY,TRIM1# |
1 | ||
| 62580-95J05B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..(V1,WG)..4D..(CTM,DX,GL,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J3503 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-95J4503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62630-95J3503 |
LH123..4FC;LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62630-26300B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH129;LH123..4FC;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J35B0 |
LH11#,RZH112..GL;LH123,RZH133..4FC;LH125,129,RZH124..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J4903 |
LH113,119,RZH112..V1..GL GRAY,TRIM1# |
1 | ||
| 62640-95J6503 |
LH119..08S GRAY,TRIM1# |
1 | ||
| 62640-26220B0 |
LH119..08S BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 62640-95J49B0 |
KZH11#,RZH111;LH11#,RZH112..GL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67771-89109 | ||||
| 67771-95705 | ||||
| 67921-95500 | ||||
| 90189-05019 | ||||
| 90467-08120 | ||||
| 90467-08125 | ||||
| 90468-05047 | ||||
| 93219-55016 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
