LH119V-RHMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

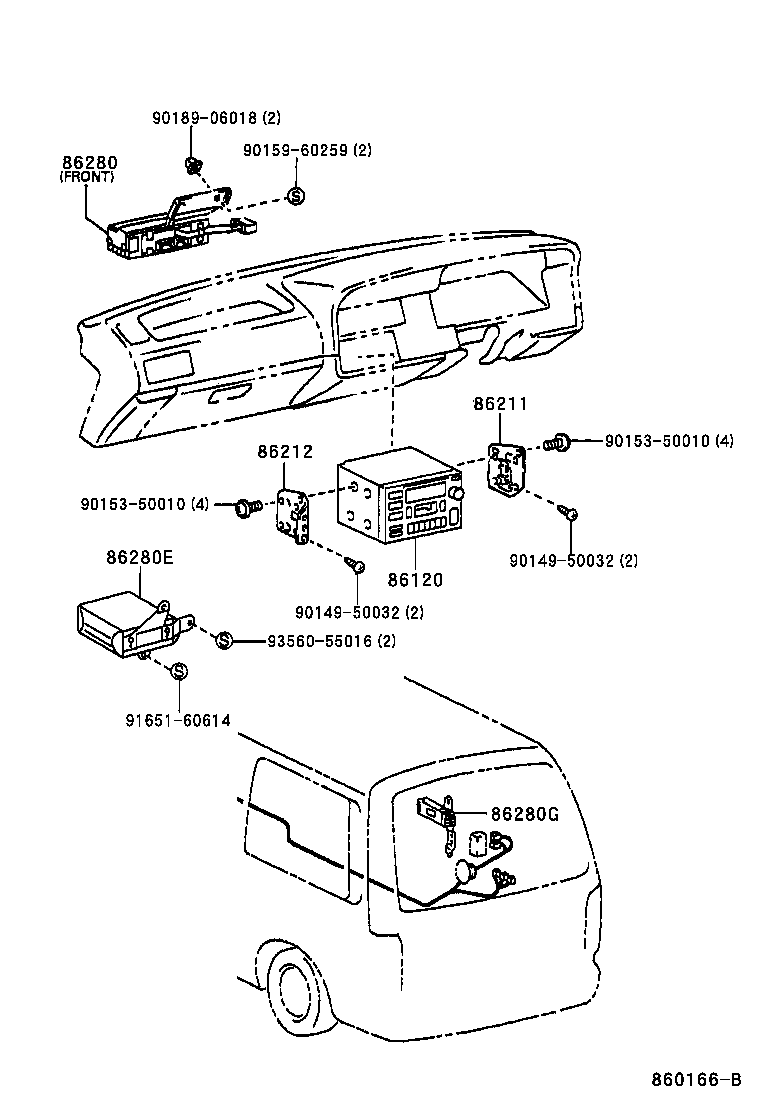

RADIO

diagram 86120 86211 86212 86280 86280E 86280G 9014950032 9014950032 9015350010 9015350010 9015960259 9018906018 9165160614 9356055016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-95J11

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86212 - BRACKET, RADIO, NO.2
86212-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
90149-50032
90153-50010
90159-60259
90189-06018
91651-60614
93560-55016

(8908- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｲﾙﾀ-

diagram 8202 86011A 86011A 86011A 86011A 86011A 86011C 86011C 9011908063 9017906216
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05049

LH10#,11#,12#,140,RZH10#,11#,12#

ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓｰﾀ

 1
86011C - FILTER, NOISE
90980-05049

LH10#,11#,12#,140,RZH10#,11#,12#

ﾌﾛﾝﾄ ﾜｲﾊﾟ ﾓｰﾀ

 1
Common parts
90119-08063
90179-06216
Linked diagrams
8202

(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

RADIO & PLAYER

diagram 8271195704 86120 86120 86120 86203 86211 86211 86211 86212 86212 86212 86260 86260 86270A 86280 9014950032 9014950032 9014950032 9014950032 9014950032 9014950032 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9015960259 9018906018
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-95J11

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86211 - BRACKET, RADIO, NO.1
86211-95J11

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86211 - BRACKET, RADIO, NO.1
86211-95J11

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86212 - BRACKET, RADIO, NO.2
86212-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86212 - BRACKET, RADIO, NO.2
86212-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86212 - BRACKET, RADIO, NO.2
86212-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
86260 - TAPE PLAYER ASSY
86260-17012

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
86260-17012

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
86260 - TAPE PLAYER ASSY
86260-17012

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
86260-17012

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
Common parts
82711-95704
90149-50032
90153-50010
90159-60259
90189-06018

(8908-9308)

Click highlighted areas on diagram

4 ｽﾋﾟ-ｶ ｽﾃﾚｵｺﾝﾎﾟ(ﾃﾞｲﾗ-ｵﾌﾟｼﾖﾝ)

diagram 8602 86030 86120 86260
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86260 - TAPE PLAYER ASSY
86260-17012

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
86260-17012

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW

 1
Linked diagrams
8602

(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

10 ｽﾋﾟ-ｶ ｽﾃﾚｵｺﾝﾎﾟ(ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ)

diagram 86030 86120 86203D 86270A 86280 86280G
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16530

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

AM

 1
86120-2A160

LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2B010

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-37010

KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SGL,SW

MATSUSHITA,ID=50101,AM

 1
86120-35130

KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
86120-2A160

KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- 2 ｽﾋﾟ-ｶ

 1
