LH119V-RHMDS (1989)
Toyota Hiace/Regiusace
(9308- )LH10#,11#,12#,16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#
ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)

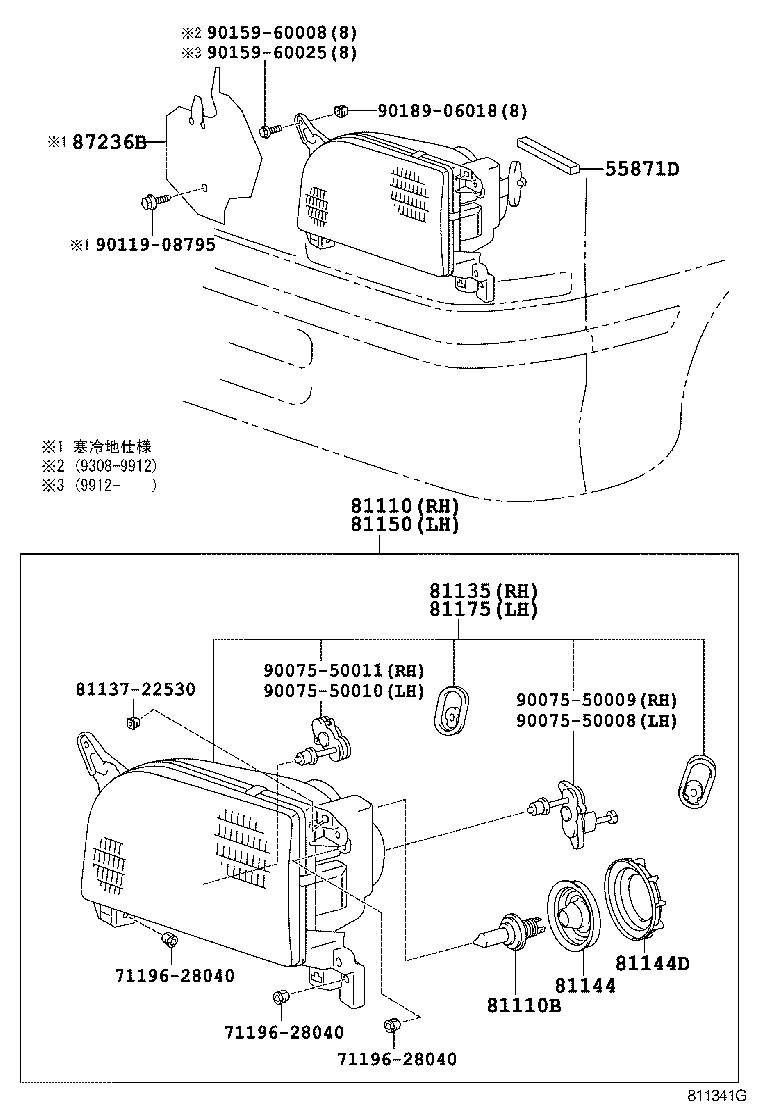

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871D - SEAL, AIR DUCT | ||||
| 55871-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13015 |
KZH10#,11#,12#,13#,RZH101,111,133 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13055 |
LH10#,11#,12#,RZH102,112,124 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99084 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 90075-99083 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81170-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 71196-28040 | ||||
| 81137-22530 | ||||
| 90075-50008 | ||||
| 90075-50009 | ||||
| 90075-50010 | ||||
| 90075-50011 | ||||
| 90119-08795 | ||||
| 90159-60008 | ||||
| 90159-60025 | ||||
| 90189-06018 | ||||
(8908-9308)
ｼｰﾙﾄﾞﾋﾞｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871D - SEAL, AIR DUCT | ||||
| 55871-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13015 |
KZH10#,11#,12#,13#,RZH101,111,133 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13055 |
LH10#,11#,12#,RZH102,112,124 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04029 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW 12V 65/55W,*WB |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04029 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW 12V 65/55W,*WB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-16220 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-16220 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90075-00006 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871D - SEAL, AIR DUCT | ||||
| 55871-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13015 |
KZH10#,11#,12#,13#,RZH101,111,133 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13055 |
LH10#,11#,12#,RZH102,112,124 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99084 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81170-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10805 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||
(9308-9608)KZH10#,11#,12#,13#,LH11#,123,129,RZH100,101,111,133
ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-26010 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
2 | ||
| 53271-26010 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
2 | ||
| 55871D - SEAL, AIR DUCT | ||||
| 55871-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13015 |
KZH10#,11#,12#,13#,RZH101,111,133 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13055 |
LH10#,11#,12#,RZH102,112,124 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99084 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 90075-99083 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99072 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
2 | ||
| 90075-99072 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
2 | ||
| 81145D - CAP, HEADLAMP LOCKING NO.2 | ||||
| 90075-99073 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
2 | ||
| 90075-99073 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81170-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13057 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 12V 35W |
2 | ||
| 90981-13057 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 12V 35W |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-01003 | ||||
| 90075-50010 | ||||
| 90075-50011 | ||||
| 90075-50012 | ||||
| 90075-50013 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
| 90189-06167 | ||||
(8908-9308)
ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871D - SEAL, AIR DUCT | ||||
| 55871-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81110-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81110-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13015 |
KZH10#,11#,12#,13#,RZH101,111,133 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13055 |
LH10#,11#,12#,RZH102,112,124 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99084 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99072 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 |
2 | ||
| 90075-99072 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 81150-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81150-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81150-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-26070 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-26060 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 81170-26070 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13057 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH129,RZH100,101 12V 35W |
2 | ||
| 90981-13057 |
LH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133 12V 35W |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10801 | ||||
| 90075-10805 | ||||
| 90150-60008 | ||||
| 90189-06018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
