LH119V-RHMDS (1989)
Toyota Hiace/Regiusace
(8908- )4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 43201-26030 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 43201-26010 |
LH107,109,117,119,129 |
1 | ||
| 43211Q - SEAL, OIL (FOR STEERING KNUCKLE) | ||||
| 90316-60002 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-30003 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 外側 |
2 | ||
| 90381-30006 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 内側 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-30003 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 外側 |
2 | ||
| 90381-30006 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 内側 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 43202-26010 |
LH107,109,117,119,129 |
1 | ||
| 43202-26030 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29155 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 43330-29215 |
LH107,109,117,119,129 |
2 | ||
| 43330-29305 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29045 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48066-29105 |
KZH106,116,LH109,119..CD,CTM,DX,GL,SGL |
1 | ||
| 48066-29025 |
LH107,109,117,119,129 |
1 | ||
| 48066-29115 |
KZH106,116,126,LH109,119 |
1 | ||
| 48066-29025 |
KZH138,LH109,119,129 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29045 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48067-29115 |
KZH106,116,126,LH109,119 |
1 | ||
| 48067-29025 |
LH107,109,117,119,129 |
1 | ||
| 48067-29025 |
KZH138,LH109,119,129 |
1 | ||
| 48067-29105 |
KZH106,116,LH109,119..CD,CTM,DX,GL,SGL |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26050 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 48068-26060 |
LH107,109,117,119,129 |
1 | ||
| 48068-26061 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48068-26062 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26060 |
LH107,109,117,119,129 |
1 | ||
| 48069-26061 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48069-26062 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 48069-26050 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-26020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 48106-26040 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48190-26020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48190-26020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48198-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48198-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26051 |
LH107,109,117,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48331-26091 |
KZH100,110,120,132,LH103,113,123,125,RZH10#,11#,124 ﾀｲﾌﾟ C |
2 | ||
| 48331-26111 |
KZH106,116,126,138,LH109,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26051 |
LH107,109,117,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48331-26091 |
KZH100,110,120,132,LH103,113,123,125,RZH10#,11#,124 ﾀｲﾌﾟ C |
2 | ||
| 48331-26111 |
KZH106,116,126,138,LH109,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 48332A - BUMPER, FRONT SPRING, NO.3 | ||||
| 48331-26061 |
LH107,109,117,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48332-26031 |
KZH106,116,126,138,LH109,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48332A - BUMPER, FRONT SPRING, NO.3 | ||||
| 48331-26061 |
LH107,109,117,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48332-26031 |
KZH106,116,126,138,LH109,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26031 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 48061-26030 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
LH107,109,117,119,129 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26031 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 48061-26030 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
LH107,109,117,119,129 |
2 | ||
| Common parts | ||||
| 90101-14063 | ||||
| 90102-12005 | ||||
| 90105-12200 | ||||
| 90105-14043 | ||||
| 90119-10832 | ||||
| 90170-16023 | ||||
| 90171-12011 | ||||
| 90171-16005 | ||||
| 90252-03011 | ||||
| 90252-04003 | ||||
| 90345-06014 | ||||
| 90520-29031 | ||||
| 90520-40010 | ||||
| 91611-60825 | ||||
| 91611-60828 | ||||
| 94622-11400 | ||||
| 94622-11600 | ||||
(8908-9508)KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 43201-26030 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 43201-26010 |
LH107,109,117,119,129 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 43202-26010 |
LH107,109,117,119,129 |
1 | ||
| 43202-26030 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29155 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 43330-29215 |
LH107,109,117,119,129 |
2 | ||
| 43330-29305 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 43346 - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-29065 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-29065 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26050 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 48068-26060 |
LH107,109,117,119,129 |
1 | ||
| 48068-26061 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48068-26062 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26060 |
LH107,109,117,119,129 |
1 | ||
| 48069-26061 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 48069-26062 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 48069-26050 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-26020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
2 | ||
| 48106-26040 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48190-26020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
4 | ||
| 48198-26010 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26051 |
LH107,109,117,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48331-26091 |
KZH100,110,120,132,LH103,113,123,125,RZH10#,11#,124 ﾀｲﾌﾟ C |
2 | ||
| 48331-26111 |
KZH106,116,126,138,LH109,119,129 ﾀｲﾌﾟ B |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-29015 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12# |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-29015 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12# |
1 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02143 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 ﾌﾛﾝﾄ |
2 | ||
| 90948-02142 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 ﾘﾔ |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02143 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 ﾌﾛﾝﾄ |
2 | ||
| 90948-02142 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 ﾘﾔ |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26031 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 48061-26030 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 48061-35011 |
LH107,109,117,119,129 |
2 | ||
| Common parts | ||||
| 90101-14041 | ||||
| 90102-12005 | ||||
| 90105-10057 | ||||
| 90105-12183 | ||||
| 90105-12200 | ||||
| 90170-16010 | ||||
| 90171-12004 | ||||
| 90179-08141 | ||||
| 90179-10054 | ||||
| 90179-12020 | ||||
| 90179-18004 | ||||
| 90252-03011 | ||||
| 90252-04003 | ||||
| 94110-50800 | ||||
| 94146-71600 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94622-11400 | ||||
| 94622-11600 | ||||

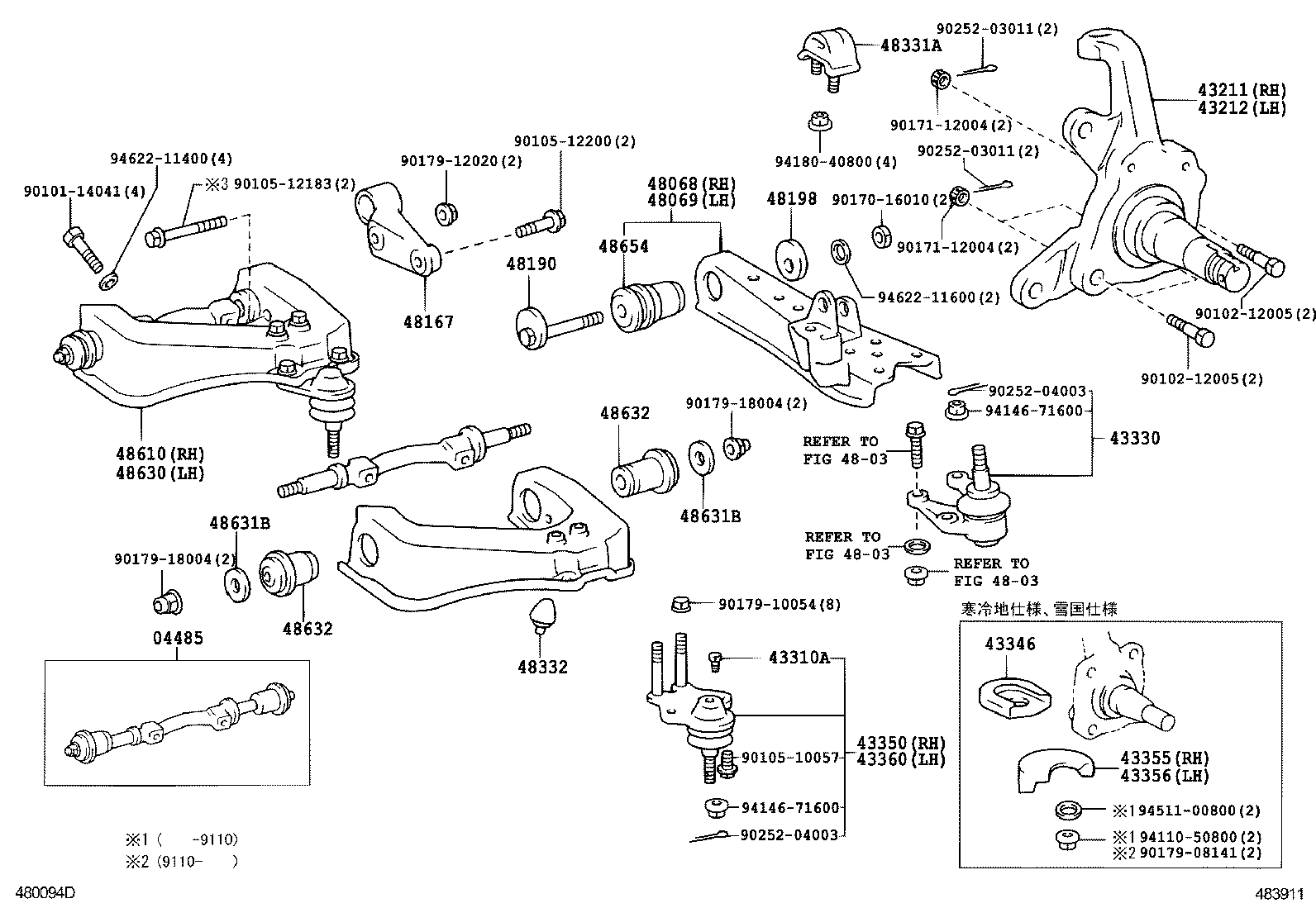

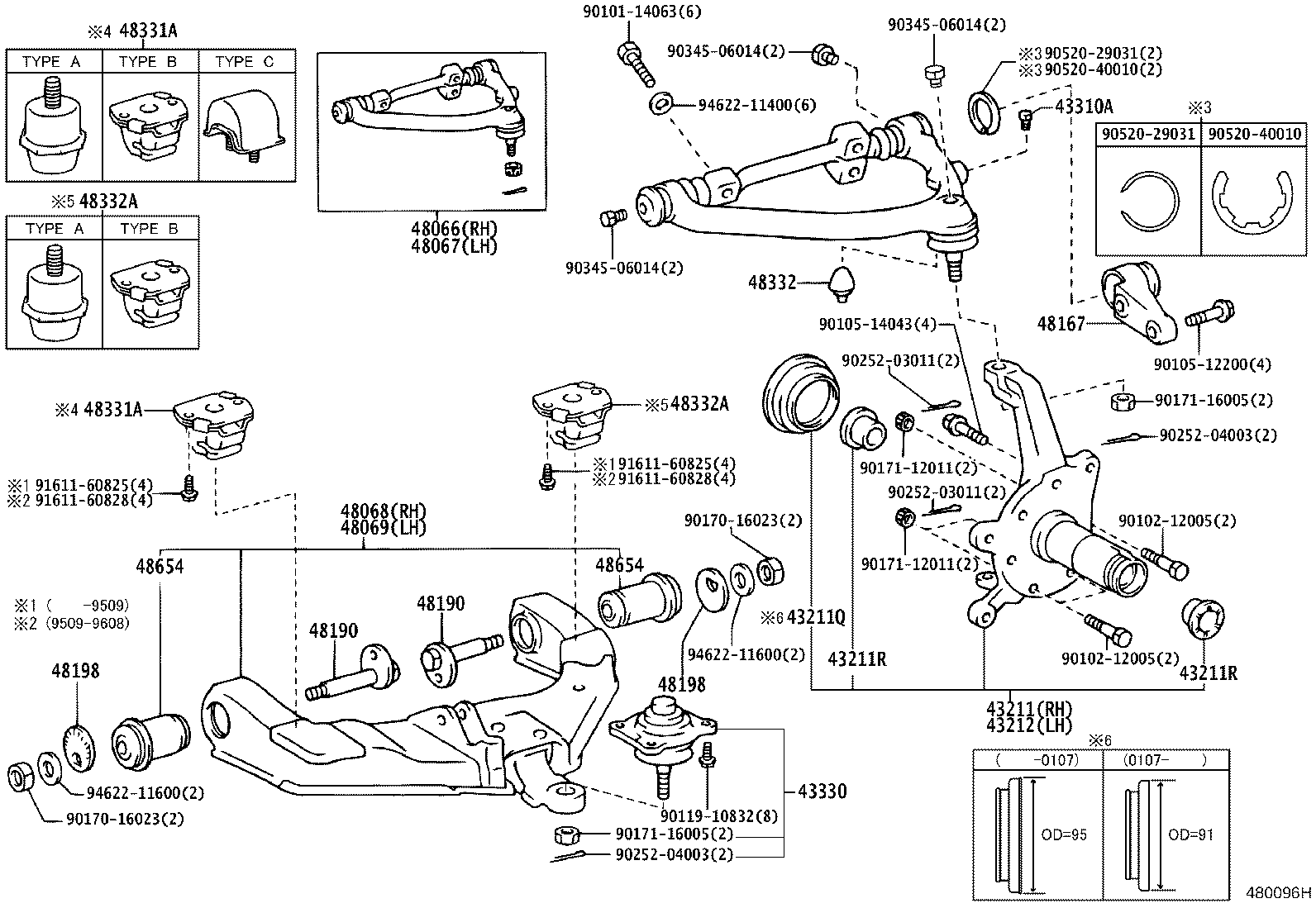

| Linked diagrams | ||||
| 4803 | ||||
