LH115B-BRMDS (1989)
Toyota Hiace/Regiusace
ILLUST NO. 3 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71345C - HINGE, REAR SEAT BACK, RH | ||||
| 71345-95J08 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 71346C - HINGE, REAR SEAT BACK, LH | ||||
| 71346-95J04 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH113..V2..5D..DX;LH113,123..09S..4FC;LH113..V2..4D..5F..DX;LH113,119,123..V1..06S..DX;LH103,125,RZH112..DX,GL,SGL;KZH11#,LH102,109,110,115,117,129,RZH102,110,111,12#..DX |
2 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79043-95J1302 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH125;LH102,109,11#,123,129,RZH102,11#,12#..(06S,10S,15S)..DX |
2 | ||
| 79189-95J00 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,119,123,125,RZH110,12#..09S,10S,15S |
2 | ||
| 71334-95703 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,117,119,123,125,RZH110,12#..(09S,10S,15S)..(DX,GL) |
2 | ||
| 71334-26020 |
LH110,115,117,125,RZH110,124 NO.1 ｼｰﾄ |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL) |
2 | ||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,117,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,140,RZH102,112..(05S,06S)..(GL,SGL,SW) |
2 | ||
| 79199-95J01 |
LH125;LH102,109,11#,123,129,RZH102,11#,12#..(06S,10S,15S)..DX |
2 | ||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,117,119,123,125,RZH110,124..09S,10S,15S;LH102,109,113,119,140,RZH102,112..(05S,06S)..(GL,SGL,SW) |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
2 | ||
| 79378-26010D0 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
2 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J01 |
LH110,115,117,125,RZH110,124..DX 左側 |
1 | ||
| 79405-95J03 |
LH110,115,117,125,RZH110,124..DX 右側 |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J01 |
LH110,115,117,125,RZH110,124..DX 左側 |
1 | ||
| 79405-95J03 |
LH110,115,117,125,RZH110,124..DX 右側 |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J04 |
LH115 |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J2202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-95J01 |
LH115,125,184,186,RZH124,125 |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J1702 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79047-95J00 |
KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-10415 | ||||
| 90164-50020 | ||||
| 90506-23023 | ||||
| 90523-06017 | ||||

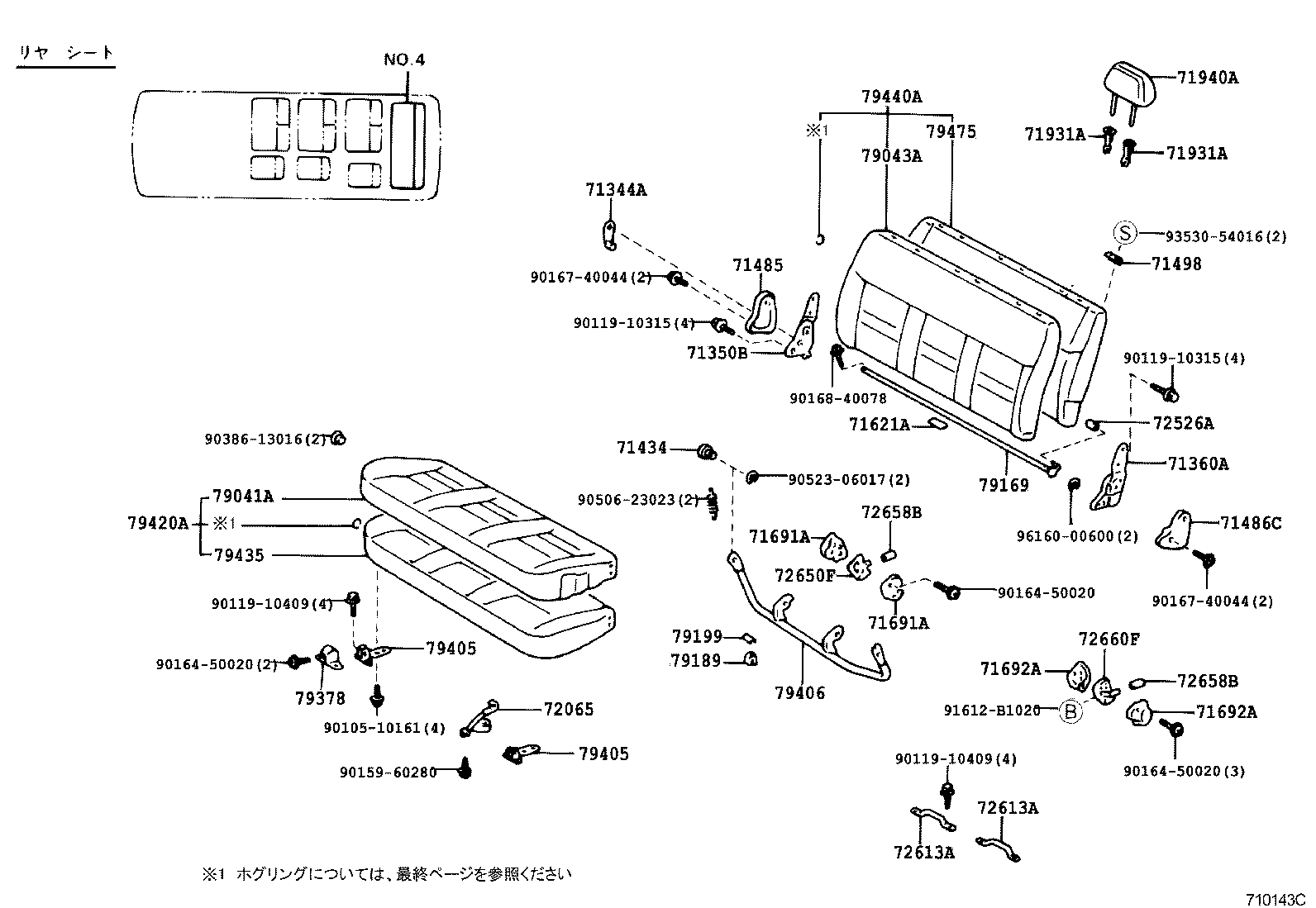

ILLUST NO. 3 OF 4(8908- )LH115 ; (8908- )LH125,184,186,RZH125,TRH124..GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH113..V2..5D..DX;LH113,123..09S..4FC;LH113..V2..4D..5F..DX;LH113,119,123..V1..06S..DX;LH103,125,RZH112..DX,GL,SGL;KZH11#,LH102,109,110,115,117,129,RZH102,110,111,12#..DX |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
6 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-9570302 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,外側 |
1 | ||
| 71692-9570302 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,内側 |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-9570302 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,外側 |
1 | ||
| 71692-9570302 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,内側 |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71691-9570202 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,内側 |
1 | ||
| 71692-9570202 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,外側 |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71691-9570202 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,内側 |
1 | ||
| 71692-9570202 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3#,外側 |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
KZH11#,LH110,115,117,125,RZH110,124..DX,GL |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72660-95J04 |
LH125..GL;LH110,115,117,RZH110..DX |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570102 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570102 |
LH125..GL;LH110,115,117,RZH110..DX NEW MAROON,TRIM3# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72650-95J04 |
LH125..GL;LH110,115,117,RZH110..DX |
1 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79043-95J1302 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH125;LH102,109,11#,123,129,RZH102,11#,12#..(06S,10S,15S)..DX |
2 | ||
| 79189-95J00 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,119,123,125,RZH110,12#..09S,10S,15S |
2 | ||
| 71334-95703 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,117,119,123,125,RZH110,12#..(09S,10S,15S)..(DX,GL) |
2 | ||
| 71334-26020 |
LH110,115,117,125,RZH110,124 NO.1 ｼｰﾄ |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL) |
2 | ||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,117,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,140,RZH102,112..(05S,06S)..(GL,SGL,SW) |
2 | ||
| 79199-95J01 |
LH125;LH102,109,11#,123,129,RZH102,11#,12#..(06S,10S,15S)..DX |
2 | ||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,117,119,123,125,RZH110,124..09S,10S,15S;LH102,109,113,119,140,RZH102,112..(05S,06S)..(GL,SGL,SW) |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
2 | ||
| 79378-26010D0 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
2 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J01 |
LH110,115,117,125,RZH110,124..DX 左側 |
1 | ||
| 79405-95J03 |
LH110,115,117,125,RZH110,124..DX 右側 |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J01 |
LH110,115,117,125,RZH110,124..DX 左側 |
1 | ||
| 79405-95J03 |
LH110,115,117,125,RZH110,124..DX 右側 |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J04 |
LH115 |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J2202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-95J01 |
LH115,125,184,186,RZH124,125 |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J1702 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79047-95J00 |
KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90159-60280 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90386-13016 | ||||
| 90506-23023 | ||||
| 90523-06017 | ||||
| 91612-B1020 | ||||
| 93530-54016 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 4(8908-9907)CD,DX,SW
ﾌﾛﾝﾄ ｼ-ﾄ:ｱﾘ(ｾﾝﾀ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J01 |
LH115,125,RZH124..DX |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0702 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71071-95J7802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8402 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074-95N4802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0802 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0002 |
LH123..4FC;LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71274-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3102 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0302 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0202 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71395-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71410-95J8502 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8502 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71402-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0202 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71832-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95J0602 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72510-95J0602 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0102 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0102 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570102 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72658-9570102 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10854 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90386-12061 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 4(8908-9907)
ﾌﾛﾝﾄ ｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J01 |
LH115,125,RZH124..DX |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0702 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71071-95J7802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8402 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074-95N4802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0802 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0002 |
LH123..4FC;LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71274-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3102 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0302 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0202 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71395-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71410-95J8502 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8502 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71402-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0202 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71832-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95J0602 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72510-95J0602 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0102 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0102 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570102 |
LH123..4FC;LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72658-9570102 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 5(8908-9907)DX,GCGE,GCGN,SCL,SGL,SW
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J01 |
LH115,125,RZH124..DX |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71071-95J7802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8402 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71073-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4802 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71074-95N4802 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0802 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71128-95J0802 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71410-95J8502 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8502 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 71402-95N3202 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71831-95J0002 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0202 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71832-95J0202 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0102 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 72525-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-08269 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90530-06007 | ||||
| 91611-60616 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J12 |
LH115 ﾌﾛﾝﾄ |
1 | ||
| 71333-95J08 |
LH115 ﾘﾔ |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J12 |
LH115 ﾌﾛﾝﾄ |
1 | ||
| 71333-95J08 |
LH115 ﾘﾔ |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J17 |
LH115 ﾘﾔ |
1 | ||
| 71333-95J30 |
LH115,125,RZH124..DX ﾌﾛﾝﾄ |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J17 |
LH115 ﾘﾔ |
1 | ||
| 71333-95J30 |
LH115,125,RZH124..DX ﾌﾛﾝﾄ |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J21 |
LH115 ﾌﾛﾝﾄ |
1 | ||
| 71333-95J25 |
LH115 ﾘﾔ |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J21 |
LH115 ﾌﾛﾝﾄ |
1 | ||
| 71333-95J25 |
LH115 ﾘﾔ |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79106-95J12 |
LH115 |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79106-95J19 |
LH115 |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79106-95J24 |
LH115 |
1 | ||
| 79106-95J24 |
LH115,125,RZH124..DX |
1 | ||
| 79106-95J24 |
LH115 |
1 | ||
| Common parts | ||||
| 91612-61030 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0002 |
LH123..4FC;LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71274-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH115,125,RZH124..DX |
3 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N1002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N0002 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 79013-95N0002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N2002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79015-95J00 |
KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N1602 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-95J00 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| Common parts | ||||
| 91611-61025 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
KZH11#,LH110,115,117,125,RZH110,124..DX,GL |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10625 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0002 |
LH123..4FC;LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71274-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH115,125,RZH124..DX |
3 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-95N1002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-95N0002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79013-95N0002 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95N2002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79015-95J00 |
KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79140-95N1602 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| Common parts | ||||
| 91611-61025 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
KZH11#,LH110,115,117,125,RZH110,124..DX,GL |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10625 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0002 |
LH123..4FC;LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 71274-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH115,125,RZH124..DX |
3 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-95J4602 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79013-95N0002 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-95J5602 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79025-95J01 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79140-95N1602 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79017-95J00 |
LH115,125,184,186,RZH124,125..DX |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,左側 |
3 | ||
| 79961-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3#,右側 |
3 | ||
| Common parts | ||||
| 91612-61022 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
KZH11#,LH110,115,117,125,RZH110,124..DX,GL |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90119-10625 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
2 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-95J03 |
LH115,125,RZH124 |
2 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH115,125,184,186,RZH124,125 |
3 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J04 |
LH115,125,RZH124..DX |
2 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J00 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾌﾞﾗｹｯﾄ用 |
2 | ||
| 78726-95J01 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾚｯｸﾞ用 |
2 | ||
| 78726-95J02 |
LH115,125,184,186,RZH124,125 左側ｼｰﾄ ﾚｯｸﾞ用 |
1 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J00 |
LH115,125,184,186,RZH124,125 左側 |
1 | ||
| 78735-95J01 |
LH115,125,184,186,RZH124,125 右側 |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH115,125,184,186,RZH124,125 |
3 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
LH115,125,184,186,RZH124,125 右側 |
2 | ||
| 78791-95J01 |
LH115,125,184,186,RZH124,125 左側 |
1 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
LH115,125,184,186,RZH124,125 |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0002 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
6 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08133 | ||||
| 90119-08079 | ||||
| 90206-08016 | ||||
| 90206-12050 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH115,125,RZH124 |
6 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
6 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J00 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾌﾞﾗｹｯﾄ用 |
2 | ||
| 78726-95J01 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾚｯｸﾞ用 |
2 | ||
| 78726-95J02 |
LH115,125,184,186,RZH124,125 左側ｼｰﾄ ﾚｯｸﾞ用 |
1 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J03 |
LH115,125,RZH124..DX 左側 |
1 | ||
| 78731-95J02 |
LH115,125,RZH124..DX 右側 |
2 | ||
| 78803A - LEG SUB-ASSY, SUB SEAT, RH | ||||
| 78803-95J05 |
LH115,125,RZH124..DX |
2 | ||
| Common parts | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 78073-95J0902 |
LH110,115,117,120,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 78073-95J0902 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-95J03 |
LH110,115,117,125,RZH110,124..DX,GL |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH115,125,184,186,RZH124,125 |
3 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-95J1302 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J00 |
LH115,125,184,186,RZH124,125 左側 |
1 | ||
| 78735-95J01 |
LH115,125,184,186,RZH124,125 右側 |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-95J0902 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
1 | ||
| 78740-95J0902 |
LH110,115,117,125,RZH110,124..DX NEW MAROON,TRIM3# |
1 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH115,125,184,186,RZH124,125 |
3 | ||
| 78783 - COVER, SUB SEAT HINGE, LH | ||||
| 78783-95J0002 |
LH110,115,117,120,125,RZH110,124..DX,GCGN,GL NEW MAROON,TRIM3# |
1 | ||
| 78783-95J0002 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
LH115,125,184,186,RZH124,125 右側 |
2 | ||
| 78791-95J01 |
LH115,125,184,186,RZH124,125 左側 |
1 | ||
| 78795 - BRACKET, SUB SEAT, NO.2 | ||||
| 78795-95J00 |
KZH11#,LH110,115,117,125,RZH110,124..DX |
1 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J0002 |
LH115,125,RZH124 NEW MAROON,TRIM3# |
6 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90206-12050 | ||||
| 90389-10026 | ||||
| 93560-15012 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH115,125,RZH124 |
6 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0202 |
LH115,125,RZH124..DX NEW MAROON,TRIM3# |
6 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J00 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾌﾞﾗｹｯﾄ用 |
2 | ||
| 78726-95J01 |
LH115,125,184,186,RZH124,125 右側ｼｰﾄ ﾚｯｸﾞ用 |
2 | ||
| 78726-95J02 |
LH115,125,184,186,RZH124,125 左側ｼｰﾄ ﾚｯｸﾞ用 |
1 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J03 |
LH115,125,RZH124..DX 左側 |
1 | ||
| 78731-95J02 |
LH115,125,RZH124..DX 右側 |
2 | ||
| 78794 - BRACKET, SUB SEAT, NO.1 | ||||
| 78794-95J00 |
LH115 |
1 | ||
| 78804B - LEG SUB-ASSY, SUB SEAT, LH | ||||
| 78803-95J06 |
KZH11#,LH110,115,117,125,RZH110,124..DX |
1 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90389-10012 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
(8908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
