LH113V-SRPNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)LH102,113,RZH102,112..GL ; (9308-9608)LH10#,11#,RZH102,112..GL ; (9608-9

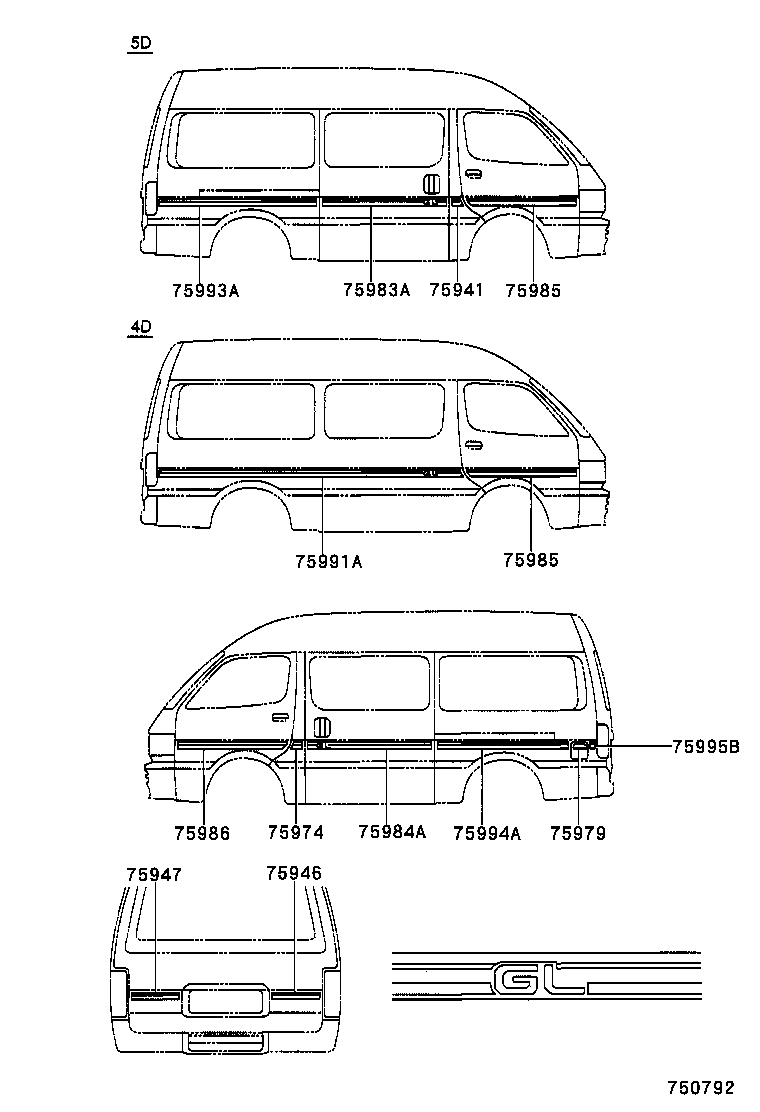

Click highlighted areas on diagram

diagram 75941 75946 75947 75974 75979 75983A 75984A 75985 75985 75986 75991A 75993A 75994A 75995B
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-95J32

LH102,113,RZH102,112..5D..GL

 1
75941-26040

LH10#,11#,RZH102,112..5D..GL

 1
75946 - STRIPE, BACK DOOR, RH
75946-95J32

LH102,113,RZH102,112..GL

 1
75947 - STRIPE, BACK DOOR, LH
75947-95J32

LH102,113,RZH102,112..GL

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75942-26070

LH10#,11#,RZH102,112..GL

 1
75942-95J08

LH102,113,RZH102,112..GL

 1
75979 - STRIPE, FUEL FILLER OPENING LID
75979-95J05

LH102,113,RZH102,112..GL

 1
75979-26090

LH10#,11#,RZH102,112..GL

 1
75983A - STRIPE, SLIDE DOOR
75983-26030

LH10#,11#,RZH102,112..5D..GL

 1
75983-95J37

LH102,113,RZH102,112..5D..GL

 1
75984A - STRIPE, SLIDE DOOR
75984-95J06

LH102,113,RZH102,112..GL

 1
75984-26100

LH10#,11#,RZH102,112..GL

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J42

LH102,113,RZH102,112..GL

 1
75985-26090

LH10#,11#,RZH102,112..GL

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95J42

LH102,113,RZH102,112..GL

 1
75985-26090

LH10#,11#,RZH102,112..GL

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95J42

LH102,113,RZH102,112..GL

 1
75986-26090

LH10#,11#,RZH102,112..GL

 1
75993A - STRIPE, QUARTER, REAR RH
75993-95J49

LH113,RZH112..5D..GL

 1
75993-26050

LH11#,RZH112..5D..GL

 1
75994A - STRIPE, QUARTER EXTENSION
75994-95J59

LH113,RZH112..GL

 1
75994-26120

LH11#,RZH112..GL

 1
75995B - STRIPE, QUARTER REAR END
75995-95J16

LH102,113,RZH102,112..GL

 1
75995-26100

LH10#,11#,RZH102,112..GL

 1
