LH113V-SMPDS (1989)
Toyota Hiace/Regiusace
(9308- )KZH10#,11#,12#,13#
A340E,A340F

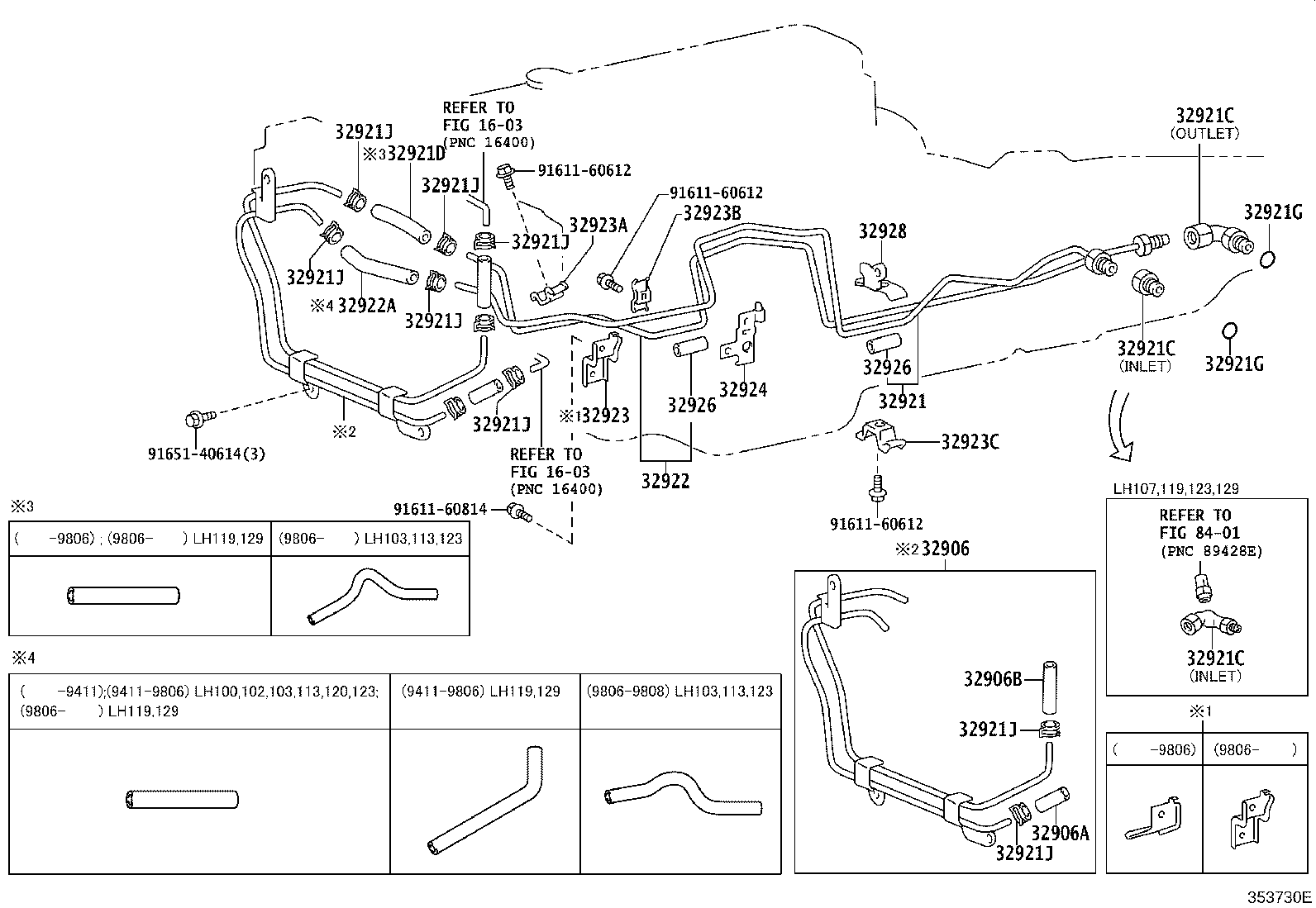

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26092 |
LH103,113,123..4FC |
1 | ||
| 32921-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22181 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 32942-26110 |
LH103,113,123..4FC |
1 | ||
| 90445-17102 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32922-26092 |
LH103,113,123..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17110 |
LH107..SCL;KZH10#,11#,120,13#,LH100,102,103,113,120,123..4FC |
1 | ||
| 32941-26160 |
LH103,113,123..4FC |
1 | ||
| 90445-17110 |
LH100,102,113,120,123..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32925-26090 |
LH103,113,123..4FC |
1 | ||
| 32923-26070 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32923-26070 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90949-01B25 |
LH103,11#,123,129..4FC |
1 | ||
| 90462-12079 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 90462-12079 |
LH102,113,119,123,RZH10#,112..4FC;LH100,107..4FC..(CTM,SCL,SCM)..(DSL,TD) |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-26050 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32924-26050 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91619-61216 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(8908-9808)LH100,102,103,107,113,119,120,123,129..4FC
A44DE,A45DL,A45DF,A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32906-26110 |
LH107..08S..4FC;LH100,102,113,119,120,123,RZH10#,112..4FC |
1 | ||
| 32906-26110 |
LH100,102,107,113,119,123..4FC |
1 | ||
| 32906-26150 |
LH103,11#,123,129,RZH10#,11#,124,133..4FC |
1 | ||
| 32906A - HOSE, OIL COOLER TUBE(FOR INLET) | ||||
| 90445-17156 |
LH103,11#,123,129,RZH10#,11#,124,133..4FC |
1 | ||
| 90445-17093 |
LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 32906B - HOSE, OIL COOLER TUBE(FOR OUTLET) | ||||
| 90445-17100 |
LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26092 |
LH103,113,123..4FC |
1 | ||
| 32921-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22181 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 32942-26110 |
LH103,113,123..4FC |
1 | ||
| 90445-17102 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32922-26092 |
LH103,113,123..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17110 |
LH107..SCL;KZH10#,11#,120,13#,LH100,102,103,113,120,123..4FC |
1 | ||
| 32941-26160 |
LH103,113,123..4FC |
1 | ||
| 90445-17110 |
LH100,102,113,120,123..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32925-26090 |
LH103,113,123..4FC |
1 | ||
| 32923-26070 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32923-26070 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90949-01B25 |
LH103,11#,123,129..4FC |
1 | ||
| 90462-12079 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 90462-12079 |
LH102,113,119,123,RZH10#,112..4FC;LH100,107..4FC..(CTM,SCL,SCM)..(DSL,TD) |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12079 |
LH100,102,107,113,119,123..4FC..(CTM,DX,GL,SCL,SCM,SGL)..(DSL,TD) |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12079 |
LH100,102,107,113,119,123..4FC..(CTM,DX,GL,SCL,SCM,SGL)..(DSL,TD) |
1 | ||
| 90462-12079 |
LH103,11#,123,129..4FC |
1 | ||
| 90462-12079 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-26050 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32924-26050 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-26010 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32928-26010 |
LH103,11#,123,129..4FC |
1 | ||
| 32928-26010 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32928-26080 |
KZH106,116,120,13#..4FC |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
(9308- )KZH10#,11#,12#,13#
A340E,A340F;ｱﾘ(ｸｳﾚｲｼｷｵｲﾙｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-26020 |
KZH106,116,120,13#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26092 |
LH103,113,123..4FC |
1 | ||
| 32921-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22181 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 32942-26110 |
LH103,113,123..4FC |
1 | ||
| 90445-17102 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 90301-11006 |
KZH10#,11#,120,13#,LH100,120..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH100,102,103,107,113,119,120,123,129..4FC |
8 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26091 |
LH100,102,103,113,123..4FC..(DSL,TD) |
1 | ||
| 32922-26092 |
LH103,113,123..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17110 |
LH107..SCL;KZH10#,11#,120,13#,LH100,102,103,113,120,123..4FC |
1 | ||
| 32941-26160 |
LH103,113,123..4FC |
1 | ||
| 90445-17110 |
LH100,102,113,120,123..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32925-26090 |
LH103,113,123..4FC |
1 | ||
| 32923-26070 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32923-26070 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90949-01B25 |
LH103,11#,123,129..4FC |
1 | ||
| 90462-12079 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 90462-12079 |
LH102,113,119,123,RZH10#,112..4FC;LH100,107..4FC..(CTM,SCL,SCM)..(DSL,TD) |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-26050 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32924-26050 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-26010 |
LH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL) |
1 | ||
| 32928-26010 |
LH103,11#,123,129..4FC |
1 | ||
| 32928-26010 |
LH100,102,103,107,113,119,120,123,129..4FC |
1 | ||
| 32928-26080 |
KZH106,116,120,13#..4FC |
1 | ||
| Common parts | ||||
| 90179-08066 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91619-61216 | ||||
| 91651-G0612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
