LH113V-SMMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )LH100,110,120,140,RZH10#,11#,12#,133,18#,TRH102,112,12#

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 9010514071 9010514071 9010514136 9010514136 9010514137 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J08

LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
51021-95J09

RZH10#,11#,12#,133

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J08

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51203-95J09

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH100,102,112,124..5F;LH100,120..(08S,10S)..4FC;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH110,122..CD,CTM,DX,GL,SCL,SGL,SW

 1
Common parts
90105-14071
90105-14136
90105-14137
91661-61030

(8908-9308)LH102,113,115,123,125

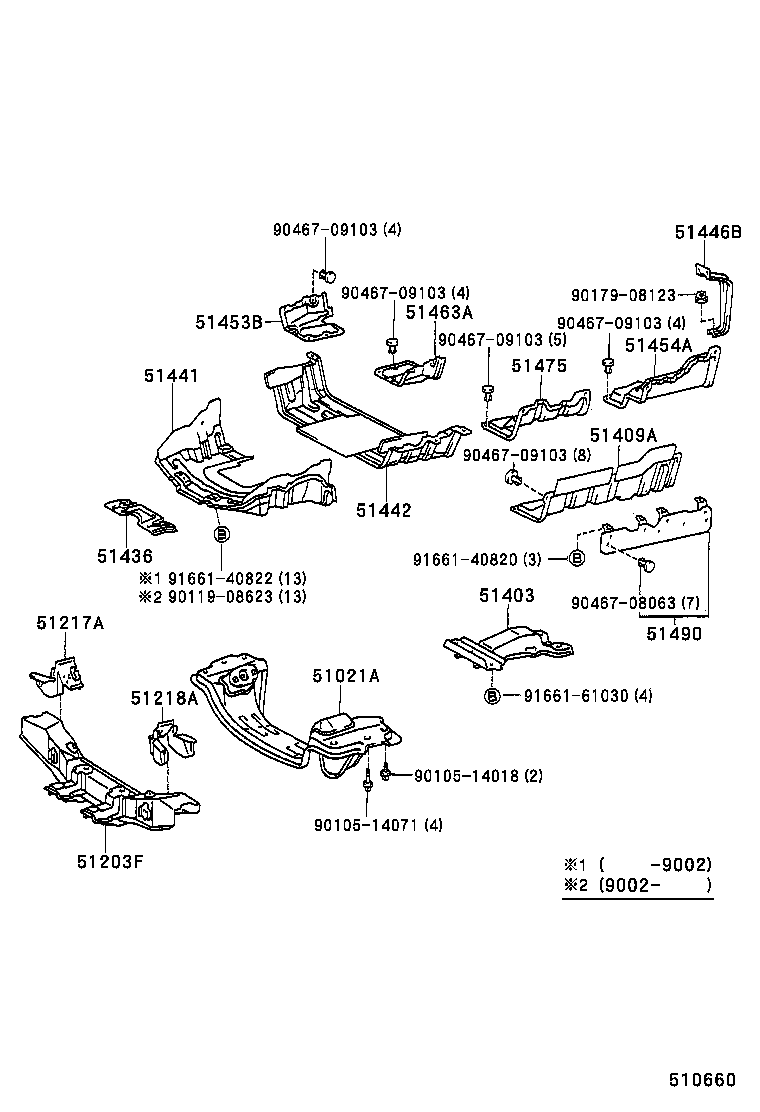

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51436 51441 51442 51446B 51453B 51454A 51463A 51475 51490 9010514018 9010514071 9011908623 9017908123 9046708063 9046709103 9046709103 9046709103 9046709103 9046709103 9166140820 9166140822 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J08

LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
51021-95J09

RZH10#,11#,12#,133

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95J08

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51203-95J09

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51217-95J02

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51218-95J03

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH100,102,112,124..5F;LH100,120..(08S,10S)..4FC;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH110,122..CD,CTM,DX,GL,SCL,SGL,SW

 1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-95J03

LH107,109,113,115,117,119,123,125,129

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-95J00

LH102,113,123

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-95J04

LH102,113,115,123,125

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-95J02

LH102,113,115,123,125

 1
51453B - SILENCER, ENGINE UNDER COVER, RH
51453-95J01

LH102,113,115,123,125

 1
51463A - SILENCER, ENGINE UNDER COVER, FRONT, LH
51463-95J00

LH102,113,115,123,125

 1
51475 - SILENCER, ENGINE UNDER COVER, NO.5
51475-95J01

LH102..4FC;LH107,109,113,115,117,119,123,125,129

 1
Common parts
90105-14018
90105-14071
90119-08623
90179-08123
90467-08063
90467-09103
91661-40820
91661-40822
91661-61030
