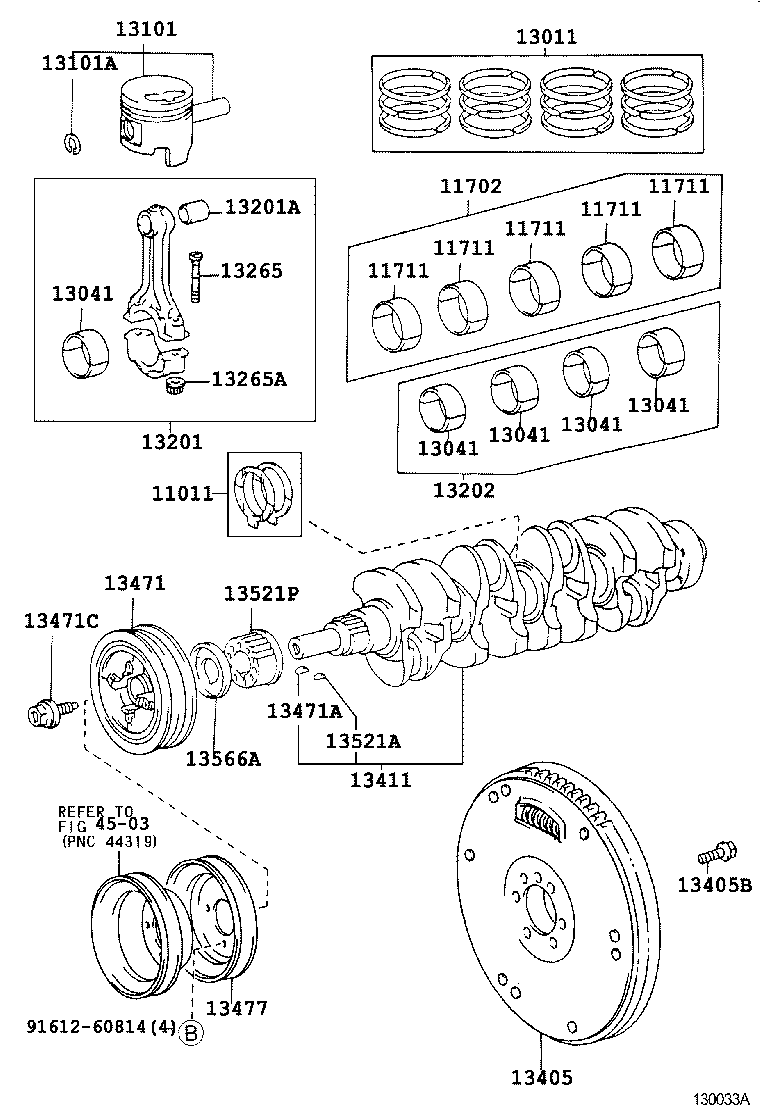

LH113V-SMMNS (1989)
Toyota Hiace/Regiusace
(8908-9003)3L..LH107..5F ; (8908-9308)3L..LH107..4FC ; (9003-9308)2LTE,3L..LH100,10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# O/S 0.250 |
1 | ||
| 11011-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# STD |
1 | ||
| 11012-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# U/S 0.25 |
1 | ||
| 11705-54061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54120 |
3L..LH103,107,109,113,115,117,119,123,125,129 O/S 0.50 |
1 | ||
| 13011-54120 |
3L..LH103,107,109,113,115,117,119,123,125,129 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-54100 |
3L..LH107,109,113,115,117,119,123,125,129 O/S 0.50 |
4 | ||
| 13101-5410002 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 2,修理書参照 |
4 | ||
| 13101-5410001 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 1,修理書参照 |
4 | ||
| 13101-5410003 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 3,修理書参照 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31001 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59105 |
2LT#,3L..LH100,103,107,109,113,115,117,119,12# |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73115 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54041 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# U/S 0.25 |
1 | ||
| 13205-54041 |
2LT#,3L..LH100,103,107,109,113,115,117,119,12# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54020 |
2L,2LT#,3L..LH10#,11#,12#,140 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-10123 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-54070 |
3L..LH113,115,123,125..5F ﾅｼ(ｼ-ﾄﾍﾞﾙﾄ ｹｲｺｸﾄｳ) |
1 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12109 |
3L..LH129;2L,2LT,3L..LH100,102,103,109,110,113,115,119,120,123,125,140..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54060 |
3L..LH103,107,109,113,115,117,119,123,125,129 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54070 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14005 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-95J03 |
2L#,3L..LH10#,11#,120,123,125 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54030 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54040 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| Common parts | ||||
| 91612-60814 | ||||
| Linked diagrams | ||||
| 4503 | ||||

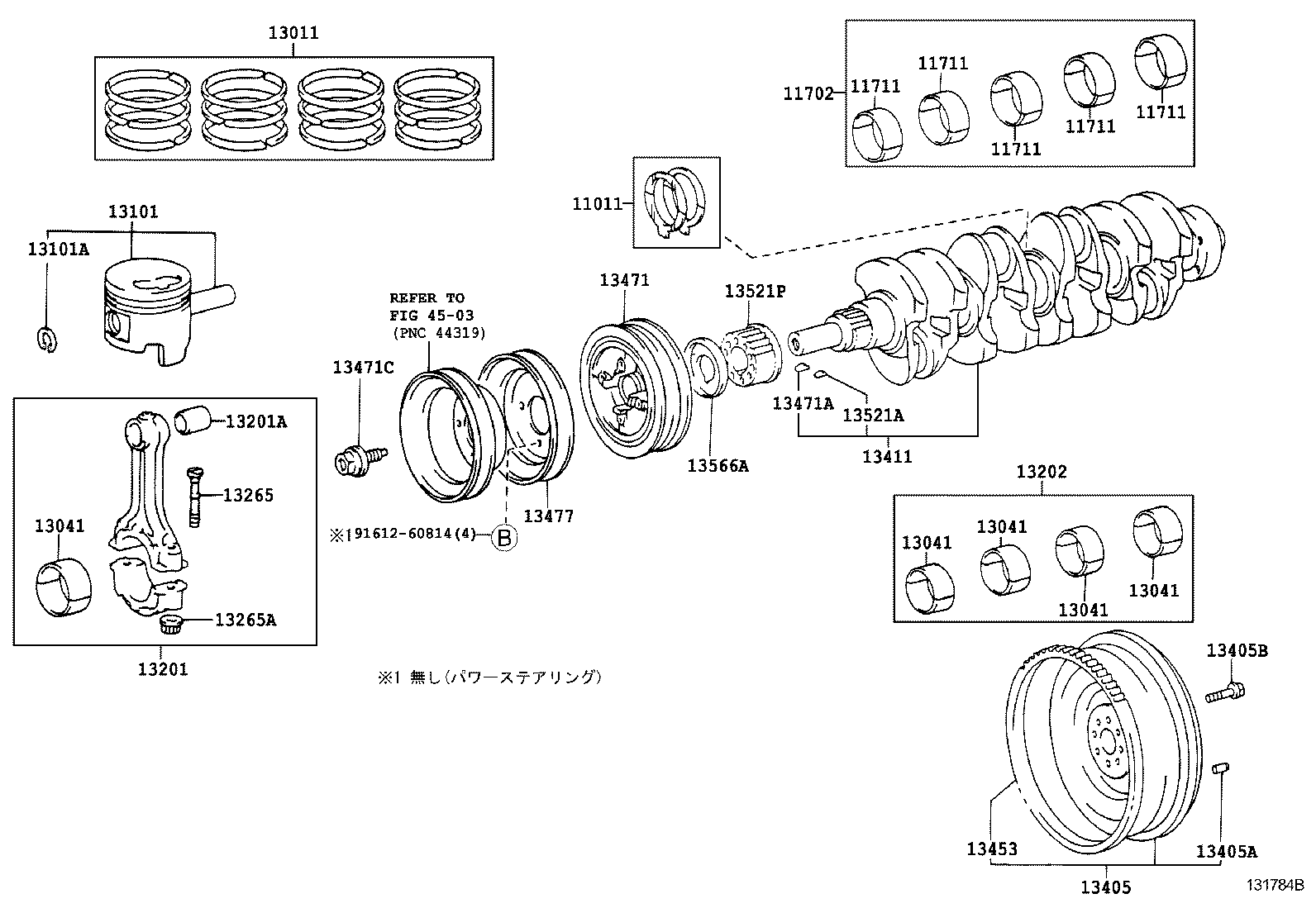

(8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#,12#,140,16#,17#,18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# O/S 0.250 |
1 | ||
| 11011-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# STD |
1 | ||
| 11012-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# U/S 0.25 |
1 | ||
| 11705-54061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406101 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 1,修理書参照 |
5 | ||
| 11701-5406102 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 2,修理書参照 |
5 | ||
| 11701-5406103 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# MARK 3,修理書参照 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54120 |
3L..LH103,107,109,113,115,117,119,123,125,129 O/S 0.50 |
1 | ||
| 13011-54120 |
3L..LH103,107,109,113,115,117,119,123,125,129 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 2,修理書参照 |
4 | ||
| 13041-5404103 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 3,修理書参照 |
4 | ||
| 13041-5404101 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# MARK 1,修理書参照 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-54100 |
3L..LH107,109,113,115,117,119,123,125,129 O/S 0.50 |
4 | ||
| 13101-5410002 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 2,修理書参照 |
4 | ||
| 13101-5410001 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 1,修理書参照 |
4 | ||
| 13101-5410003 |
3L..LH107,109,113,115,117,119,123,125,129 STD,MARK 3,修理書参照 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31001 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59105 |
2LT#,3L..LH100,103,107,109,113,115,117,119,12# |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73115 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54041 |
2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18# U/S 0.25 |
1 | ||
| 13205-54041 |
2LT#,3L..LH100,103,107,109,113,115,117,119,12# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54020 |
2L,2LT#,3L..LH10#,11#,12#,140 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-10123 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-54070 |
3L..LH113,115,123,125..5F ﾅｼ(ｼ-ﾄﾍﾞﾙﾄ ｹｲｺｸﾄｳ) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
3L..LH129;2L,2LT,3L..LH100,102,103,109,110,113,115,119,120,123,125,140..5F 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12109 |
3L..LH129;2L,2LT,3L..LH100,102,103,109,110,113,115,119,120,123,125,140..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54060 |
3L..LH103,107,109,113,115,117,119,123,125,129 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
3L..LH129;2L,2LT,3L..LH100,102,103,109,110,113,115,119,120,123,125,140..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54070 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14005 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-95J03 |
2L#,3L..LH10#,11#,120,123,125 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54030 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54040 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| Common parts | ||||
| 91612-60814 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
