Toyota Hiace/regiusace LH113 SPEAKER

LH113V-SMMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#

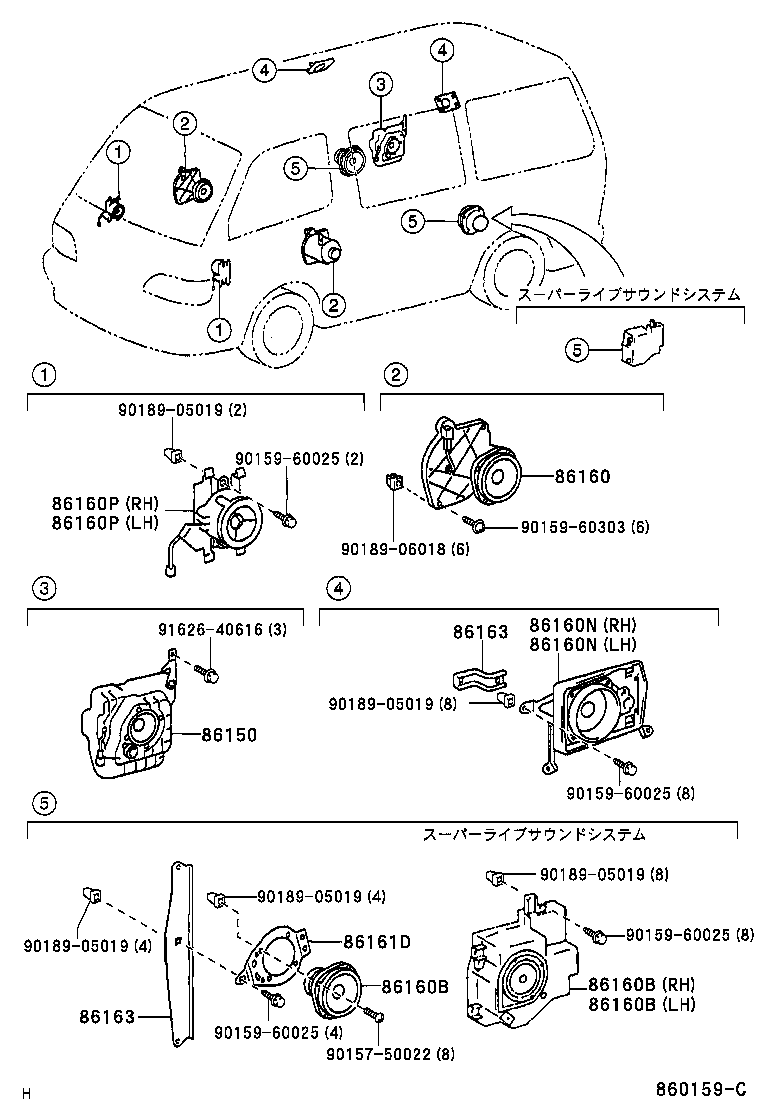

Click highlighted areas on diagram

ﾘﾔ..ｶﾗｵｹ

Part #	Description	Period	Qty	Price
Common parts
90159-60025
90189-06037
93540-55016

(9608- )

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-95J24	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1989 - 08/1993	1
86160-95J22	LH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX	08/1989 - 08/1993	1
86160-26100	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1993 - 09/1994	1
86160-26130	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1995 - 08/1998	1
86160-26090	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1993 - 09/1994	1
86160-95J25	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1989 - 08/1993	1
86160-26090	KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL	08/1993 - 08/1996	1
86160-26130	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1995 - 08/1998	1
Common parts
90157-50022
90159-60025
90159-60303
90189-05019
90189-06018
91626-40616

(8908- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-95J24	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1989 - 08/1993	1
86160-95J22	LH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX	08/1989 - 08/1993	1
86160-26100	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1993 - 09/1994	1
86160-26130	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1995 - 08/1998	1
86160-26090	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1993 - 09/1994	1
86160-95J25	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1989 - 08/1993	1
86160-26090	KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL	08/1993 - 08/1996	1
86160-26130	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1995 - 08/1998	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95J24	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1989 - 08/1993	1
86160-95J22	LH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX	08/1989 - 08/1993	1
86160-26100	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1993 - 09/1994	1
86160-26130	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	09/1994 - 08/1995	1
86160-26120	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1995 - 08/1998	1
86160-26090	KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GCGE,GCGN,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),右側	08/1993 - 09/1994	1
86160-95J25	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1989 - 08/1993	1
86160-26090	KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL	08/1993 - 08/1996	1
86160-26130	KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL ｱﾘ(2 ｽﾋﾟ-ｶ),左側	08/1995 - 08/1998	1
Common parts
90183-05103
93560-55016
93567-15016

(9308-9608)

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty	Price
Common parts
90119-06182
90159-60025
90189-05019

(8908-9107)

Click highlighted areas on diagram

ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ

Part #	Description	Period	Qty	Price
Common parts
90159-60025
90189-05109
90189-06015
90189-06026
93219-54016
93560-56016

(8908-9308)

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty	Price
Common parts
90189-06018
93540-54020
93560-56016

LH113V-SMMDS (1989)

(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#

(9608- )

(8908- )

(9308-9608)

(8908-9107)

(8908-9308)
