LH113V-RRPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

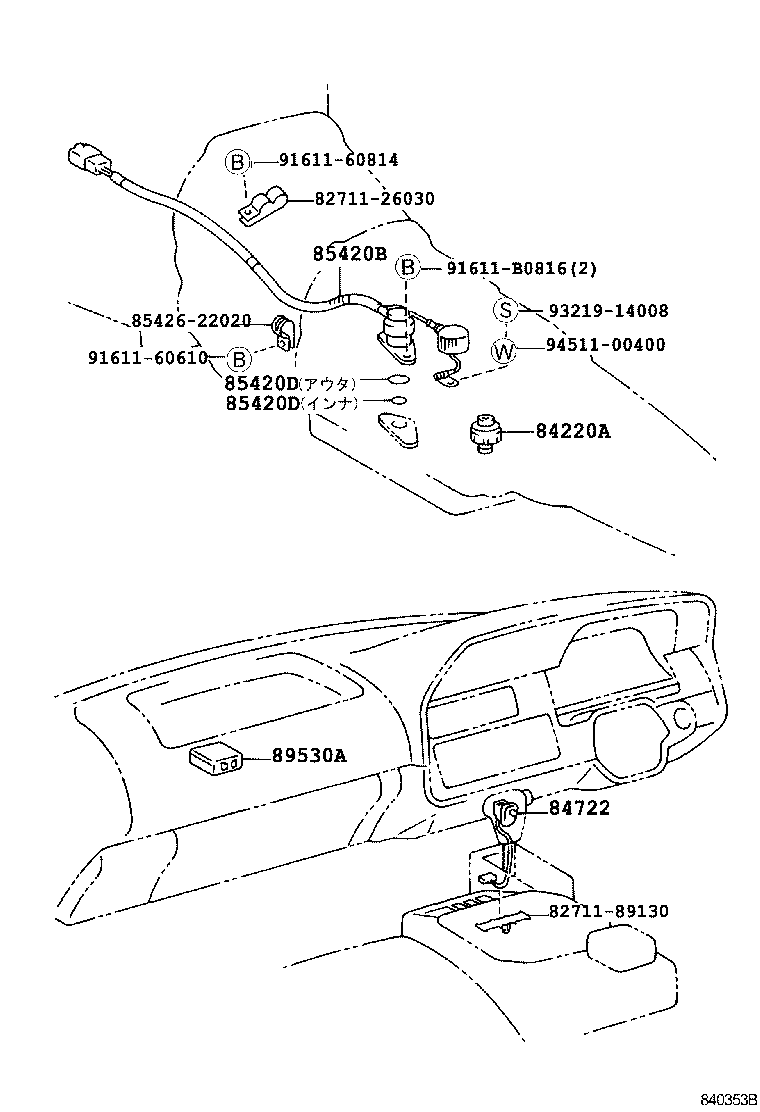

(8908-9308)LH102,113,119,123..4FC

Click highlighted areas on diagram

diagram 8271126030 8271189130 84220A 84722 85420B 85420D 85420D 8542622020 89530A 9161160610 9161160814 91611B0816 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LH102,113,119,123..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC

GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-26020

LH102,113,119,123..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26090

LH102,113,119,123..4FC

 1
Common parts
82711-26030
82711-89130
85426-22020
91611-60610
91611-60814
91611-B0816
93219-14008
94511-00400

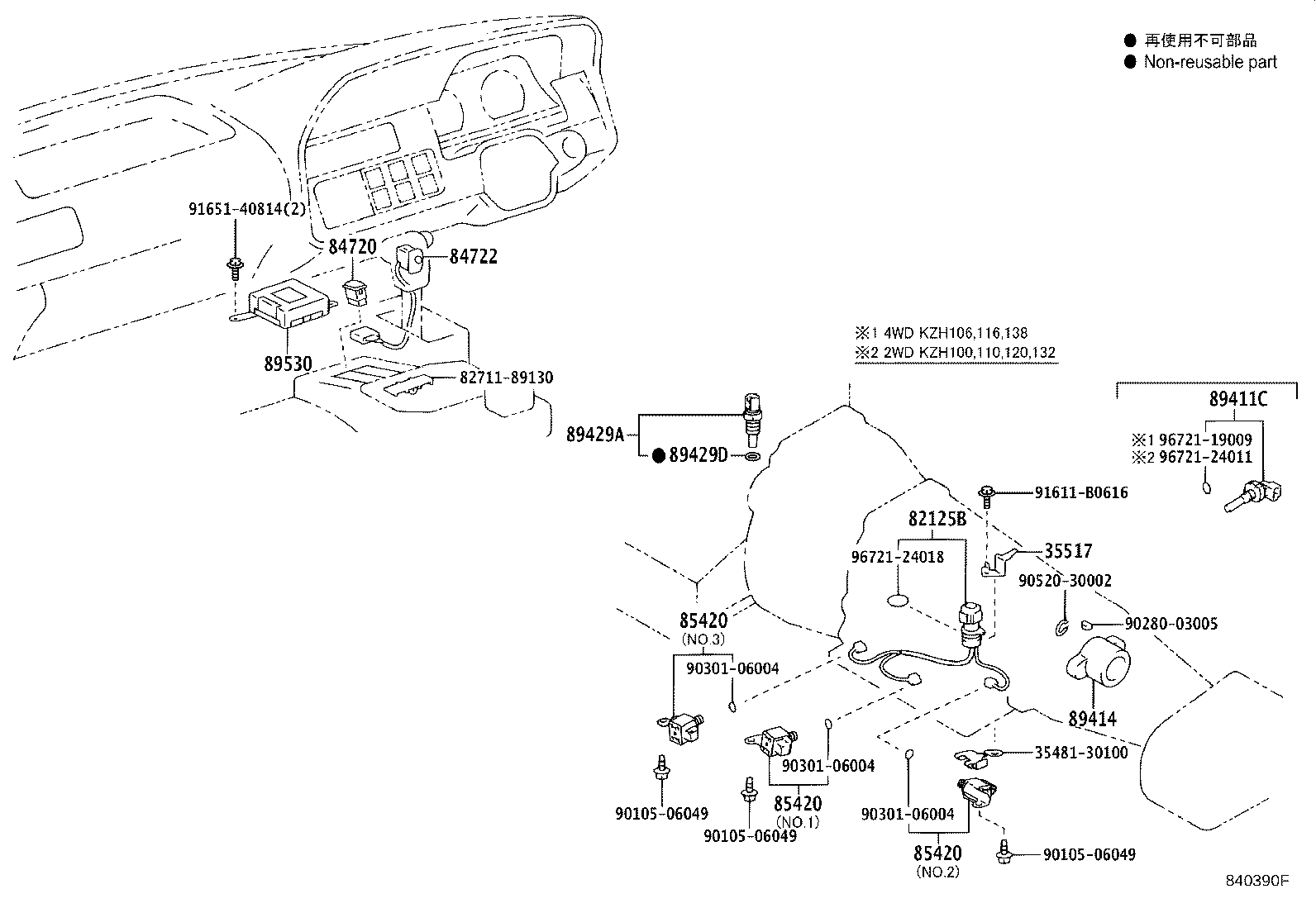

(9308- )KZH10#,11#,120,13#..4FC

Click highlighted areas on diagram

diagram 3548130100 35517 82125B 8271189130 84720 84722 85420 85420 85420 89411C 89414 89429A 89429D 89530 9010506049 9010506049 9010506049 9028003005 9030106004 9030106004 9030106004 9052030002 91611B0616 9165140814 9672119009 9672124011 9672124018
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC

GRAY,TRIM1#

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26121

KZH10#,11#,13#..4FC..(CTM,DX)

 1
Common parts
35481-30100
82711-89130
90105-06049
90280-03005
90301-06004
90520-30002
91611-B0616
91651-40814
96721-19009
96721-24011
96721-24018

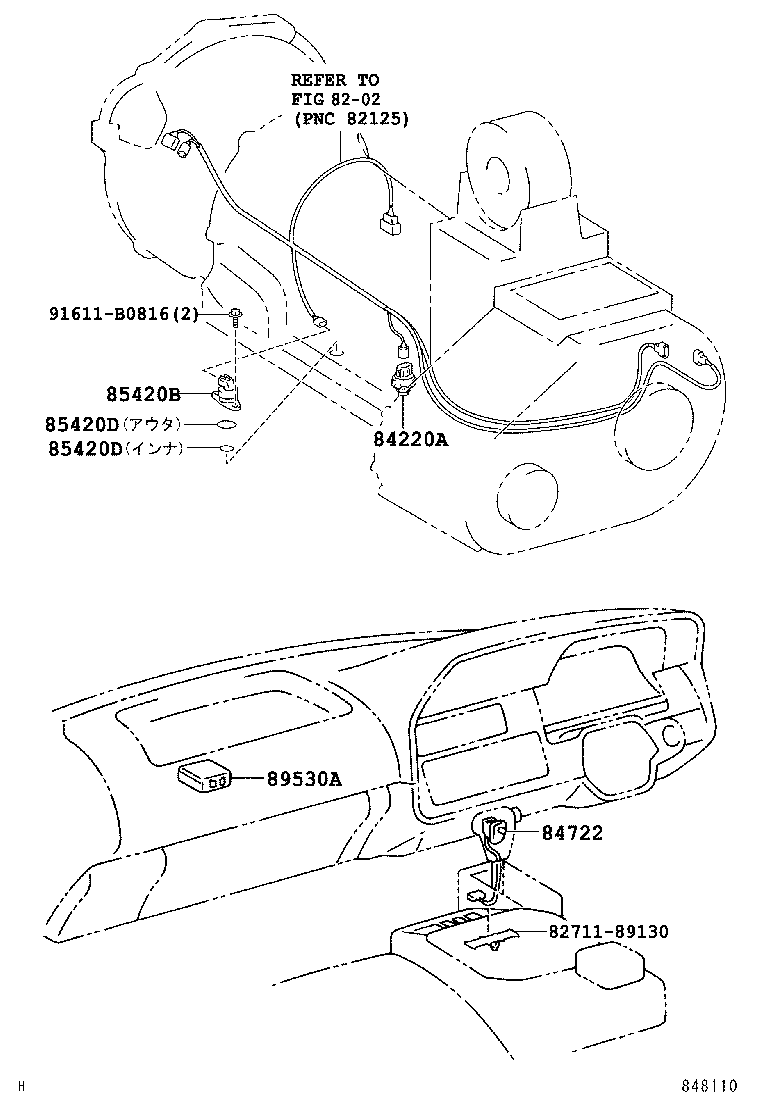

(9308- )LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133,183..4FC

Click highlighted areas on diagram

diagram 8271189130 84220A 84722 85420B 85420D 85420D 89530A 91611B0816
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LH102,113,119,123..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC

GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-26020

LH102,113,119,123..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26090

LH102,113,119,123..4FC

 1
Common parts
82711-89130
91611-B0816
