LH113V-RRPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

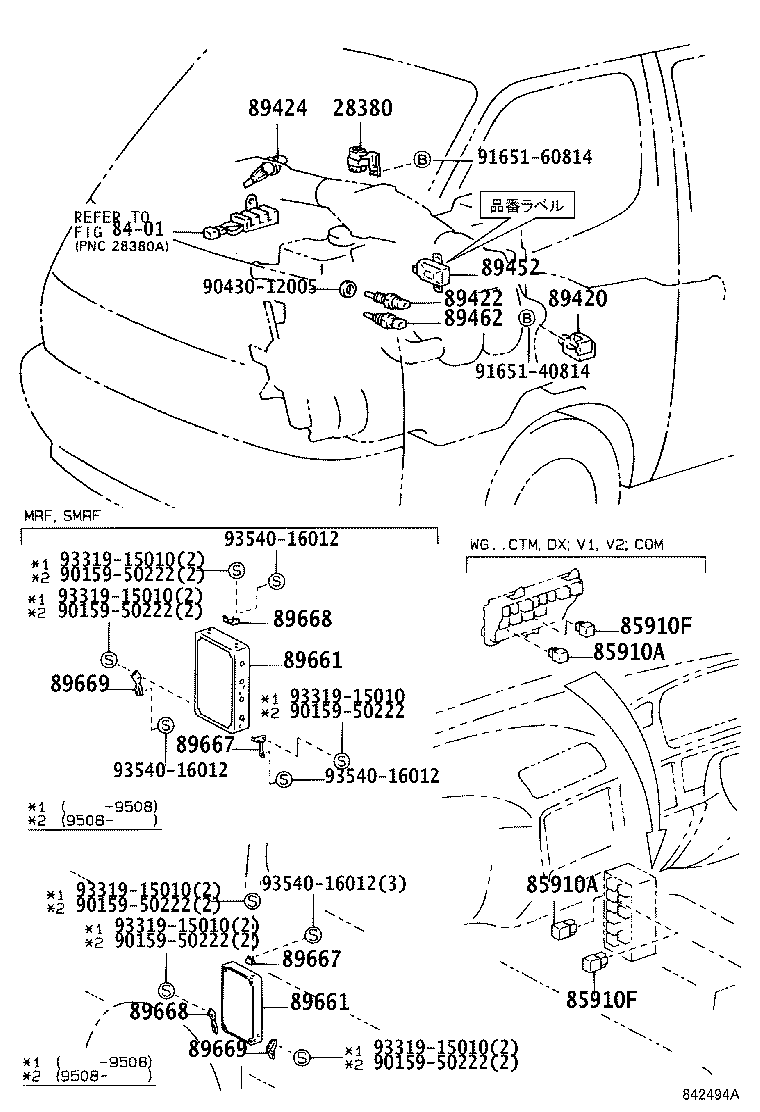

(9308-9608)RZH10#,11#,124,133

Click highlighted areas on diagram

diagram 28380 8401 85910A 85910A 85910F 85910F 89420 89422 89424 89452 89462 89661 89661 89667 89667 89668 89668 89669 89669 9015950222 9015950222 9015950222 9015950222 9015950222 9015950222 9043012005 9165140814 9165160814 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010 9354016012 9354016012 9354016012 9354016012
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

RZH112..V2;RZH10#,11#,133..(V1,WG)..4FC

 1
90987-02009

RZH10#,11#,124,133

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

RZH112..V2;RZH10#,11#,133..(V1,WG)..4FC

 1
90987-02009

RZH10#,11#,124,133

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26010

RZH100,102,11#,124,133..HRF,SRF

 1
Common parts
90159-50222
90430-12005
91651-40814
91651-60814
93319-15010
93540-16012
Linked diagrams
8401

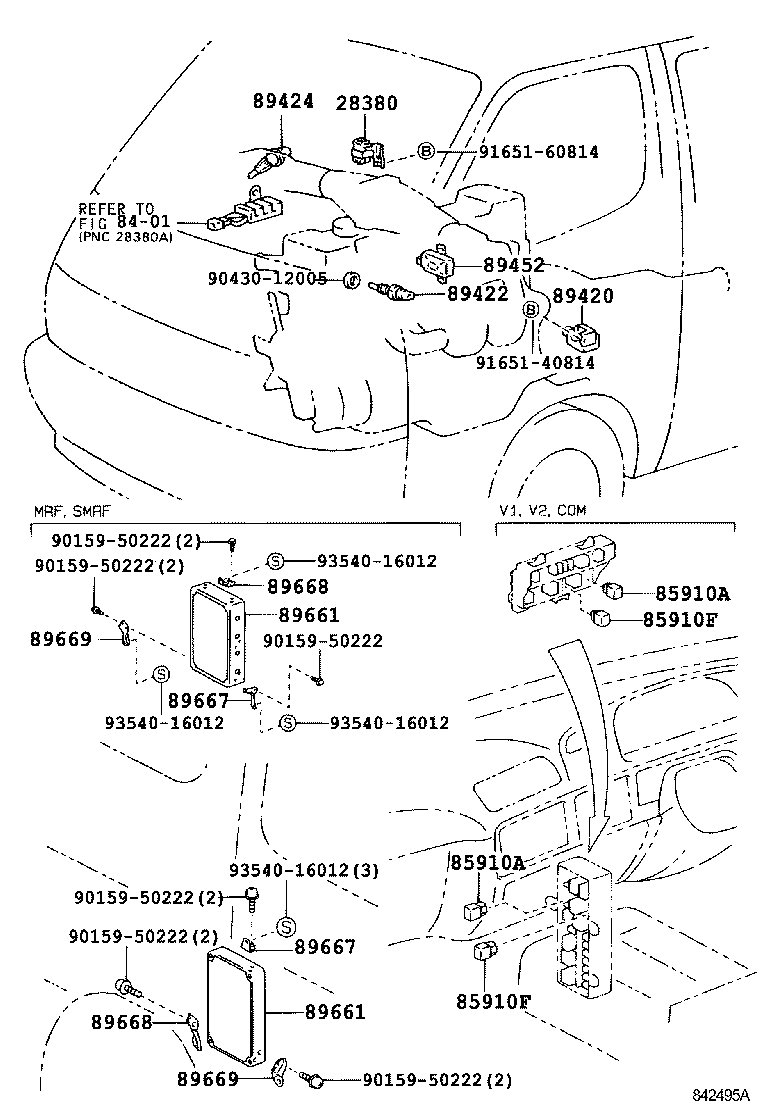

(9608-9808)RZH10#,11#,124,133

Click highlighted areas on diagram

diagram 28380 8401 85910A 85910A 85910F 85910F 89420 89422 89424 89452 89661 89661 89667 89667 89668 89668 89669 89669 9015950222 9015950222 9015950222 9015950222 9015950222 9015950222 9043012005 9165140814 9165160814 9354016012 9354016012 9354016012 9354016012
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

RZH112..V2;RZH10#,11#,133..(V1,WG)..4FC

 1
90987-02009

RZH10#,11#,124,133

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

RZH112..V2;RZH10#,11#,133..(V1,WG)..4FC

 1
90987-02009

RZH10#,11#,124,133

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26010

RZH100,102,11#,124,133..HRF,SRF

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26010

RZH100,102,11#,124,133..HRF,SRF

 1
Common parts
90159-50222
90430-12005
91651-40814
91651-60814
93540-16012
Linked diagrams
8401
