LH113V-RRPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9010)LH100,102,107,113,119,123..4FC ; (9010-9808)LH102,103,107,113,119,123,12

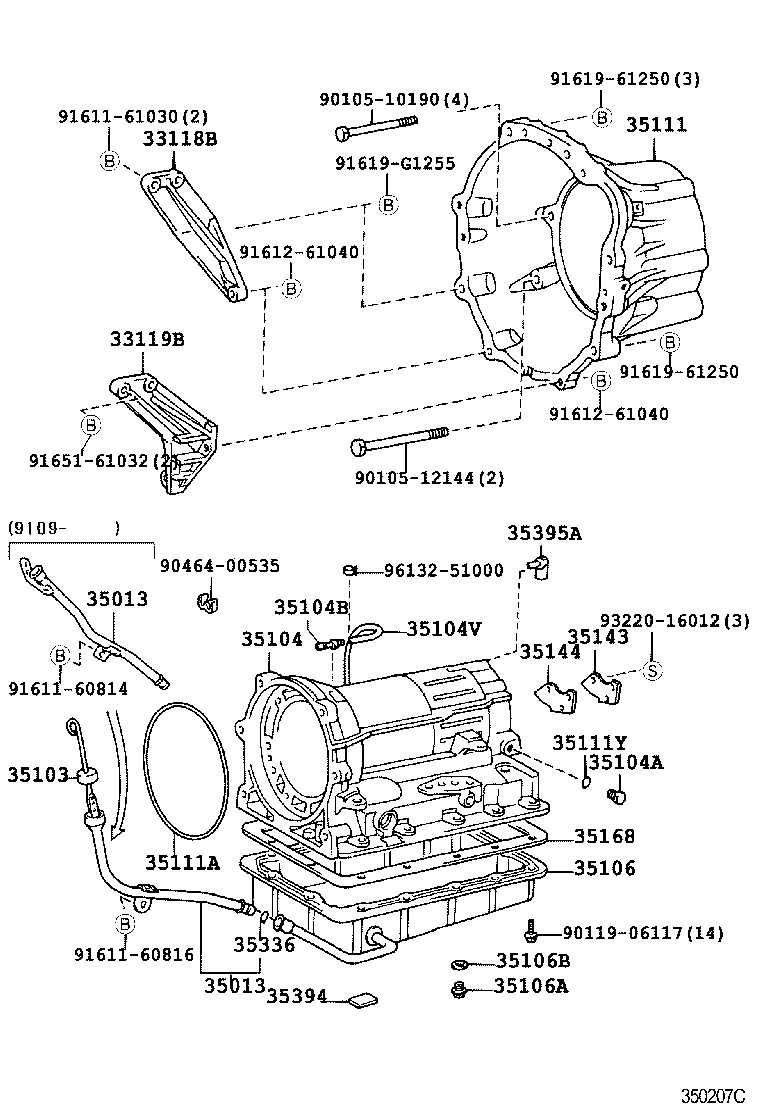

Click highlighted areas on diagram

A44DE,A45DL,A45DF,A45DE

diagram 33118B 33119B 35013 35013 35103 35104 35104A 35104B 35104V 35106 35106A 35106B 35111 35111A 35111Y 35143 35144 35168 35336 35394 35395A 9010510190 9010512144 9011906117 9046400535 9161160814 9161160816 9161161030 9161261040 9161261040 9161961250 9161961250 91619G1255 9165161032 9322016012 9613251000
Part # Description Qty Price
33118B - PLATE, STIFFENER, RH(ATM)
33118-25020

LH100,102,103,107,113,119,123,129,162,17#,18#..4FC..(DSL,TD)

 1
33119B - PLATE, STIFFENER, LH(ATM)
33119-25020

LH100,102,103,113,120,123,162,172,182,184..4FC

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26110

LH102,113,119,123..4FC

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
35013-26111

LH102,103,113,119,123,129..4FC

 1
35013-26060

LH100,102,107,113,119,123..4FC..(DSL,TD)

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26110

LH102,113,119,123..4FC

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
35013-26111

LH102,103,113,119,123,129..4FC

 1
35013-26060

LH100,102,107,113,119,123..4FC..(DSL,TD)

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-26090

LH100,102,103,107,113,119,123,129..4FC..(DSL,TD)

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26021

LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KZH100,110,120,132,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098

LH100,102,107,113,119,120,123,RZH10#,112..4FC

ﾐｯｼｮﾝ ｹｰｽ側

 1
90930-03099

LH100..4FC..TD;KZH10#,11#,120,13#,LH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

ﾎﾞﾃﾞｰ側

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11084

LH100,102,107,113,119,120,123,RZH10#,112..4FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30050

LH100,102,107,113,119,123,RZH10#,112..4FC

 1
35106-30051

LH100,102,103,107,113,119,123,129,RZH10#,112..4FC..(CBR,DSL,EFI,TD)

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22060

LH100,102,103,113,123..4FC..(DSL,TD)

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99054

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

 2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

LH100,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)

 1
35144-22010

LH100,102,107,113,119,123,RZH10#,112..4FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 2
35395A - STRAINER, GOVERNOR OIL
35395-40010

LH102,103,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC

 1
Common parts
90105-10190
90105-12144
90119-06117
90464-00535
91611-60814
91611-60816
91611-61030
91612-61040
91619-61250
91619-G1255
91651-61032
93220-16012
96132-51000
