LH113V-RRPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

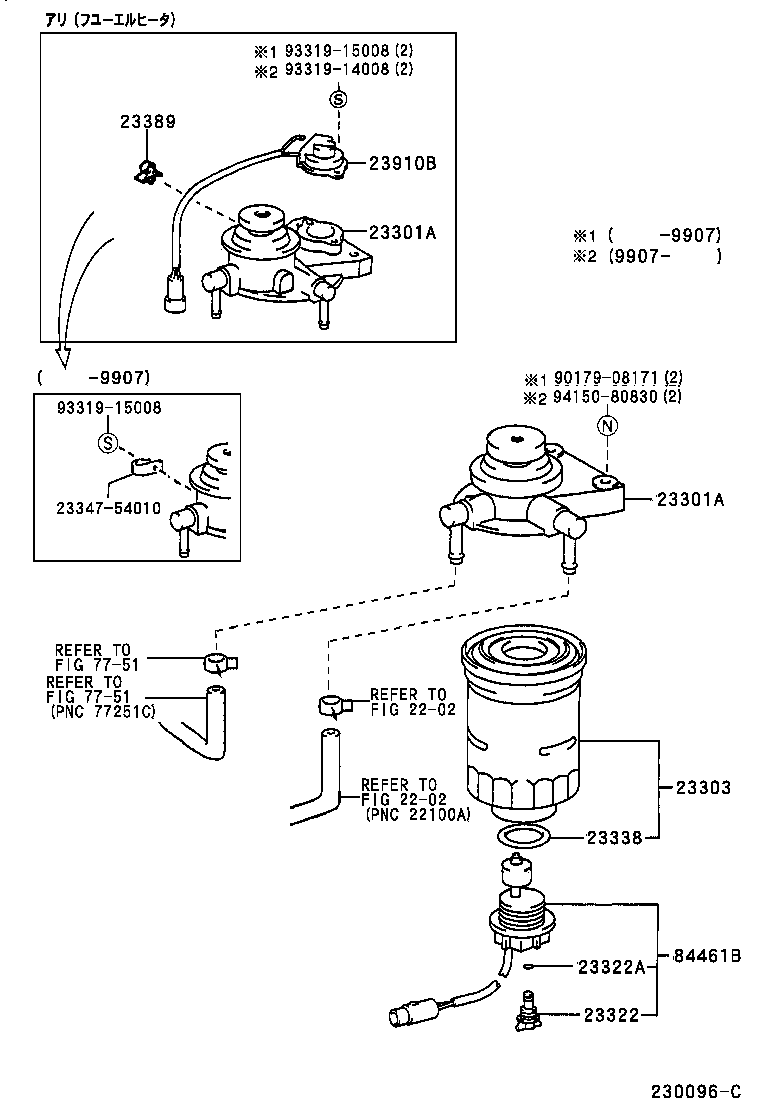

Click highlighted areas on diagram

diagram 2202 2202 23301A 23301A 23303 23322 23322A 23338 2334754010 23389 23910B 7751 7751 84461B 9017908171 9331914008 9331915008 9331915008 9415080830
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54530

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301-56030

2L,2LT#,3L..LH10#,11#,12#,140

 1
23301A - CAP ASSY, FUEL FILTER
23301-54530

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301-56030

2L,2LT#,3L..LH10#,11#,12#,140

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23910B - HEATER ASSY, FUEL
23910-54040

2L,2LT#,3L..LH10#,11#,12#,140

 1
84461B - SWITCH, LEVEL WARNING
84461-12050

LH10#,11#,12#,140

 1
Common parts
23347-54010
90179-08171
93319-14008
93319-15008
94150-80830
Linked diagrams
2202
7751
