LH113V-RRPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

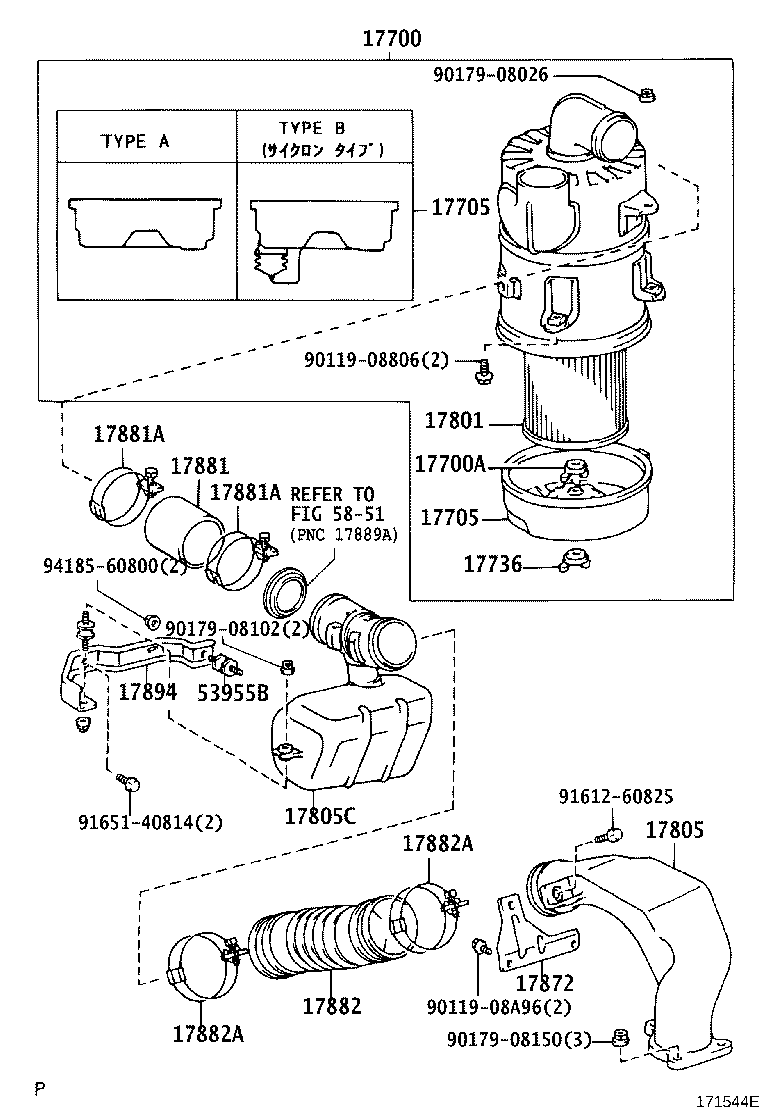

ILLUST NO. 1 OF 2(8908-9808)3L

Click highlighted areas on diagram

diagram 17700 17700A 17705 17705 17736 17801 17805 17805C 17872 17881 17881A 17881A 17882 17882A 17882A 17894 53955B 5851 9011908806 9011908A96 9017908026 9017908102 9017908150 9161260825 9165140814 9418560800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54560

2L,3L..LH10#,11#,123,125,129

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17700-54710

2L,3L..LH10#,11#,123,125,129,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17700-54700

2L,3L..LH10#,11#,123,125,129,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17700-54580

2L,3L..LH10#,11#,123,125,129

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75020

2L,2LT#,3L..LH10#,11#,12#,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17705-75010

2L,2LT#,3L..LH10#,11#,12#,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75020

2L,2LT#,3L..LH10#,11#,12#,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17705-75010

2L,2LT#,3L..LH10#,11#,12#,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54100

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-54180

2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140

 1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-54201

3L..LH103,107,109,113,115,117,119,123,125,129

 1
17805-54200

3L..LH107,109,113,115,119,123,125,129

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-54030

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54460

3L..LH103,107,109,113,115,117,119,123,125,129

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2L,3L..LH10#,11#,123,125,129

 2
96111-10750

3L..LH103,107,109,113,115,117,119,123,125,129

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2L,3L..LH10#,11#,123,125,129

 2
96111-10750

3L..LH103,107,109,113,115,117,119,123,125,129

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-54400

3L..LH103,113,115,123,125

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

3L..LH103,107,109,113,115,117,119,123,125,129

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

3L..LH103,107,109,113,115,117,119,123,125,129

 2
17894 - BRACKET, RESONATOR
17894-54080

3L..LH107,109,113,115,119,123,125,129

 1
53955B - CUSHION, AIR CLEANER INLET, NO.1
53955-95402

LH103,107,109,113,115,117,119,123,125,129,16#,17#,18#

 2
Common parts
90119-08806
90119-08A96
90179-08026
90179-08102
90179-08150
91612-60825
91651-40814
94185-60800
Linked diagrams
5851

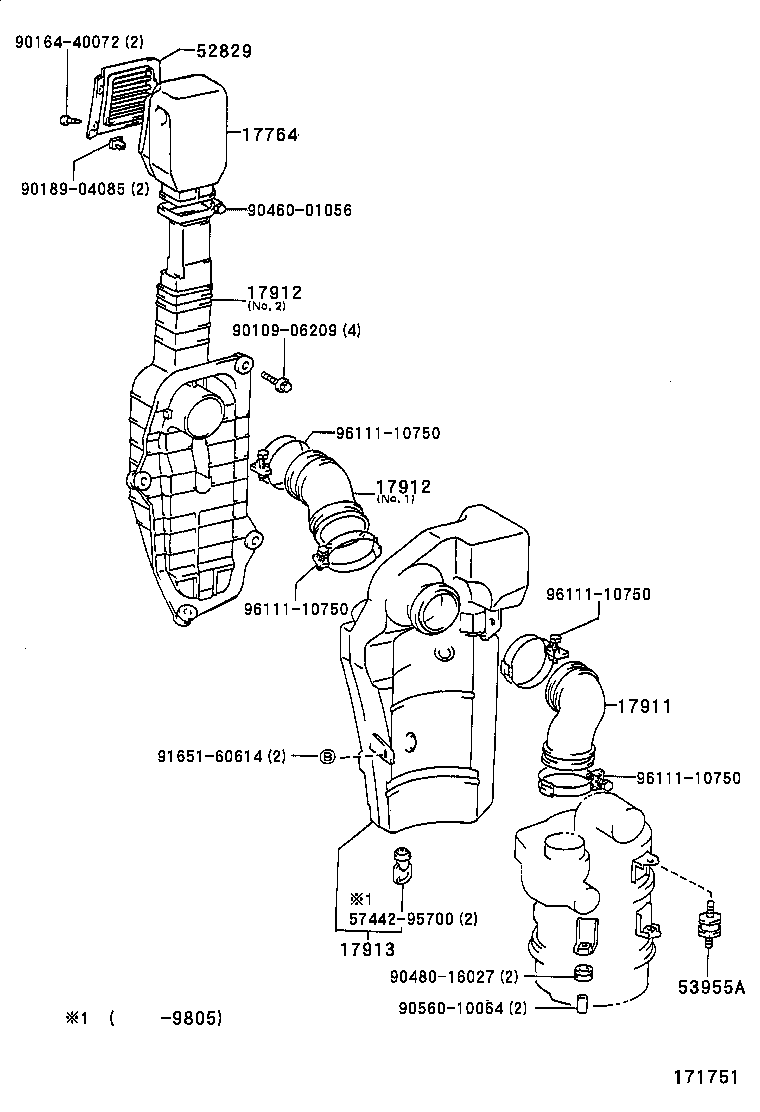

ILLUST NO. 2 OF 2(8908-9808)2L,2LT#,3L

Click highlighted areas on diagram

diagram 17764 17911 17912 17912 17913 52829 53955A 5744295700 9010906209 9016440072 9018904085 9046001056 9048016027 9056010064 9165160614 9611110750 9611110750 9611110750 9611110750
Part # Description Qty Price
17764 - DUCT, AIR CLEANER
52811-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52814-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52815-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 1
52820-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.2

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52815-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 1
52820-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.2

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
52813-95J00

3L..LH10#,11#,12#

 1
52829 - GRILLE, COOL AIR INTAKE
52829-95J0001

LH102,103,109,113,119..SRF..DX

BLACK,045 ,4L2 ,8E2

 1
52829-95J0001

LH10#,11#..SRF..DX

BLACK,045 ,8E2

 1
52829-95J0001

RZH102,11#..SRF..DX

BLACK,045 ,8E2

 1
52829-95J0001

LH10#,11#..V1..SRF..DX

BLACK,045 ,28M ,8E2

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-95402

LH10#,11#,12#,140,16#,17#,18#

 1
53955-95402

RZH10#,11#,12#,133

 1
Common parts
57442-95700
90109-06209
90164-40072
90189-04085
90460-01056
90480-16027
90560-10064
91651-60614
96111-10750
