LH113V-RRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

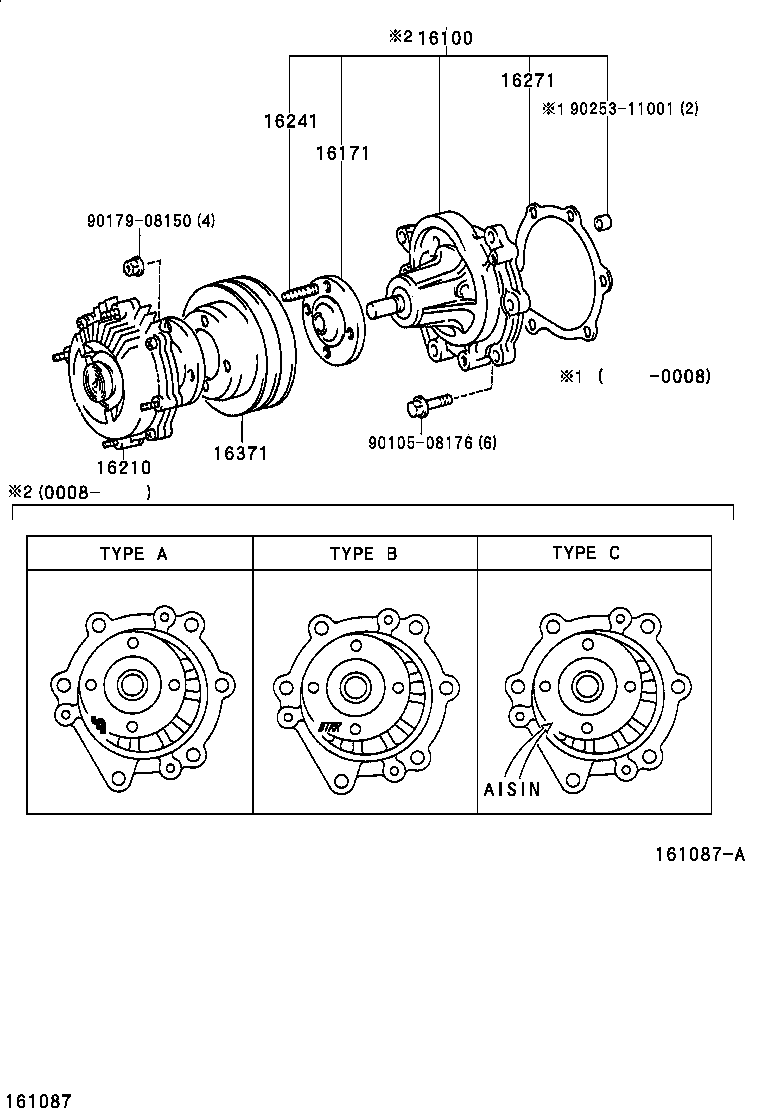

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 9010508176 9017908150 9025311001
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59155

2L,2LT#,3L..LH10#,11#,12#,140

 1
16171 - SEAT, WATER PUMP PULLEY
16171-41170

2L,2LT#,3L..LH10#,11#,12#,140

 1
16210 - COUPLING ASSY, FLUID
16210-54180

2L,3L..LH102,103,109,113,115,119,123,125,129

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
92122-40816

2L,2LT#,3L..LH10#,11#,12#,140

 4
16271 - GASKET, WATER PUMP
16271-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
16371 - PULLEY, FAN
16371-54030

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
Common parts
90105-08176
90179-08150
90253-11001
