LH113V-RRMDS (1989)
Toyota Hiace/Regiusace

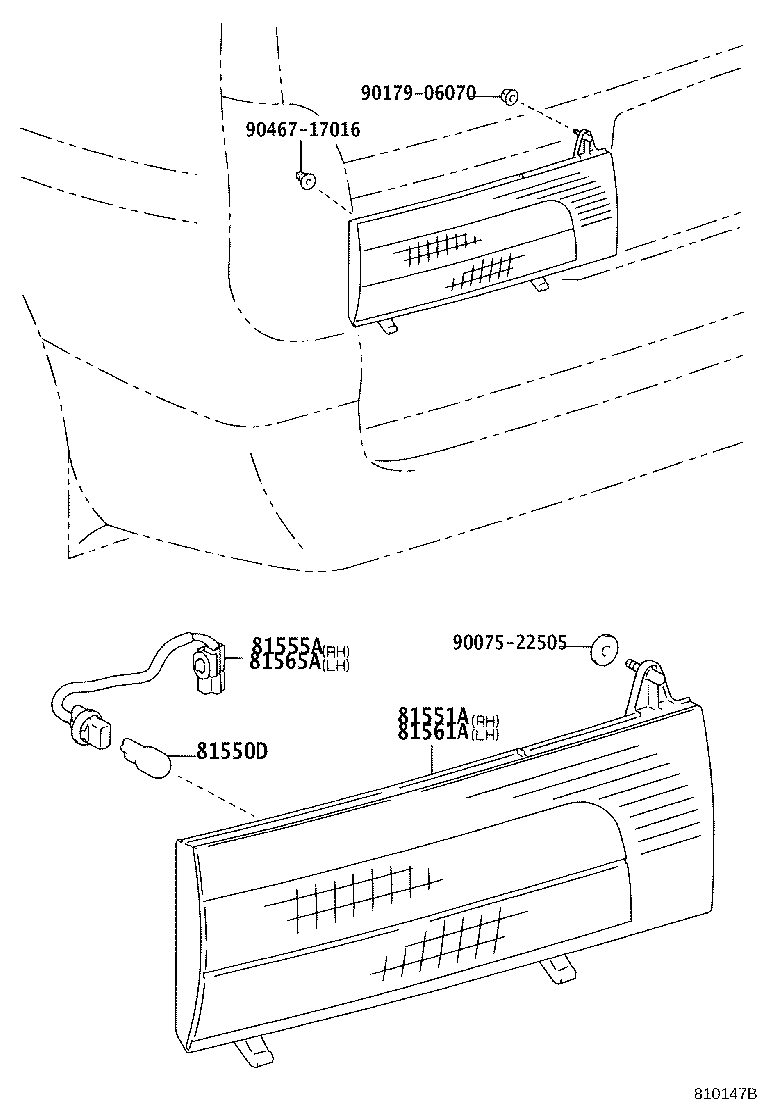

ILLUST NO. 2 OF 2(9608- )KZH10#,11#,RZH101
ﾊﾞｯｸﾄﾞｱ TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21W |
2 | ||
| 99132-21210 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21/5W |
2 | ||
| 99132-11210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21W |
2 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81551-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH113..V1..SRF..4D..06S..DX;KZH10#,12#,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,RZH101 |
1 | ||
| Common parts | ||||
| 90075-22505 | ||||
| 90179-06070 | ||||
| 90467-17016 | ||||
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81550-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81550-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81550-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81550-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81550-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81550-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 99132-21210 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 99132-11210 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX 12V 21W,ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
2 | ||
| 99132-11210 |
LH10#,11#,12#,140,RZH10#,11#,12# 12V 21W |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 99132-11210 |
LH10#,11#,12#,140,RZH10#,11#,12# 12V 21W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81551-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81551-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81551-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-95J10 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95J10 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 81555-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81560-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81560-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81560-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81560-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81560-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81560-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95J11 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81561-95J11 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08031 |
1 | ||
| 81561-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-;ｱﾘ(ﾓｰﾙﾃﾞｨﾝｸﾞ = ｸﾛﾑ ﾒｯｷ),ﾏｰｸ 33−08404 |
1 | ||
| 81561-95J10 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..HRF,SRF ﾏｰｸ 33−08031 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-95J10 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-26100 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-95J10 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 81559-91701 | ||||
| 90164-60036 | ||||
| 90189-06018 | ||||
| 90950-01705 | ||||
| 93540-86025 | ||||

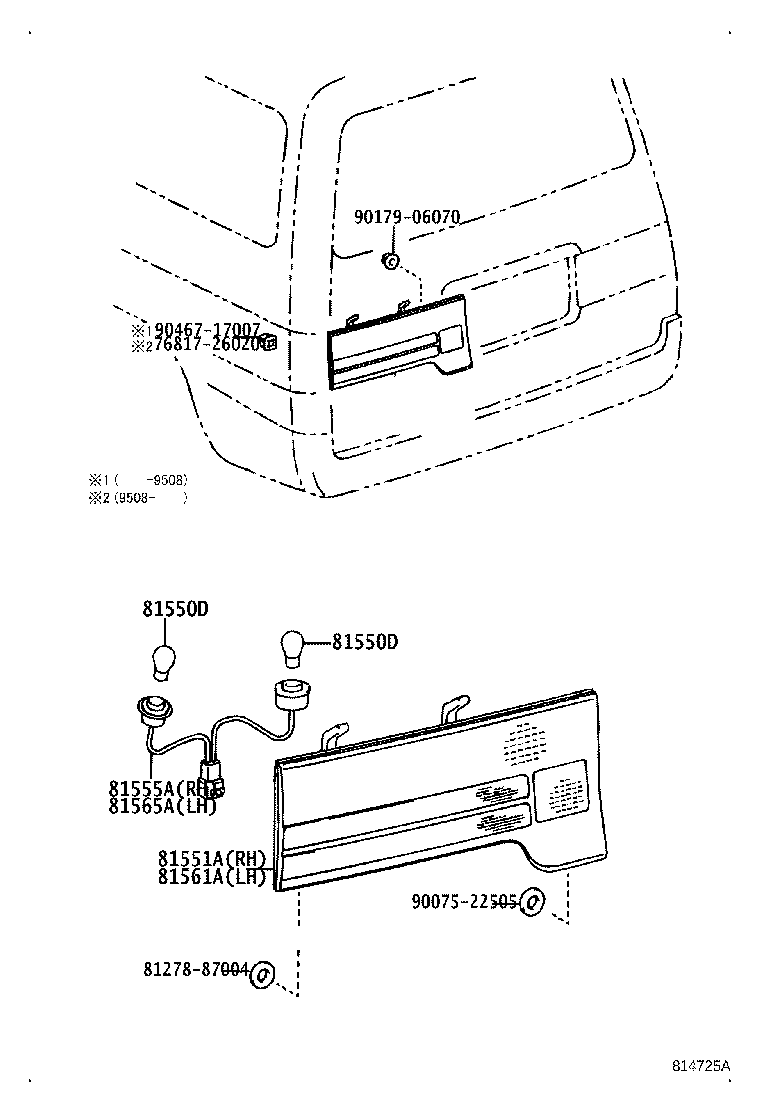

ILLUST NO. 2 OF 2(9308-9608)KZH10#,12#,13#,LH11#,123,129,RZH100,101 ; (9608- )KZH12#,13#,LH123,12
ﾊﾞｯｸﾄﾞｱ TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21W |
2 | ||
| 99132-21210 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21/5W |
2 | ||
| 99132-11210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21W |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21W |
2 | ||
| 99132-21210 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21/5W |
2 | ||
| 99132-11210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21W |
2 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81551-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH113..V1..SRF..4D..06S..DX;KZH10#,12#,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,RZH101 |
1 | ||
| Common parts | ||||
| 76817-26020 | ||||
| 81278-87004 | ||||
| 90075-22505 | ||||
| 90179-06070 | ||||
| 90467-17007 | ||||

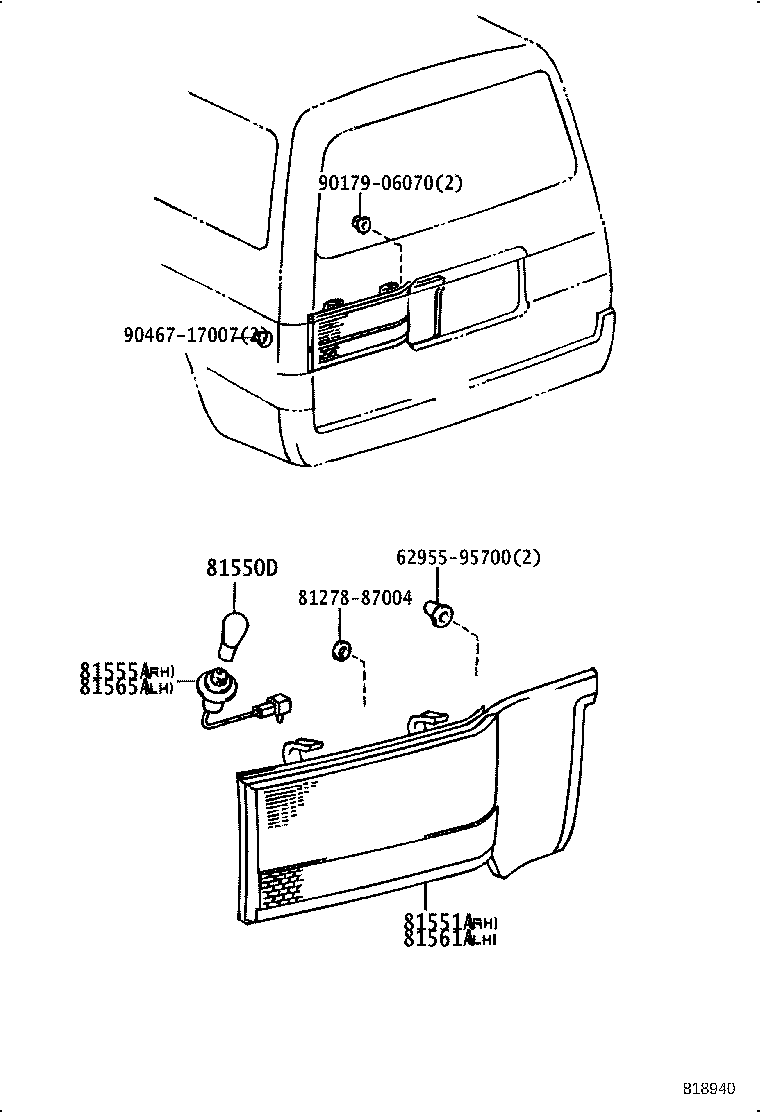

ILLUST NO. 2 OF 2(8908-9308)LH100,107,113,119,120,RZH100,101
ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21W |
2 | ||
| 99132-21210 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,12#,LH129,RZH100,101..HRF,MRF,SMRF 12V 21/5W |
2 | ||
| 99132-21210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21/5W |
2 | ||
| 99132-11210 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 12V 21W |
2 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81551-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81561-26110 |
LH119..05S;LH123,129..06S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-95J12 |
LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH113..V1..SRF..4D..06S..DX;KZH10#,12#,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 81555-95J12 |
LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 81555-26110 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,RZH101 |
1 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 81278-87004 | ||||
| 90179-06070 | ||||
| 90467-17007 | ||||
