LH113V-RMPDS (1996)

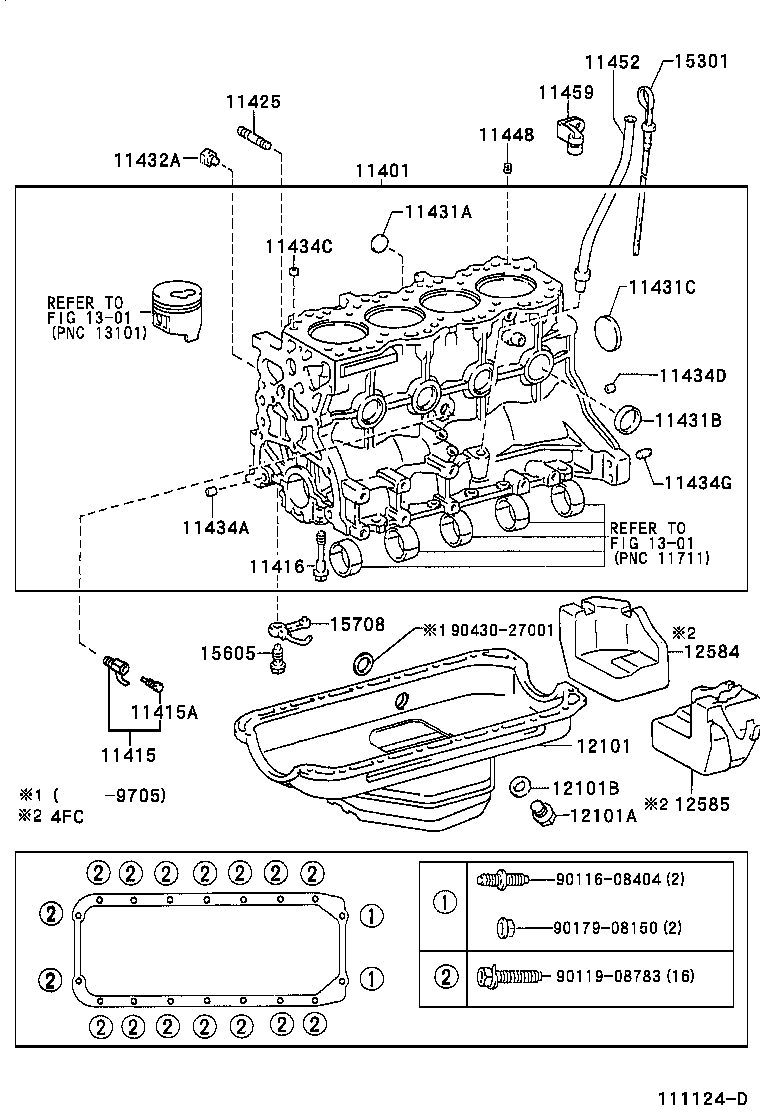

Toyota Hiace/Regiusace
(9803- )3L,5L..LH103,113,123,125,162,172,182,184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59365 |
3L..LH107,109,113,115,117,119,123,125,129 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-53030 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L,5L..LH103,107,109,113,115,117,119,123,125,129,16#,17#,18# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
2L,2LT#,3L..LH10#,11#,12#,140 長さ=11,外径=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=7,外径=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
2L,2LT#,3L..LH10#,11#,12#,140 長さ=11,外径=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54090 |
2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01203 |
2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54180 |
2L#,3L..LH100,102,110,113,115,120,123,125 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18013 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-54011 |
2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-54011 |
2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54080 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54060 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| Common parts | ||||
| 90116-08404 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| 90430-27001 | ||||
| Linked diagrams | ||||
| 1301 | ||||

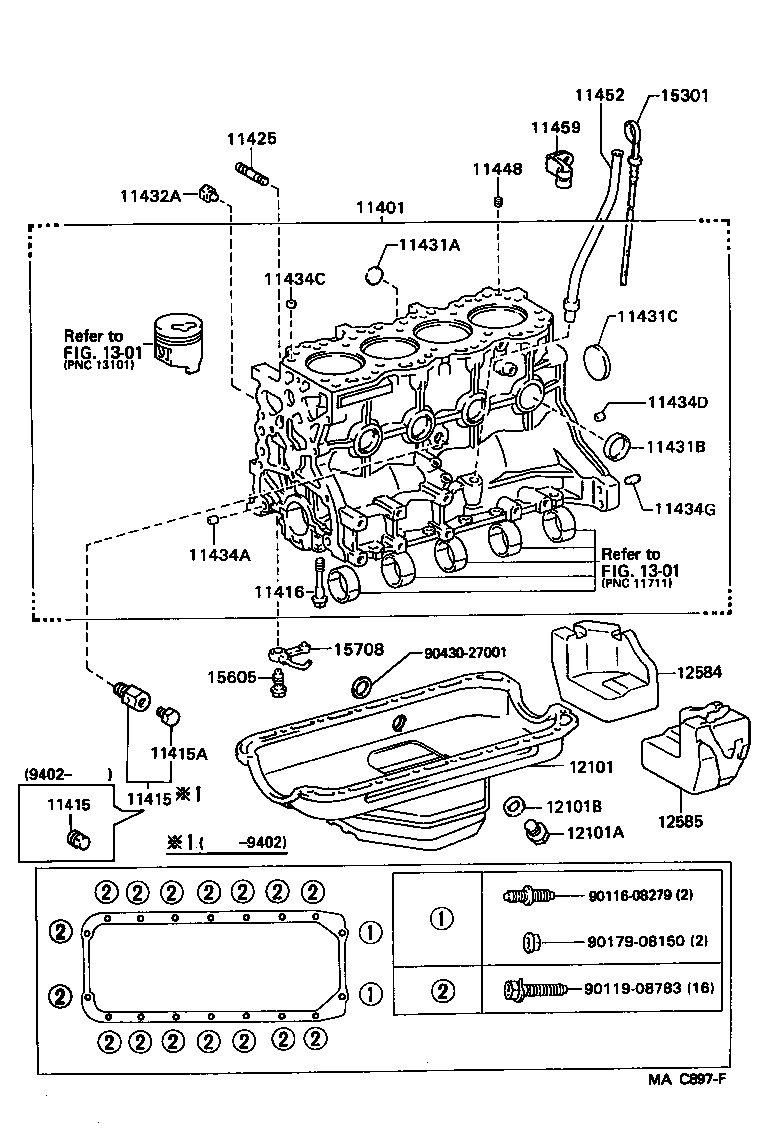

(8908-9803)2L,2LTE,3L..LH100,102,103,110,113,115,120,123,125,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59365 |
3L..LH107,109,113,115,117,119,123,125,129 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-53030 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L,5L..LH103,107,109,113,115,117,119,123,125,129,16#,17#,18# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
2L,2LT#,3L..LH10#,11#,12#,140 長さ=11,外径=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ=7,外径=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
2L,2LT#,3L..LH10#,11#,12#,140 長さ=11,外径=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54090 |
2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01203 |
2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54180 |
2L#,3L..LH100,102,110,113,115,120,123,125 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18013 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-54011 |
2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-54011 |
2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54080 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54060 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| 90430-27001 | ||||
| Linked diagrams | ||||
| 1301 | ||||
