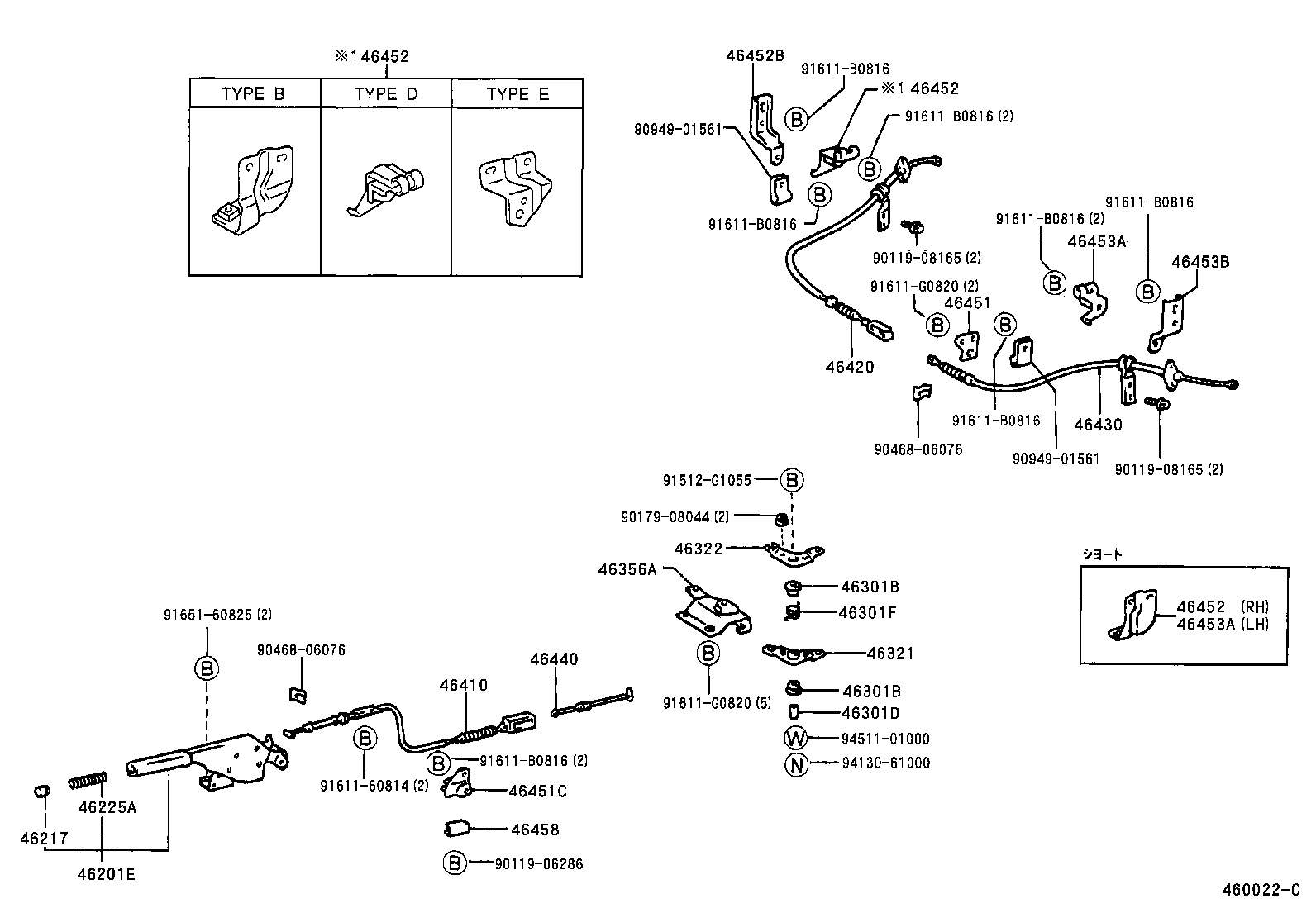

LH113V-RMMDS (1989)
Toyota Hiace/Regiusace
(8908- )V2 ; (8908- )KZH11#,RZH111..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2601003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020B3 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 46217-12020B3 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 46217-1202033 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 46217-12020B3 |
KZH11#..5F;KZH10#,13#,LH10#,11#,12#,RZH10#,11#,124,133..HRF,SMRF,SRF BLUISH GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-16009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-16009 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10110 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-26080 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26160 |
LH102,113,RZH112..V2 |
1 | ||
| 46322 - LEVER, INTERMEDIATE, NO.2 | ||||
| 46322-26020 |
LH102,113,RZH112..V2 |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26140 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26360 |
LH102,113..V2 |
1 | ||
| 46410-26361 |
LH103,113..V2 |
1 | ||
| 46410-26341 |
LH103,113,RZH112..V2 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26300 |
LH113,RZH112..V2 |
1 | ||
| 46420-26301 |
LH113,RZH112..V2 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-26220 |
LH113,RZH112..V2 |
1 | ||
| 46430-26221 |
LH113,RZH112..V2 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-26020 |
LH102,113,RZH112..V2 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-26150 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-26120 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26080 |
LH113,172,RZH112..V2 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26080 |
LH113,172,RZH112..V2 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26080 |
LH113,172,RZH112..V2 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-26140 |
LH113,172,RZH112..V2 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-26050 |
LH113,172,RZH112..V2 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-26050 |
LH113,172,RZH112..V2 |
1 | ||
| 46453B - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-26070 |
LH113,172,RZH112..V2 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90119-06286 | ||||
| 90119-08165 | ||||
| 90179-08044 | ||||
| 90468-06076 | ||||
| 90949-01561 | ||||
| 91512-G1055 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60825 | ||||
| 94130-61000 | ||||
| 94511-01000 | ||||
