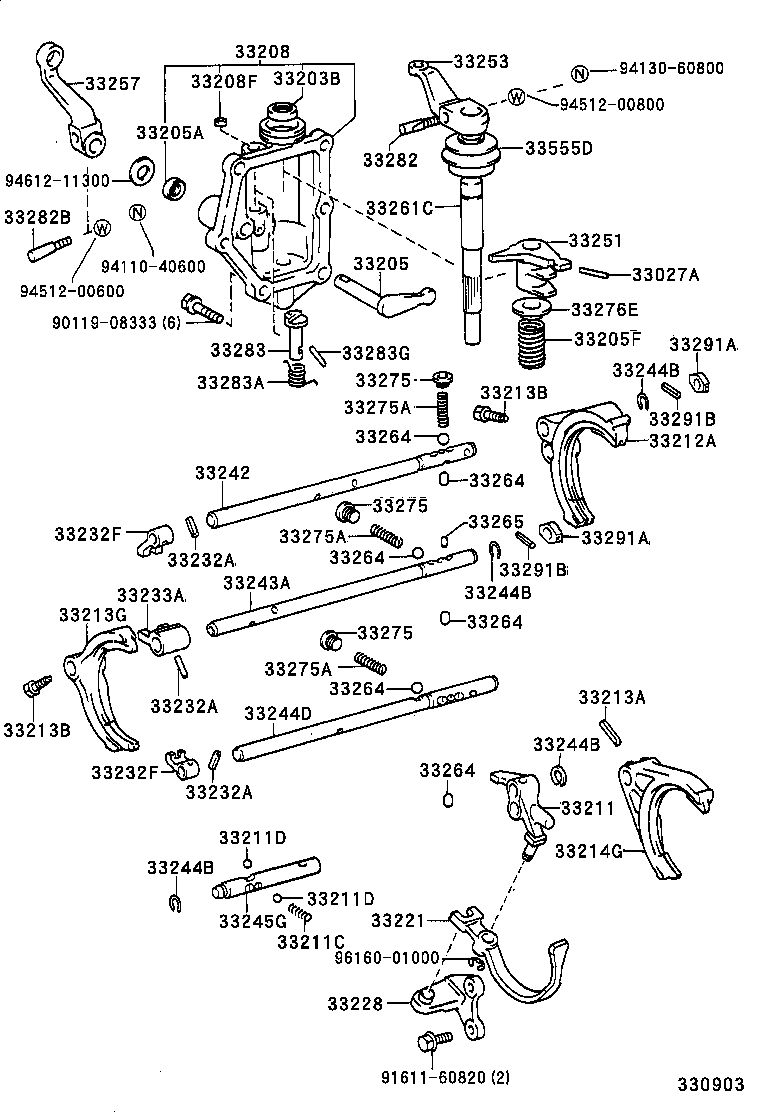

LH113V-RHMNS (1989)
Toyota Hiace/Regiusace
(9304- )5F..CBR,DSL,EFI
G52,G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-18044 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33212C - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-26030 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35051 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26010 |
LH10#,11#,123,125,129,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26030 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28012 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33251-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-26050 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-26100 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=11.1,外径=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=11.1,外径=4.8 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-16020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60850 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
(8908-9304)5F..CBR,DSL,EFI
G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-18044 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33212C - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-26030 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
6 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35051 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26010 |
LH10#,11#,123,125,129,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26030 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28012 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33251-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-26050 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-26100 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=11.1,外径=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=11.1,外径=4.8 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-16020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-08597 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
(9405- )KZH10#,11#,12#..5F
R350,R351F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-18044 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
4 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28010 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35051 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26010 |
LH10#,11#,123,125,129,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33245-26030 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28012 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33251-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-26050 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-26100 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-28011 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=21.6,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=11.1,外径=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14062 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) 長さ=30.6 |
3 | ||
| 90501-14123 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=20.2 |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60820 | ||||
| 94110-40600 | ||||
| 94130-60800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94612-11300 | ||||
| 96160-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
