Toyota Hiace/regiusace LH113 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
LH113V-RHMNS (1989)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

LH113V-RHMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

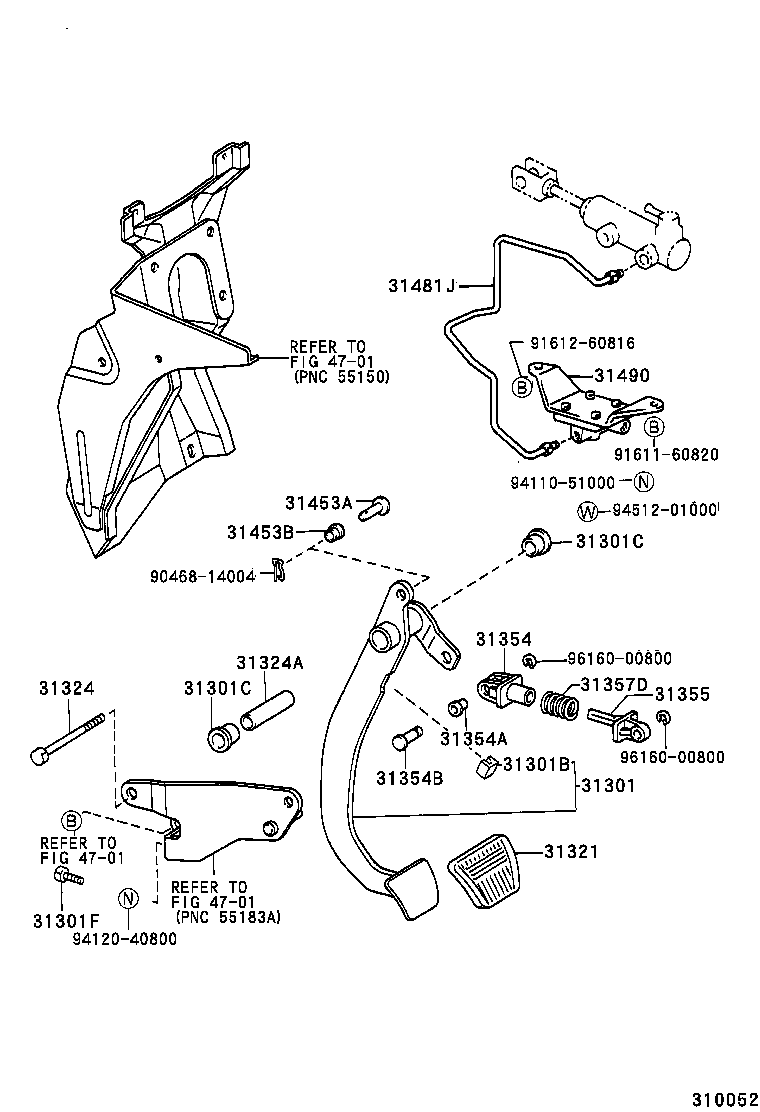

ILLUST NO. 1 OF 2(9605- )KZH10#,11#,126..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26100	LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI,TD)	08/1989 - 07/1999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	1
31324 - SHAFT, CLUTCH PEDAL
91121-51070	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 長さ=23.5	08/1989 - 07/1999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F	08/1989 - 07/1999	1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-26240	KZH10#,11#,126..5F	05/1996 - 08/1996	1
31481-26200	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 09/1991	1
31481-26201	KZH10#,11#,12#,LH10#,11#,12#,140,RZH100,102,110,112,12#..5F	09/1991 - 05/1996	1
31481-26201	LH10#,11#,12#,RZH102,112,124..5F	05/1996 - 08/1996	1
Common parts
90468-14004
91611-60820
91612-60816
94110-51000
94120-40800
94512-01000
96160-00800
Linked diagrams
4701

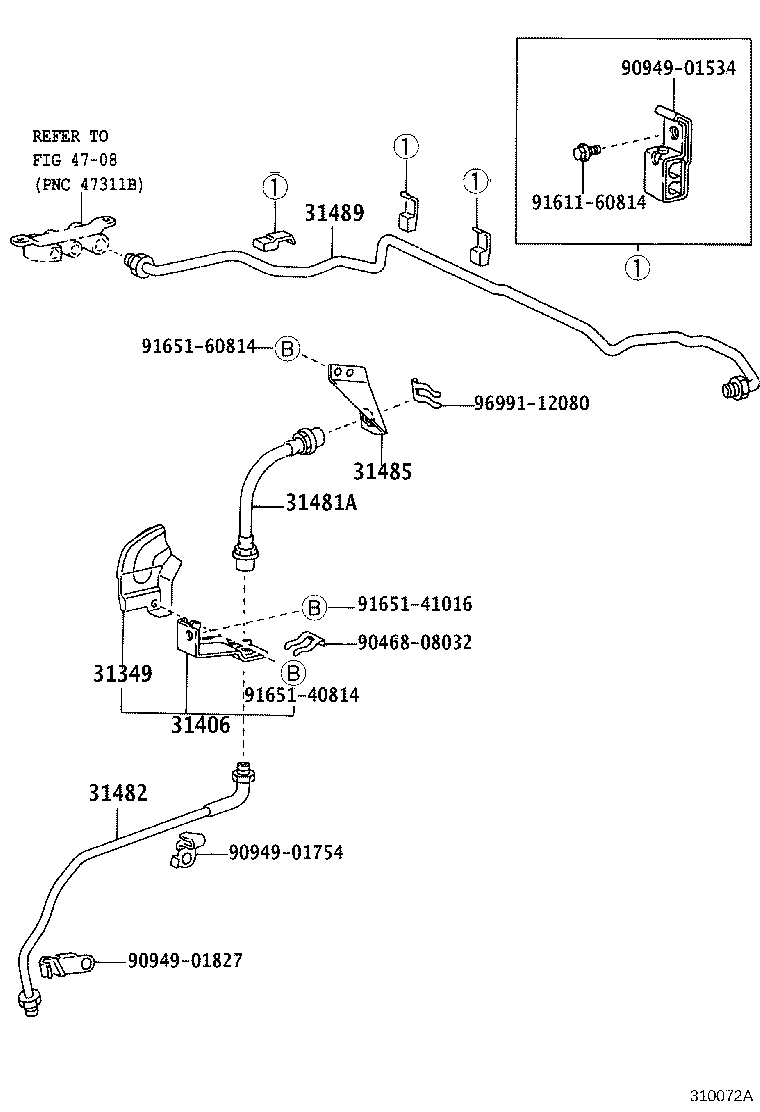

ILLUST NO. 2 OF 2(8908-9308)5F..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030	RZH100,102,11#,12#..5F	08/1989 - 06/1990	1
31349-26040	LH10#,11#,123,125,129,140..5F..DSL	08/1989 - 12/1990	1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26041	RZH100,102,11#,12#..5F	06/1990 - 10/1993	1
31406-26051	LH10#,11#,123,125,129,140..5F..DSL	06/1990 - 12/1990	1
31406-26050	LH10#,11#,123,125,129..5F..DSL	08/1989 - 06/1990	1
31481A - HOSE, CLUTCH, NO.1
90931-01106	KZH10#,11#,12#..5F	08/1993 - 07/1996	1
90931-01075	LH10#,11#,12#,140..5F	08/1989 - 10/1997	1
90931-01036	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482-26170	LH10#,11#,123,125,129,140..5F..DSL	08/1989 - 10/1997	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080	LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)	08/1989 - 08/1995	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200	LH10#,11#,12#,RZH100,102,112,124..5F	08/1993 - 08/1995	1
31489-26210	KZH10#,11#,126..5F	08/1993 - 05/1996	1
31489-26190	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
Common parts
90468-08032
90949-01534
90949-01754
90949-01827
91611-60814
91651-40814
91651-41016
91651-60814
96991-12080

ILLUST NO. 2 OF 2(8908-9308)RZH100,102,11#,12#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030	RZH100,102,11#,12#..5F	08/1989 - 06/1990	1
31349-26040	LH10#,11#,123,125,129,140..5F..DSL	08/1989 - 12/1990	1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26041	RZH100,102,11#,12#..5F	06/1990 - 10/1993	1
31406-26051	LH10#,11#,123,125,129,140..5F..DSL	06/1990 - 12/1990	1
31406-26050	LH10#,11#,123,125,129..5F..DSL	08/1989 - 06/1990	1
31481A - HOSE, CLUTCH, NO.1
90931-01106	KZH10#,11#,12#..5F	08/1993 - 07/1996	1
90931-01075	LH10#,11#,12#,140..5F	08/1989 - 10/1997	1
90931-01036	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482-26170	LH10#,11#,123,125,129,140..5F..DSL	08/1989 - 10/1997	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26121	RZH100,102,11#,12#..5F	06/1990 - 10/1993	1
31484-26120	RZH100,102,11#,12#..5F	08/1989 - 06/1990	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080	LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)	08/1989 - 08/1995	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200	LH10#,11#,12#,RZH100,102,112,124..5F	08/1993 - 08/1995	1
31489-26210	KZH10#,11#,126..5F	08/1993 - 05/1996	1
31489-26190	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
Common parts
90468-08032
90949-01534
90949-01543
90949-01827
91611-60814
91651-40814
91651-40816
91651-60814
96991-12080

ILLUST NO. 2 OF 2(9308- )KZH10#,11#,12#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481A - HOSE, CLUTCH, NO.1
90931-01106	KZH10#,11#,12#..5F	08/1993 - 07/1996	1
90931-01075	LH10#,11#,12#,140..5F	08/1989 - 10/1997	1
90931-01036	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160	RZH100,102,11#,12#..5F	08/1989 - 08/1995	1
31482-26170	LH10#,11#,123,125,129,140..5F..DSL	08/1989 - 10/1997	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26121	RZH100,102,11#,12#..5F	06/1990 - 10/1993	1
31484-26120	RZH100,102,11#,12#..5F	08/1989 - 06/1990	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080	LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)	08/1989 - 08/1995	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200	LH10#,11#,12#,RZH100,102,112,124..5F	08/1993 - 08/1995	1
31489-26210	KZH10#,11#,126..5F	08/1993 - 05/1996	1
31489-26190	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
Common parts
90468-08032
90468-08035
90949-01534
90949-01827
91612-60814
91651-40816
91651-60814

LH113V-RHMNS (1989)

ILLUST NO. 1 OF 2(9605- )KZH10#,11#,126..5F

ILLUST NO. 2 OF 2(8908-9308)5F..DSL

ILLUST NO. 2 OF 2(8908-9308)RZH100,102,11#,12#..5F

ILLUST NO. 2 OF 2(9308- )KZH10#,11#,12#..5F

Part Price Details
