LH113V-RHMDS (1989)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67813A - SHEET, QUARTER PANEL SILENCER, RH | ||||
| 67813-26010 |
LH10#,11#,RZH10#,11#..4D |
1 | ||
| Common parts | ||||
| 90034-80031 | ||||
| 90119-08821 | ||||
| 90183-06020 | ||||
| 90333-01009 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01181 | ||||
| 90950-01326 | ||||
| 90950-01421 | ||||
| 90950-01660 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-01901 | ||||
| 90950-06013 | ||||
| 90950-06017 | ||||
| Linked diagrams | ||||
| 5554 | ||||
| 6155 | ||||
| 8202 | ||||

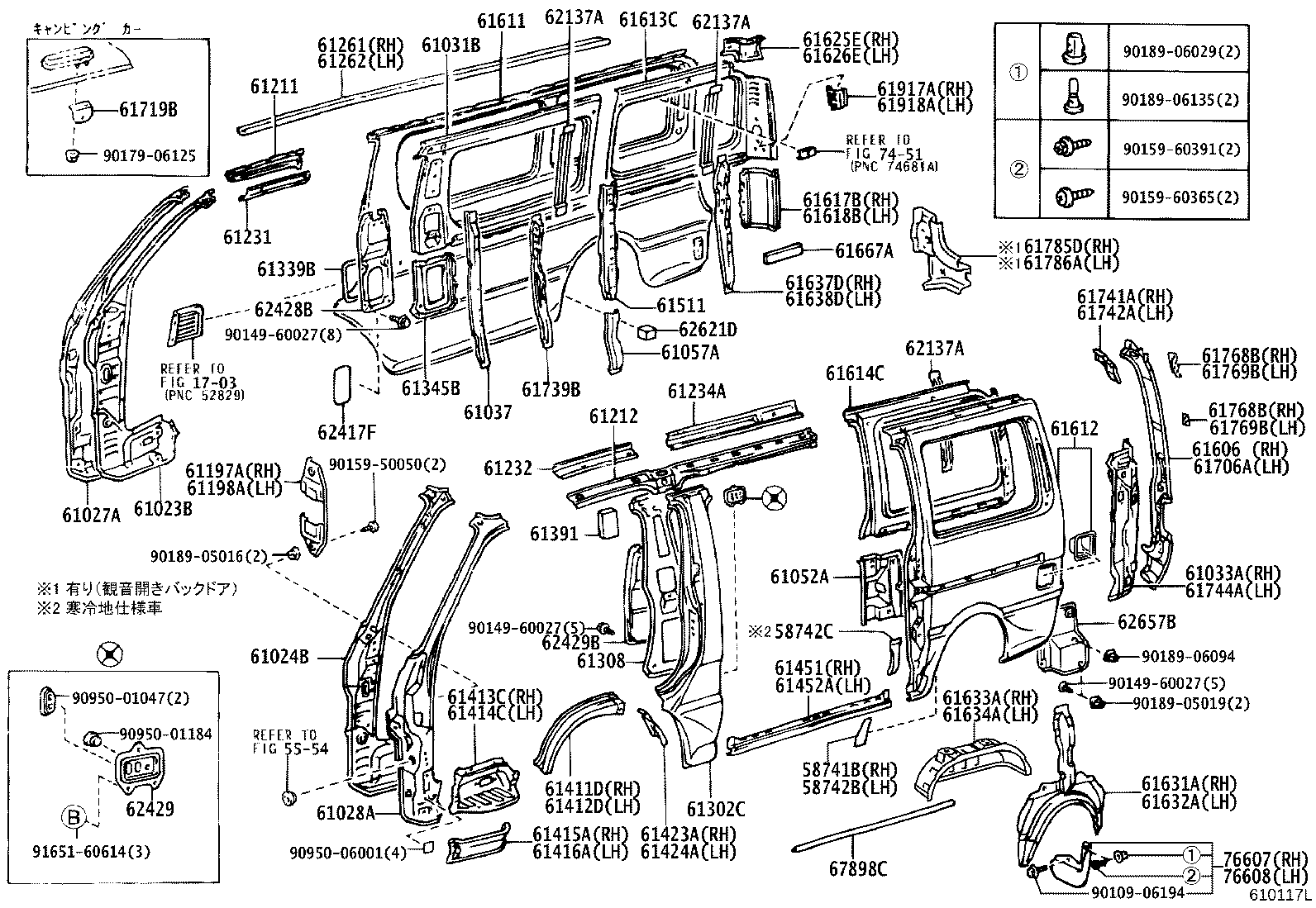

ILLUST NO. 1 OF 3(8908- )MRF,SMRF,SRF..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-95J02 |
LH120..TDE;LH11#,RZH11#..SRF ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-95J02 |
LH120..TDE;LH11#,RZH11#..SRF ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-95J04 |
LH110..SW;KZH11#,LH113,115,117,119,17#,RZH11# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J15 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61023-95J15 |
LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 61023-26010 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J11 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61024-95J11 |
LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 61024-95J12 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J17 |
RZH112..DX;RZH112..CD..EFI;LH102,103,109,110,113,115,119,123,125,129,140,RZH102,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61027-26040 |
KZH10#,11#,13#,RZH100,101,111,133..CTM,DX |
1 | ||
| 61027-26020 |
KZH10#,11#,12#,RZH100,101..HRF,SMRF,SRF |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61028-26040 |
KZH10#,11#,RZH100..CTM,DX |
1 | ||
| 61028-26081 |
KZH11#,13#,RZH111 ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 61028-26050 |
KZH10#,11#,RZH100,101,111..CTM,DX |
1 | ||
| 61028-95J24 |
LH10#,11#,12#,RZH102,112,124..CD,DX,GL |
1 | ||
| 61028-26060 |
LH10#,11#,12#,RZH102,112,124 ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 61028-95J24 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61031-95N05 |
LH113,119,RZH112..09S..DX |
1 | ||
| 61031-26070 |
KZH12#,13#;LH120..GCGE,GCGN |
1 | ||
| 61031-26290 |
LH113,119,RZH112..09S..DX |
1 | ||
| 61031-26800 |
LH11#,RZH112..09S..DX ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-95J03 |
LH102,109,113,119,RZH102,112..SRF..SG;LH100,107,110,140,RZH100,101..CTM,SCL,SCM,SCMM,SW |
1 | ||
| 61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER | ||||
| 61037-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D..(03S,05S,06S,08S,09S,10S,15S) |
1 | ||
| 61037-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..4D..(03S,05S,06S,08S,09S,10S,15S) |
1 | ||
| 61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH | ||||
| 61616-95J03 |
LH113..V2..CD;LH102,109,113,119,RZH102,112..V1..(CD,GL,SGL);LH100,110,113,119,123,RZH100,101,11#,122..(09S,10S)..(CTM,DX) |
1 | ||
| 61616-95J03 |
LH113..V2..CD;LH119..09S..4FC;LH102,103,109,113,119,120,140,RZH102,112..(V1,WG)..(CD,GCGE,GL,SGL,SW);KZH10#,11#,120,LH100,110,113,117,123,RZH100,101,11#,122..(09S,10S)..(CTM,DX,GCGE,SW) |
1 | ||
| 61616-95J03 |
KZH11#,120,13#,LH103,11#,123,RZH102,11#..(03S,05S,08S,09S,10S)..(CD,DX,GCGE,SGL) |
1 | ||
| 61616-95J03 |
RZH112..GL;RZH112..03S,09S;LH10#,11#,RZH102..CD,GL,SGL;KZH10#,11#,120,LH11#,123,RZH101,111..(09S,10S)..(CTM,DX,GCGE) |
1 | ||
| 61057A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61057-95J06 |
LH123,129,RZH122;LH113,RZH112..V2..4D..DX;LH11#,120,125,RZH11#,124..4D..(03S,08S,09S,10S,15S) |
1 | ||
| 61057-95J06 |
LH123,129,RZH122;LH113,RZH112..V2..4D..DX;LH11#,120,125,RZH11#,124..4D..(03S,08S,09S,10S,15S)..(CD,DX,GCGE,GCGN,GL,SGL) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J01 |
KZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..4D |
1 | ||
| 61201-95J01 |
KZH12#,13#,LH12#,18#,RZH12#,133 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J05 |
KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW |
1 | ||
| 61231-95J10 |
KZH12#,13#,LH120,125,184,186,RZH124,125,133 ﾊｲﾙ-ﾌ & ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J09 |
KZH12#,13#,LH120,125,184,186,RZH124,125,133 ﾊｲﾙ-ﾌ & ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ) |
1 | ||
| 61232-95J06 |
KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-95J13 |
LH113,119,123,17#,182,RZH112,122..09S |
1 | ||
| C5707-95B04 |
KZH12#,13#,LH120 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95J21 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 61302-95J19 |
RZH102,112..850K;RZH102,112..4D..CD..EFI;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..DX,SW ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-26330 |
RZH112..CD,DX;RZH102..4D..CD;KZH11#,LH10#,11#,12#,RZH102,111,124,133..DX ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-95J29 |
RZH112;RZH102..4D..CD;KZH11#,LH10#,11#,RZH102,111..DX,GL;KZH10#,LH12#,RZH100,101,124,133..(HRF,SMRF)..(CTM,DX,GL) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-26320 |
RZH112;RZH102..4D..CD;KZH10#,11#,LH10#,11#,12#,RZH10#,111,124,133..CTM,DX,GL ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J69 |
LH102,103,109,110,113,119,123,129,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ｾﾊﾟﾚ-ﾀ ﾊﾞ-) |
1 | ||
| 61308-95J70 |
LH140;KZH100,11#,LH100,110,115,117,RZH100,110,111..DX |
1 | ||
| 61308-95J69 |
LH10#,11#,RZH102,112..CD,DX ｱﾘ(ｾﾊﾟﾚ-ﾀ ﾊﾞ-) |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-95J01 |
KZH10#,11#,LH10#,11#,12#,140,RZH10#,11#,12#..4D..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL,SW) |
1 | ||
| 61345-95J01 |
LH120..TD;LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61452A - PANEL, ROCKER OUTER, LH | ||||
| 61451-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-95J10 |
LH113,119,RZH112..08S,09S;LH100,107,RZH100,101..07S,08S |
1 | ||
| 61501-95J13 |
KZH12#,13#,LH12#,18#,RZH12#,133 |
1 | ||
| 61501-95J10 |
LH113,119,RZH112..08S,09S |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J06 |
LH102,109,110,113,117,119,RZH102,112..SRF;LH100,107,140,RZH100,101..CTM,SCL,SCM,SCMM,SW |
1 | ||
| 61705-26030 |
KZH12#,13#,LH120 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95J87 |
LH11#,RZH11#..SRF..4D..SG |
1 | ||
| 61601-95J87 |
LH113,115,119,RZH112..SRF..4D..SG |
1 | ||
| 61601-26120 |
KZH11#,LH11#,RZH11#..08S,09S,10S ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95N37 |
LH113,RZH112..V2..SRF..06S;LH11#,RZH11#..(08S,09S,10S,15S)..(DX,GL,SGL) |
1 | ||
| 61602-26250 |
LH113,RZH112..V2..SRF..06S;LH11#,RZH11#..(08S,09S,10S,15S)..(DX,GL,SGL) |
1 | ||
| 61602-26550 |
KZH12#,13#,LH120..DX,GCGN |
1 | ||
| 61602-26180 |
LH11#,RZH112..08S,09S ｱﾘ(ﾘﾔ ｼﾖﾙﾀﾞ ﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61602-26250 |
KZH11#,LH11#,RZH11#..SRF..(DX,GL,SGL) |
1 | ||
| 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH | ||||
| 61607-95J45 |
LH113,119,17#,RZH112..09S |
1 | ||
| 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH | ||||
| 61608-95J83 |
LH113,119,17#,RZH112..09S |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-95J00 |
LH125..DX;LH10#,11#,120,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW |
1 | ||
| 61617-95J00 |
LH125..DX;KZH10#,11#,LH10#,11#,123,129,RZH10#,11#,124,133..CD,DX,GL,SCL,SCM,SCMM |
1 | ||
| 61617-95J00 |
LH125..DX;LH10#,11#,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
LH100,102,109,11#,140,RZH100,102,11#..SRF..(CD,DX,GL,SW) |
1 | ||
| 61701-26060 |
KZH12#,13#;LH120..GCGE,GCGN |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J03 |
LH100,102,109,110,113,117,119,140,RZH100,102,11#..SRF..(CD,DX,GL,SW) |
1 | ||
| 61702-26060 |
KZH12#,13#;LH120..GCGE,GCGN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-95J04 |
KZH11#,12#,13#,LH11#,RZH11#..(03S,08S,09S,10S)..(DX,GCGE,GCGN,GL,SGL) ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61605-95J03 |
KZH10#,LH10#,113,115,119,123,125,129,140,RZH10#,112,12#,133..(COM,V1,WG)..SG |
1 | ||
| 61605-95J04 |
KZH11#,12#,LH11#,RZH11#..08S,09S,10S ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61605-95J03 |
LH10#,113,115,119,12#,140,RZH10#,112,12#..(COM,V1,WG)..SG |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-95J03 |
KZH10#,11#,LH140;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..SG..(CD,CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J05 |
LH10#,129,140,RZH10#..(V1,WG)..(03S,05S,06S,07S,08S);LH110,113,119,123,RZH112,122..(V1,WG)..(03S,05S,06S,08S,09S) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61633-95J05 |
LH10#,129,140,RZH10#..(V1,WG)..(03S,05S,06S,07S,08S);LH110,113,119,123,RZH112,122..(V1,WG)..(03S,05S,06S,08S,09S) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61667A - SPACER QUARTER PANEL, NO.1 | ||||
| 61667-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J06 |
LH102,109,110,113,117,119,RZH102,112..SRF;LH100,107,140,RZH100,101..CTM,SCL,SCM,SCMM,SW ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61706-26030 |
KZH12#,13#,LH120 |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J01 |
KZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J01 |
KZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61034-95J01 |
LH102,109,113,119,RZH102,112..SRF..SG;LH100,107,110,140,RZH100,101..CTM,SCL,SCM,SCMM,SW ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 62428B - COVER, CENTER PILLAR, RH | ||||
| 62428-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62428-95J00 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX |
1 | ||
| 62428-95J00 |
KZH100,11#,13#,LH10#,11#,12#,RZH100,102,11#,124,133..HRF,SRF |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 62429B - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62429-95J00 |
LH10#,11#,12#,RZH102,112,124,133..CD,DX |
1 | ||
| 62429-95J00 |
KZH100,11#,13#,LH10#,11#,12#,RZH100,102,11#,124,133..HRF,SRF |
1 | ||
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26010 |
LH11#,RZH11#..4D |
1 | ||
| 62657B - COVER, QUARTER PANEL INNER, LH | ||||
| 62657-95J01 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW |
1 | ||
| 67898C - SEAL, SLIDE DOOR, LOWER NO.2 | ||||
| 67898-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D |
1 | ||
| 67898-95J00 |
LH10#,11#,RZH10#,11#..4D |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 76607-29395 |
KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL 塗装不要,ﾅｼ(ﾄﾖﾀ ﾏ-ｸ) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 76608-29405K0 |
KZH10#,12#,13#,RZH101..DX,GCGE,GCGN,SCL,SCM GRAYISH PURPLE ME.,2BY |
1 | ||
| Common parts | ||||
| 90109-06194 | ||||
| 90149-60027 | ||||
| 90159-50050 | ||||
| 90159-60365 | ||||
| 90159-60391 | ||||
| 90179-06125 | ||||
| 90189-05016 | ||||
| 90189-05019 | ||||
| 90189-06029 | ||||
| 90189-06094 | ||||
| 90189-06135 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
| 90950-06001 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 7451 | ||||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-32138 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
