LH113V-RBMBS (1989)
Toyota Hiace/Regiusace
(9001-9508)
ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00B0 |
LH10#,11#,123,129,RZH102,112 BLUISH GRAY,TRIM1# |
1 | ||
| 69291-95J0023 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-95J02 |
LH184,186..DX;LH102,103,109,110,113,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..03S,05S,06S,08S,09S ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟ ﾘﾔﾊﾞﾝﾊﾟ) |
1 | ||
| 69449A - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69449-95J00 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133 |
1 | ||
| 69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR) | ||||
| 69741-28010C1 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
KZH11#,13#,RZH133..4FC;LH10#,11#,12#,RZH102,112,124 BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
LH123..5F;LH102,109,110,113,119,129,140,RZH102,112,122..03S,05S,06S,08S,09S BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
LH10#,11#,RZH102,112..SRF BLACK,TRIM1# |
1 | ||
| 69751 - HOLDER, DOOR LOCK CONTROL KNOB | ||||
| 69751-95J00C0 |
KZH11#,13#,RZH133..4FC;LH10#,11#,12#,RZH102,112,124 BLACK,TRIM1# |
1 | ||
| 69751-95J00B0 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69751-95J00C0 |
LH10#,11#,RZH102,112..SRF BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06348 | ||||
| 90119-06557 | ||||
| 90119-06580 | ||||
| 90119-06883 | ||||
| 90119-08685 | ||||
| 90119-08810 | ||||
| 90119-08B78 | ||||
| 90154-60024 | ||||
| 90159-60262 | ||||
| 90159-60354 | ||||
| 90159-60358 | ||||
| 90159-60380 | ||||
| 90159-80036 | ||||
| 90159-80054 | ||||
| 90167-50035 | ||||
| 90189-04014 | ||||
| 90189-05003 | ||||
| 90189-05027 | ||||
| 90189-06018 | ||||
| 90467-09116 | ||||
| 90541-04014 | ||||
| 90950-01531 | ||||
| 91616-B0825 | ||||
| 93510-56020 | ||||
| 93520-54010 | ||||
| 93540-54512 | ||||
| 93560-54010 | ||||
| 93560-55016 | ||||
| 93560-56012 | ||||
| 93560-56020 | ||||
(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67961A - STRAP, BACK DOOR PULL | ||||
| 67961-95J0001 |
LH102,109,113,119,RZH102,112..SRF BLACK,TRIM1# |
1 | ||
| 67961-26010 |
LH102,109,113,119,RZH102,112..SRF |
1 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
LH120..GCGE,GCGN;KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
LH120..GCGE,GCGN;KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| 68907-95J11 |
LH102..V2;LH102,113..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68907-95J24 |
LH102,113,RZH102,112..CD ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ & 2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68907-95J27 |
LH102,113,RZH102,112..CD ｱﾘ(2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68907-95J06 |
LH102,103,113,RZH102,112..CD |
1 | ||
| 68907-95J11 |
LH113,RZH112..SRF;LH102,109,110,115,117,119,140,RZH102,110..DX,GL,SGL,SW ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68907-95J11 |
LH113,RZH112..CD ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68907-95J29 |
LH102,109,113,119,RZH102,112..SRF (ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68907-95J09 |
KZH100,11#,LH100,102,103,109,11#,140,RZH100,102,11#..SRF ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 68907-95J11 |
LH103,113..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68907-26140 |
LH103,113..CD ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 68907-26130 |
LH103,11#,RZH102,112..CD |
1 | ||
| 68907-26150 |
LH103,11#..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68907-26480 |
LH103,11#,RZH102,112..CD |
1 | ||
| 68907-26220 |
KZH12#,13# |
1 | ||
| 68907-26140 |
LH103,11#,RZH102,112..CD ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| 68908-95J11 |
LH102..V2;LH102,113..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68908-95J27 |
LH102,113,RZH102,112..CD ｱﾘ(2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68908-95J24 |
LH102,113,RZH102,112..CD ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ & 2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68908-95J29 |
LH102,109,113,119,RZH102,112..SRF (ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(2ﾀﾞﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾝﾊﾟ) |
1 | ||
| 68908-95J11 |
LH113,RZH112..SRF;LH102,109,110,115,117,119,140,RZH102,110..DX,GL,SGL,SW ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68908-95J09 |
KZH100,11#,LH100,102,103,109,11#,140,RZH100,102,11#..SRF ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 68908-95J11 |
LH103,113..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68908-95J06 |
LH102,103,110,113,RZH102,11#..03S,10S |
1 | ||
| 68908-95J11 |
LH113,RZH112..CD ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68908-26140 |
LH113..SP..5F;LH113..SRF..SG;LH113..V2..4FC..CD;KZH100,11#,LH10#,119,RZH100,102,11#..SRF ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 68908-26130 |
LH103,11#,RZH102,112..CD |
1 | ||
| 68908-26150 |
LH113..5F..CD ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68908-26220 |
KZH12#,13# |
1 | ||
| 68908-26150 |
LH103,113..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 68908-26480 |
LH103,11#,RZH102,112..CD |
1 | ||
| 68908-26140 |
KZH11#,LH10#,11#,RZH102,11#..SRF ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 68908-26150 |
LH103,11#..SP ﾎﾚｲﾊﾞﾝ OR ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 69290F - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69290-95J01 |
KZH11#,13#,RZH125,133..4FC;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,122,124..03S,05S,06S,08S,09S,15S |
1 | ||
| 69290F - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69290-95J01 |
KZH11#,13#,RZH125,133..4FC;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,122,124..03S,05S,06S,08S,09S,15S |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00B0 |
LH10#,11#,123,129,RZH102,112 BLUISH GRAY,TRIM1# |
1 | ||
| 69291-95J0023 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00B0 |
LH10#,11#,123,129,RZH102,112 BLUISH GRAY,TRIM1# |
1 | ||
| 69291-95J0023 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69298 - COVER, BACK DOOR INSIDE HANDLE | ||||
| 69298-95J00 |
LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,12#,133..03S,06S,09S,15S |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-95J02 |
LH184,186..DX;LH102,103,109,110,113,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..03S,05S,06S,08S,09S ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟ ﾘﾔﾊﾞﾝﾊﾟ) |
1 | ||
| 69358 - PROTECTOR, BACK DOOR LOCK | ||||
| 69358-95J00 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133 |
1 | ||
| 69359 - CUSHION, BACK DOOR LOCK | ||||
| 90541-09029 |
LH10#,11#,12#,RZH10#,11#,12# |
2 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-95J05 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69403-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69403-95J05 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69403-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95J01 |
LH184,186..DX;LH102,103,109,110,113,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..03S,05S,06S,08S,09S ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟ ﾘﾔﾊﾞﾝﾊﾟ) |
1 | ||
| 69430-95J00 |
LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH101,111,124..03S,06S,08S,09S,10S,15S |
1 | ||
| 69430-95J00 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,101,124 |
1 | ||
| 69449A - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69449-95J00 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133 |
1 | ||
| 69461A - STOPPER, BACK DOOR SIDE MALE | ||||
| 69461-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 69461-95J03 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69461-26050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-95J04 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-95J04 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL | ||||
| 69706-95J01 |
KZH11#,13#,RZH125,133..4FC;LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,122,124..03S,05S,06S,08S,09S,15S |
1 | ||
| 69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR) | ||||
| 69741-28010C1 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
KZH11#,13#,RZH133..4FC;LH10#,11#,12#,RZH102,112,124 BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
LH123..5F;LH102,109,110,113,119,129,140,RZH102,112,122..03S,05S,06S,08S,09S BLACK,TRIM1# |
1 | ||
| 69741-28010C1 |
LH10#,11#,RZH102,112..SRF BLACK,TRIM1# |
1 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-30020 |
LH125..DX;LH102,109,110,113,119,123,129,RZH102,112,122 |
1 | ||
| 69751 - HOLDER, DOOR LOCK CONTROL KNOB | ||||
| 69751-95J00C0 |
KZH11#,13#,RZH133..4FC;LH10#,11#,12#,RZH102,112,124 BLACK,TRIM1# |
1 | ||
| 69751-95J00B0 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69751-95J00C0 |
LH10#,11#,RZH102,112..SRF BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90119-06767 | ||||
| 90119-06883 | ||||
| 90119-08464 | ||||
| 90119-08829 | ||||
| 90119-08830 | ||||
| 90119-08B78 | ||||
| 90157-60012 | ||||
| 90159-60066 | ||||
| 90176-08032 | ||||
| 90189-06018 | ||||
| 90950-01027 | ||||
| 90950-06096 | ||||
| 91651-40614 | ||||
| 93219-54012 | ||||
| 93540-54014 | ||||
| 93590-16014 | ||||

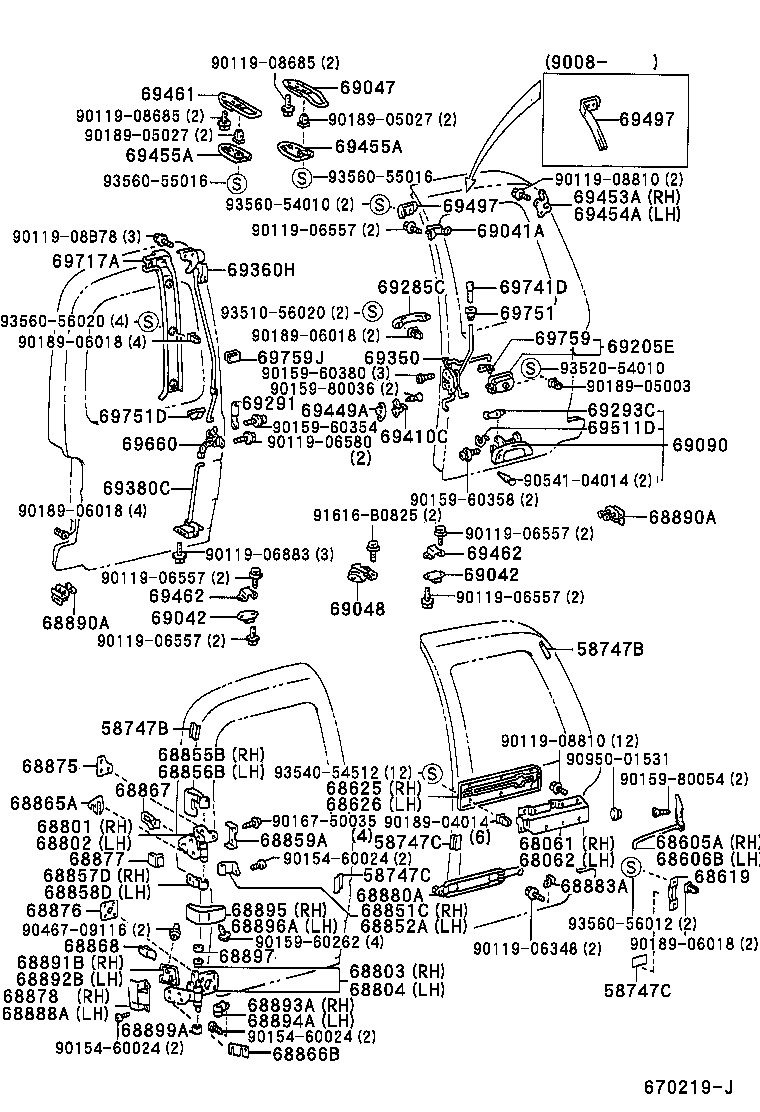

| Linked diagrams | ||||
| 8113 | ||||
