LH113K-FMMDS (1989)
Toyota Hiace/Regiusace

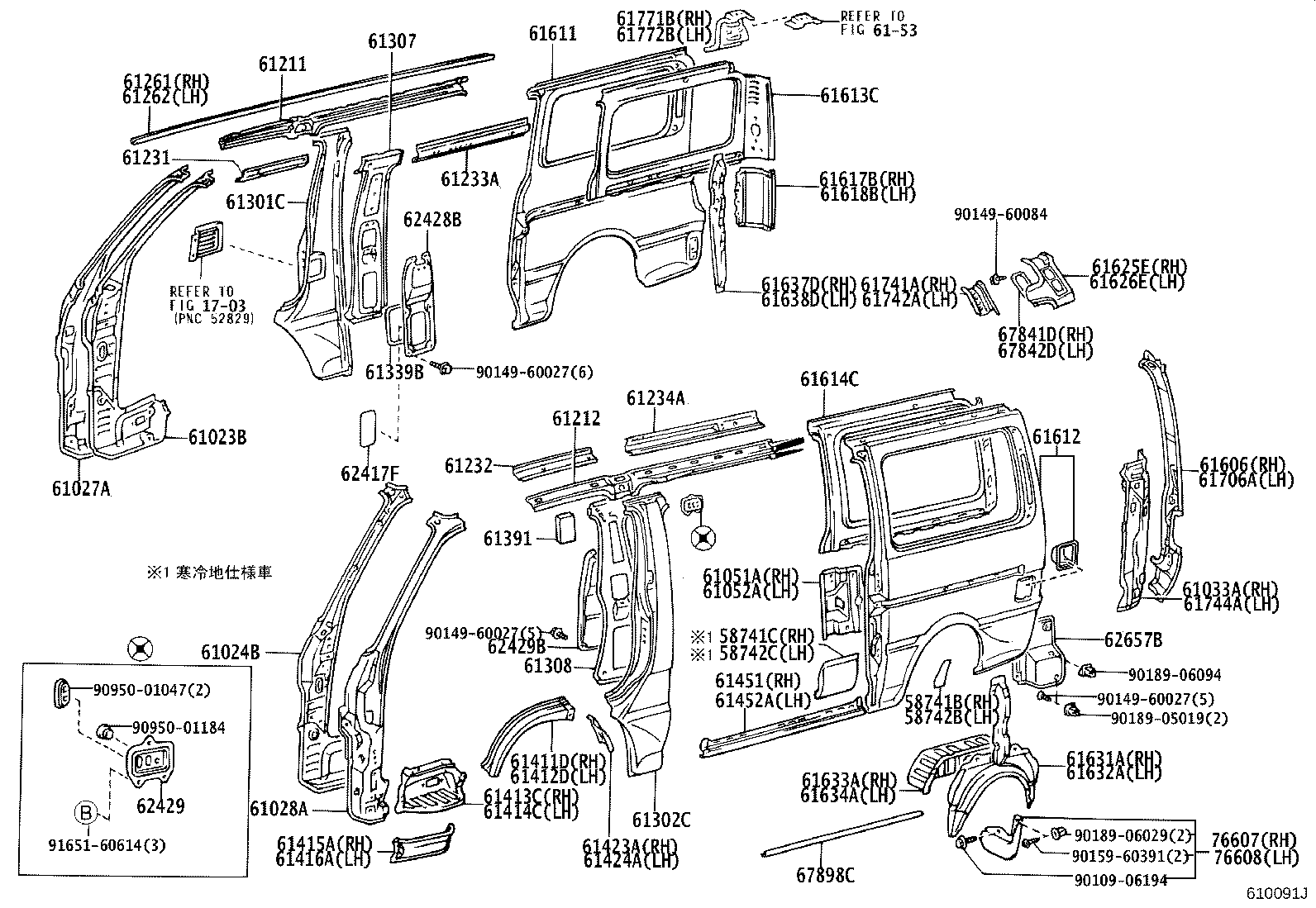

ILLUST NO. 1 OF 3(8908- )HRF..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741C - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-95J04 |
LH113,119,17#,RZH112..5D |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-95J04 |
LH110..SW;KZH11#,LH113,115,117,119,17#,RZH11# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J15 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61023-95J15 |
LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 61023-26010 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 61023-95J16 |
KZH10#,12#,13#,LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J11 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61024-95J12 |
KZH10#,12#,13#,LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 61024-95J11 |
LH10#,11#,12#,RZH102,112,124,133 |
1 | ||
| 61024-95J12 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J17 |
RZH112..DX;RZH112..CD..EFI;LH102,103,109,110,113,115,119,123,125,129,140,RZH102,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61027-26040 |
KZH10#,11#,13#,RZH100,101,111,133..CTM,DX |
1 | ||
| 61027-26020 |
KZH10#,11#,12#,RZH100,101..HRF,SMRF,SRF |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61028-26040 |
KZH10#,11#,RZH100..CTM,DX |
1 | ||
| 61028-26081 |
KZH11#,13#,RZH111 ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 61028-26050 |
KZH10#,11#,RZH100,101,111..CTM,DX |
1 | ||
| 61028-95J24 |
LH10#,11#,12#,RZH102,112,124..CD,DX,GL |
1 | ||
| 61028-26060 |
LH10#,11#,12#,RZH102,112,124 ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 61028-95J24 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-95J05 |
LH113,123,129,RZH112,122..HRF ﾊｲﾙ-ﾌ |
1 | ||
| 61033-95J05 |
LH113,120,123,129,RZH112,122..HRF ﾊｲﾙ-ﾌ |
1 | ||
| 61051A - PANEL SUB-ASSY, QUARTER LOCK, INNER RH | ||||
| 61051-95J01 |
LH102,103,113,162,172,RZH102,112..V2..5D ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61615-95J09 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
1 | ||
| 61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH | ||||
| 61052-95J03 |
LH102,113,RZH112..V2..DX |
1 | ||
| 61052-26020 |
LH10#,11#,123,129,RZH102,112..06S..DX |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-95J00 |
LH102,103,109,113,119,RZH102,112..5D |
1 | ||
| 61201-95J01 |
KZH12#,13#,LH12#,18#,RZH12#,133 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J05 |
KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW |
1 | ||
| 61231-95J10 |
KZH12#,13#,LH120,125,184,186,RZH124,125,133 ﾊｲﾙ-ﾌ & ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J09 |
KZH12#,13#,LH120,125,184,186,RZH124,125,133 ﾊｲﾙ-ﾌ & ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ) |
1 | ||
| 61232-95J06 |
KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-95J06 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| C5707-95B04 |
KZH12#,13#,LH120 |
1 | ||
| 61234-95J15 |
KZH11#,LH102,103,109,11#,123,129,16#,17#,182,188,RZH102,11#,122..06S,10S,15S |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-95J15 |
LH102,109,113,119,RZH102,112..5D..(CD,DX) |
1 | ||
| 61301-95J17 |
LH102,103,109,113,119,RZH102,112..5D..DX ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480B)) |
1 | ||
| 61301-95J21 |
LH10#,11#,RZH102,112..5D..06S ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480B)) |
1 | ||
| 61301-26370 |
LH10#,11#,RZH102,112..5D..06S ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480B)) |
1 | ||
| 61301-26360 |
LH10#,11#,RZH102,112..5D..DX ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480B)) |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95J21 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 61302-95J19 |
RZH102,112..850K;RZH102,112..4D..CD..EFI;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..DX,SW ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-26330 |
RZH112..CD,DX;RZH102..4D..CD;KZH11#,LH10#,11#,12#,RZH102,111,124,133..DX ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-95J29 |
RZH112;RZH102..4D..CD;KZH11#,LH10#,11#,RZH102,111..DX,GL;KZH10#,LH12#,RZH100,101,124,133..(HRF,SMRF)..(CTM,DX,GL) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61302-26320 |
RZH112;RZH102..4D..CD;KZH10#,11#,LH10#,11#,12#,RZH10#,111,124,133..CTM,DX,GL ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D)) |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-95J50 |
LH102,103,109,113,119,RZH102,112..5D..(CD,DX) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J69 |
LH102,103,109,110,113,119,123,129,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ｾﾊﾟﾚ-ﾀ ﾊﾞ-) |
1 | ||
| 61308-95J70 |
LH140;KZH100,11#,LH100,110,115,117,RZH100,110,111..DX |
1 | ||
| 61308-95J69 |
LH10#,11#,RZH102,112..CD,DX ｱﾘ(ｾﾊﾟﾚ-ﾀ ﾊﾞ-) |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-95J00 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
1 | ||
| 61452A - PANEL, ROCKER OUTER, LH | ||||
| 61451-95J00 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J08 |
LH113,123,125,129,RZH112,122..HRF..DX ﾊｲﾙ-ﾌ |
1 | ||
| 61705-95J08 |
LH113,12#,RZH112,124,133..HRF ﾊｲﾙ-ﾌ |
1 | ||
| 61705-26030 |
KZH12#,13#,LH120 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95N19 |
LH113,RZH112..HRF..5D |
1 | ||
| 61601-26200 |
LH113,RZH112..HRF..5D ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95N24 |
LH113,RZH112..HRF..5D |
1 | ||
| 61602-26260 |
LH113,RZH112..HRF..5D |
1 | ||
| 61602-26550 |
KZH12#,13#,LH120..DX,GCGN |
1 | ||
| 61602-26260 |
LH113,RZH112..HRF |
1 | ||
| 61602-2F750 |
LH113,RZH112..HRF..5D ｱﾘ(ﾘﾔ ｼﾖﾙﾀﾞ ﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH | ||||
| 61607-95J68 |
LH113,RZH112..HRF..5D..5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ & ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 61607-95J69 |
LH113,172,RZH112..HRF..5D |
1 | ||
| 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH | ||||
| 61608-95J63 |
LH113,RZH112..HRF..5D..5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ & ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 61608-95J64 |
LH113,172,RZH112..HRF |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-95J00 |
LH125..DX;LH10#,11#,120,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW |
1 | ||
| 61617-95J00 |
LH125..DX;KZH10#,11#,LH10#,11#,123,129,RZH10#,11#,124,133..CD,DX,GL,SCL,SCM,SCMM |
1 | ||
| 61617-95J00 |
LH125..DX;LH10#,11#,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J00 |
LH113,123,125,129,RZH112,12#,133..HRF..DX |
1 | ||
| 61701-26060 |
KZH12#,13#;LH120..GCGE,GCGN |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J00 |
LH113,123,125,129,RZH112,12#,133..HRF..DX |
1 | ||
| 61702-26060 |
KZH12#,13#;LH120..GCGE,GCGN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-95J02 |
LH102,103,113,162,172,RZH102,112..V2..06S |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-95J02 |
LH102,103,113,162,172,RZH102,112..V2..06S |
1 | ||
| 61606-95J03 |
KZH10#,11#,LH140;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..SG..(CD,CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J04 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61633-95J04 |
LH102,103,113,162,172,RZH102,112..V2 |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J10 |
LH113,12#,RZH112,122..HRF..DX ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61706-95J10 |
LH113,123,125,129,RZH112,122..HRF..DX ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61706-95J10 |
LH113,12#,RZH112,124,133..HRF ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61706-26030 |
KZH12#,13#,LH120 |
1 | ||
| 61706-95J10 |
KZH132,LH113,125,RZH112,124,133..HRF ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J02 |
LH113,123,125,129,RZH112,12#..HRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J02 |
KZH12#,13#,LH113,12#,172,18#,RZH112,12#,133..HRF |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61034-95J06 |
LH113,120,123,129,RZH112,122..HRF ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-95J01 |
LH113,123,125,129,RZH112,12#..HRF |
1 | ||
| 62428B - COVER, CENTER PILLAR, RH | ||||
| 62428-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62428-95J00 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX |
1 | ||
| 62428-95J00 |
KZH100,11#,13#,LH10#,11#,12#,RZH100,102,11#,124,133..HRF,SRF |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 62429B - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62429-95J00 |
LH10#,11#,12#,RZH102,112,124,133..CD,DX |
1 | ||
| 62429-95J00 |
KZH100,11#,13#,LH10#,11#,12#,RZH100,102,11#,124,133..HRF,SRF |
1 | ||
| 62657B - COVER, QUARTER PANEL INNER, LH | ||||
| 62657-95J01 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW |
1 | ||
| 67841D - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-95J00 |
KZH13#,LH113,123,129,172,182,188,RZH112,122,133..HRF |
1 | ||
| 67842D - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-95J00 |
KZH13#,LH113,123,129,172,182,188,RZH112,122,133..HRF |
1 | ||
| 67898C - SEAL, SLIDE DOOR, LOWER NO.2 | ||||
| 67898-95J00 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 76607-29395 |
KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL 塗装不要,ﾅｼ(ﾄﾖﾀ ﾏ-ｸ) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 76608-29405K0 |
KZH10#,12#,13#,RZH101..DX,GCGE,GCGN,SCL,SCM GRAYISH PURPLE ME.,2BY |
1 | ||
| Common parts | ||||
| 90109-06194 | ||||
| 90149-60027 | ||||
| 90149-60084 | ||||
| 90159-60391 | ||||
| 90189-05019 | ||||
| 90189-06029 | ||||
| 90189-06094 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 6153 | ||||
ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-80031 | ||||
| 90119-08821 | ||||
| 90183-06020 | ||||
| 90333-01009 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01181 | ||||
| 90950-01326 | ||||
| 90950-01421 | ||||
| 90950-01660 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-01901 | ||||
| 90950-06013 | ||||
| 90950-06017 | ||||
| Linked diagrams | ||||
| 5554 | ||||
| 6155 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-32138 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
