LH113K-ERPDS (1996)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 4(8908-9907)CD,DX,SW
ﾌﾛﾝﾄ ｼ-ﾄ:ｱﾘ(ｾﾝﾀ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) |
1 | ||
| 71013-26060 |
LH103,113..SP;LH109,119,129..CD,DX;LH113,RZH112..V1..DX;LH103,123,RZH102..V1..06S ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J12 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71014-26040 |
LH103,113..SP;LH109,119..CD,DX;LH103,113,RZH102,112..V1..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71095-95J08B6 |
LH125..GL;LH10#,11#,RZH102,112..V1..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8103 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71072-95N00B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71073-26170B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26202E2 |
KZH12#,13#..DX,GCGN ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4403 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71074-26260B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J08E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0003 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J2903 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350-26130B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71350-95J33S9 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71380-95J05 |
LH113..09S;LH113..HRF..4D;LH113..V1..5D..DX;LH10#,119,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0603 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71392-95J04B0 |
LH113..09S;LH119..5D..5F;LH113..HRF..4D;LH119..4FC..(CD,DX);LH119..(03S,09S)..5F;LH109,113..V1..5D..DX;LH103,RZH102,112,133..V1..DX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7603 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71410-26260B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71410-26112L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-95J8013 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8203 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71420-26230B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71420-26013L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-95J87P2 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) GRAY,TRIM1# |
1 | ||
| 71401-26080B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-26500B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71402-26090B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26013L2 |
KZH12#,13# ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-26460B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J06 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J00 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71502-95J02 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J22 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71551-95J20 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0003 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10854 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90386-12061 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 4(8908-9907)
ﾌﾛﾝﾄ ｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) |
1 | ||
| 71013-26060 |
LH103,113..SP;LH109,119,129..CD,DX;LH113,RZH112..V1..DX;LH103,123,RZH102..V1..06S ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J12 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71014-26040 |
LH103,113..SP;LH109,119..CD,DX;LH103,113,RZH102,112..V1..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71095-95J08B6 |
LH125..GL;LH10#,11#,RZH102,112..V1..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8103 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71072-95N00B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71073-26170B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26202E2 |
KZH12#,13#..DX,GCGN ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4403 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71074-26260B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J08E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0003 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J2903 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350-26130B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71350-95J33S9 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71380-95J05 |
LH113..09S;LH113..HRF..4D;LH113..V1..5D..DX;LH10#,119,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0603 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71392-95J04B0 |
LH113..09S;LH119..5D..5F;LH113..HRF..4D;LH119..4FC..(CD,DX);LH119..(03S,09S)..5F;LH109,113..V1..5D..DX;LH103,RZH102,112,133..V1..DX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7603 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71410-26260B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71410-26112L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-95J8013 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8203 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71420-26230B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71420-26013L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-95J87P2 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) GRAY,TRIM1# |
1 | ||
| 71401-26080B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-26500B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71402-26090B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26013L2 |
KZH12#,13# ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-26460B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J06 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J00 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71502-95J02 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J22 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71551-95J20 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J00B0 |
KZH11#..4FC;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0003 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J35B0 |
LH125..GL;LH113..09S;LH113..V2..4D;LH113..5D..DX;LH113..HRF..4D;RZH112..V1..DX;LH103,RZH102..DX;LH103,113..V1..SP;LH109,119,RZH133..CD,DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01B0 |
LH10#,11#,RZH102,112..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 5(8908-9907)DX,GCGE,GCGN,SCL,SGL,SW
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) |
1 | ||
| 71013-26060 |
LH103,113..SP;LH109,119,129..CD,DX;LH113,RZH112..V1..DX;LH103,123,RZH102..V1..06S ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J12 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71014-26040 |
LH103,113..SP;LH109,119..CD,DX;LH103,113,RZH102,112..V1..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8103 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71072-95N00B1 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71073-26170B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26202E2 |
KZH12#,13#..DX,GCGN ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4403 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71074-26260B0 |
LH10#,11#,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J08E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7603 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71410-26260B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71410-26112L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71410-95J8013 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8203 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71420-26230B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71420-26013L2 |
KZH12#,13# ***,ｼ-ﾄ = TYPE E-*104,ANTELOPE,TRIM4# |
1 | ||
| 71420-95J87P2 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2503 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(06S,09S)..(DX,SW) GRAY,TRIM1# |
1 | ||
| 71401-26080B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-26500B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N2803 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71402-26090B5 |
LH10#,11#,RZH102,112..V1..DX ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26013L2 |
KZH12#,13# ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-26460B2 |
LH10#,11#,123,129,RZH102,112..CD,DX ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J06 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J00 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71502-95J02 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J14 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J22 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) |
1 | ||
| 71551-95J20 |
LH113..09S;LH119..5D..5F;LH119..4FC..DX;LH113..HRF..4D;LH119..09S..5F;LH109,113..V1..5D..DX;LH103,RZH102,112..V1..DX GL ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J00B0 |
KZH11#..4FC;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J0003 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J35B0 |
LH125..GL;LH113..09S;LH113..V2..4D;LH113..5D..DX;LH113..HRF..4D;RZH112..V1..DX;LH103,RZH102..DX;LH103,113..V1..SP;LH109,119,RZH133..CD,DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J35B0 |
LH125..GL;LH113..09S;LH113..V2..4D;LH113..5D..DX;LH113..HRF..4D;RZH112..V1..DX;LH103,RZH102..DX;LH103,113..V1..SP;LH109,119,RZH133..CD,DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-26010B0 |
LH125..GL;LH103,113..SP;LH113,RZH112..V1..(DX,SGL);LH103,123,RZH102..V1..(05S,06S);KZH10#,13#,LH109,119,129,RZH101,133..CD,DX,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01B0 |
LH10#,11#,RZH102,112..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-08269 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90530-06007 | ||||
| 91611-60616 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

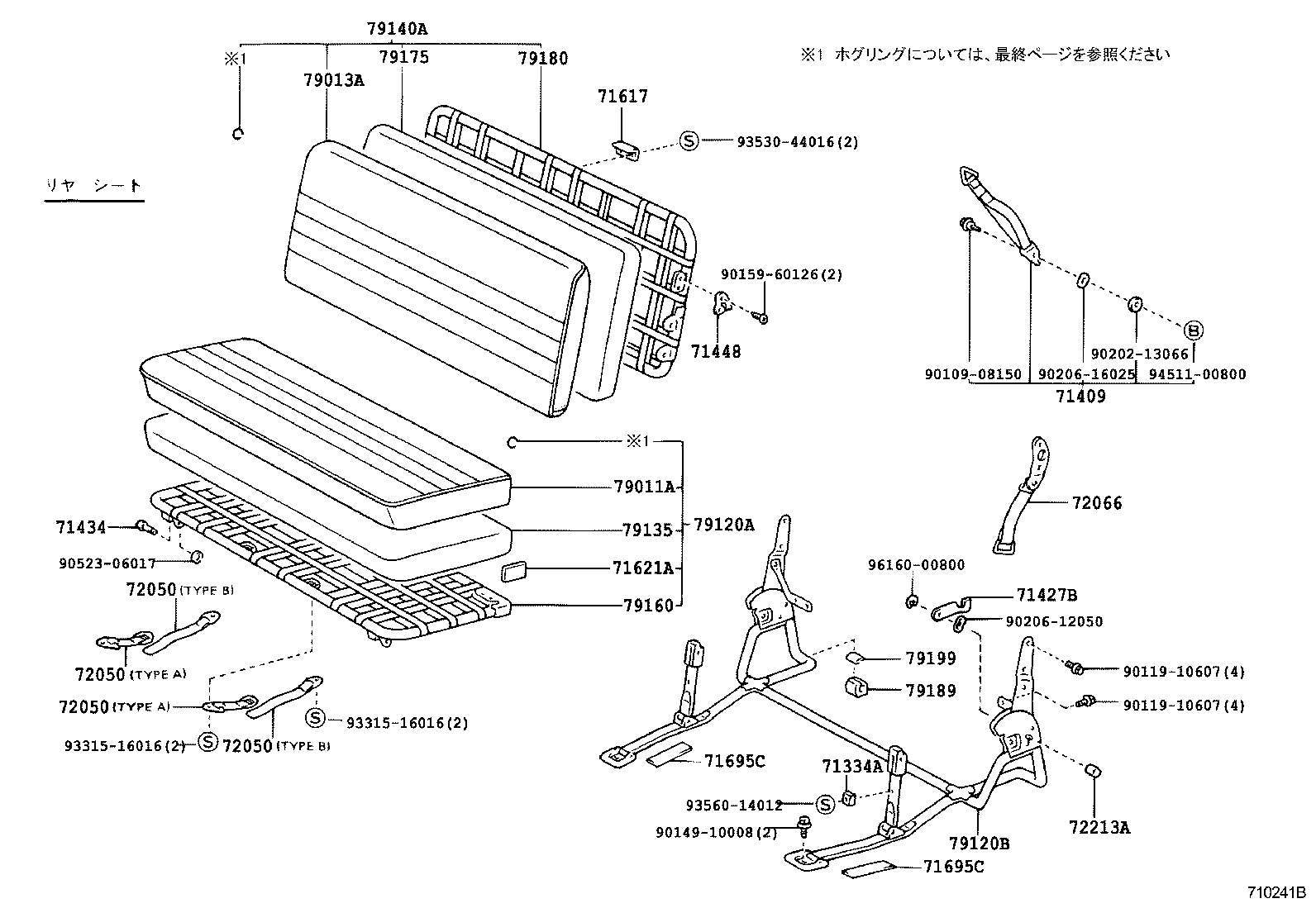

ILLUST NO. 2 OF 4(8908-9808)06S..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-95J00 |
LH102,103,109,113,119,123,129,RZH102,112,122..06S..DX |
2 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95J04 |
LH102,109,113,119,123,129,RZH102,112,122..V1..06S..DX |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH113..V2..5D..DX;LH113,123..09S..4FC;LH113..V2..4D..5F..DX;LH113,119,123..V1..06S..DX;LH103,125,RZH112..DX,GL,SGL;KZH11#,LH102,109,110,115,117,129,RZH102,110,111,12#..DX |
2 | ||
| 71448 - STOPPER, REAR SEAT BACK | ||||
| 71448-9570313 |
LH113,119,123,RZH112,122..06S..DX;LH102,109,110,129,RZH102..(06S,09S)..(DX,SW) GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,109,113,119,123,129,140,RZH102,112,122..DX,GL,SGL,SW GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122..06S..DX |
6 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72066-95J02 |
LH102,103,109,113,119,123,129,RZH102,112,122..V1..06S..DX |
1 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH102,109,113,119,123,129,RZH102,112,122..V1..06S..DX |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N2003 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1# |
1 | ||
| 79011-26211B0 |
LH10#,11#,RZH102,112..V1..06S ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N0903 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1# |
1 | ||
| 79013-26151B0 |
LH10#,11#,RZH102,112..V1..06S ｼ-ﾄ = TYPE J-*104,BLUSIH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N3103 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1# |
1 | ||
| 79120-26370B1 |
LH10#,11#,123,129,RZH102,112..06S ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 79120-26211B2 |
LH10#,11#,RZH102,112..V1..06S ***,ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79120-95N28 |
LH102,103,109,113,119,123,129,RZH102,112,122..V1..06S..DX |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH102,109,113,119,123,129,RZH102,112,122..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N2503 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1# |
1 | ||
| 79140-26181B2 |
LH10#,11#,RZH102,112..V1..06S ***,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26340B1 |
LH10#,11#,123,129,RZH102,112..06S ***,ｼ-ﾄ = TYPE K-*104,GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J44 |
LH102,103,109,113,119,123,129,RZH102,112,122..06S..DX |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J21 |
LH102,103,109,113,119,123,129,RZH102,112,122..06S..DX |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95J01 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J01 |
LH102,109,113,119,123,129,RZH102,112,122..06S..DX |
2 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-10607 | ||||
| 90149-10008 | ||||
| 90159-60126 | ||||
| 90202-13066 | ||||
| 90206-12050 | ||||
| 90206-16025 | ||||
| 90523-06017 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 93560-14012 | ||||
| 94511-00800 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
