LH113K-ERMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

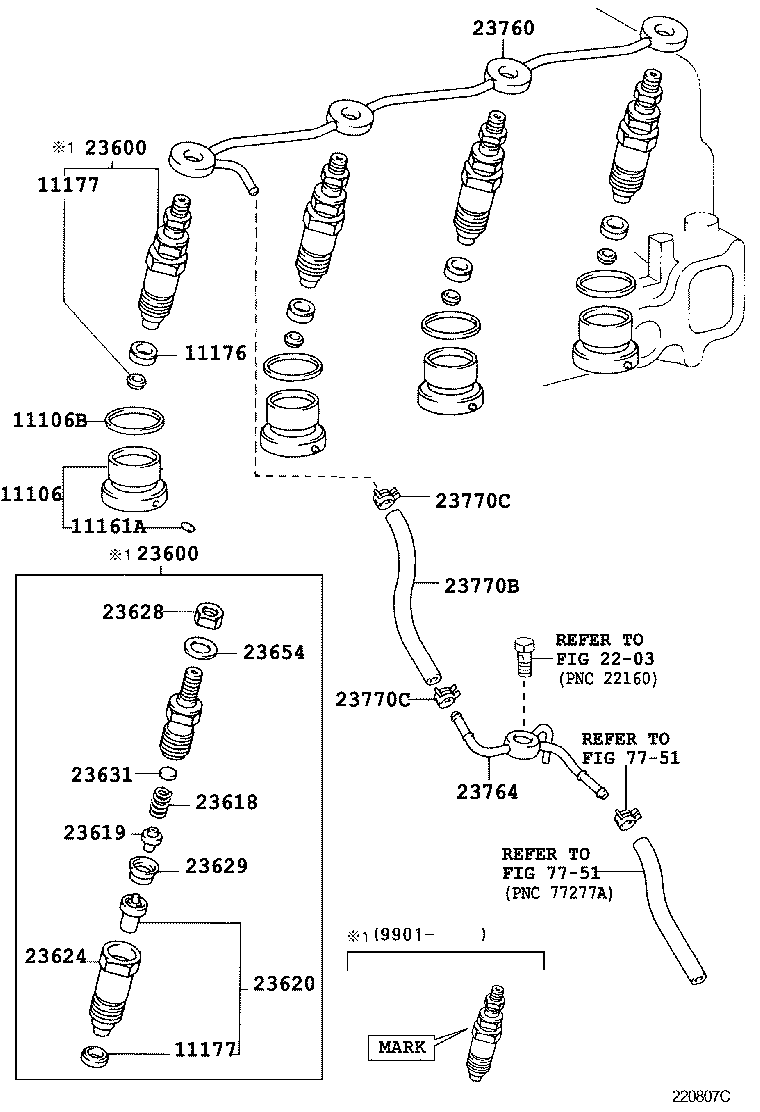

Click highlighted areas on diagram

diagram 11106 11106B 11161A 11176 11177 11177 2203 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23764 23770B 23770C 23770C 7751 7751
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-54120

3L..LH103,107,109,113,115,117,119,123,125,129

 4
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-54030

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=0.03

 8
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

2L,2LT#,3L..LH10#,11#,12#,140

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

2L,2LT#,3L..LH10#,11#,12#,140

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

2L,3L..LH10#,11#,123,125,129,140

 4
23600-59225

3L..LH10#,11#,12#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-59105

2L,3L..LH10#,11#,123,125,129,140

 4
23600-59225

3L..LH10#,11#,12#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54080

2L,2LTE,3L..LH10#,11#,12#,140

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23620 - NOZZLE ASSY
23620-59045

2L,3L..LH10#,11#,123,125,129,140

 4
23624 - NUT, NOZZLE RETAINING
23624-64040

2L,3L..LH10#,11#,123,125,129,140

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=0.900

 4
23632-64014

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.250

 4
23632-64012

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.200

 4
23631-64016

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.050

 4
23632-64016

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.300

 4
23633-64012

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.450

 4
23632-64018

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.350

 4
23631-64014

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.000

 4
23633-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.400

 4
23631-64018

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.100

 4
23631-64012

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=0.950

 4
23634-64014

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.750

 4
23632-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.150

 4
23634-64016

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.800

 4
23633-64014

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.500

 4
23634-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.650

 4
23633-64018

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.600

 4
23634-64012

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.700

 4
23635-64012

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.950

 4
23635-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.900

 4
23634-64018

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.850

 4
23633-64016

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

厚さ=1.550

 4
23654 - WASHER(FOR RING PACKING)
23654-64010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-54030

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23764 - PIPE, NOZZLE LEAKAGE, NO.4
23764-54080

2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140

 1
23770B - HOSE, FUEL
95333-04020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

*H,長さ=120,ID=4

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-30400

2L,2LT#,3L..LH10#,11#,12#,140

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96132-30400

2L,2LT#,3L..LH10#,11#,12#,140

 2
