LH110G-GHMDS (1989)
Toyota Hiace/Regiusace

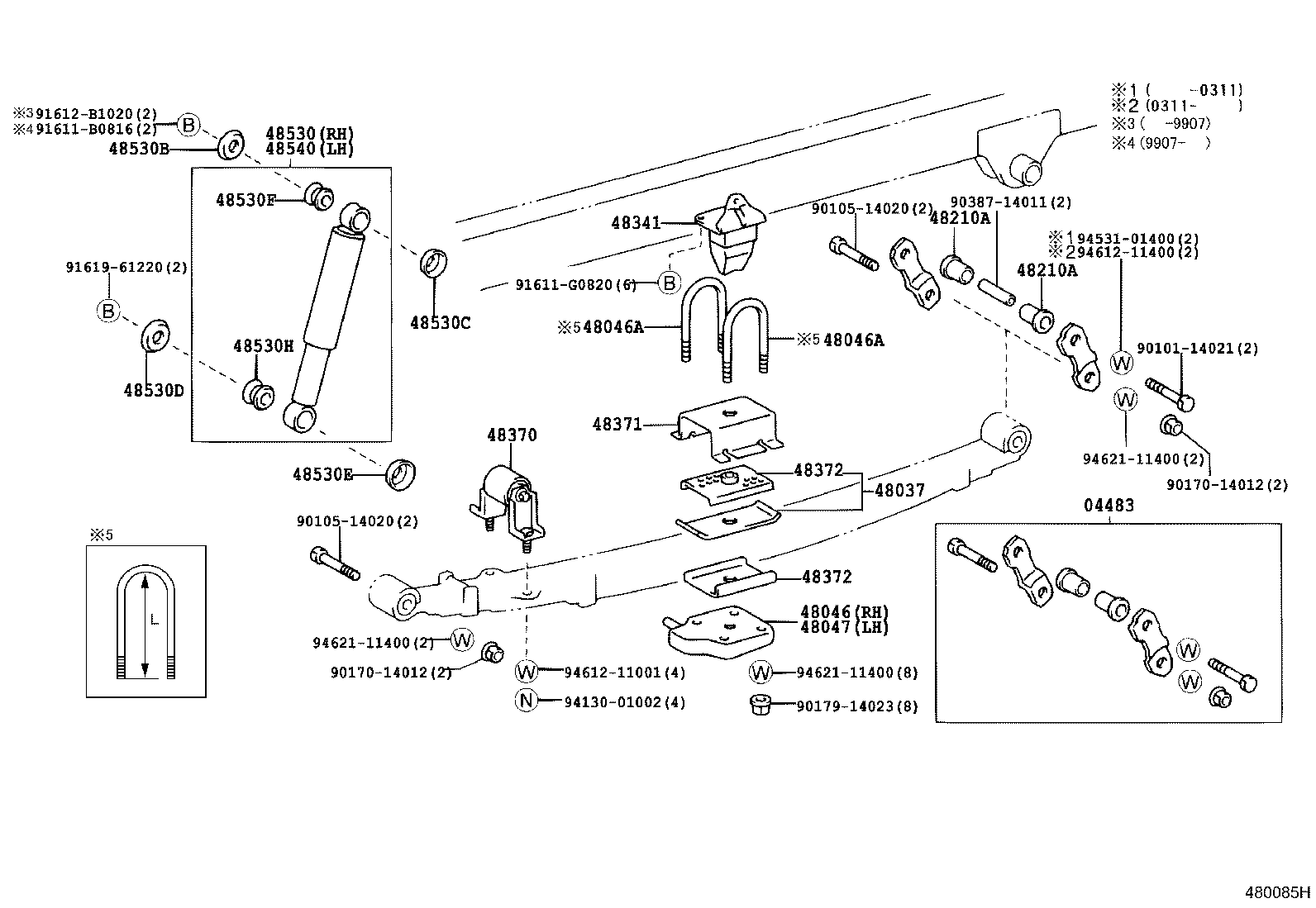

ILLUST NO. 1 OF 2(8908- )RZH112..V2..5F..CD ; (8908- )LH102,103,109,11#,12#,140,162,172,182,18
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26100 |
LH102,103,109,11#,12#,140,RZH102,110,112,12#..COM,V1,WG |
2 | ||
| 48037 - SPACER SUB-ASSY, REAR SPRING | ||||
| 48037-26030 |
LH102,103,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26100 |
LH102,103,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14059 |
LH102,103,109,11#,12#,140,RZH102,110,112,12#..COM,V1,WG 長さ=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14059 |
LH102,103,109,11#,12#,140,RZH102,110,112,12#..COM,V1,WG 長さ=180 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-26100 |
LH102,103,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26150 |
LH110,120,140,RZH110 |
2 | ||
| 48370 - DAMPER ASSY, LEAF SPRING DYNAMIC | ||||
| 48370-26010 |
RZH110,124..EFI;LH102,109,11#,140,RZH102,112..(COM,V1,WG)..(CBR,DSL) |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-26110 |
LH102,103,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH102,103,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH102,103,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80399 |
LH110,120,140,RZH110 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 90948-02077 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90385-16009 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80399 |
LH110,120,140,RZH110 |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90105-14020 | ||||
| 90170-14012 | ||||
| 90179-14023 | ||||
| 90387-14011 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91619-61220 | ||||
| 94130-01002 | ||||
| 94531-01400 | ||||
| 94612-11001 | ||||
| 94612-11400 | ||||
| 94621-11400 | ||||
ILLUST NO. 2 OF 2(9205-9308)LH110,140
5-LEAF(TYPE C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# ﾌﾛﾝﾄ |
2 | ||
| 90389-14007 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48201-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48201-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48212-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48212-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48202-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48202-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48203-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48203-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12# |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48216-35390 |
RZH102,112..850K;LH110,120,140,RZH110 |
2 | ||
| 48216-35390 |
RZH102,112..850K;LH110,120,RZH110..10S |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26620 |
RZH102,112..850K;LH110,117,140,RZH110 |
2 | ||
| 48255-26620 |
LH110,140,RZH110 NO.1 |
2 | ||
| 48253-26690 |
LH110,140,RZH110 NO.2 |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,120,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253-26620 |
LH102,109,110,113,115,119,140,RZH102,11#..COM,V1,WG |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48255-26690 |
LH110,140,RZH110 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# |
2 | ||

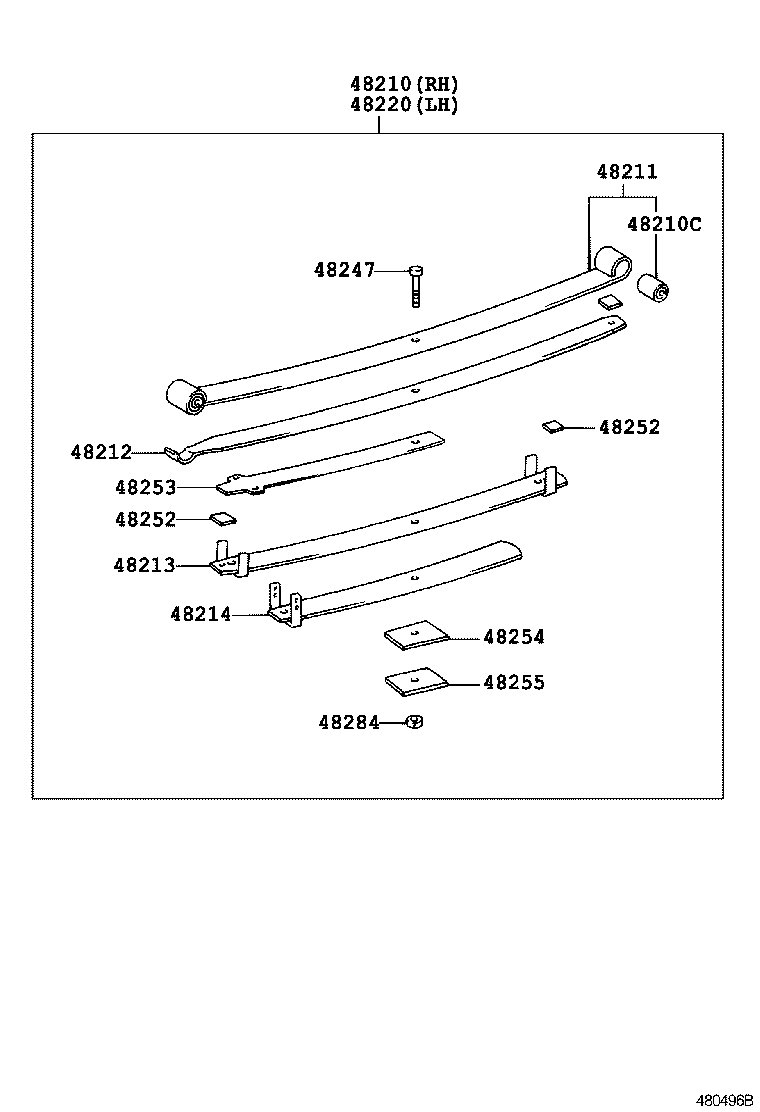

ILLUST NO. 2 OF 2(8908-9308)LH110,140,RZH110
4-LEAF(TYPE D)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# ﾌﾛﾝﾄ |
2 | ||
| 90389-14007 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48201-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48201-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48212-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48202-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48202-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48203-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48203-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12# |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26620 |
RZH102,112..850K;LH110,117,140,RZH110 |
2 | ||
| 48255-26620 |
LH110,140,RZH110 NO.1 |
2 | ||
| 48253-26690 |
LH110,140,RZH110 NO.2 |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,120,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253-26620 |
LH102,109,110,113,115,119,140,RZH102,11#..COM,V1,WG |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-26620 |
RZH102,112..V1..1000K;LH102,110,113,115,140,RZH110..COM,V1,WG |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48255-26690 |
LH110,140,RZH110 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# |
2 | ||

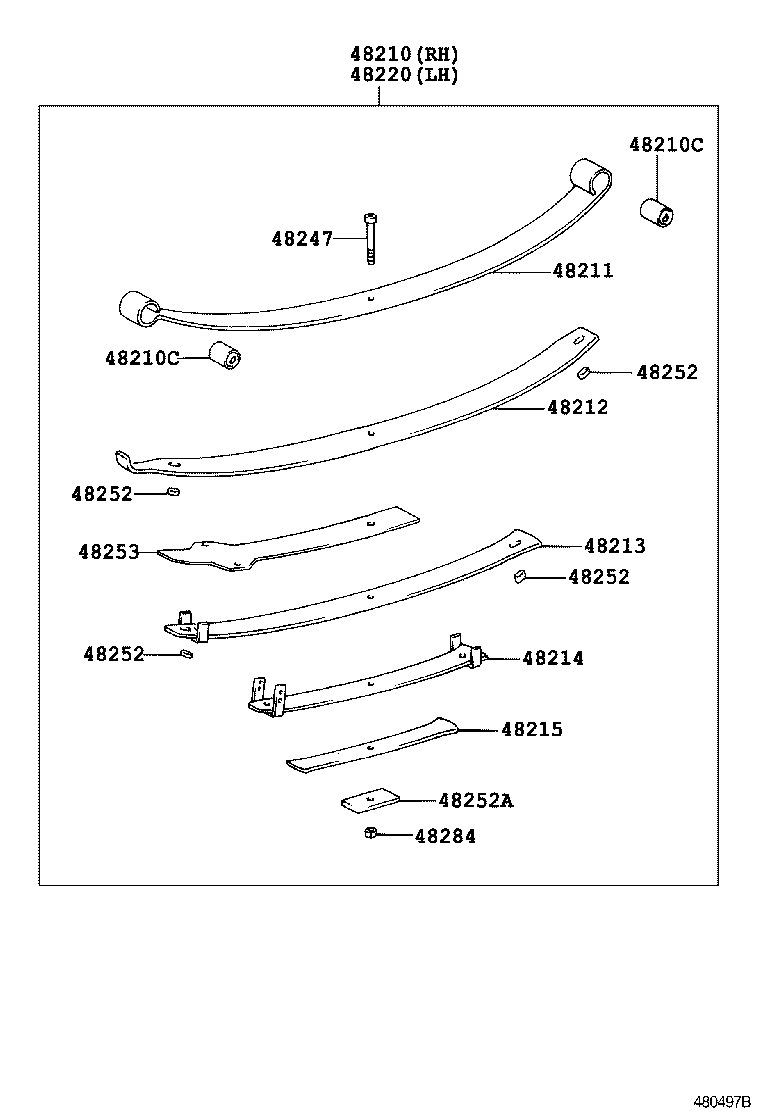

ILLUST NO. 2 OF 2(9205-9308)LH110,120,RZH110
5-LEAF(TYPE D)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# ﾌﾛﾝﾄ |
2 | ||
| 90389-14007 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# ﾌﾛﾝﾄ |
2 | ||
| 90389-14007 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48201-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48201-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48212-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48212-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48202-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48202-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48203-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48203-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12# |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48216-35390 |
RZH102,112..850K;LH110,120,140,RZH110 |
2 | ||
| 48216-35390 |
RZH102,112..850K;LH110,120,RZH110..10S |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26620 |
RZH102,112..850K;LH110,117,140,RZH110 |
2 | ||
| 48255-26620 |
LH110,140,RZH110 NO.1 |
2 | ||
| 48253-26690 |
LH110,140,RZH110 NO.2 |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,120,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253-26620 |
LH102,109,110,113,115,119,140,RZH102,11#..COM,V1,WG |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# |
2 | ||
ILLUST NO. 2 OF 2(8908-9308)LH110,140,RZH102,11#
4-LEAF(TYPE B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# ﾌﾛﾝﾄ |
2 | ||
| 90389-14007 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12# ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48201-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48201-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48212-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48212-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48202-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48202-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2F010 |
LH110,120,RZH110..10S |
2 | ||
| 48203-26690 |
LH110,120,140,RZH110 |
2 | ||
| 48203-26691 |
LH110,120,140,RZH110 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26691 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-26690 |
LH110,140,RZH110 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-2F010 |
LH110,120,RZH110..10S 5枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12# |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH102,109,11#,12#,140,RZH102,11#,12#..COM,V1,WG |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48216-35390 |
RZH102,112..850K;LH110,120,140,RZH110 |
2 | ||
| 48216-35390 |
RZH102,112..850K;LH110,120,RZH110..10S |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26620 |
RZH102,112..850K;LH110,117,140,RZH110 |
2 | ||
| 48255-26620 |
LH110,140,RZH110 NO.1 |
2 | ||
| 48253-26690 |
LH110,140,RZH110 NO.2 |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,120,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253-26620 |
LH102,109,110,113,115,119,140,RZH102,11#..COM,V1,WG |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26620 |
RZH102,112..850K;LH110,117,140,RZH110 |
2 | ||
| 48255-26620 |
LH110,140,RZH110 NO.1 |
2 | ||
| 48253-26690 |
LH110,140,RZH110 NO.2 |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,120,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48253-26620 |
LH102,109,110,113,115,119,140,RZH102,11#..COM,V1,WG |
2 | ||
| 48255-26620 |
RZH102,112..V1..1000K;LH102,109,11#,140,RZH110..COM,V1,WG NO.1 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH102,103,109,11#,12#,140,RZH102,110,112,12# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
