LH109V-SRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9608)KZH10#,11#,12#,13#,RZH101,111,133 ; (9308-9808)LH10#,11#,12#,RZH102,112,

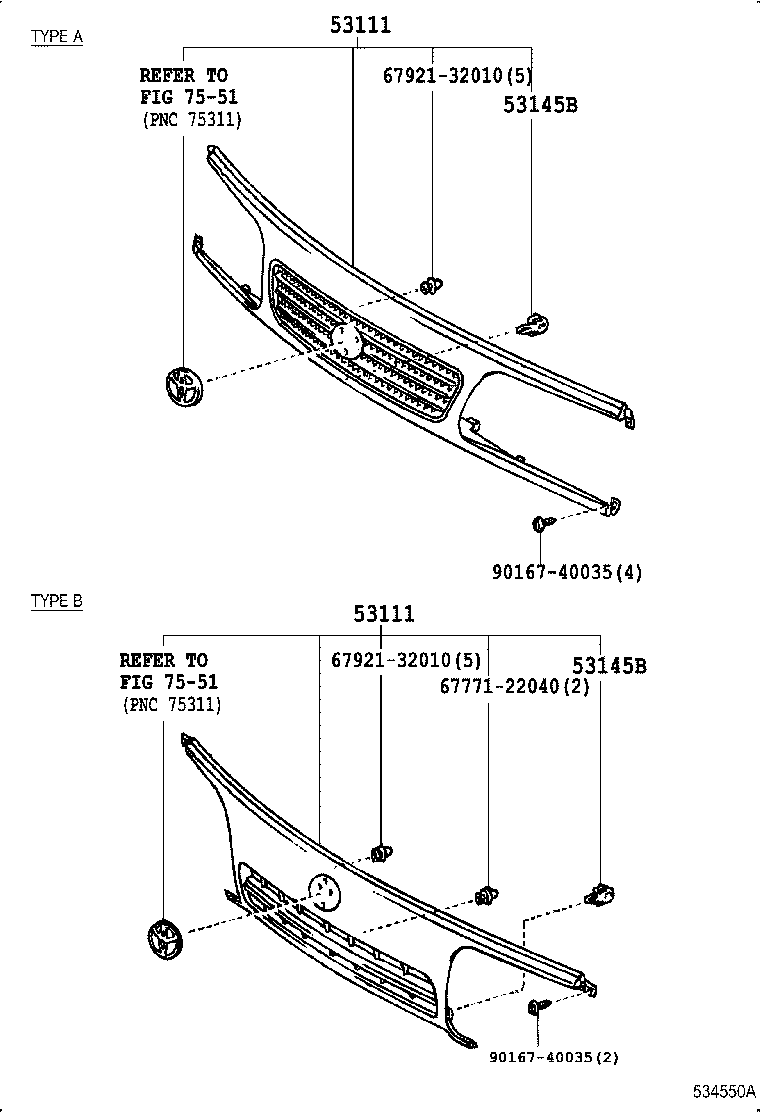

Click highlighted areas on diagram

diagram 53111 53111 53145B 53145B 6777122040 6792132010 6792132010 7551 7551 7551 7551 9016740035
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J19

LH102,109,113,119,125,RZH102,112..GL

塗装不要

 1
53100-26030B1

LH113..5D..DX;LH113..HRF..4D;LH113..CD,GL,SGL;LH113..V2..4D..DX;LH119..06S,08S,09S;LH113,123..09S..DX;KZH100,LH10#,125..HRF,SRF

COOL SILVER,TRIM4#&045 ,4K1 ,6L1 ,8G8,TYPE A:ｲﾗｽﾄ参照

 1
53111 - GRILLE, RADIATOR
53100-95J19

LH102,109,113,119,125,RZH102,112..GL

塗装不要

 1
53100-26030B1

LH113..5D..DX;LH113..HRF..4D;LH113..CD,GL,SGL;LH113..V2..4D..DX;LH119..06S,08S,09S;LH113,123..09S..DX;KZH100,LH10#,125..HRF,SRF

COOL SILVER,TRIM4#&045 ,4K1 ,6L1 ,8G8,TYPE A:ｲﾗｽﾄ参照

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,12#,RZH102,112,124

 2
53145-95J01

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,12#,RZH102,112,124

 2
53145-95J01

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 2
Common parts
67771-22040
67921-32010
90167-40035
Linked diagrams
7551

(8908-9308)CD,DX,GL,SGL,SW

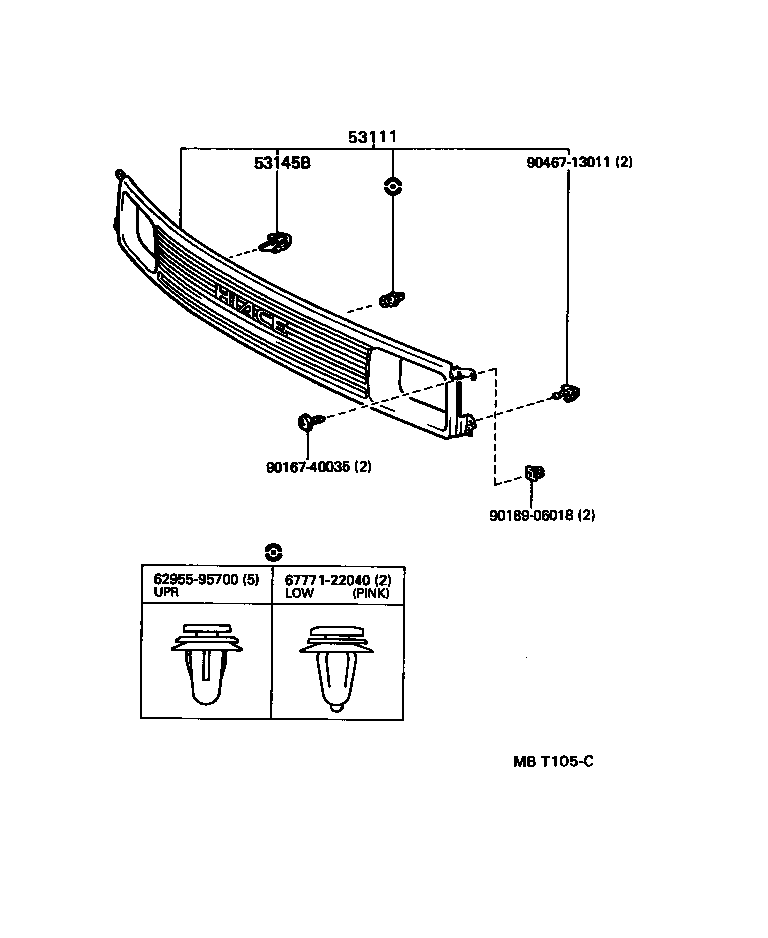

Click highlighted areas on diagram

diagram 53111 53145B 6295595700 6777122040 9016740035 9018906018 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J19

LH102,109,113,119,125,RZH102,112..GL

塗装不要

 1
53100-26030B1

LH113..5D..DX;LH113..HRF..4D;LH113..CD,GL,SGL;LH113..V2..4D..DX;LH119..06S,08S,09S;LH113,123..09S..DX;KZH100,LH10#,125..HRF,SRF

COOL SILVER,TRIM4#&045 ,4K1 ,6L1 ,8G8,TYPE A:ｲﾗｽﾄ参照

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH10#,11#,12#,RZH102,112,124

 2
53145-95J01

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 2
Common parts
62955-95700
67771-22040
90167-40035
90189-06018
90467-13011
