LH109V-SRMDS (1989)
Toyota Hiace/Regiusace
(8908- ) ; (9010-9308)LH140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 90467-1003416 |
LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX) BROWN,TRIM1# |
14 | ||
| 90467-10034N8 |
LH103..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH103..5D..(CD,DX) CREAM YELLOW,TRIM1# |
14 | ||
| 90467-10034N8 |
LH10#,RZH102..5D..DX ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),CREAM YELLOW,TRIM1# |
9 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 90467-1003416 |
LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX) BROWN,TRIM1# |
14 | ||
| 90467-10034N8 |
LH103..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH103..5D..(CD,DX) CREAM YELLOW,TRIM1# |
14 | ||
| 90467-10034N8 |
LH10#,RZH102..5D..DX ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),CREAM YELLOW,TRIM1# |
9 | ||
| 62520D - CLIP, QUARTER TRIM BOARD, NO.2 | ||||
| 90467-1003416 |
LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX) BROWN,TRIM1# |
12 | ||
| 90467-10034N8 |
LH10#,RZH102..5D..DX ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),CREAM YELLOW,TRIM1# |
12 | ||
| 90467-10034N8 |
LH103..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH103..5D..(CD,DX) CREAM YELLOW,TRIM1# |
12 | ||
| 62520D - CLIP, QUARTER TRIM BOARD, NO.2 | ||||
| 90467-1003416 |
LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX) BROWN,TRIM1# |
12 | ||
| 90467-10034N8 |
LH10#,RZH102..5D..DX ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),CREAM YELLOW,TRIM1# |
12 | ||
| 90467-10034N8 |
LH103..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH103..5D..(CD,DX) CREAM YELLOW,TRIM1# |
12 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0903 |
LH102,109,RZH102..V1..5D..06S GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0903 |
LH102,109,RZH102..V1..5D..06S GRAY,TRIM1# |
1 | ||
| 62587D - RETAINER, SIDE HEATER COVER | ||||
| 62587-95J02 |
LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S |
1 | ||
| 62588B - CLIP (FOR SIDE HEATER COVER) | ||||
| 90467-0704353 |
LH102,109,RZH102..5D..06S GRAY,TRIM1# |
2 | ||
| 90467-07043B0 |
LH10#,RZH102..5D..06S GRAY,TRIM1# |
2 | ||
| 62588B - CLIP (FOR SIDE HEATER COVER) | ||||
| 90467-0704353 |
LH102,109,RZH102..5D..06S GRAY,TRIM1# |
2 | ||
| 90467-07043B0 |
LH10#,RZH102..5D..06S GRAY,TRIM1# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J34B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J38B0 |
LH10#,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62631-95J26 |
LH102,103,109,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 62631-95J28 |
LH102,103,109,16#,RZH102..V1..(CD,DX) |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J34B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J38B0 |
LH10#,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62631-95J26 |
LH102,103,109,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 62631-95J28 |
LH102,103,109,16#,RZH102..V1..(CD,DX) |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J34B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J38B0 |
LH10#,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62631-95J26 |
LH102,103,109,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 62631-95J28 |
LH102,103,109,16#,RZH102..V1..(CD,DX) |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J34 |
LH102,109,RZH102..V1..DX |
1 | ||
| 62632-26050 |
LH10#,RZH102..V1..DX |
1 | ||
| 62640-26490B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J34 |
LH102,109,RZH102..V1..DX |
1 | ||
| 62632-26050 |
LH10#,RZH102..V1..DX |
1 | ||
| 62640-26490B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J34 |
LH102,109,RZH102..V1..DX |
1 | ||
| 62632-26050 |
LH10#,RZH102..V1..DX |
1 | ||
| 62640-26490B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-1301043 |
LH102,109,113,119,RZH102,112..5D GRAY,TRIM1# |
2 | ||
| 75023 - LID SUB-ASSY, TOOL BOX, RH | ||||
| 75023-95J0003 |
LH102,109,113,119,RZH102,112..V1..5D GRAY,TRIM1# |
1 | ||
| 75024 - LID SUB-ASSY, TOOL BOX, LH | ||||
| 75024-95J0003 |
LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..(03S,06S) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 61991-26010 | ||||
| 61992-26010 | ||||
| 67771-12050 | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67771-30070 | ||||
| 67771-89109 | ||||
| 67771-95705 | ||||
| 67772-95J02 | ||||
| 67921-95500 | ||||
| 90189-05015 | ||||
| 90189-05019 | ||||
| 90467-09182 | ||||
| 90468-05047 | ||||
| 90468-05096 | ||||
| 91631-40612 | ||||
| 91631-40620 | ||||
| 93540-56014 | ||||
| 93560-56012 | ||||
| 93560-56016 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

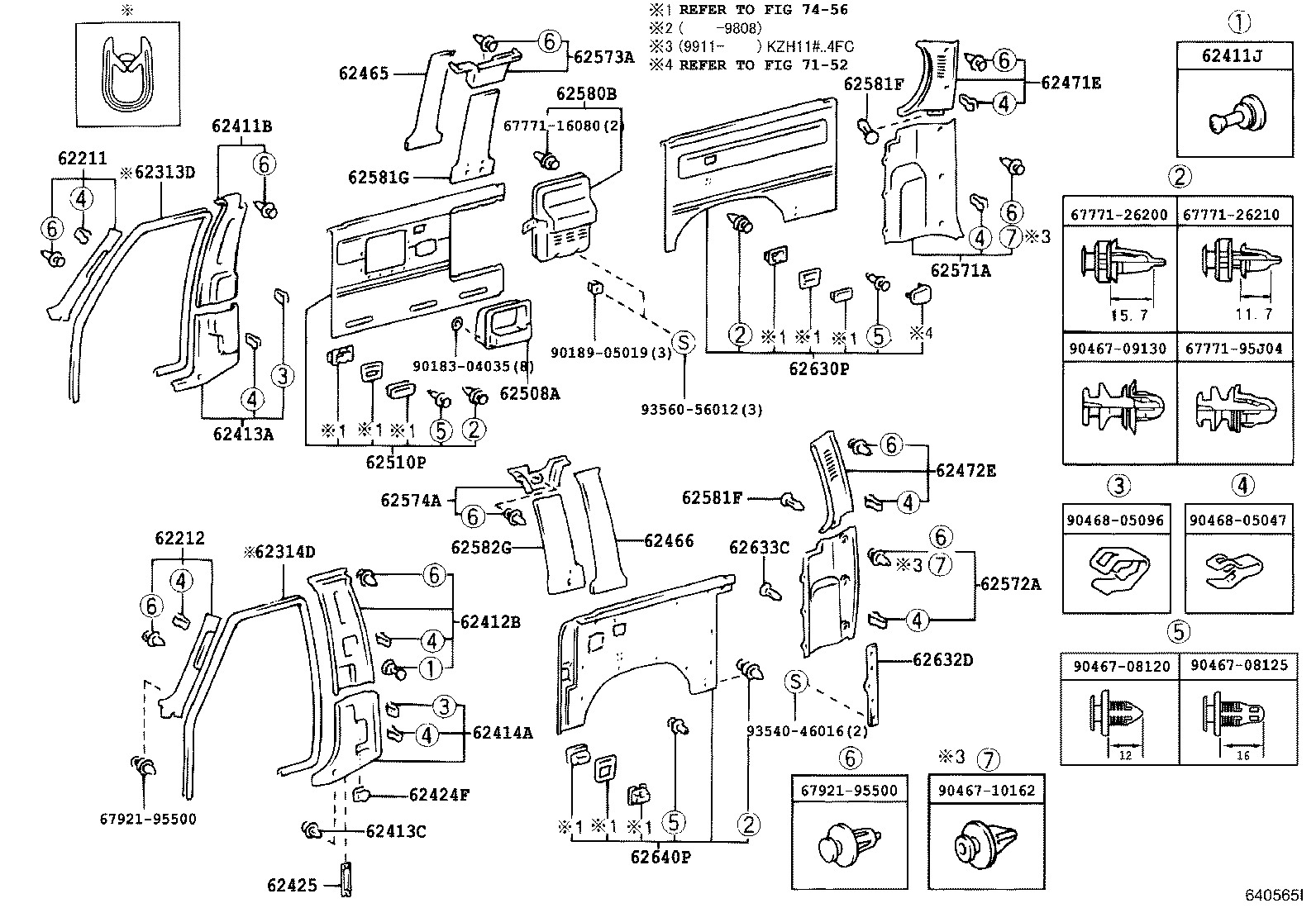

ILLUST NO. 1 OF 2(8908- )CTM ; (9005- )LH113..V1..DX ; (9308- )KZH11# ; (9808- )KZH10#,L
LH113:ｷｬﾝﾋﾟﾝｸﾞｶ- KZH11#:ｸﾞﾗﾝﾄﾞｷｬﾋﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62211-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0703 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62212-95J07B1 |
LH10#,11#,12#,RZH102,112,124,133 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 62313-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-95J0903 |
LH102,109,RZH102..V1..5D..06S GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J34B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| 62630-95J38B0 |
LH10#,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),BLUISH GRAY,TRIM1# |
1 | ||
| 62631-95J26 |
LH102,103,109,RZH102..V1..5D..DX ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 62631-95J28 |
LH102,103,109,16#,RZH102..V1..(CD,DX) |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-95J34 |
LH102,109,RZH102..V1..DX |
1 | ||
| 62632-26050 |
LH10#,RZH102..V1..DX |
1 | ||
| 62640-26490B0 |
LH10#,RZH102..V1..DX BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26200 | ||||
| 67771-26210 | ||||
| 67771-95J04 | ||||
| 67921-95500 | ||||
| 90183-04035 | ||||
| 90189-05019 | ||||
| 90467-08120 | ||||
| 90467-08125 | ||||
| 90467-09130 | ||||
| 90467-10162 | ||||
| 90468-05047 | ||||
| 90468-05096 | ||||
| 93540-46016 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7456 | ||||
