LH109V-RRMNS (1989)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 4(8908-9907)
ﾌﾛﾝﾄ ｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J04 |
LH100,102,109,113,119,RZH10#,112..CTM,GL,SGL |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J03 |
LH100,102,109,113,119,RZH10#,112..CTM,GL |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0603 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7603 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8203 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3003 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N4603 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3003 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J05 |
RZH133;KZH10#,LH100,102,103,109,113,119,RZH10#,112..CTM,GL |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0403 |
LH100,102,109,113,119,RZH10#,112..CTM,GL GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J7703 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8303 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N2703 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3003 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J02 |
LH100,102,109,113,119,RZH10#,112..CTM,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J18 |
RZH133;KZH10#,LH100,102,103,109,113,119,125,RZH10#,112..CTM,GL,SGL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J20 |
RZH133;KZH10#,LH100,102,103,109,113,119,RZH10#,112..CTM,GL |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0013 |
LH102..V2;LH102,113..SP;LH109,119..4D..06S..DX;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71812-95J00B0 |
LH102..V2;LH102,113..SP;LH109,119..4D..06S..DX;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71812-95J00B0 |
LH102..V2;LH102,113..SP;LH109,119..4D..06S..DX;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71812-95J0013 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J3503 |
LH102,109,113,119,RZH102,112..GL GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71990-3002033 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-95J00 |
LH125;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
2 | ||
| 73178-95J00 |
LH110,125,RZH110..DX;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
2 | ||
| 73178-95J00 |
LH110,125;LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
2 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||

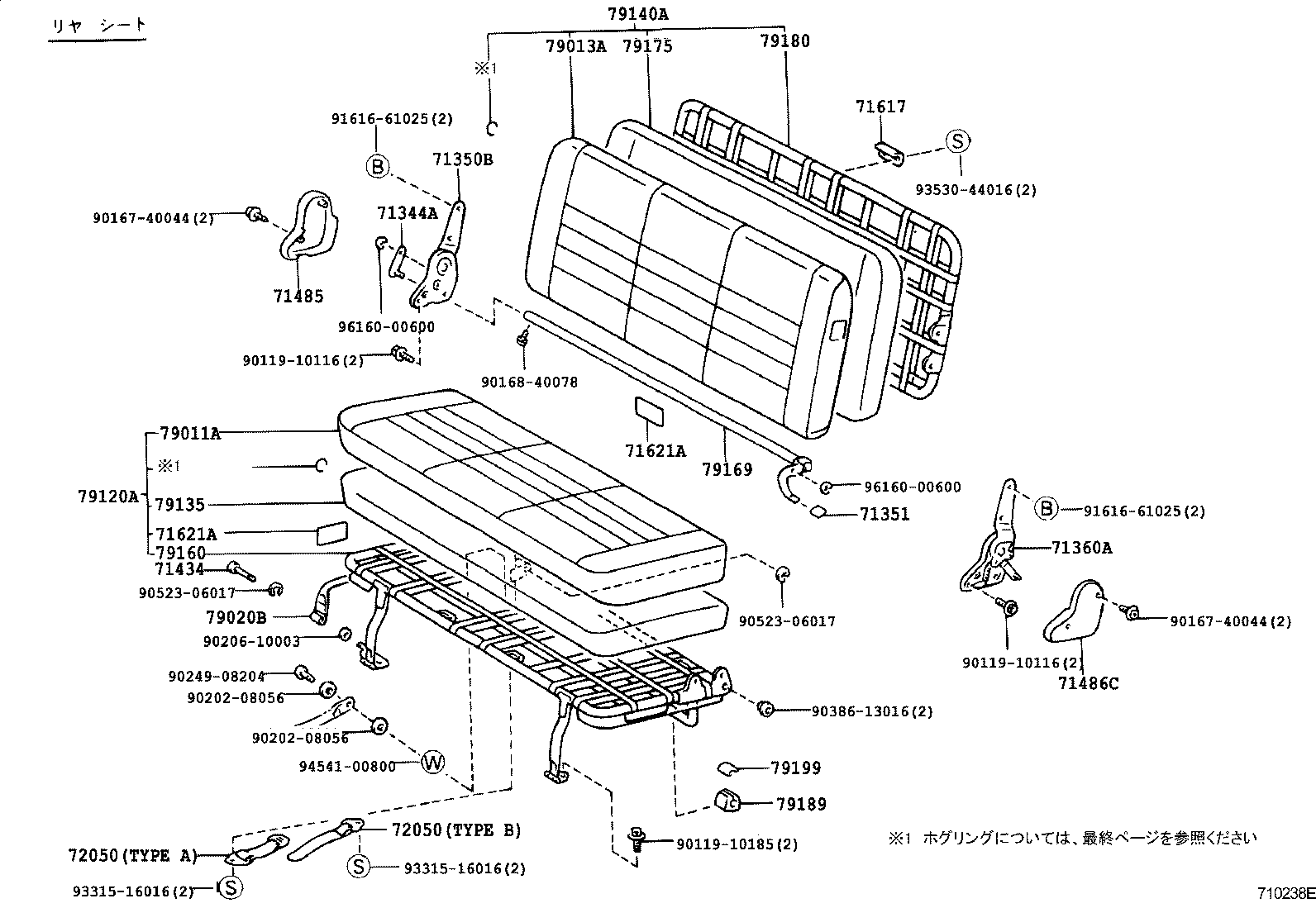

ILLUST NO. 2 OF 4(8908-9808)06S..GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J00 |
LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J48 |
LH113,RZH112..06S..GL;LH102,103,109,110,119,140,RZH102..GL,SW |
1 | ||
| 71351 - KNOB, SEAT HINGE LEVER | ||||
| 71351-95J0303 |
LH113,RZH112..06S..GL;LH102,109,110,119,140,RZH102..GL,SW GRAY,TRIM1# |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J21 |
LH113,RZH112..06S..GL;LH102,103,109,110,119,140,RZH102..GL,SW |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0203 |
LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
1 | ||
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-95J0203 |
LH102,109,113,119,123,129,140,RZH102,112,122..DX,GL,SGL,SW GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) 20 X30 |
6 | ||
| 71621-95J02 |
KZH11#,LH110,117,140,RZH110;LH102,103,109,113,119,125,RZH102,112..(06S,15S)..GL 30 X 45 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) 20 X30 |
6 | ||
| 71621-95J02 |
KZH11#,LH110,117,140,RZH110;LH102,103,109,113,119,125,RZH102,112..(06S,15S)..GL 30 X 45 |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-95J00 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72050-95J01 |
LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N2103 |
LH102,109,113,119,RZH102,112..06S..GL GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N1003 |
LH102,109,113,119,RZH102,112..06S..GL GRAY,TRIM1# |
1 | ||
| 79020B - LEG ASSY, NO.2 SEAT | ||||
| 79020-95J03 |
LH102,103,109,113,119,RZH102,112..06S..GL |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N3203 |
LH102,109,113,119,RZH102,112..06S..GL GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH102,109,113,119,RZH102,112..06S..GL |
1 | ||
| 79135-95J03 |
LH102,109,113,119,123,129,RZH102,112,122..06S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95N2603 |
LH102,109,113,119,RZH102,112..06S..GL GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J46B1 |
LH102,109,113,119,RZH102,112..06S..GL GRAY |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J03 |
LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) NO.1 ｼｰﾄ |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J27 |
LH102,103,109,113,119,RZH102,112..(06S,08S,09S)..(GL,SGL) |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J20 |
LH102,103,109,113,119,RZH102,112..06S..GL |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 71334-95703 |
LH102,109,113,119,125,RZH102,112..GL,SGL;LH110,113,117,119,123,RZH11#,122..(09S,10S)..DX |
2 | ||
| 79189-95J00 |
LH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL) |
2 | ||
| 79189-95J00 |
LH113,119,123,RZH112,122..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL |
2 | ||
| 79189-95J00 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,119,123,125,RZH110,12#..09S,10S,15S |
2 | ||
| 71334-95703 |
LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,117,119,123,125,RZH110,12#..(09S,10S,15S)..(DX,GL) |
2 | ||
| 71334-95703 |
LH113,119,123,RZH112,122..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL |
2 | ||
| 71334-95703 |
LH113,119,123,RZH112,122..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL) |
2 | ||
| 79199-95J00 |
LH110,113,117,119,123,RZH11#,122..(09S,10S)..(DX,SW);LH102,109,113,119,125,140,RZH102,112..(05S,06S,15S)..(GL,SGL,SW) |
2 | ||
| 79199-95J00 |
LH113,RZH112..09S..DX;LH110,115,117,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,140,RZH102,112..(05S,06S)..(GL,SGL,SW) |
2 | ||
| 79199-95J00 |
LH113,119,123,RZH112,122..09S..DX;LH113,RZH112..(05S,06S)..(GL,SGL);LH102,109,110,119,140,RZH102..(05S,06S,09S)..(GL,SGL,SW) |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90202-08056 | ||||
| 90206-10003 | ||||
| 90249-08204 | ||||
| 90386-13016 | ||||
| 90523-06017 | ||||
| 91616-61025 | ||||
| 93315-16016 | ||||
| 93530-44016 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||
(8908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
