LH109V-RRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - May 1992
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9508)LH107,109,117,119,129

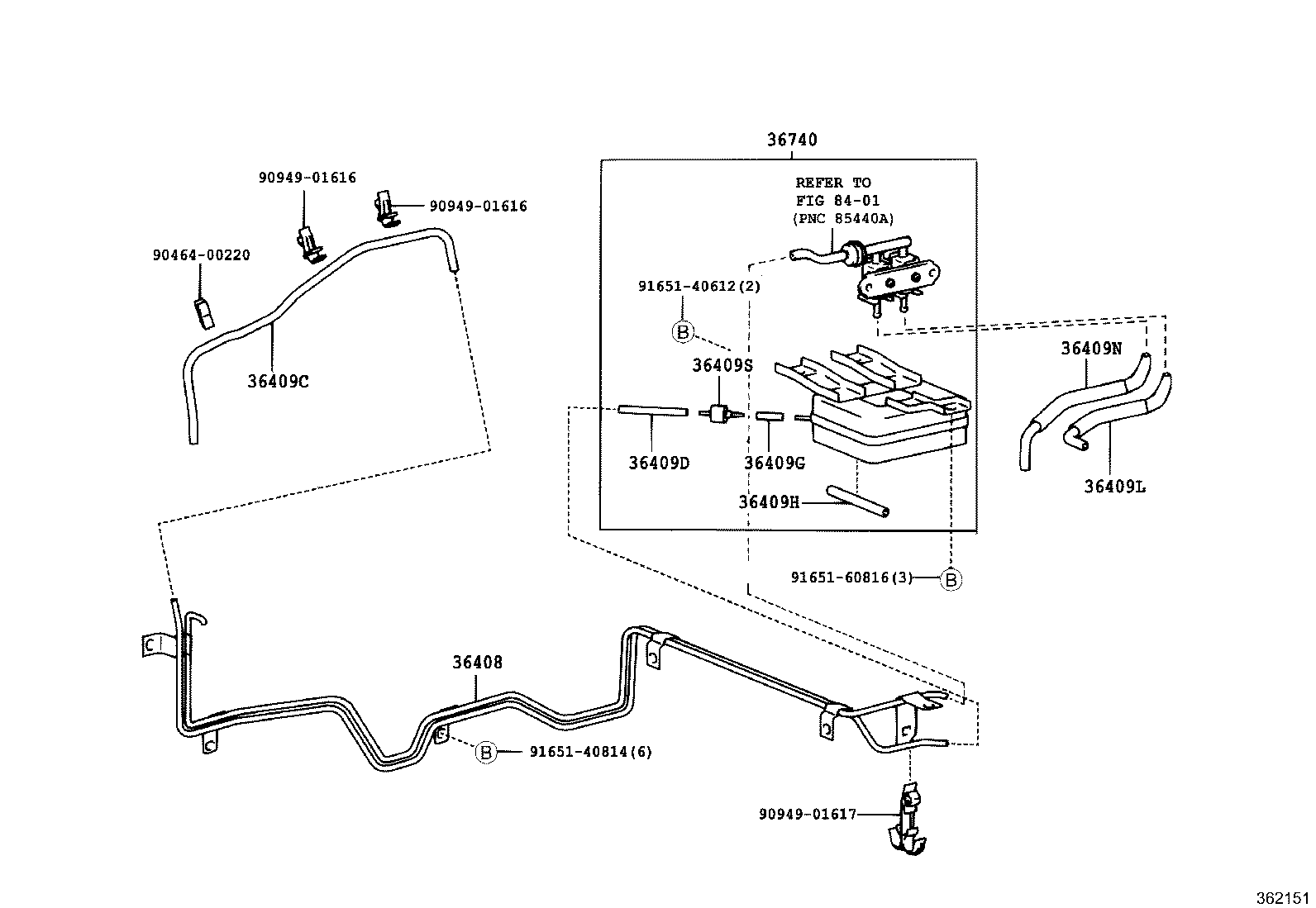

Click highlighted areas on diagram

diagram 36408 36409C 36409D 36409G 36409H 36409L 36409N 36409S 36740 8401 9046400220 9094901616 9094901616 9094901617 9165140612 9165140814 9165160816
Part # Description Qty Price
36408 - TUBE SUB-ASSY, TRANSFER VACUUM
36408-26010

LH107,109,117,119,129

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90999-92004

LH107,109,117,119,129

*H,L=650,ﾏｰｸ=#0

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

LH107,109,117,119,129

*H,L=80,ﾏｰｸ=#0

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
90999-92002

LH107,109,117,119,129

*H,L=30

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90445-10036

LH107,109,117,119,129

長さ=105

 2
36409L - HOSE, VACUUM, NO.7 (FOR FRONT DRIVE SHIFT)
90447-10020

LH107,109,117,119,129..5F

 1
36409N - HOSE, VACUUM, NO.9 (FOR FRONT DRIVE SHIFT)
90447-10019

LH107,109,117,119,129..5F

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10049

LH107,109,117,119,129

 1
36740 - TANK ASSY, TRANSFER VACUUM
36740-26010

LH107,109,117,119,129

 1
Common parts
90464-00220
90949-01616
90949-01617
91651-40612
91651-40814
91651-60816
Linked diagrams
8401
