LH107G-JRPGS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )LH107,119,129,178,186,188..4FC

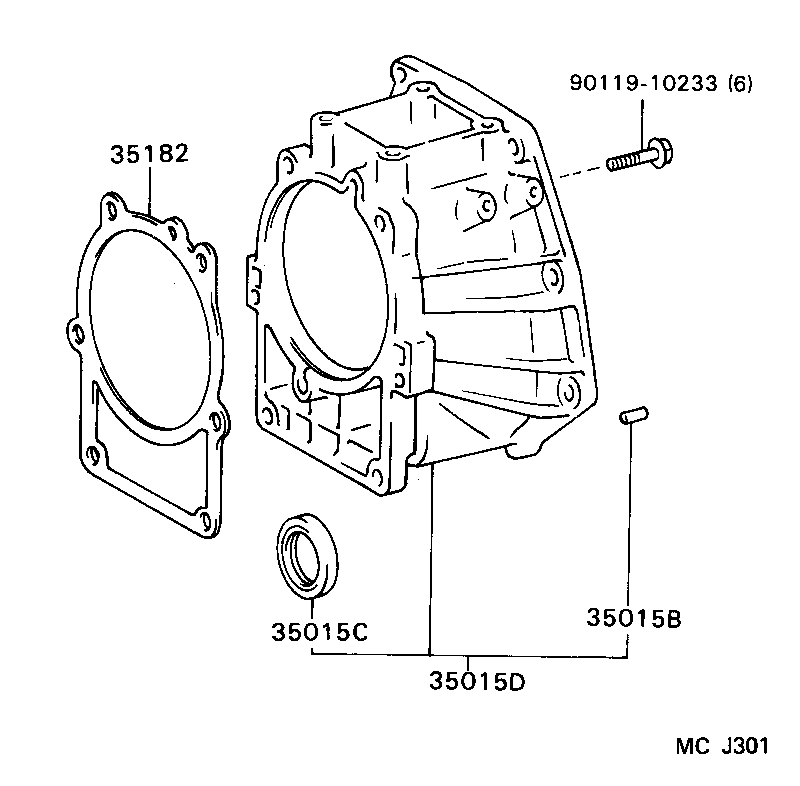

Click highlighted areas on diagram

A45DF

diagram 35015B 35015C 35015D 35182 9011910233
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

LH107,119,129..4FC

 2
35015C - SEAL, OIL(FOR TRANSMISSION CASE ADAPTER)
90310-40003

KZH106,116,138,LH107,119,129,178,186,188..4FC

 1
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-26010

LH107..4FC

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

LH100,102,107,113,119,123,RZH10#,112..4FC

 1
35182-22010

LH100,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)

 1
Common parts
90119-10233
