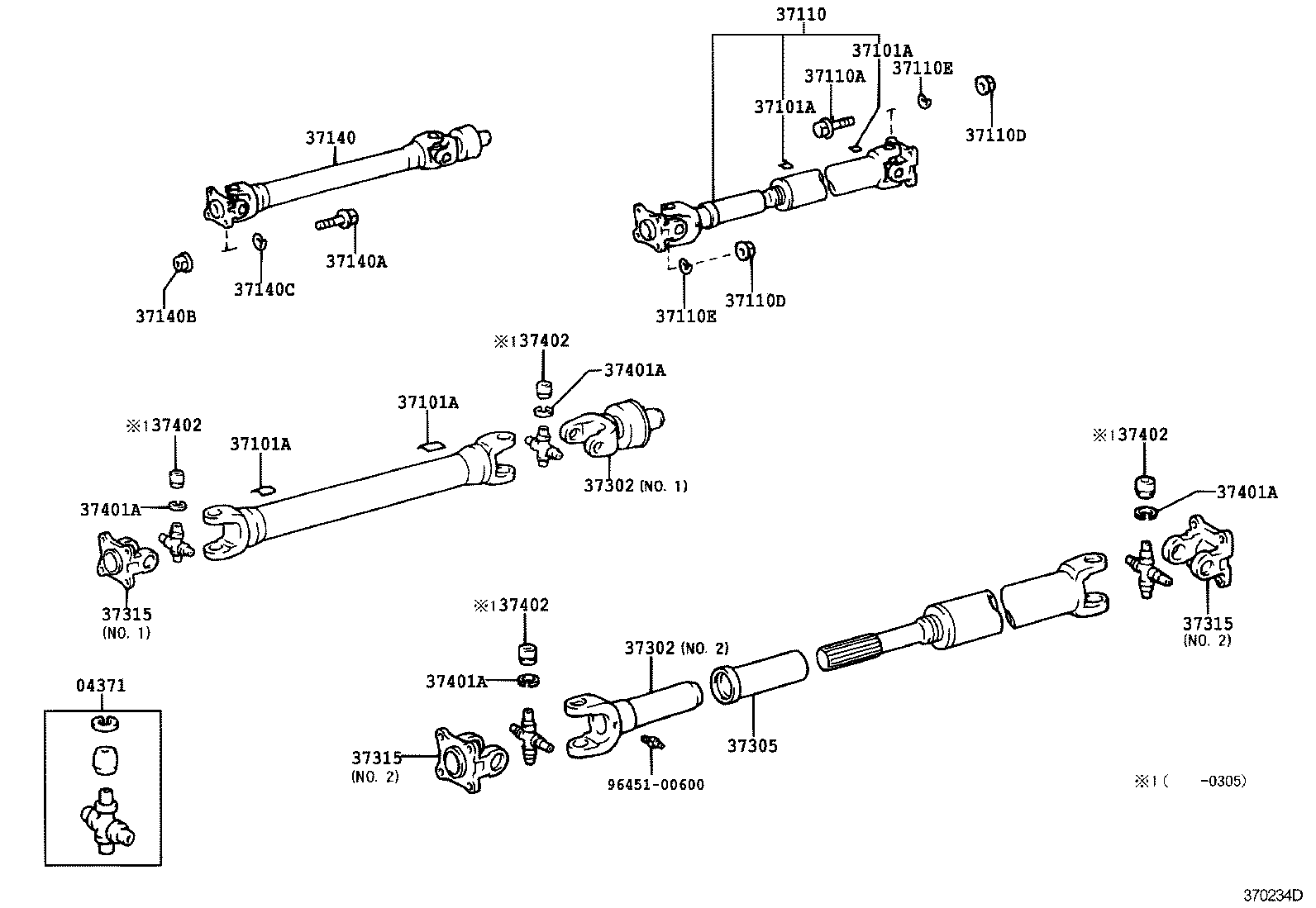

LH107G-JRPES (1989)
Toyota Hiace/Regiusace
(8908- )KZH106,116,12#,138,LH107,109,117,119,168,178..4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30021 |
KZH106,116,126,LH107,109,117,119 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01184 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 16G,厚さ=4.5 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 90937-01194 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G,厚さ=4.5 |
1 | ||
| 90937-01292 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 6G |
1 | ||
| 90937-01291 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G |
1 | ||
| 90937-01303 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 28G,厚さ=2.0 |
1 | ||
| 90937-01290 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 2G |
1 | ||
| 90937-01301 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 24G,厚さ=2.0 |
1 | ||
| 90937-01302 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 26G,厚さ=2.0 |
1 | ||
| 90937-01293 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G |
1 | ||
| 90937-01294 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 10G |
1 | ||
| 90937-01304 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 30G,厚さ=2.0 |
1 | ||
| 90937-01295 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01184 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 16G,厚さ=4.5 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 90937-01194 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G,厚さ=4.5 |
1 | ||
| 90937-01292 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 6G |
1 | ||
| 90937-01291 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G |
1 | ||
| 90937-01303 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 28G,厚さ=2.0 |
1 | ||
| 90937-01290 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 2G |
1 | ||
| 90937-01301 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 24G,厚さ=2.0 |
1 | ||
| 90937-01302 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 26G,厚さ=2.0 |
1 | ||
| 90937-01293 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G |
1 | ||
| 90937-01294 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 10G |
1 | ||
| 90937-01304 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 30G,厚さ=2.0 |
1 | ||
| 90937-01295 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01184 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 16G,厚さ=4.5 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 90937-01194 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G,厚さ=4.5 |
1 | ||
| 90937-01292 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 6G |
1 | ||
| 90937-01291 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G |
1 | ||
| 90937-01303 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 28G,厚さ=2.0 |
1 | ||
| 90937-01290 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 2G |
1 | ||
| 90937-01301 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 24G,厚さ=2.0 |
1 | ||
| 90937-01302 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 26G,厚さ=2.0 |
1 | ||
| 90937-01293 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G |
1 | ||
| 90937-01294 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 10G |
1 | ||
| 90937-01304 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 30G,厚さ=2.0 |
1 | ||
| 90937-01295 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01184 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 16G,厚さ=4.5 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 90937-01194 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G,厚さ=4.5 |
1 | ||
| 90937-01292 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 6G |
1 | ||
| 90937-01291 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 4G |
1 | ||
| 90937-01303 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 28G,厚さ=2.0 |
1 | ||
| 90937-01290 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 2G |
1 | ||
| 90937-01301 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 24G,厚さ=2.0 |
1 | ||
| 90937-01302 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 26G,厚さ=2.0 |
1 | ||
| 90937-01293 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 8G |
1 | ||
| 90937-01294 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 10G |
1 | ||
| 90937-01304 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 30G,厚さ=2.0 |
1 | ||
| 90937-01295 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 12G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-26460 |
LH107..4FC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
12 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
12 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
12 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
12 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-26040 |
LH107,119..4FC |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
KZH106,116,126,138,LH107,109,117,119,129 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
KZH106,116,126,138,LH107,109,117,119,129 |
4 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KZH106,116,126,138,LH107,109,117,119,129 |
4 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-26010 |
LH107,109,119,129 NO.1 |
1 | ||
| 37302-35050 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 NO.2 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-26010 |
LH107,109,119,129 NO.1 |
1 | ||
| 37302-35050 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 NO.2 |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-35020 |
KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.2 |
2 | ||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.1 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.2 |
2 | ||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.1 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.2 |
2 | ||
| 37315-35040 |
LH107,109,117,119,120,123,125,RZH12# NO.1 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| Common parts | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
