Toyota Hiace/regiusace LH107 MIRROR

LH107G-JRMGS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

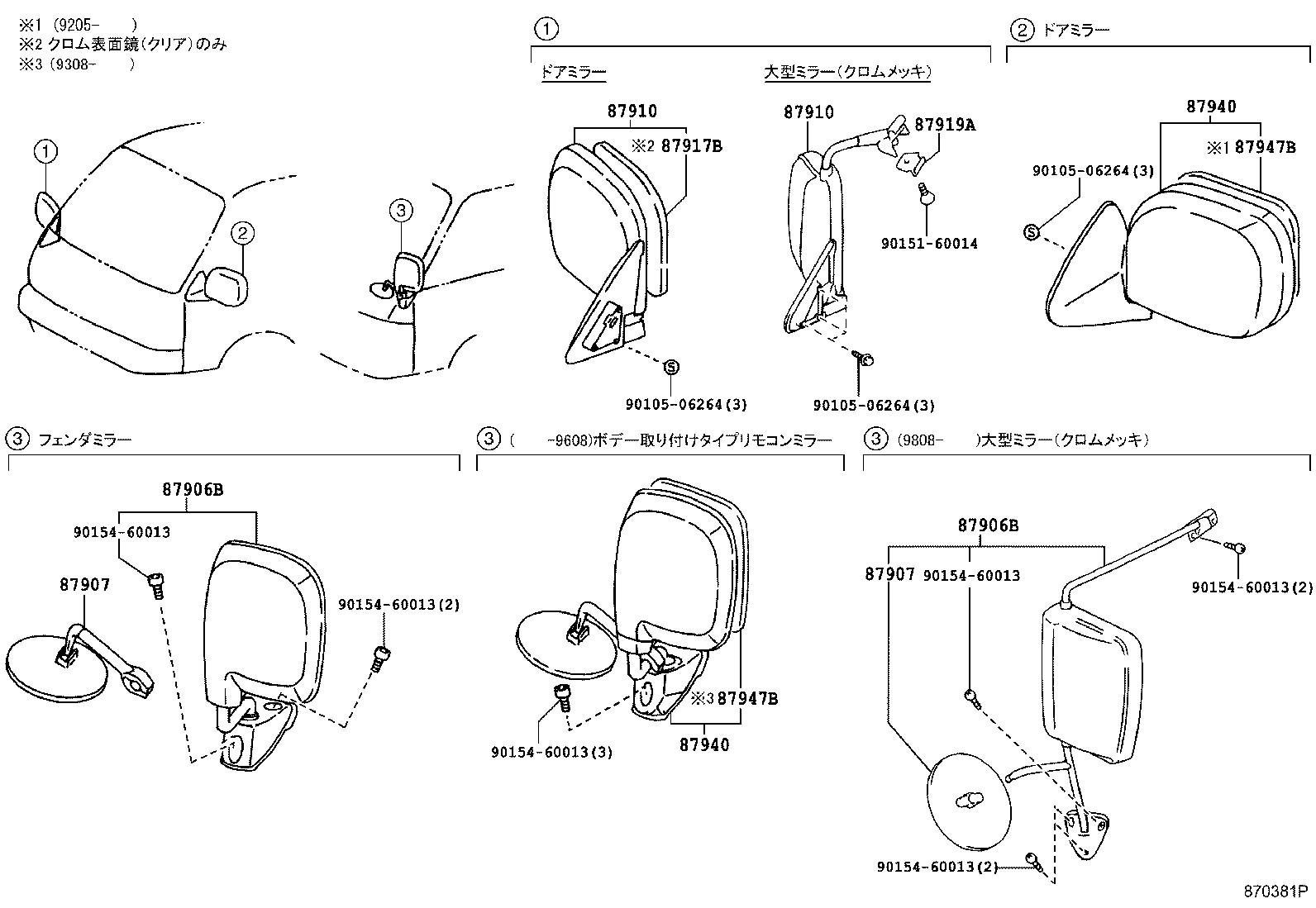

ILLUST NO. 2 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

ｱｳﾀﾐﾗ-

Part #	Description	Period	Qty
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95J3404	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE METALLIC,20N ,8E8	08/1989 - 05/1992	1
87910-95J3406	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN METALLIC,4K6	08/1989 - 05/1992	1
87910-95J3402	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,DARK RED MICA,21N	08/1989 - 05/1992	1
87910-95J3414	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLUE METALLIC,8G8	08/1989 - 05/1992	1
87910-95J3401	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	08/1989 - 05/1992	1
87910-95J3408	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,SUPER WHITE,29M	08/1989 - 05/1992	1
87910-26040B1	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ- ﾋ-ﾀﾂｷ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030J0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE M.,20N ,8E8	05/1992 - 08/1993	1
87910-26030D0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,MAJESTY TONNING,21N	05/1992 - 08/1993	1
87910-26050B0	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030E0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN M.,4K6	05/1992 - 08/1993	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95J3404	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE METALLIC,20N ,8E8	08/1989 - 05/1992	1
87910-95J3406	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN METALLIC,4K6	08/1989 - 05/1992	1
87910-95J3402	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,DARK RED MICA,21N	08/1989 - 05/1992	1
87910-95J3414	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLUE METALLIC,8G8	08/1989 - 05/1992	1
87910-95J3401	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	08/1989 - 05/1992	1
87910-95J3408	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,SUPER WHITE,29M	08/1989 - 05/1992	1
87910-26040B1	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ- ﾋ-ﾀﾂｷ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030J0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE M.,20N ,8E8	05/1992 - 08/1993	1
87910-26030D0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,MAJESTY TONNING,21N	05/1992 - 08/1993	1
87910-26050B0	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030E0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN M.,4K6	05/1992 - 08/1993	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95J3306	LH100,107,RZH100,101..08S LIGHT BROWN METALLIC,4K6	08/1989 - 05/1992	1
87940-95J3308	LH100,107,RZH100,101..08S SUPER WHITE,29M	08/1989 - 05/1992	1
87940-95J4101	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	08/1989 - 05/1992	1
87940-95J3302	LH100,107,RZH100,101..08S DARK RED MICA,21N	08/1989 - 05/1992	1
87940-95J3314	LH100,107,RZH100,101..08S GRAYISH BLUE ME.,8G8	08/1989 - 05/1992	1
87940-95J3304	LH100,107,RZH100,101..08S LIGHT BLUE METALLIC,20N ,8E8	08/1989 - 05/1992	1
87940-95J4108	LH107..08S;LH100,RZH100,101..07S,08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,WHITE PEAL MICA,22N	08/1989 - 05/1992	1
87940-26030E0	LH100,107,RZH100,101..08S LIGHT BROWN M.,4K6	05/1992 - 08/1993	1
87940-26030J0	LH100,107,RZH100,101..08S LIGHT BLUE M.,20N ,8E8	05/1992 - 08/1993	1
87940-26040B1	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ- ﾋ-ﾀﾂｷ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87940-26030D0	LH100,107,RZH100,101..08S MAJESTY TONNING,21N	05/1992 - 08/1993	1
87940-26050B1	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95J3306	LH100,107,RZH100,101..08S LIGHT BROWN METALLIC,4K6	08/1989 - 05/1992	1
87940-95J3308	LH100,107,RZH100,101..08S SUPER WHITE,29M	08/1989 - 05/1992	1
87940-95J4101	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	08/1989 - 05/1992	1
87940-95J3302	LH100,107,RZH100,101..08S DARK RED MICA,21N	08/1989 - 05/1992	1
87940-95J3314	LH100,107,RZH100,101..08S GRAYISH BLUE ME.,8G8	08/1989 - 05/1992	1
87940-95J3304	LH100,107,RZH100,101..08S LIGHT BLUE METALLIC,20N ,8E8	08/1989 - 05/1992	1
87940-95J4108	LH107..08S;LH100,RZH100,101..07S,08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,WHITE PEAL MICA,22N	08/1989 - 05/1992	1
87940-26030E0	LH100,107,RZH100,101..08S LIGHT BROWN M.,4K6	05/1992 - 08/1993	1
87940-26030J0	LH100,107,RZH100,101..08S LIGHT BLUE M.,20N ,8E8	05/1992 - 08/1993	1
87940-26040B1	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ- ﾋ-ﾀﾂｷ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87940-26030D0	LH100,107,RZH100,101..08S MAJESTY TONNING,21N	05/1992 - 08/1993	1
87940-26050B1	LH100,107,RZH100,101..08S ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
Common parts
90105-06264
90151-60014
90154-60013

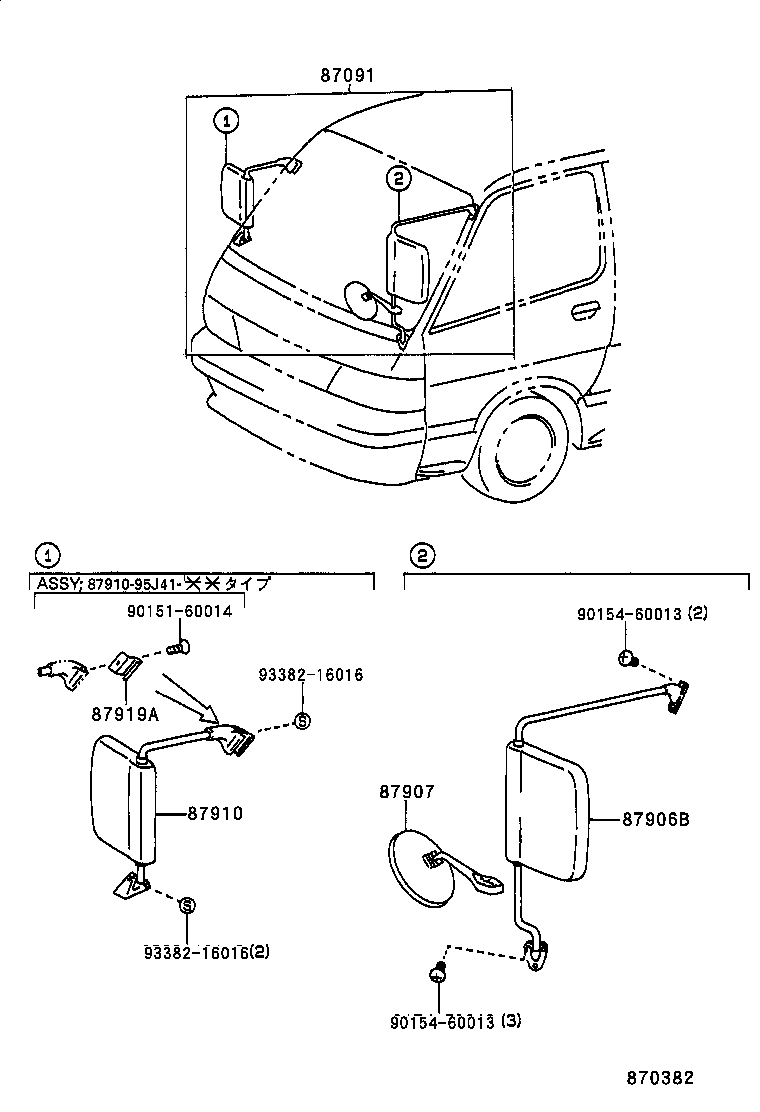

ILLUST NO. 2 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

ｱｳﾀﾐﾗ-(ｵｵｶﾞﾀﾐﾗ-)

Part #	Description	Period	Qty
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95J3404	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE METALLIC,20N ,8E8	08/1989 - 05/1992	1
87910-95J3406	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN METALLIC,4K6	08/1989 - 05/1992	1
87910-95J3402	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,DARK RED MICA,21N	08/1989 - 05/1992	1
87910-95J3414	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLUE METALLIC,8G8	08/1989 - 05/1992	1
87910-95J3401	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	08/1989 - 05/1992	1
87910-95J3408	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,SUPER WHITE,29M	08/1989 - 05/1992	1
87910-26040B1	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ- ﾋ-ﾀﾂｷ,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030J0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BLUE M.,20N ,8E8	05/1992 - 08/1993	1
87910-26030D0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,MAJESTY TONNING,21N	05/1992 - 08/1993	1
87910-26050B0	LH100,107,RZH100,101..08S LH---ﾎﾞﾃﾞ-ﾄﾘﾂｹﾘﾓｺﾝﾐﾗ-,BLACK,20N ,21N ,29M ,4K6 ,8E8 ,8G8	05/1992 - 08/1993	1
87910-26030E0	LH100,107,RZH100,101..08S ﾃﾞﾝﾄﾞｳﾘﾓｺﾝ,LIGHT BROWN M.,4K6	05/1992 - 08/1993	1
Common parts
90151-60014
90154-60013
93382-16016

ILLUST NO. 1 OF 3(8908- )

Click highlighted areas on diagram

ｲﾝﾅﾐﾗ-

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95J1301	LH100,107,RZH100,101..08S BALCK,TRIM1#,3#	08/1989 - 08/1993	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95J1301	LH100,107,RZH100,101..08S BALCK,TRIM1#,3#	08/1989 - 08/1993	1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-32010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=47	05/1990 - 09/1992	1
87828-10010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=41	08/1989 - 05/1990	1
87828-30010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=44	08/1989 - 05/1990	1
87828-22020	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=35.8	09/1992 - 08/1993	1
87828-32010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=47	08/1989 - 05/1990	1
87828-30010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=44	05/1990 - 08/1993	1
87828-10010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=41	05/1990 - 08/1993	1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-32010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=47	05/1990 - 09/1992	1
87828-10010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=41	08/1989 - 05/1990	1
87828-30010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=44	08/1989 - 05/1990	1
87828-22020	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=35.8	09/1992 - 08/1993	1
87828-32010	LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL 長さ=47	08/1989 - 05/1990	1
87828-30010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=44	05/1990 - 08/1993	1
87828-10010	LH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH10#,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 長さ=41	05/1990 - 08/1993	1
Common parts
90152-60008

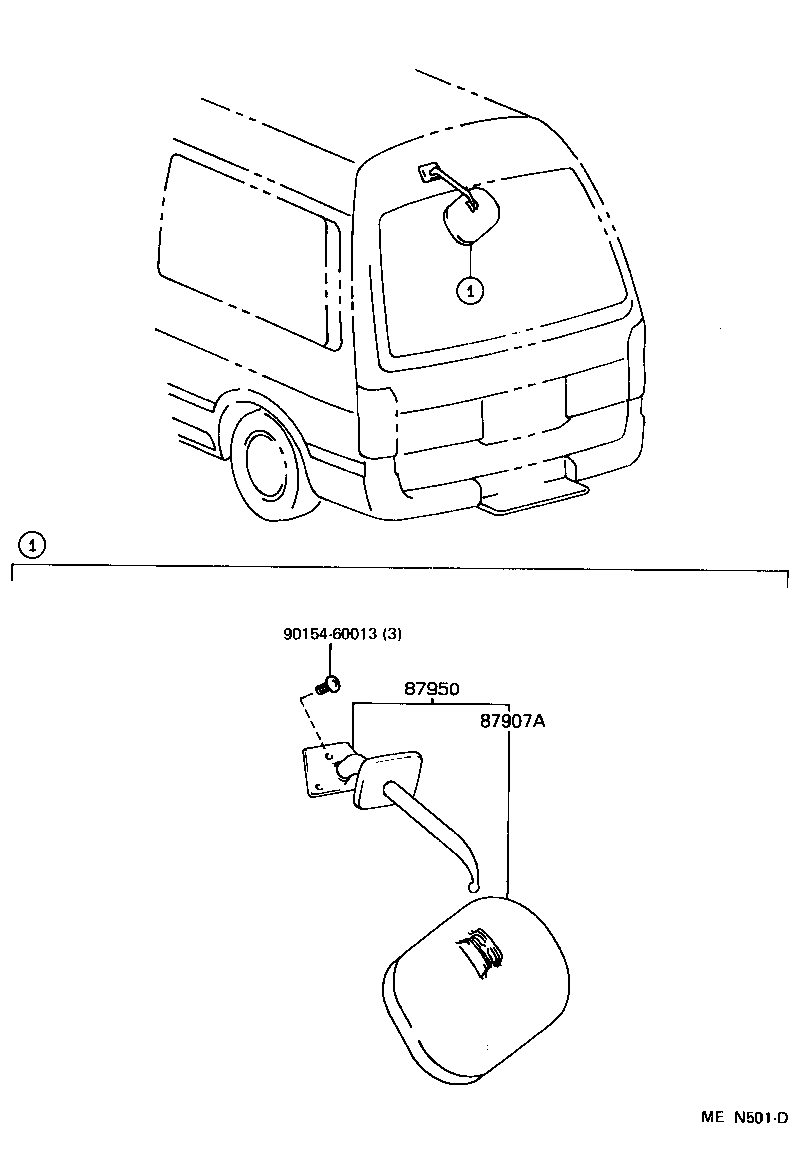

ILLUST NO. 3 OF 3(8908- )

Click highlighted areas on diagram

ﾘﾔｱﾝﾀﾞﾐﾗ-

Part #	Description	Period	Qty
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-95J02	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-95J05	KZH10#,LH100,107,RZH100,101..MRF,SMRF	08/1989 - 07/1999	1
Common parts
90154-60013

LH107G-JRMGS (1989)

ILLUST NO. 2 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

ILLUST NO. 2 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

ILLUST NO. 1 OF 3(8908- )

ILLUST NO. 3 OF 3(8908- )
