Toyota Hiace/regiusace LH107 STEERING WHEEL

LH107G-JRMGS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8908-9808)

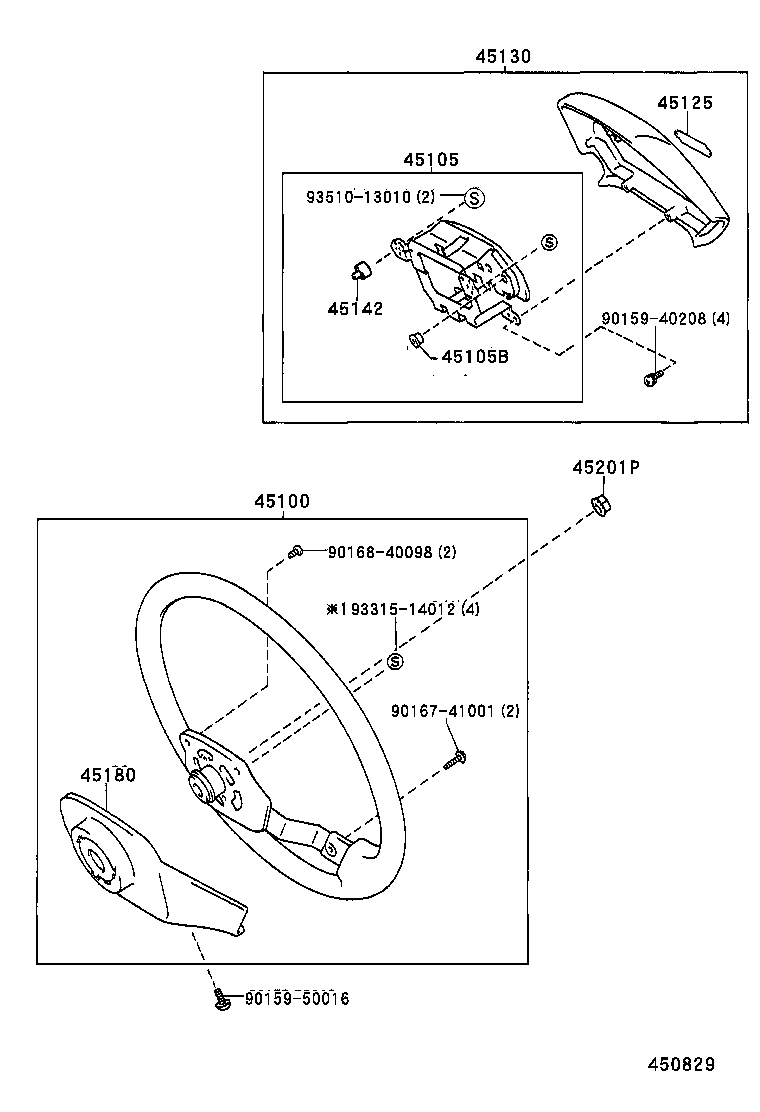

Click highlighted areas on diagram

2-ｽﾎﾟ-ｸ(ｳﾚﾀﾝ)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2615003	LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	04/1990 - 05/1992	1
45100-2615003	LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	08/1989 - 04/1990	1
45100-2616003	LH100,107,RZH100,101..08S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 08/1993	1
45100-2615002	LH100,107,120,RZH100,101..08S,10S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	08/1989 - 05/1992	1
45100-2616002	LH100,107,RZH100,101..08S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45100-2615002	LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	07/1992 - 08/1993	1
45100-2615002	LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	05/1992 - 07/1992	1
45100-2615003	LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	05/1992 - 08/1993	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26050	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL	08/1989 - 04/1990	1
45105-26050	LH120;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL	04/1990 - 05/1992	1
45105-26060	LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS)	08/1989 - 08/1993	1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001	LH10#,11#,12#,140,RZH10#,11#,12#	05/1992 - 08/1993	2
90561-02001	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCL,SCM,SCMM,SGL	08/1989 - 04/1990	2
90561-02001	LH120;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCL,SCM,SCMM,SGL	04/1990 - 05/1992	2
45125 - MARK, STEERING WHEEL PAD
45125-26110	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL	08/1989 - 10/1989	1
45125-26111	LH120;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL	04/1990 - 05/1992	1
45125-26111	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL	10/1989 - 04/1990	1
45130 - BUTTON ASSY, HORN
45130-2616002	LH100,107,120,RZH100,101..08S,10S ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	08/1989 - 10/1989	1
45130-2616003	LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL GRAY,TRIM1#	08/1989 - 10/1989	1
45130-2617003	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 10/1989	1
45130-2616103	LH100,102,107,113,119,RZH100,101..(CTM,SCM,SCMM,SGL)..(DSL,EFI,TD) GRAY,TRIM1#	10/1989 - 05/1992	1
45130-2617002	LH100,107,RZH100,101..08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 10/1989	1
45130-26191D0	LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S NEW MAROON,TRIM3#	05/1992 - 07/1992	1
45130-2617102	LH100,107,RZH100,101..08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	10/1989 - 08/1993	1
45130-26191D0	LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S NEW MAROON,TRIM3#	07/1992 - 08/1993	1
45130-2619113	LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1#	05/1992 - 08/1993	1
45130-2616102	LH100,107,120,RZH100,101..08S,10S ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	10/1989 - 05/1992	1
45130-2617103	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	10/1989 - 08/1993	1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12090	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	05/1992 - 08/1993	2
45142-12090	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL	08/1989 - 04/1990	2
45142-12090	LH120;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL	04/1990 - 05/1992	2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2602003	RZH101..08S;LH100,102,107,113,119,RZH100..(CTM,SCM,SCMM,SGL)..(DSL,EFI,TD) GRAY,TRIM1#	08/1989 - 05/1992	1
45180-2602003	LH113..5D..DX;LH113..HRF..4D;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;LH10#,110,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CBR,DSL,EFI) GRAY,TRIM1#	05/1992 - 08/1993	1
45184-2607002	RZH101..08S;LH100,107,RZH100..07S,08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45180-2602002	RZH100..08S..5F;LH100,107,120..(08S,10S)..(DX,SCM,SCMM) ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45184-2607003	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 08/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 04/1993	1
Common parts
90159-40208
90159-50016
90167-41001
90168-40098
93315-14012
93510-13010

(8908-9205)

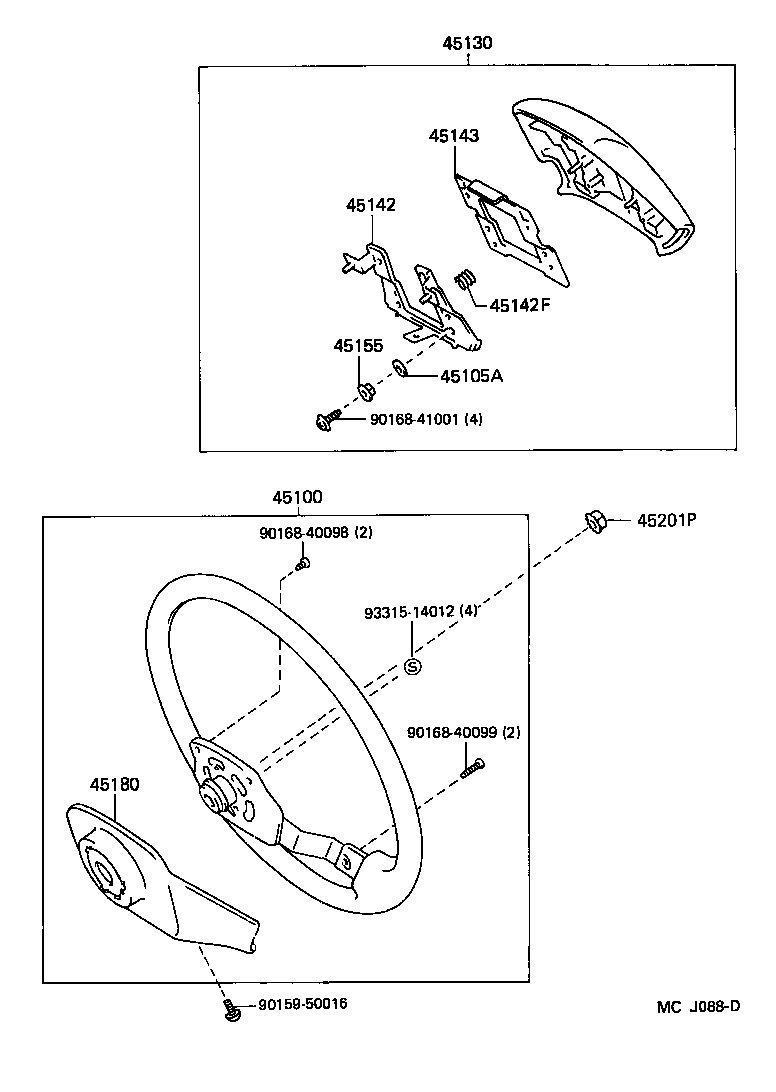

Click highlighted areas on diagram

2-ｽﾎﾟ-ｸ(PP:ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2615003	LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	04/1990 - 05/1992	1
45100-2615003	LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	08/1989 - 04/1990	1
45100-2616003	LH100,107,RZH100,101..08S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 08/1993	1
45100-2615002	LH100,107,120,RZH100,101..08S,10S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	08/1989 - 05/1992	1
45100-2616002	LH100,107,RZH100,101..08S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45100-2615002	LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	07/1992 - 08/1993	1
45100-2615002	LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,NEW MAROON,TRIM3#	05/1992 - 07/1992	1
45100-2615003	LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#	05/1992 - 08/1993	1
45130 - BUTTON ASSY, HORN
45130-2616002	LH100,107,120,RZH100,101..08S,10S ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	08/1989 - 10/1989	1
45130-2616003	LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL GRAY,TRIM1#	08/1989 - 10/1989	1
45130-2617003	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 10/1989	1
45130-2616103	LH100,102,107,113,119,RZH100,101..(CTM,SCM,SCMM,SGL)..(DSL,EFI,TD) GRAY,TRIM1#	10/1989 - 05/1992	1
45130-2617002	LH100,107,RZH100,101..08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 10/1989	1
45130-26191D0	LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S NEW MAROON,TRIM3#	05/1992 - 07/1992	1
45130-2617102	LH100,107,RZH100,101..08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	10/1989 - 08/1993	1
45130-26191D0	LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S NEW MAROON,TRIM3#	07/1992 - 08/1993	1
45130-2619113	LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1#	05/1992 - 08/1993	1
45130-2616102	LH100,107,120,RZH100,101..08S,10S ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	10/1989 - 05/1992	1
45130-2617103	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	10/1989 - 08/1993	1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12090	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	05/1992 - 08/1993	2
45142-12090	LH120;LH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL	08/1989 - 04/1990	2
45142-12090	LH120;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL	04/1990 - 05/1992	2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2602003	RZH101..08S;LH100,102,107,113,119,RZH100..(CTM,SCM,SCMM,SGL)..(DSL,EFI,TD) GRAY,TRIM1#	08/1989 - 05/1992	1
45180-2602003	LH113..5D..DX;LH113..HRF..4D;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;LH10#,110,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CBR,DSL,EFI) GRAY,TRIM1#	05/1992 - 08/1993	1
45184-2607002	RZH101..08S;LH100,107,RZH100..07S,08S ｱﾘ(TEMS),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45180-2602002	RZH100..08S..5F;LH100,107,120..(08S,10S)..(DX,SCM,SCMM) ｱﾘ(ｳﾚﾀﾝｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),NEW MAROON,TRIM3#	08/1989 - 08/1993	1
45184-2607003	LH100,107,RZH100,101..08S ｱﾘ(TEMS),GRAY,TRIM1#	08/1989 - 08/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 04/1993	1
Common parts
90159-50016
90168-40098
90168-40099
90168-41001
93315-14012
