LH107G-JRMGS (1989)
Toyota Hiace/Regiusace

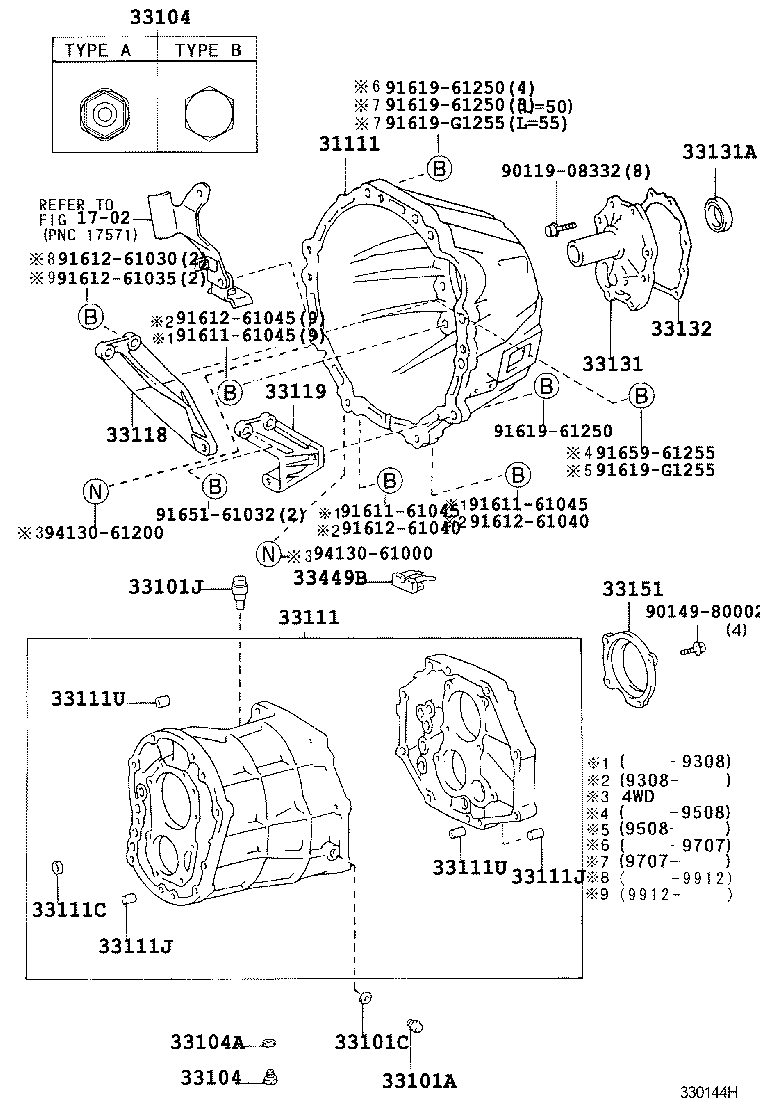

ILLUST NO. 1 OF 2(8909- )5F..DSL ; (9702- )LH103,113,123,125,162,172,184..5F
G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-26040 |
LH10#,11#,123,125,129,140,16#,17#,18#..5F..DSL TOYOTA |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28020 |
LH10#,11#,123,125,129,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI) TOYOTA |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH100,102,11#,12#..5F 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) 長さ=14,外径=15 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LH10#,11#,12#,140..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-26010 |
LH10#,11#,12#,140..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) TOYOTA |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30010 |
LH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-80002 | ||||
| 91611-61045 | ||||
| 91612-61030 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91619-G1255 | ||||
| 91651-61032 | ||||
| 91659-61255 | ||||
| 94130-61000 | ||||
| 94130-61200 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 2 OF 2(8908- )5F..CBR,DSL,EFI
G52,G55
