LH107G-JRMGS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

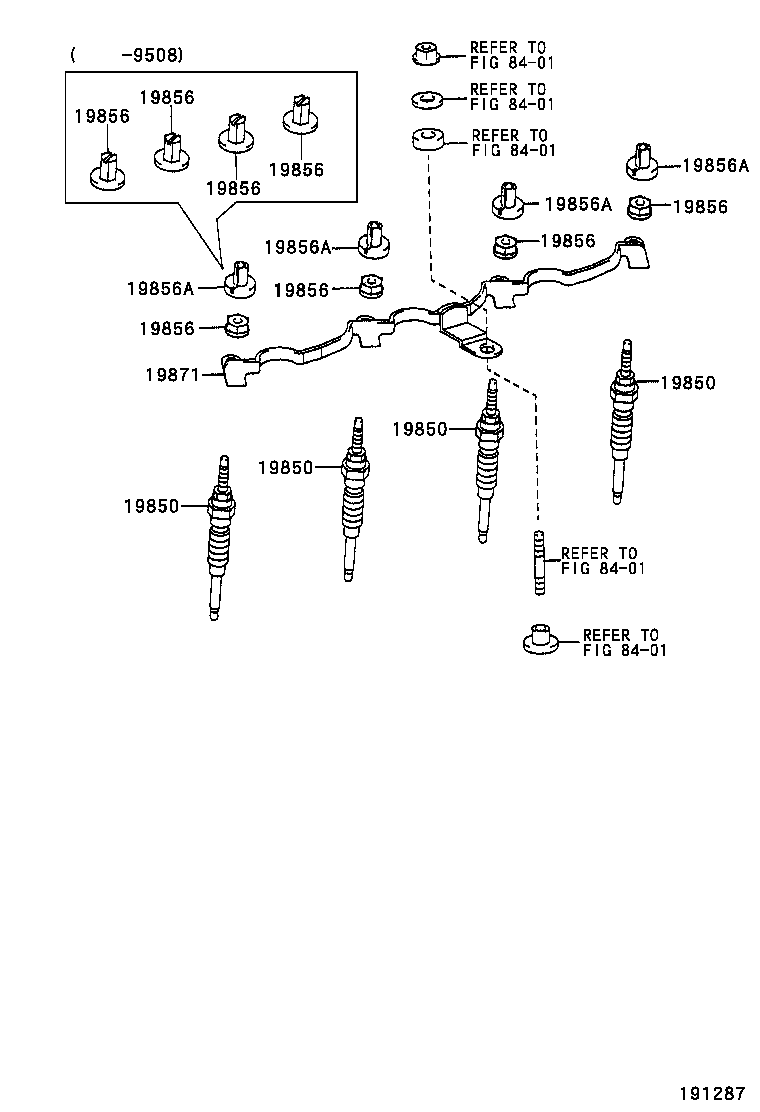

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 8401 8401 8401 8401 8401
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54090

2L,2LT#,3L..LH10#,11#,12#,140

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,2LT#,3L..LH10#,11#,12#,140

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,2LT#,3L..LH10#,11#,12#,140

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,2LT#,3L..LH10#,11#,12#,140

*BV−GV=12V−11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,2LT#,3L..LH10#,11#,12#,140

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
Linked diagrams
8401
