LH107G-JRMGS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

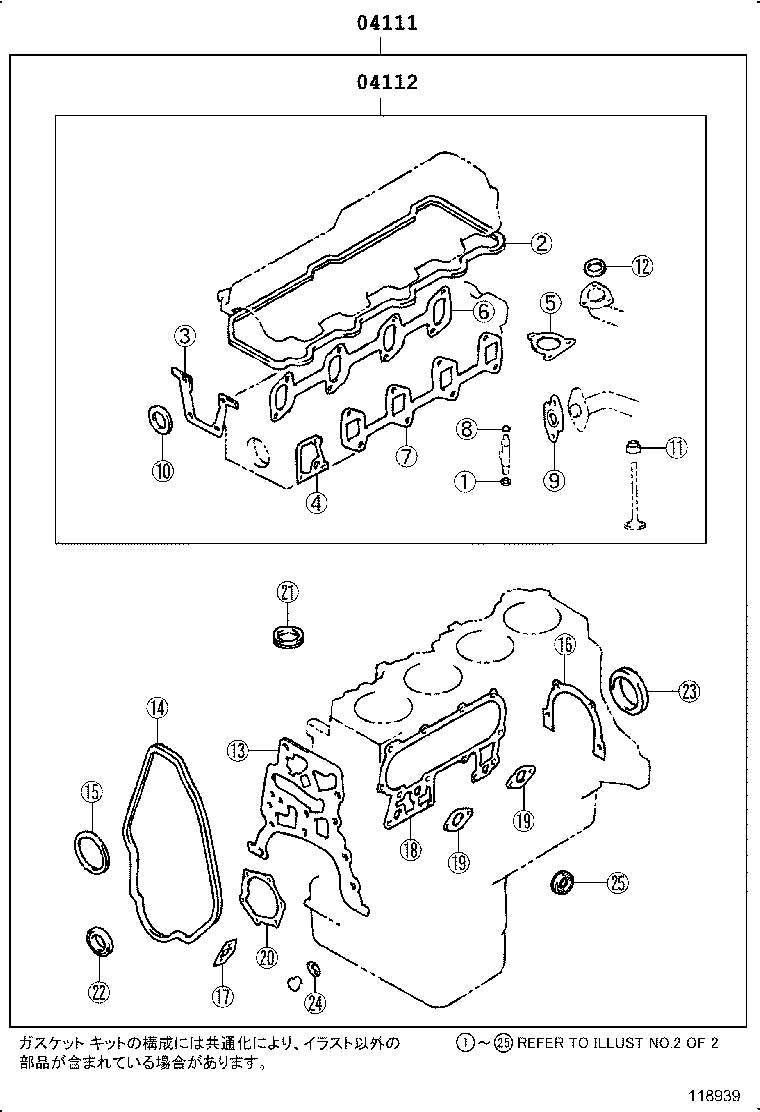

ILLUST NO. 1 OF 2(8908- )2L,3L

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-54092

3L..LH107,109,113,115,117,119,123,125,129

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-54070

2L,3L..LH10#,11#,123,125,129,140

 1

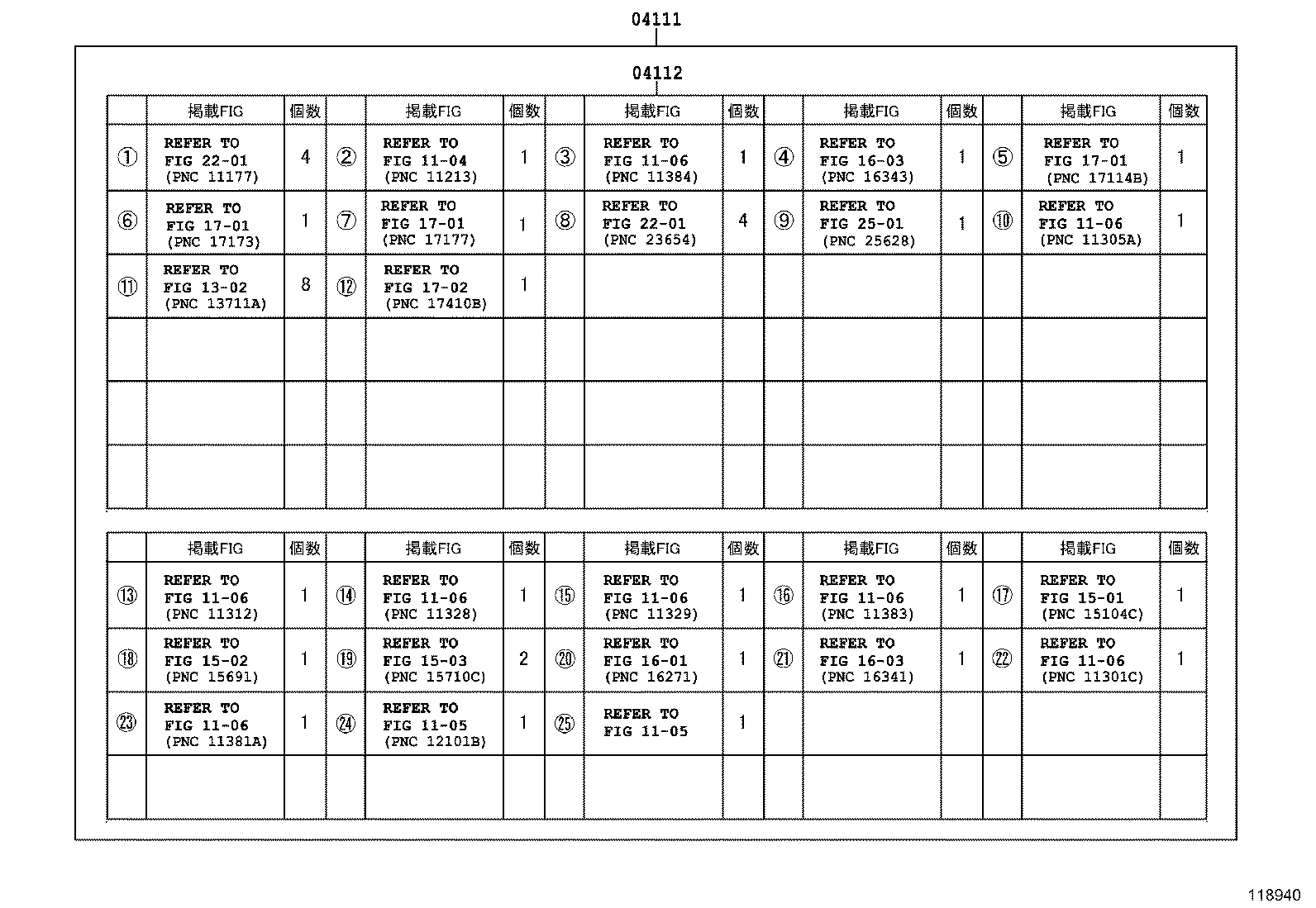

ILLUST NO. 2 OF 2(8908- )2L,3L

Click highlighted areas on diagram

diagram 04111 04112 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1601 1603 1603 1701 1701 1701 1702 2201 2201 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-54092

3L..LH107,109,113,115,117,119,123,125,129

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-54070

2L,3L..LH10#,11#,123,125,129,140

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
2501
