LH103V-SRMDS (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9808)

Click highlighted areas on diagram

2-ｽﾎﾟ-ｸ(ｳﾚﾀﾝ)

diagram 45100 45105 45105B 45125 45130 45142 45180 45201P 9015940208 9015950016 9016741001 9016840098 9331514012 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH10#,11#,LH10#,11#,12#,RZH10#,112,124

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26050

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S

 2
45125 - MARK, STEERING WHEEL PAD
45125-26121

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH10#,11#,LH10#,11#,12#,RZH10#,112,124

BLUISH GRAY,TRIM1#

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2602003

KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
45180-26020B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45180-26020B0

KZH10#,11#,12#,13#,LH10#,11#,12#

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90159-40208
90159-50016
90167-41001
90168-40098
93315-14012
93510-13010

(9308-9808)

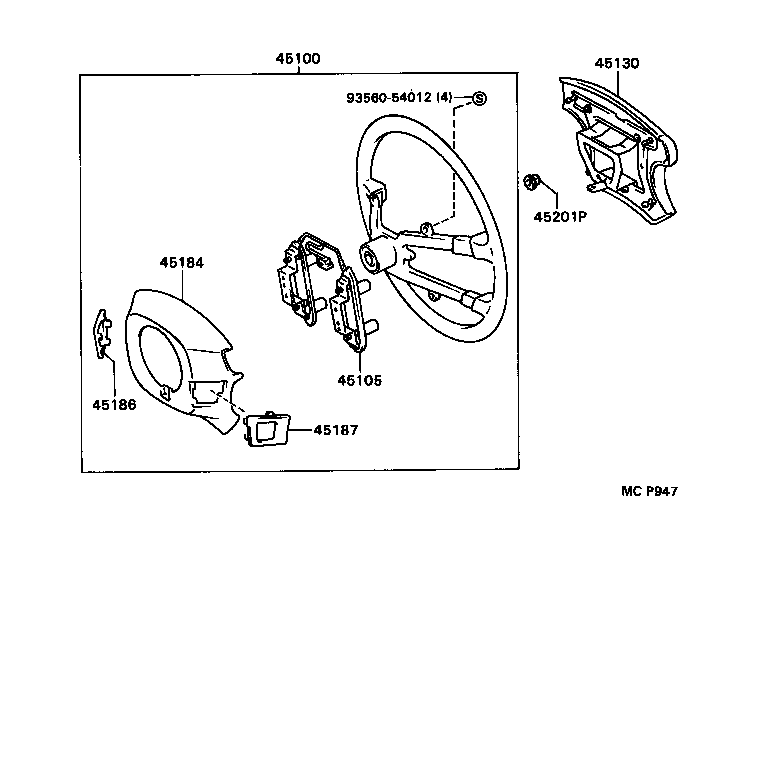

Click highlighted areas on diagram

4-ｽﾎﾟ-ｸ ﾅｼ(*80)

diagram 45100 45105 45130 45184 45186 45187 45201P 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH10#,11#,LH10#,11#,12#,RZH10#,112,124

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26050

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH10#,11#,LH10#,11#,12#,RZH10#,112,124

BLUISH GRAY,TRIM1#

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
93560-54012
