LH103V-RFMBS (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

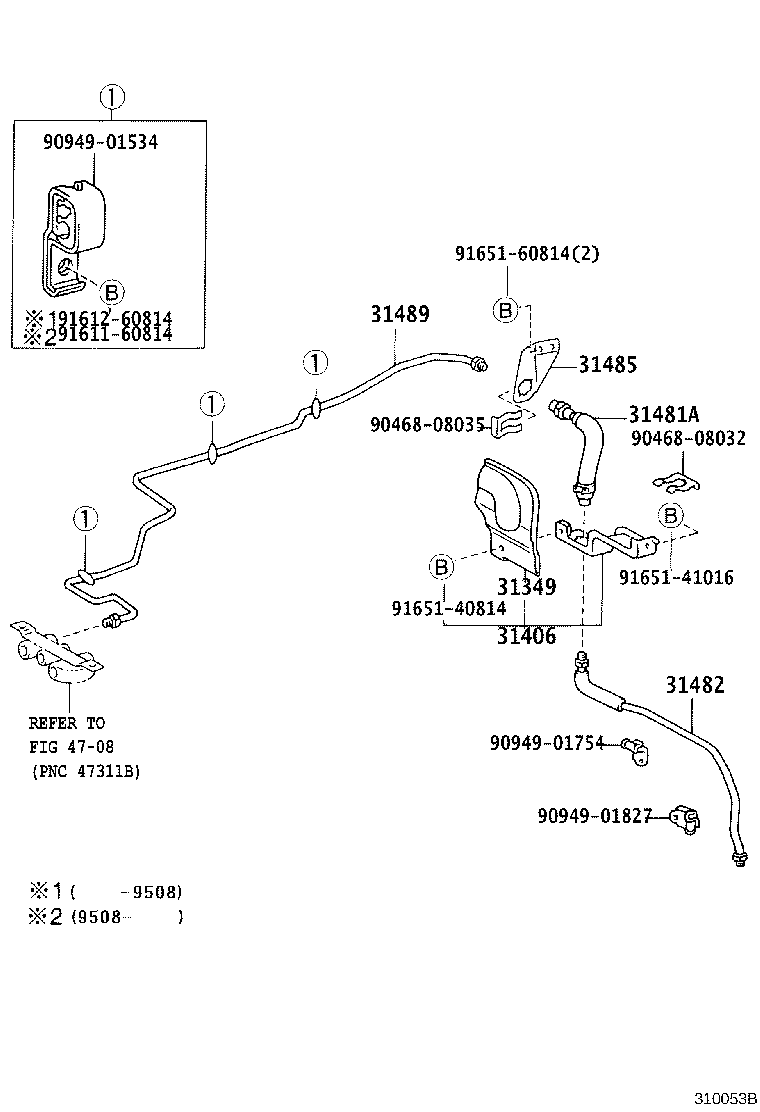

ILLUST NO. 2 OF 2(9308-9710)LH10#,11#,12#..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31485 31489 9046808032 9046808035 9094901534 9094901754 9094901827 9161160814 9161260814 9165140814 9165141016 9165160814
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26040

LH10#,11#,123,125,129,140..5F..DSL

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,123,125,129..5F..DSL

 1
31481A - HOSE, CLUTCH, NO.1
90931-01075

LH10#,11#,12#,140..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,123,125,129,140..5F..DSL

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,12#..5F

 1
31485-26080

LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200

LH10#,11#,12#,RZH100,102,112,124..5F

 1
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
31489-26200

LH10#,11#,12#..5F

 1
Common parts
90468-08032
90468-08035
90949-01534
90949-01754
90949-01827
91611-60814
91612-60814
91651-40814
91651-41016
91651-60814

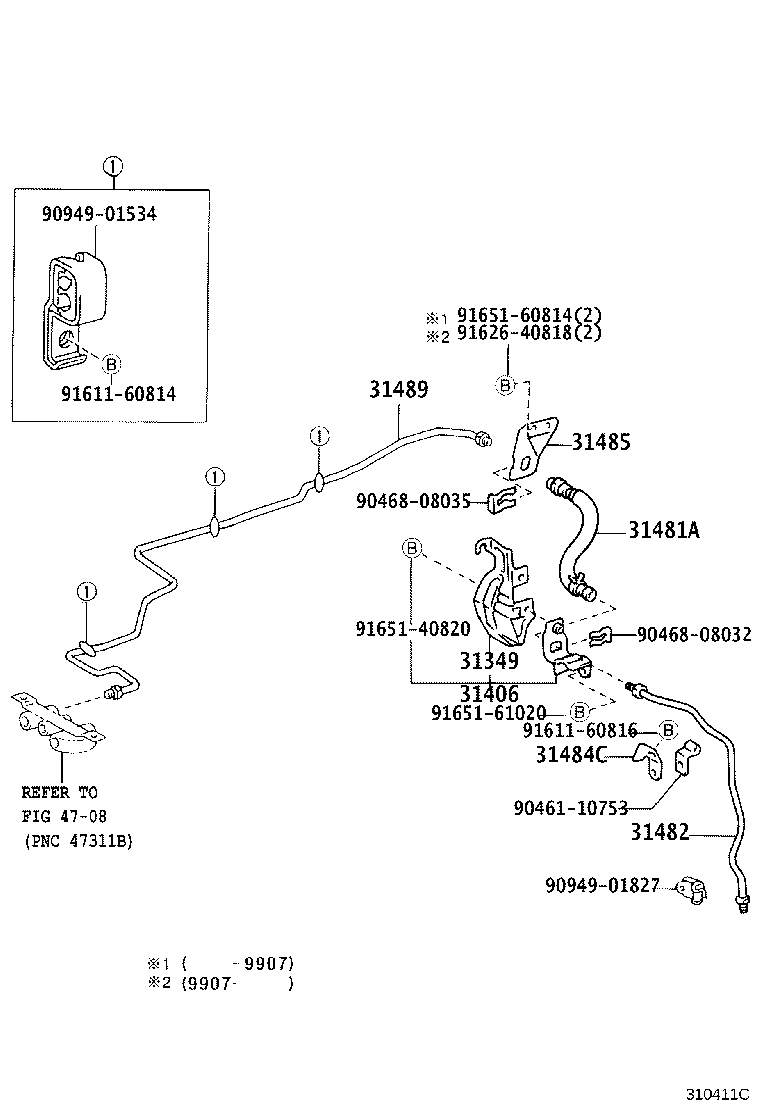

ILLUST NO. 2 OF 2(9710- )LH10#,11#,12#,16#,17#,18#..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31484C 31485 31489 9046110753 9046808032 9046808035 9094901534 9094901827 9161160814 9161160816 9162640818 9165140820 9165160814 9165161020
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26040

LH10#,11#,123,125,129,140..5F..DSL

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26050

LH10#,11#,123,125,129..5F..DSL

 1
31481A - HOSE, CLUTCH, NO.1
90931-01075

LH10#,11#,12#,140..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26170

LH10#,11#,123,125,129,140..5F..DSL

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,12#..5F

 1
31485-26080

LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200

LH10#,11#,12#,RZH100,102,112,124..5F

 1
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
31489-26200

LH10#,11#,12#..5F

 1
Common parts
90461-10753
90468-08032
90468-08035
90949-01534
90949-01827
91611-60814
91611-60816
91626-40818
91651-40820
91651-60814
91651-61020
