LH102V-SRPNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9608)

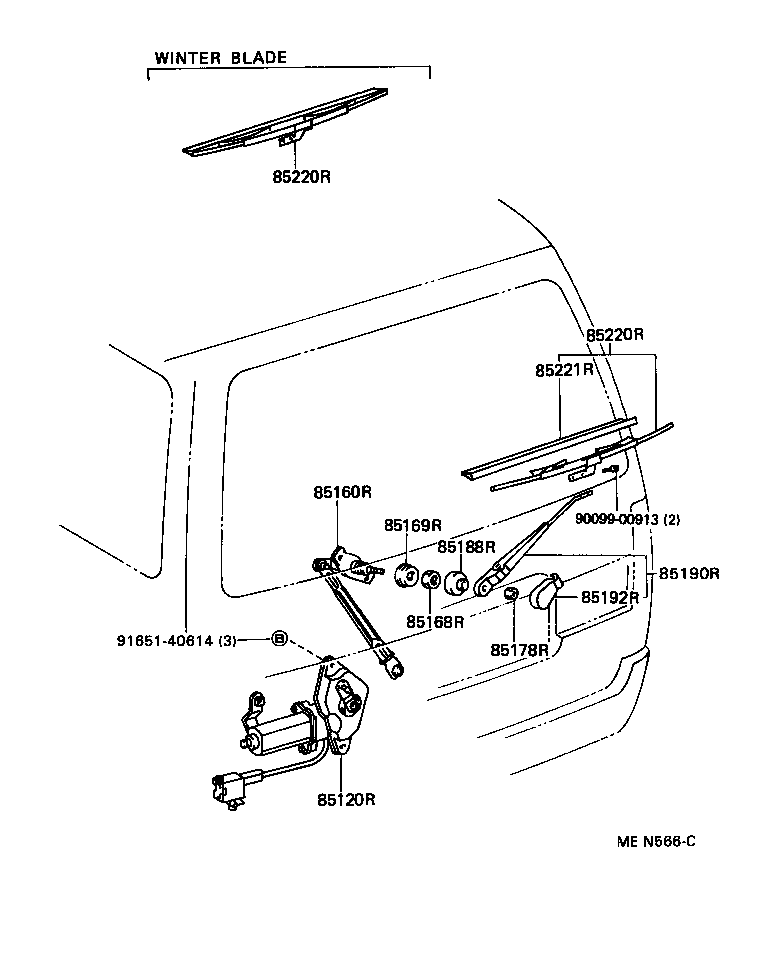

Click highlighted areas on diagram

diagram 85120R 85160R 85168R 85169R 85178R 85188R 85190R 85192R 85220R 85220R 85221R 9009900913 9165140614
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-95J00

KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#

 1
85160R - LINK ASSY, REAR WIPER
85160-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-95700

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06070

LH10#,11#,12#,RZH10#,11#,12#

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
85190R - ARM ASSY, REAR WIPER
85190-95J17

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
85192R - COVER, REAR WIPER ARM
85195-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
85220R - BLADE ASSY, REAR WIPER
85220-20380

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
85220-12620

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 1
85220R - BLADE ASSY, REAR WIPER
85220-20380

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
85220-12620

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 1
85221R - BLADE, REAR WIPER
85221-91C01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
Common parts
90099-00913
91651-40614
