LH102V-SRPNS (1989)
Toyota Hiace/Regiusace

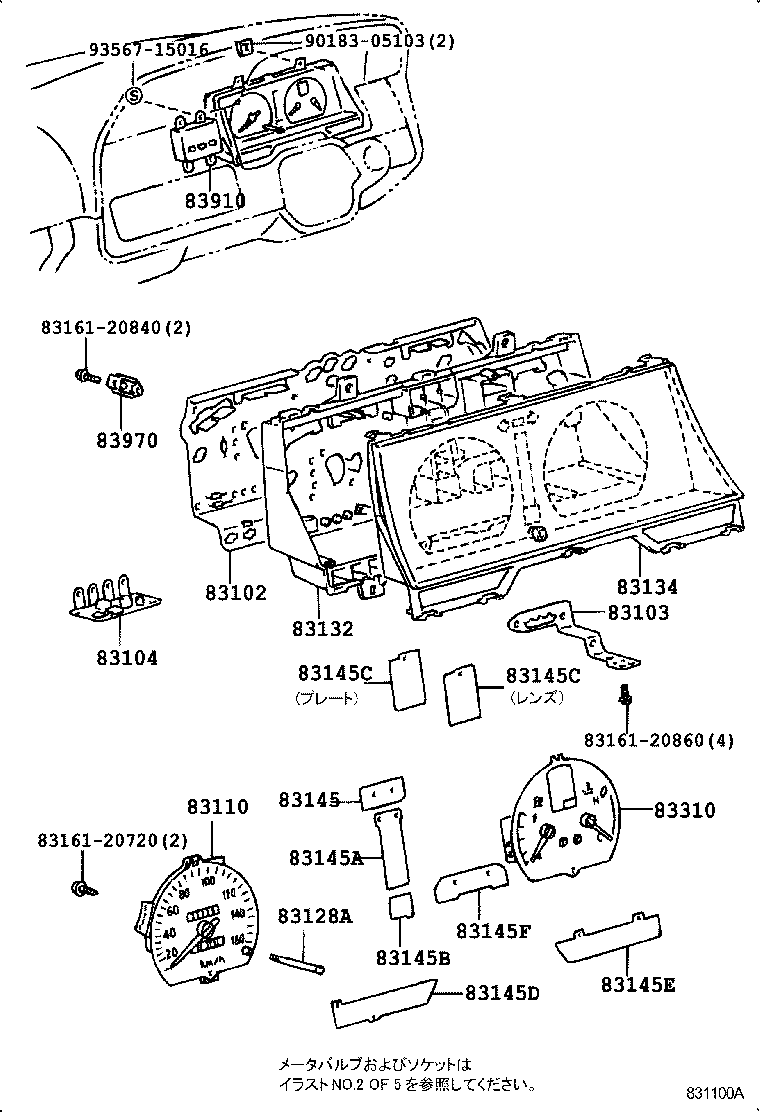

ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-95N38 |
LH102,113..4FC..(GL,SGL) |
1 | ||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102,119..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-26460 |
RZH100,102,112..4FC..(CTM,GL) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95N14 |
LH100,102,109,11#,123,125,129,140..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-95N29 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-26130 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83110-95J72 |
LH102,113,125..GL,SGL;LH102,113,123..4FC..DX;LH100,109,110,119,120,129..CTM,DX,GL,SGL YAZAKI |
1 | ||
| 83110-95J71 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83110-95J72 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26280 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26281 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26131 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89130 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N13 |
LH100,102,113,119,123,RZH100,102,112..(05S,06S,09S)..4FC |
1 | ||
| 83134-95N10 |
LH100,102,113,119,120,123,RZH100,102,112..4FC..(CTM,DX,GL,SGL) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95N30 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95N30 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N14 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 83145-26080 |
LH120..DX;LH113..4D..06S..4FC;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N19 |
LH107,119..5F;LH100,102,109,110,113,115,117,123,125,129,140..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N23 |
LH119..5F;LH100,102,109,110,113,115,117,123,125,129,140,RZH100,102,11#,12#..(CD,CTM,DX,GL,SGL,SW)..(CBR,DSL,EFI) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N08 |
LH119,RZH100..5F..(CTM,GL,SGL);LH100,102,109,113,125,RZH102,112..(CTM,GL,SGL)..(CBR,DSL) YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20720 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

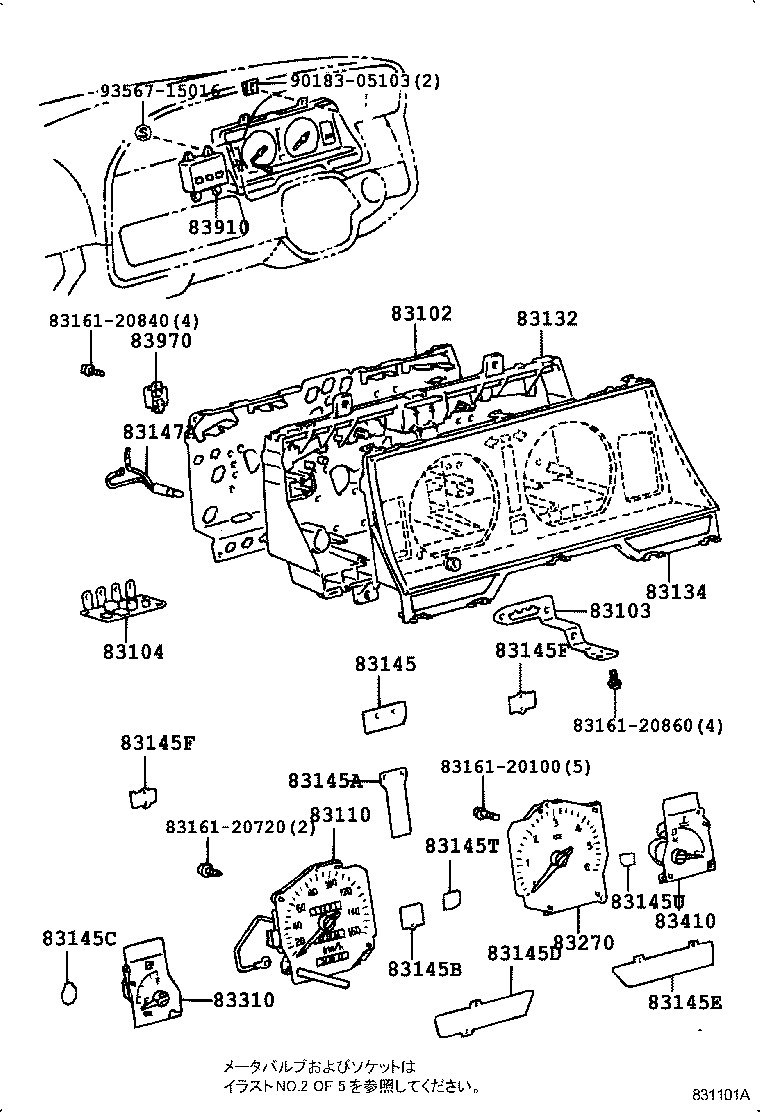

ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-95N38 |
LH102,113..4FC..(GL,SGL) |
1 | ||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102,119..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-26460 |
RZH100,102,112..4FC..(CTM,GL) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95N14 |
LH100,102,109,11#,123,125,129,140..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-95N29 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-26130 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83110-95J72 |
LH102,113,125..GL,SGL;LH102,113,123..4FC..DX;LH100,109,110,119,120,129..CTM,DX,GL,SGL YAZAKI |
1 | ||
| 83110-95J71 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83110-95J72 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26280 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26281 |
LH100,102,109,11#,12#,140..CD,CTM,DX,GL,SGL,SW YAZAKI |
1 | ||
| 83110-26131 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N13 |
LH100,102,113,119,123,RZH100,102,112..(05S,06S,09S)..4FC |
1 | ||
| 83134-95N10 |
LH100,102,113,119,120,123,RZH100,102,112..4FC..(CTM,DX,GL,SGL) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95N30 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
RZH124;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145-95N30 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾚﾝｽﾞ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH110,117,120,RZH124..DX;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83134-95N05 |
LH113..5D..GL;LH113..09S..GL;LH120,RZH124..CBR,TDE;LH113..V1..SRF..4D..(05S,06S);LH100,102,109,119,125,RZH100,102,112..CTM,GL,SGL ﾌﾟﾚ-ﾄ |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N14 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 83145-26080 |
LH120..DX;LH113..4D..06S..4FC;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N19 |
LH107,119..5F;LH100,102,109,110,113,115,117,123,125,129,140..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N23 |
LH119..5F;LH100,102,109,110,113,115,117,123,125,129,140,RZH100,102,11#,12#..(CD,CTM,DX,GL,SGL,SW)..(CBR,DSL,EFI) |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N23 |
LH119..5F;LH100,102,109,110,113,115,117,123,125,129,140,RZH100,102,11#,12#..(CD,CTM,DX,GL,SGL,SW)..(CBR,DSL,EFI) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N08 |
LH119,RZH100..5F..(CTM,GL,SGL);LH100,102,109,113,125,RZH102,112..(CTM,GL,SGL)..(CBR,DSL) YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20720 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

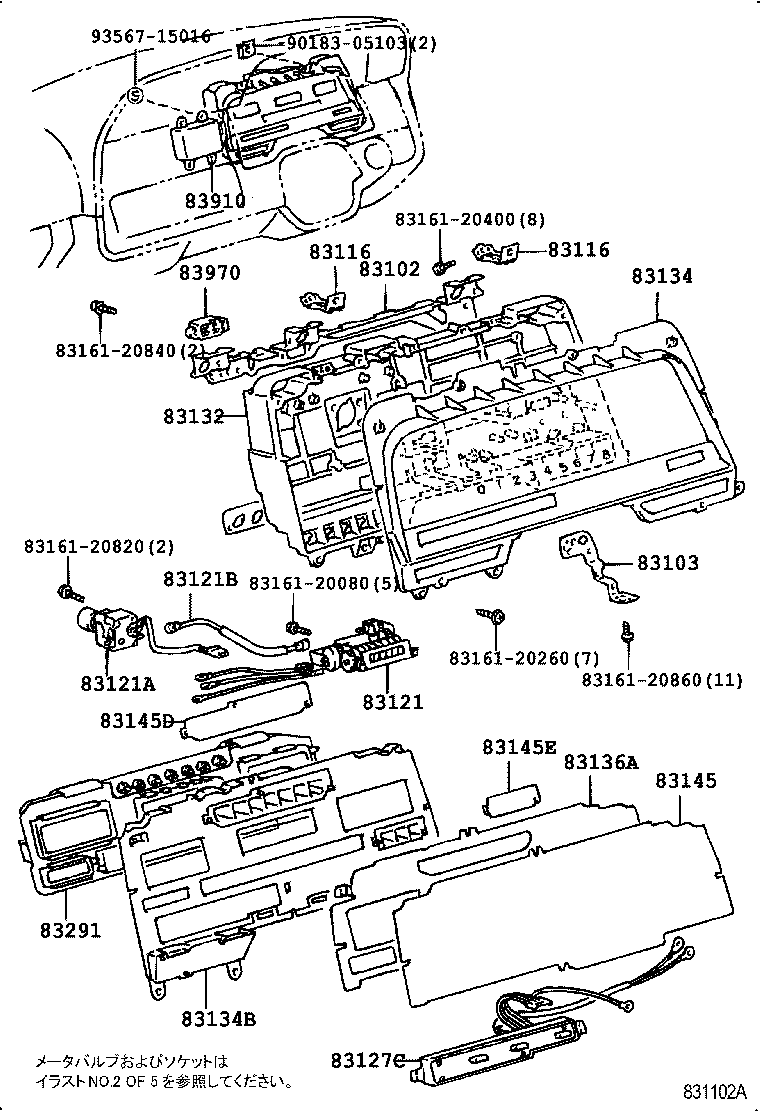

ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ﾃﾞｼﾞﾀﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-95N38 |
LH102,113..4FC..(GL,SGL) |
1 | ||
| 83247-26540 |
LH113..V1..(05S,06S)..4FC;LH100,102,119..4FC..(CTM,GL,SGL) |
1 | ||
| 83247-26460 |
RZH100,102,112..4FC..(CTM,GL) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-95N14 |
LH100,102,109,11#,123,125,129,140..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N13 |
LH100,102,113,119,123,RZH100,102,112..(05S,06S,09S)..4FC |
1 | ||
| 83134-95N10 |
LH100,102,113,119,120,123,RZH100,102,112..4FC..(CTM,DX,GL,SGL) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N14 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 83145-26080 |
LH120..DX;LH113..4D..06S..4FC;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL,SGL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N19 |
LH107,119..5F;LH100,102,109,110,113,115,117,123,125,129,140..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20260 | ||||
| 83161-20400 | ||||
| 83161-20820 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

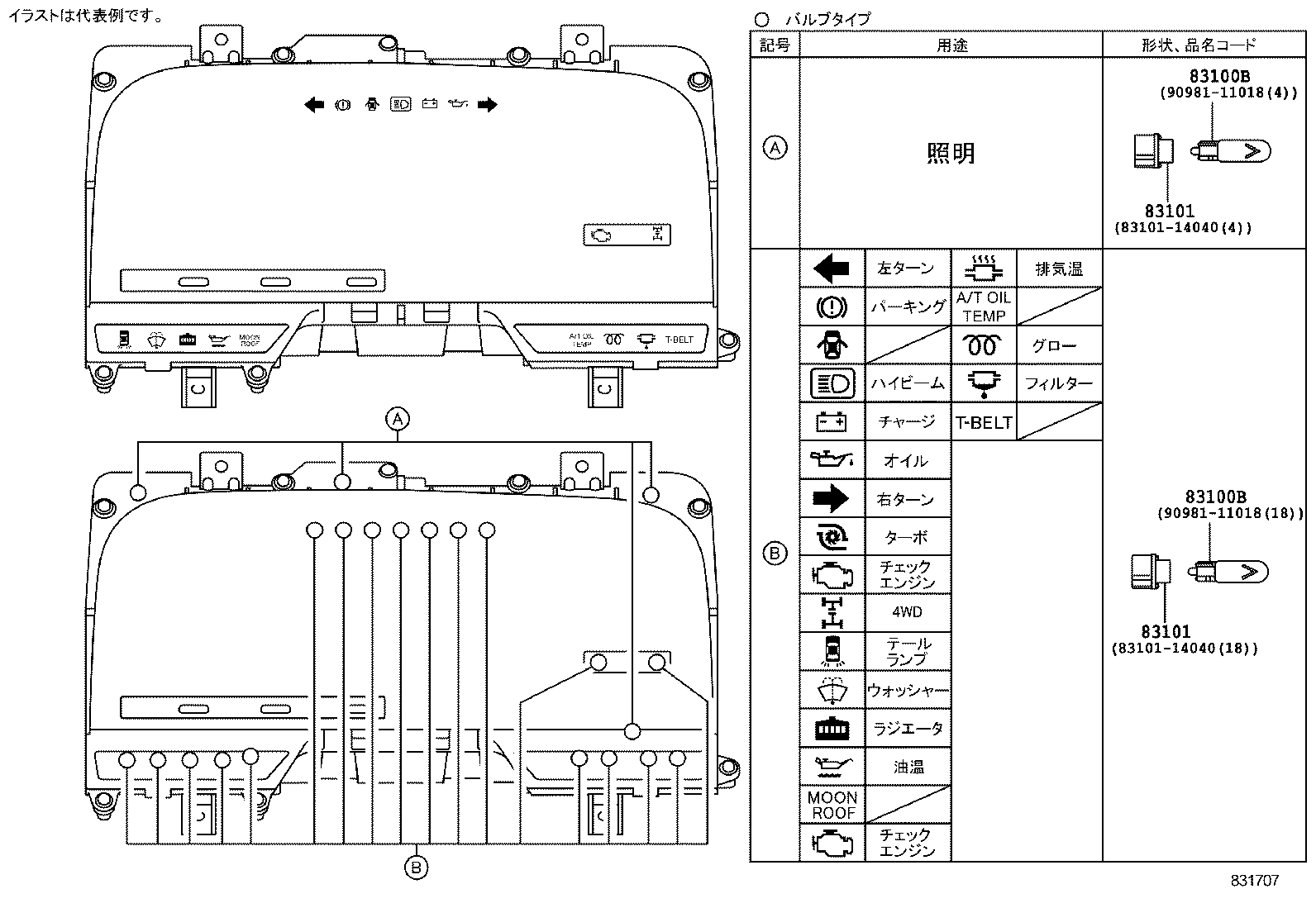

ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 3 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｽﾋﾟｰﾄﾞﾒｰﾀ ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J36 |
LH100,102,113,120,123..4FC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
LH119,RZH101;RZH100,102,112..4FC;LH100..4FC..SCMM..TD;LH107,109,117,129..5F |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
LH119,RZH101;RZH100,102,112..4FC;LH100..4FC..SCMM..TD;LH107,109,117,129..5F |
1 | ||
ILLUST NO. 5 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｽﾋﾟｰﾄﾞﾒｰﾀｹｰﾌﾞﾙ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-95J07 | ||||
| 83791-95J08 | ||||
| 83791-95J09 | ||||
| 83791-95J10 | ||||
| 83791-95J13 | ||||
| 83791-95J14 | ||||
| 83791-95J15 | ||||
| 83791-95J16 | ||||
| 90467-08069 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
