LH102V-SRPNS (1989)
Toyota Hiace/Regiusace
(8908-9308)

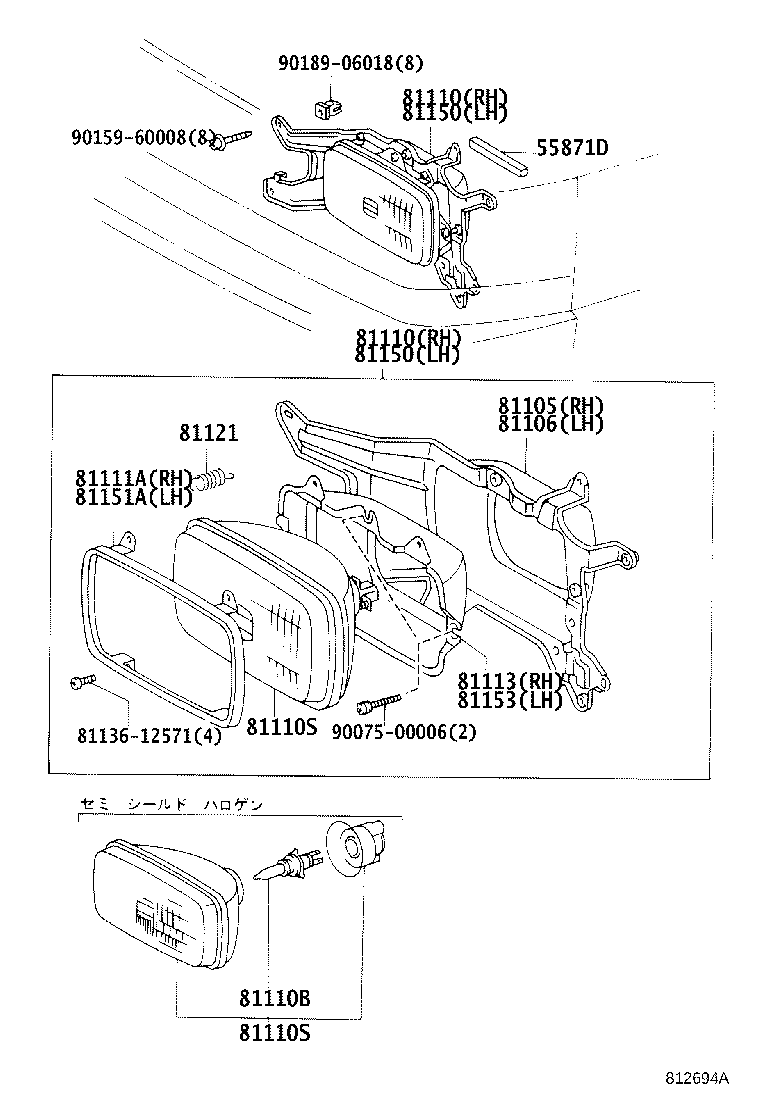

ｼｰﾙﾄﾞﾋﾞｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-95J35 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
LH102,109,113,119,125,RZH102,112..GL,SGL 12V 60/55W,*HAL *WH |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04027 |
LH102,109,113,119,125,RZH102,112..GL,SGL 12V 60/55W,*HWS |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04027 |
LH102,109,113,119,125,RZH102,112..GL,SGL 12V 60/55W,*HWS |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-16220 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16020 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-16220 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90075-00006 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||

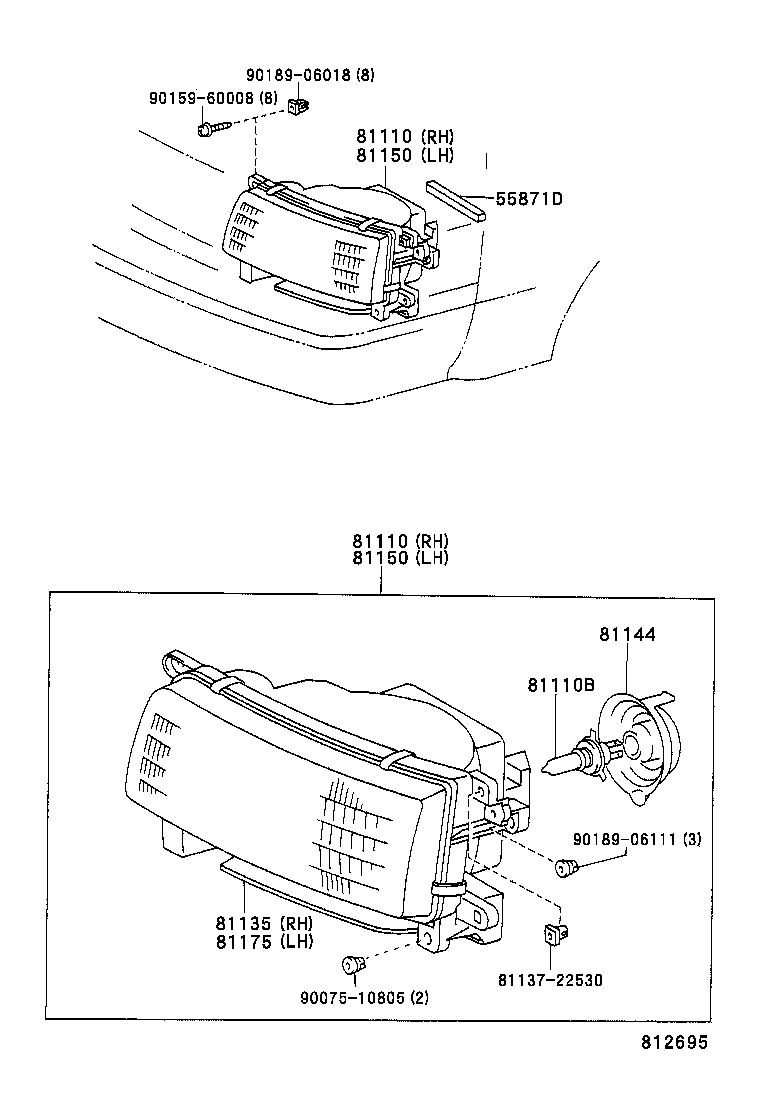

(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
LH102,109,113,119,125,RZH102,112..GL,SGL 12V 60/55W,*HAL *WH |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10805 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||

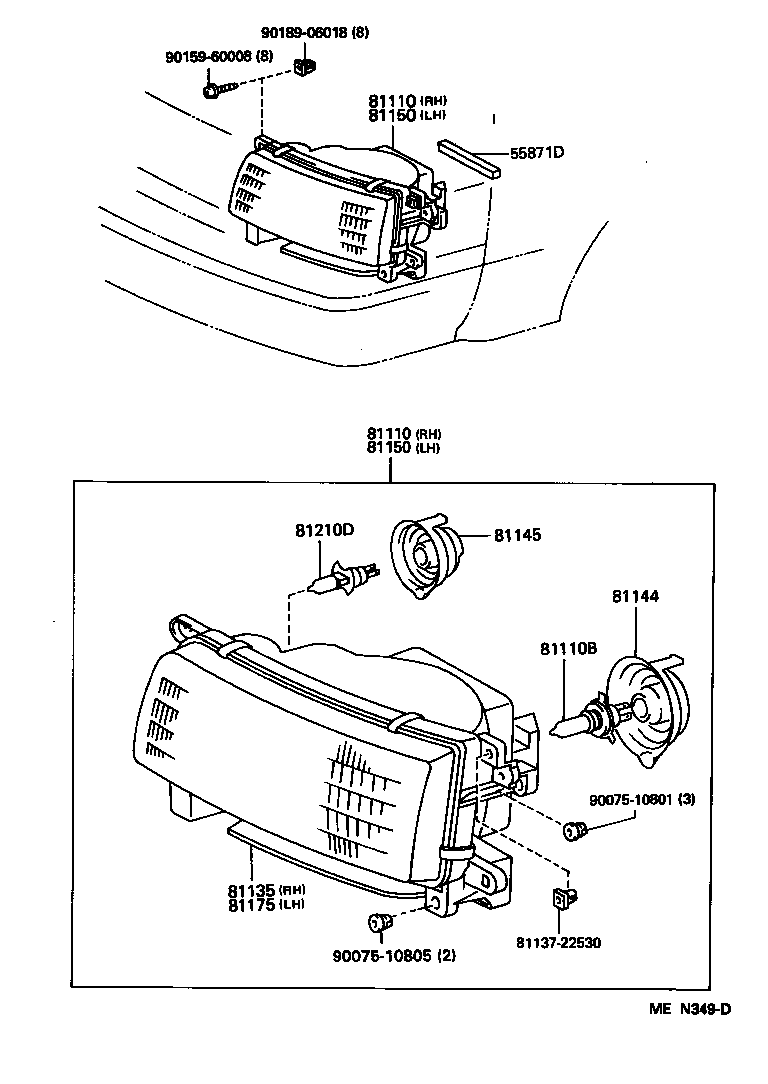

(8908-9308)
ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
LH102,109,113,119,125,RZH102,112..GL,SGL 12V 60/55W,*HAL *WH |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95J36 |
LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10801 | ||||
| 90075-10805 | ||||
| 90150-60008 | ||||
| 90189-06018 | ||||
